RAZER KAIRA X
MASTER GUIDE
FOR GAMERS. BY GAMERS .™
1
CONTENTS
1. WHAT’S INSIDE / WHAT’S NEEDED........................................................................................................2
2. LET’S GET YOU COVERED .......................................................................................................................4
3. TECHNICAL SPECIFICATIONS ..................................................................................................................5
4. USING YOUR RAZER KAIRA X..................................................................................................................6
5. SAFETY AND MAINTENANCE..................................................................................................................9
6. LEGALESE..............................................................................................................................................10
FOR GAMERS. BY GAMERS .™
2
1. WHAT’S INSIDE / WHAT’S NEEDED

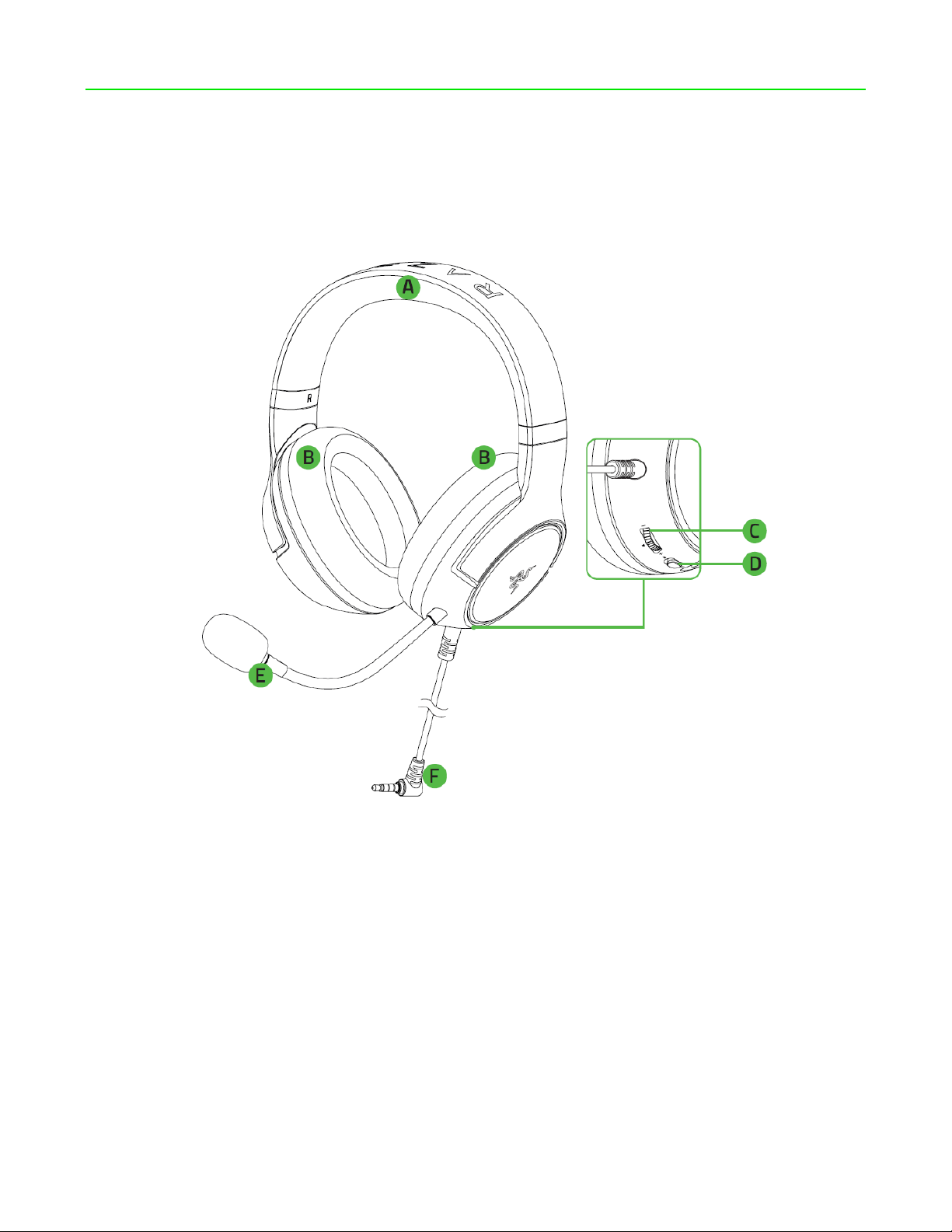

WHAT’S INSIDE
▪Razer Kaira X
A. Auto-adjusting headband
B. FlowKnit memory foam ear cushions
C. Volume wheel
D. Mic mute switch
E. Bendable Razer™ HyperClear cardioid mic
F. 3.5 mm audio + mic jack
▪Important Product Information Guide
FOR GAMERS. BY GAMERS .™
3
WHAT’S NEEDED
Audio usage
▪Devices with 3.5 mm audio port
Audio + microphone usage
▪Devices with 3.5 mm audio + mic combined port*
*Compatible with PC / Mac / Consoles.
FOR GAMERS. BY GAMERS .™
4
2. LET’S GET YOU COVERED
You’ve got a great device in your hands, complete with a 2-year limited warranty coverage. Now
maximize its potential and score exclusive Razer benefits by registering at razerid.razer.com
Got a question? Ask the Razer Support Team at support.razer.com
Your product’s
serial number
can be found
here.
FOR GAMERS. BY GAMERS .™
5
3. TECHNICAL SPECIFICATIONS
HEADPHONES
▪Frequency response: 20 Hz –20 kHz
▪Impedance: 32Ω
▪Sensitivity (@1 kHz): 96 dB SPL / mW
▪Drivers: 50 mm, with Neodymium magnets
▪Inner ear cup diameter: Width 45 mm / Length 65 mm
▪Oval ear cushions: Designed for full-ear coverage with heat-transfer fabric, perfect for long-
wearing comfort
▪Connection type: Direct to controller / PC via 3.5 mm connection
MICROPHONE
▪Frequency response: 100 Hz –10 kHz
▪Signal-to-noise ratio: ≥ 60 dB
▪Sensitivity (@1 kHz): -42 ± 3 dB
▪Pick-up pattern: Unidirectional
FOR GAMERS. BY GAMERS .™
6
4. USING YOUR RAZER KAIRA X

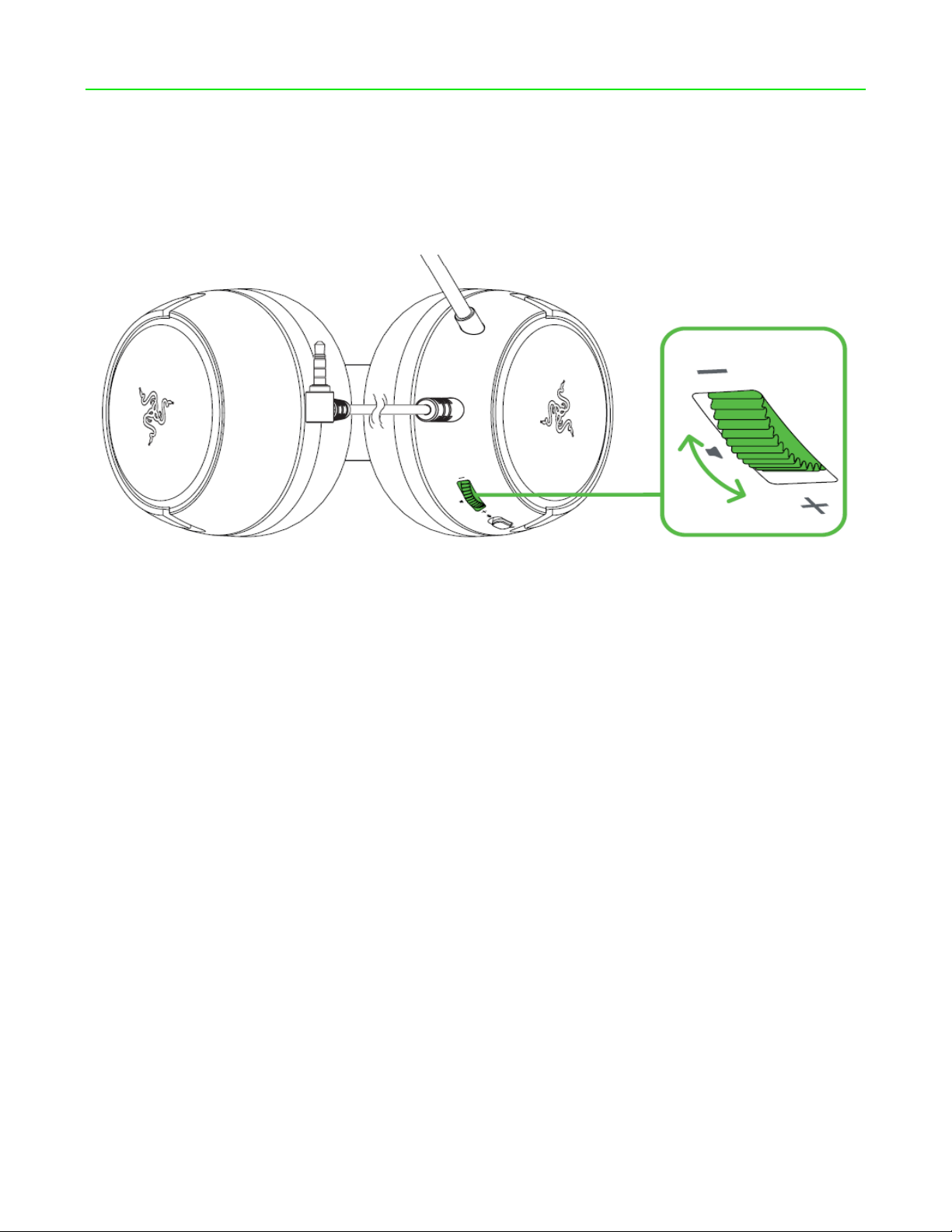

VOLUME WHEEL
Rotate the volume wheel to increase or decrease the volume.
RAZER™ HYPERCLEAR CARDIOID MICROPHONE
Bend the mic until it is parallel to your mouth. Make sure the mic diaphragm is in front and the air
vent is facing away from your mouth.
Increase volume
Decrease volume
FOR GAMERS. BY GAMERS .™
7
Slide the mic mute switch to mute or unmute the microphone.
EXTENDING YOUR HEADSET’S LIFESPAN
We recommend stretching the headset gently apart before placing them over your head to minimize
headband stress. However, please avoid overstretching the headset beyond its technical limits.
Air vent
Mic diaphragm
FOR GAMERS. BY GAMERS .™
8
ACTIVATE THE 7.1 SURROUND SOUND*
Experience accurate positional sound that’s specifically designed for games, movies, and music.
1. Download the 7.1 Surround Sound software from razer.com/7.1-surround-sound.
2. Register your product at razerid.razer.com/products to get your activation code sent to your
email.
*Only available on Windows® 10 64-bit
FOR GAMERS. BY GAMERS .™
9
5. SAFETY AND MAINTENANCE
SAFETY GUIDELINES
In order to achieve maximum safety while using your Razer Kaira X, we suggest that you adopt the
following guidelines:
Should you have trouble operating the device properly and troubleshooting does not work, unplug
the device and contact the Razer hotline or go to support.razer.com for assistance.
Do not take apart the device and do not attempt to operate it under abnormal current loads. Doing so
will void your warranty.
Keep the device away from liquid, humidity or moisture. Operate the device only within the specific
temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed this range, unplug
and/or switch off the device in order to let the temperature stabilize to an optimal level.
The device isolates external ambient sounds even at low volumes, resulting in lowered awareness of
your external surroundings. Please remove the device when engaging in any activities that requires
active awareness of your surroundings.
Listening to excessively loud volumes over extended periods of time can damage your hearing.
Furthermore, legislation of certain countries permits a maximum sound level of 86db to affect your
hearing for 8 hours a day. We therefore recommend that you reduce the volume to a comfortable
level when listening for prolonged periods of time. Please, take good care of your hearing.
