Raymarine Ray240 Manual de usuario

RAY 240 VHF

Radio Loudspeaker

FLUSH MOUNT

Template

Remove material

from shaded area only

Drill hole,

20 mm (4/5 in)

diameter in

4 positions

112 mm (4.4 in )

113 mm (4.45 in)

Surface mount template on reverse

Flush mount speaker template

How do I install the handset connector?.......

Step 1 Step 2

Step 3 Step 4

Use appropriate

drill bit for

pilot holes

Ensure flat edge is located to

left side for correct orientation

Note: Remove protective cover

from each side of gasket

25 mm hole saw No.4 x 3/8"screw

How do I install the cradle?.......

Step 1 Step 2 Step 3

Use appropriate drill

bit for pilot holes

No.8 x 3/4"screw (x2)

D7158-1

D7160-1

D7159-1

D7161-1

Step 1

Step 3

Step 2

Check

How do I install the transceiver?....

50mm

A 50 mm space must be left around the

unit to ensure adequate airflow

x4 Use appropriate

drill bit for

pilot holes

Vertical

Check

No.8 x 3/4"screw (x4)

Minimum 1.0 m (3 ft)

Keep the transceiver away from....

Pozi-drive

screwdriver

Power Drill Jigsaw

Pencil

Adhesive tape

20mm, 25mm and 86 mm

hole saws

5mm Drill

What do I need to fit it?....

Ray240 VHF Radio

Installation Guide

Whats in the box?.......

www.raymarine.com

RAY 240

User

Manual

Transceiver

Handset Handset

Cradle

Active

speaker

Gasket

set

Connector plate

Mounting

bracket

Dust

cover

Handbook

Quick reference

guide

Screw,

No.8 x 3/4"(x6)

Stud (x2) Thumb nut (x2)

Screw,

No.4 x 3/8"(x3)

Power/NMEA/Hailer cable

5 m extension cable

RAY 240

User Guide

VHFRadio with DSC

VesselName

MMSINumber

CallSign

DocumentNo:86088_1

D7162-1

D7164-1

D7163-1

D7165-1

Please recycle after use

Raymarine Limited

Robinson Way, Anchorage Park

Portsmouth, Hampshire

England PO3 5TD

Tel: + 44 (0)23 9269 3611

Fax: + 44 (0)23 9269 4642

www.raymarine.com

Raymarine Incorporated

22 Cotton Road, Unit D

Nashua, New Hampshire 03063 - 4219

USA

Tel: 603-881-5200

Fax: 603-864-4756

www.raymarine.com

Flush mount template on reverse

Surface mount speaker template

RAY 240 VHF

Radio Loudspeaker

SURFACE MOUNT

Template

Cut hole

86 mm (3.38 in)

diameter

Drill hole,

5 mm (3/16 in)

diameter in

2 positions

Remove material

from shaded areas only

30.1 mm (1.185 mm) 30 mm (1.18 mm)

47.68 mm (1.88 in) 42 mm (1.65 in)

D87015-1

RAY 240 VHF

Radio Loudspeaker

SURFACE MOUNT

Template

Cut hole

86 mm (3.38 in)

diameter

Drill hole,

5 mm (3/16 in)

diameter in

2 positions

Remove material

from shaded areas only

30.1 mm (1.185 in) 30 mm (1.18 in)

47.68 mm (1.88 in) 42 mm (1.65 in)

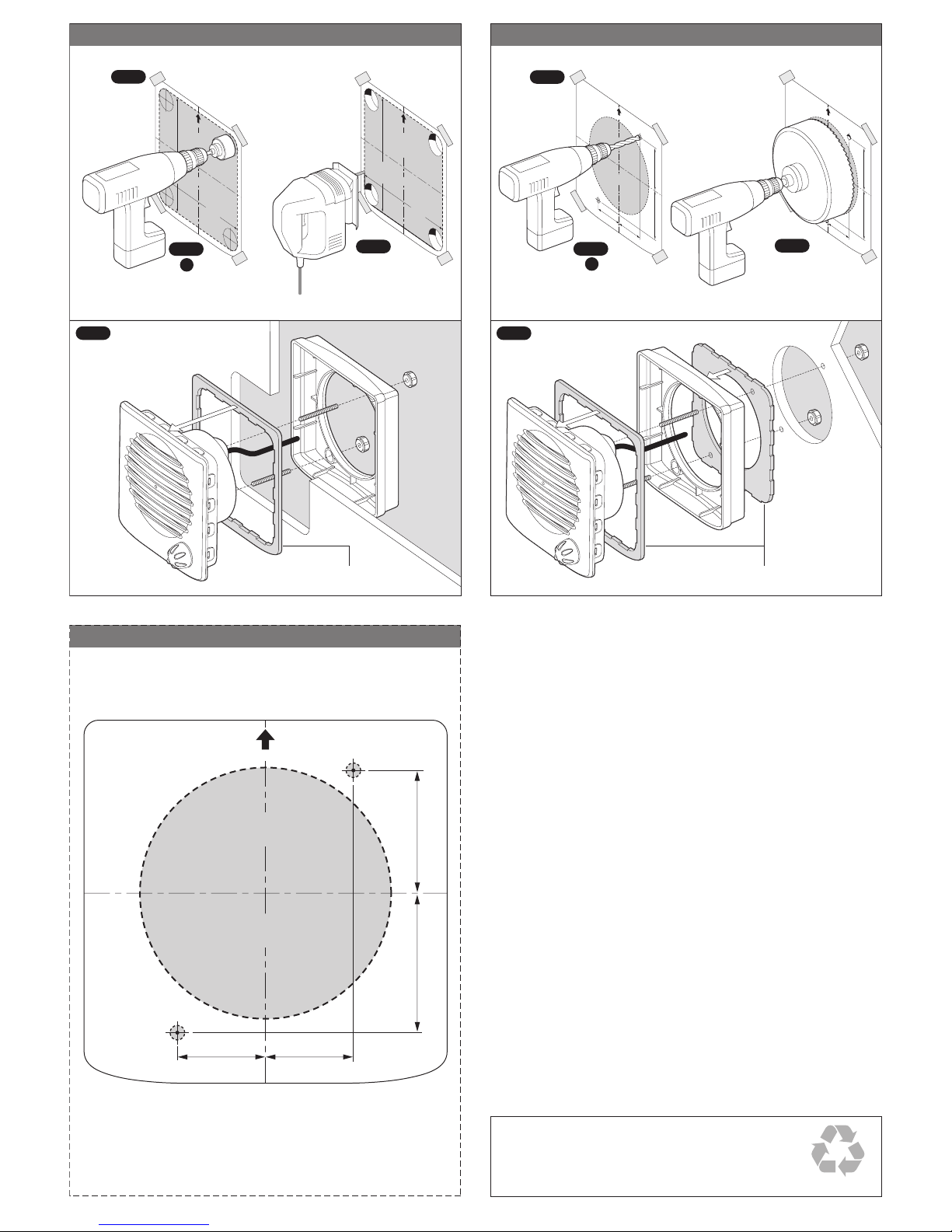

How do I surface mount the active speaker?....

RAY 240 VHF

Radio Loudspeaker

SURFACE MOUNT

Template

Cut hole

86 mm (3.38 in)

diameter

Drill hole,

5 mm (3/16 in)

diameter in

2 positions

Remove material

from shaded areas only

30.1 mm (1.185 in) 30 mm (1.18 in)

47.68 mm (1.88 in) 42 mm (1.65 in)

Step 1

Step 4

Step 2 Step 3

Note: Remove protective cover

from each side of gaskets

How do I flush mount the active speaker?....

RAY 240 VHF

Radio Loudspeaker

FLUSH MOUNT

Template

Remove material

from shaded area only

Drill hole,

20mm (4/5 in)

diameter in

4 positions

112 mm (4.4 in)

113 mm (4.45 in)

RAY 240 VHF

Radio Loudspeaker

FLUSH MOUNT

Template

Remove material

from shaded area only

Drill hole,

20 mm(4/5 in)

diameter in

4 positions

112 mm (4.4 in )

113mm(4.45 in)

Step 1

Step 2 Step 3

Step 4

Note: Remove protective cover

from each side of gasket
