Raven AccuBoom Manual de usuario
Parallel Installation Manual
AGCO Rogator 1254
Manual # 016-0171-011
1
CHAPTER
I
NTRODUCTION
Congratulations on your purchase of the Raven AccuBoom system! This
system is designed to provide worry free turn-on and turn-off of your
booms with respect to the as-applied coverage map. The following
instructions are designed to assist you in the proper installation of the
AccuBoom system. See the Viper Installation and Operators Manual for
instructions on setting up the software and using the AccuBoom system.
You will also need a valid AccuBoom Control Activation Key for your
Viper system in order to activate the AccuBoom system.
Components
Needed
• Parallel AccuBoom Control Node - P/N 063-0172-517
• Cable, Parallel AccuBoom, 1254 Rogator - P/N 115-0171-584
• AccuBoom Control Activation Key - P/N 077-0180-010
Important! All boom switches must remain in
the OFF position while AccuBoom control is in
operation!
AGCO 1254 Rogator Parallel AccuBoom Installation Manual
2
Notes:
Manual # 016-0171-011
3
CHAPTER
I
NSTALLATION
Use the following procedure to properly install an AccuBoom system on a
1254 Series Rogator sprayer using a Raven console connected to a Raven
Viper:

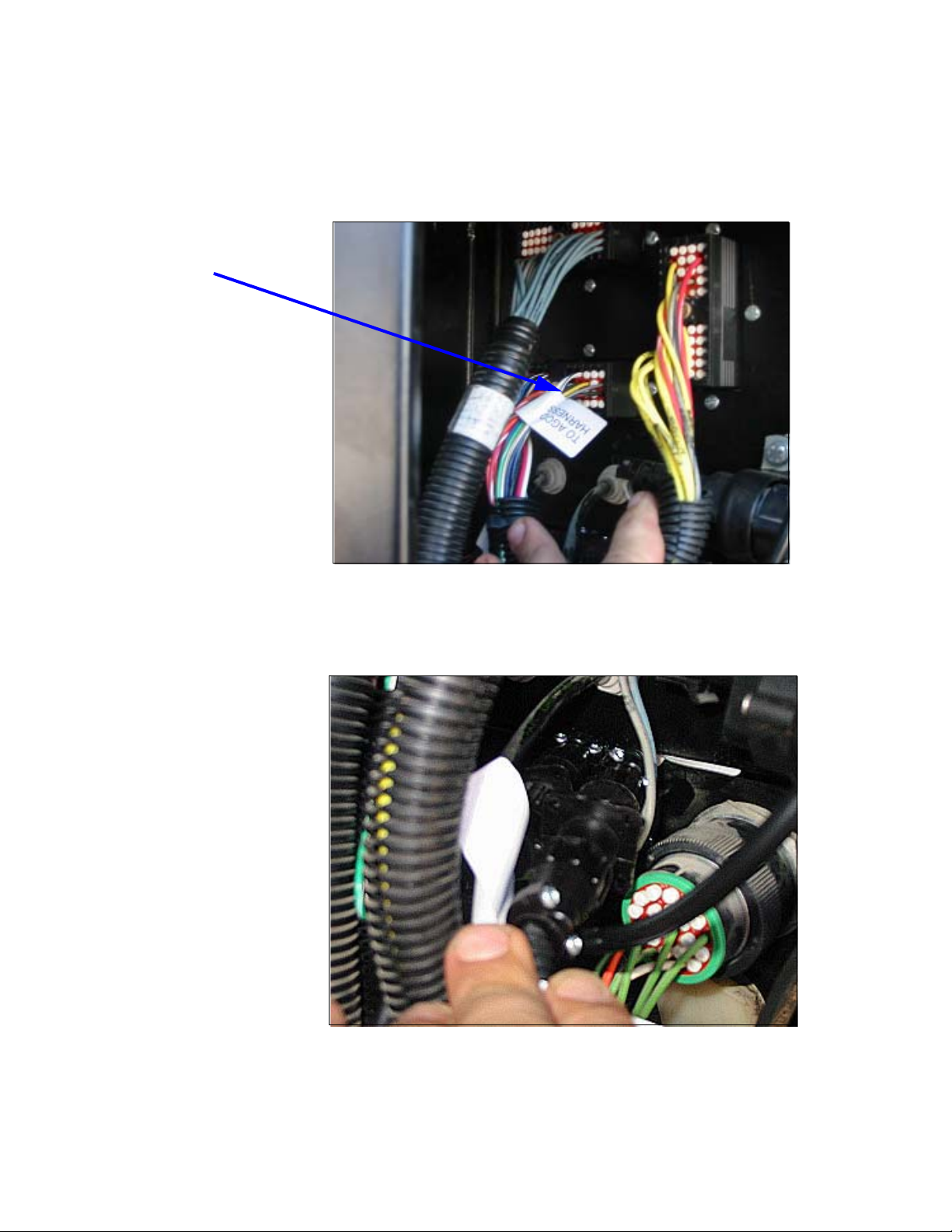

1. Locate the boom control cable located inside the protective cover on
the right rear corner of the cab. This will be a rectangular Deutsche
connector with yellow and blue wires.
AGCO 1254 Rogator Parallel AccuBoom Installation Manual
4
2. Connect the AccuBoom cable to the sprayer boom harness.
a. Unplug the Rogator boom cable from the bulkhead connector.
b. Tee in the AccuBoom cable (P/N 115-0171-584) between the
Rogator boom cable bulkhead connector and the boom harness cable.
3. Remove the bolts holding the upper bulkhead plate that the Deutsche
connectors are mounted on. Slide the cables through a gap that is
already present between the upper and lower plate.
4. Mount the Parallel AccuBoom node.
a. Locate the mounting standoffs in the corner bulkhead compartment.
b. Mount the Parallel AccuBoom node to a mounting plate.
AccuBoom
Connector
Manual # 016-0171-011
5
c. Mount the AccuBoom and plate to the mounting standoffs.
5. Connect the AccuBoom cable (P/N 115-0171-584) to the AccuBoom
node.
a. Connect the rectangular connectors from the AccuBoom
cable (P/N 115-0171-584) to the Parallel AccuBoom node
(P/N 063-0172-316)
AGCO 1254 Rogator Parallel AccuBoom Installation Manual
6
6. Remove the side access panel located on the lower right side of the
operator cab.
7. Connect power and ground.
a. Wire the red power wire to the master shutoff switch.
b. Connect the white ground wire directly to the battery ground.
8. Connect the 15 pin D-sub connector to the Auxiliary connector on the
Viper interface cable (P/N 115-0171-256).
9. The Parallel AccuBoom hardware installation is now complete. Install
the Activation Key on Viper and the AccuBoom system is ready for
operation.
RAVEN INDUSTRIES
LIMITED WARRANTY
WHAT IS COVERED?
This warranty covers all defects in workmanship or materials in your Raven
Flow Control Product under normal use, maintenance, and service.
HOW LONG IS THE COVERAGE PERIOD?
This warranty coverage runs for 12 months from the purchase date of your
Raven Flow Control Product. This warranty coverage applies only to the
original owner and is not transferrable.
HOW CAN YOU GET SERVICE?
Bring the defective part, and proof of date of purchase, to your local dealer.
Ifyourdealeragreeswiththewarrantyclaim,hewillsendthepart,andproof
of purchase to his distributor or to Raven for final approval.
WHAT WILL RAVEN INDUSTRIES DO?
Whenour inspectionprovesthe warrantyclaim,we will,atour option,repair
or replace the defective part and pay for return freight.
WHAT DOES THIS WARRANTY NOT COVER?
Raven Industries will not assume any expense or liability for repairs made
outsideourplantwithoutwrittenconsent. Wearenotresponsiblefordamage
toanyassociatedequipmentorproductandwillnotbeliableforlossofprofit
orotherspecialdamages. Theobligationofthiswarrantyisinlieuofallother
warranties,expressedorimplied,andnopersonisauthorizedtoassumefor
usany liability. Damagescausedby normalwearandtear,mis-use, abuse,
neglect,accident,orimproperinstallation andmaintenance arenot covered
by this warranty.
Raven Industries Toll Free 800-243-5435
Flow Controls Division Fax 605-331-0426
P.O. Box 5107 www.ravenprecision.com
Sioux Falls, SD 57117-5107 fcdinfo@ravenind.com
AGCO Rogator 1254 Parallel AccuBoom Installation Manual (P/N 016-0171-011) Rev A 09/05
