Radio Shack 4-in-One Smart Light-Up Remote Control Manual de usuario

Cat. No. 15-1993

OWNER’S MANUAL

4-in-One Smart Light-Up

Remote Control

Please read before using this equipment.

15-1993.fm Page 1 Wednesday, October 20, 1999 12:03 PM

FEATURES

Your RadioShack 4-in-One Smart Light-Up Re-

mote Control is a pre-programmed universal

learning remote. It is both pre-programmed

with the most commonly used commands, and

equipped with "smart technology" that lets you

customize your remote to meet your home en-

tertainment needs.

Its lighted keypad lets you easily see the re-

mote's buttons in a dark room. When you turn

on this feature, pressing any button lights the

entire keypad.

This manual includes a list of many manufac-

turers' 4-digit codes for your TVs, VCRs, cable

converters, CD players, and more.

Your remote control's features include:

Powerful Infrared Beam — lets you operate

your remote-controlled devices from a greater

distance than many of the original remote con-

trols.

Large, Easy-to-Use Keypad — with buttons in

the ideal positions for easy operation.

Handy Reference Label — provides a conve-

nient place for you to write down the manufac-

turers' codes for your devices.

Toll Free Support — brings expert help for

your remote control directly to you when you

call 1-888-284-8735.

Note: You need four AAA batteries (not sup-

plied) to power your 4-in-One Smart Light-Up

Remote Control.

RadioShack is a registered trademark used by

Tandy Corporation

15-1993.fm Page 2 Wednesday, October 20, 1999 12:03 PM

CONTENTS

Introduction ................................................ 4

Preparation ................................................. 5

Installing Batteries .................................. 5

Device Types .......................................... 6

Setting Up Your Remote Control ............ 6

To Operate Your TV/VCR Combination .. 7

Operation .................................................... 8

Using the Smart Technology .................. 8

Deleting Learned Functions from Smart

Keys ........................................................... 10

Converting Device Keys ....................... 10

Punch-Through .................................... 11

Turning Punch-Through Off /On .... 11

Favorite Channel Scan ......................... 12

Clearing Favorite Channel Scan ... 13

Using the Light ..................................... 13

If You Have Problems .............................. 14

Manual Code Search ........................... 14

Determining the 4-Digit Code ....... 15

Troubleshooting .................................... 16

Manufacturer Codes ................................ 17

Cable Converters ................................. 17

CD Players ........................................... 19

Home Automation ................................ 22

Laser Disc Players ............................... 22

Video Accessories ............................... 22

Satellite Receivers ............................... 23

Televisions ............................................ 23

VCRs .................................................... 29

TV/VCR Combinations ......................... 34

Care ........................................................... 36

Specifications .......................................... 37

15-1993.fm Page 3 Wednesday, October 20, 1999 12:03 PM

INTRODUCTION

Your RadioShack 4-in-One Smart Light-Up

was designed to control the most commonly

used functions on your TV, VCR, TV/VCR com-

bination, cable converter, and CD player. It

might not be able to duplicate some of your

original remote control's seldom-used func-

tions.

When you set up the remote control, its com-

mand keys work like the keys on your original

remote controls. For example, the 4-in-One's

POWER key works like a POWER ON/OFF key

on your original remote control.

Note: To record, you must press REC .

twice. This helps avoid accidentally recording

over tapes.

Key Function

PUsed in setting up your

devices

Used to light the keypad

POWER, VOL +, VOL –,

CH +, CH –, LAST,

MUTE, digit keys, TV/

VIDEO, ENTER

Operate the same as the

corresponding keys on

your original remote con-

trol

VCR, CBL, TV, AUX Used when you set up the

remote control to replace

your original remote con-

trols. Also used during

normal operation to tell

the remote control which

device you want to control

REW , PLAY ,

FFWD , REC ,

STOP , PAUSE

Control VCR functions

FAV/SCAN Can be programmed to

allow immediate access

to your 10 favorite chan-

nels, or left unpro-

grammed to scan all

channels

15-1993.fm Page 4 Wednesday, October 20, 1999 12:03 PM

PREPARATION

INSTALLING BATTERIES

Your remote control requires four AAA batter-

ies (not supplied) for power. For the best per-

formance and longest life, we recommend

RadioShack alkaline batteries.

Cautions:

• Use only fresh batteries of the required

size and recommended type.

• Do not mix old and new batteries or differ-

ent types of batteries.

• Do not press any of the remote control's

keys while installing batteries.

Note: You do not need to reprogram your re-

mote control after removing the batteries, be-

cause no stored information is lost during

battery replacement.

1. Press the battery compartment cover's tab

and lift off the cover.

2. Place the batteries in the compartment as

indicated by the polarity symbols (+ and –)

marked inside.

3. Replace the cover.

When the remote control's range decreases or

it stops operating properly, replace the batter-

ies.

Caution: Always remove old or weak batteries.

Batteries can leak chemicals that can destroy

electronic parts.

Warning: Dispose of old batteries promptly

and properly. Do not burn or bury them.

Note: Do not place objects on top of the re-

mote control after you have installed the batter-

15-1993.fm Page 5 Wednesday, October 20, 1999 12:03 PM

ies. This can press keys for an extended period

of time and reduce the battery life.

DEVICE TYPES

You can use the remote control's device keys

to control the following types of devices:

TV — TVs

VCR — VCRs and TV/VCR combinations

CBL — Cable converters, satellite systems

AUX — CD Players, Home Automation

SETTING UP YOUR REMOTE

CONTROL

1. Refer to “Manufacturer Codes” on Page 17

and write down the codes for your brand of

device on the 4-in-One’s label.

Note: Some manufacturers have several

codes listed. Try each until you find the

right one. See “If You Have Problems” on

Page 14 if you cannot find the correct

code.

2. Press the device key for the type of remote

you are replacing (TV, VCR, CBL, or AUX).

The red light blinks.

3. Hold down Puntil the red light blinks twice,

then enter the 4-digit manufacturer's code.

For example, to replace a Panasonic TV's

remote control (manufacturer's code

0051), press TV, hold down Puntil the red

light blinks twice, then press 0 0 5 1.

When the red light blinks twice, the remote

control has accepted the code.

Note: If the code you entered is invalid,

the red light blinks.

15-1993.fm Page 6 Wednesday, October 20, 1999 12:03 PM

4. Point the remote control at your device and

press POWER. Your device should turn off

(or on, if it was off).

If the remote does not operate your device,

try the other codes listed in “Manufacturer

Codes” on Page 17 for your brand of TV,

VCR, cable converter, or CD player.

5. Repeat Steps 2–4 for additional devices.

TO OPERATE YOUR TV/VCR

COMBINATION

1. Locate the codes for your TV/VCR combi-

nation in “TV/VCR Combinations” on

Page 34 and write them on the 4-in-One’s

label.

2. Press VCR. The red light blinks.

3. Hold down Puntil the red light blinks twice,

then enter the 4-digit manufacturer's code.

When the red light blinks twice, the remote

control has accepted the code.

Note: If the code you entered is invalid,

the red light blinks.

4. Point the remote control at your TV/VCR

combination and press POWER. Your

device should turn off (or on, if it was off).

If the remote does not operate your device,

try the other codes you wrote down in Step

Note: Some TV/VCR combinations require

a second code to control volume. If you

cannot control the volume, use the TV

code listed in “TV/VCR Combinations” on

Page 34.

15-1993.fm Page 7 Wednesday, October 20, 1999 12:03 PM

OPERATION

1. Press the device key for the device you

want to control.

2. Point the remote control toward the device

you want to control, then press the desired

command keys.

3. Repeat Steps 1 and 2 for all other devices

you want to operate.

Note: The command keys on the remote

control work the same as the keys on the

original remote control; however, the label-

ing might differ slightly.

4. To turn off the last device you selected,

press POWER. To turn off other devices,

press the device key for the device you

want to turn off, then press POWER.

USING THE SMART

TECHNOLOGY

Your RadioShack 4-in-One Smart Light-Up Re-

mote Control can “learn” up to 16 features from

your original remote control using Smart Tech-

nology. Its four smart keys (1s, 2s, 3s, and 4s)

can be programmed to perform functions from

your original remote that are not already avail-

able on your 4-in-One Smart Light-Up.

Example: Your original remote may have a

button called MENU. Unfortunately, the 4-in-

one Smart Light-Up remote does not include

this feature. But with Smart Technology, you

can program one of the four smart keys to per-

form the functions of your original remote’s

MENU key.

15-1993.fm Page 8 Wednesday, October 20, 1999 12:03 PM

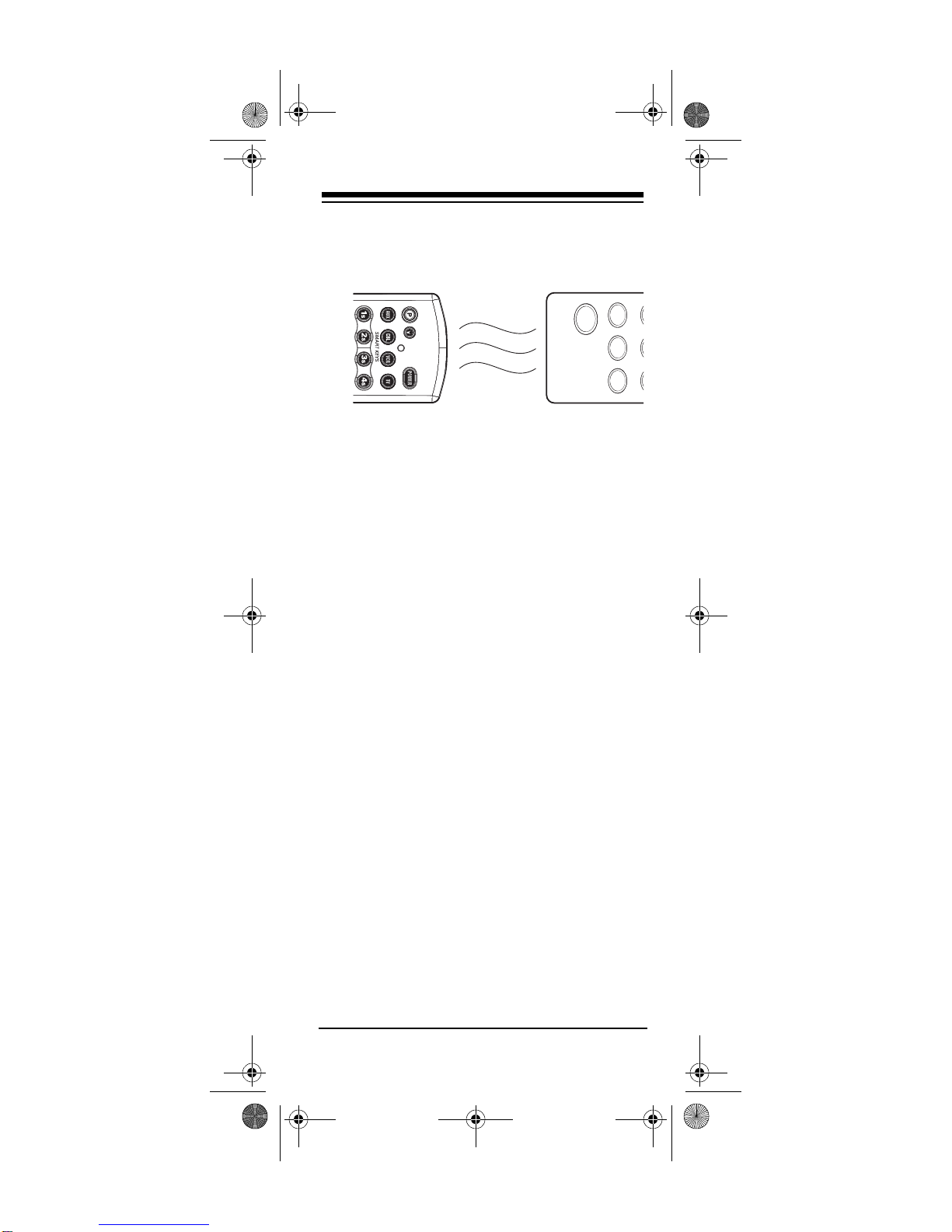

1. Place your original remote control nose-to-

nose with the RadioShack Smart Light-Up

Remote Control.

2. Hold down Puntil the red light blinks twice,

then press 9 7 5. The red light blinks twice

again.

3. Press the device key (TV, VCR, CBL, or

AUX) for the mode where you want the

function to reside.

Note: You can program each smart key for

a different function in each of the four

modes. For example, 1s might serve as a

MENU key in TV mode and a TRACKING

key in VCR mode.

4. Press one of the smart keys. The red light

blinks rapidly.

5. Hold down the key that you want to copy

on your original remote until the red light

on the 4-in-One Smart Light-Up blinks

twice.

6. Hold down Puntil the red light blinks twice.

7. Press the smart key you programmed. The

key should control the same function as

the key that you copied from your original

remote.

8. Repeat Steps 1–7 to program other smart

keys.

15-1993.fm Page 9 Wednesday, October 20, 1999 12:03 PM

DELETING LEARNED

FUNCTIONS FROM SMART

KEYS

You can delete learned functions from the

smart keys (1s, 2s, 3s, and 4s) to make room for

other functions.

1. Hold down Puntil the red light blinks twice.

2. Press 9 7 6. The red light blinks twice.

3. Press the device key (TV, VCR, CBL, or

AUX) where the learned function resides.

4. Press the smart key you programmed with

the function twice to delete the learned

function. The red light blinks twice.

CONVERTING DEVICE KEYS

You can use the 4-in-One Smart Light-Up to

operate a second TV or VCR (or other compo-

nents) for a total of up to four devices. To do

this, you must first convert an unused device

key (TV, VCR, CBL, AUX) to operate each addi-

tional device. For example, to convert AUX to

operate a second TV:

1. Hold down Puntil the red light blinks twice.

2. Press 9 9 2. The red light blinks twice.

3. Press TV.

4. Press AUX. The red light blinks twice.

5. Program the converted device key (AUX)

with the code for the second TV. (See

“Setting Up Your Remote Control” on

Page 6.)

Repeat these steps for each key you want to

convert. To convert a key back to its original

15-1993.fm Page 10 Wednesday, October 20, 1999 12:03 PM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Control remoto universal de Radio Shack

Radio Shack

Radio Shack 15-2130 Manual de usuario

Radio Shack

Radio Shack 15-2107 Manual de usuario

Radio Shack

Radio Shack ITZA 2 Manual de usuario

Radio Shack

Radio Shack Easy Remote Manual de usuario

Radio Shack

Radio Shack 8-IN-ONE REMOTE Manual de usuario

Radio Shack

Radio Shack 3-in-One Pocket Remote Manual de usuario

Radio Shack

Radio Shack 15-2127 Manual de usuario

Radio Shack

Radio Shack Wireless Remote Control System Manual de usuario

Radio Shack

Radio Shack Remote Control Manual de usuario

Radio Shack

Radio Shack Plug 'n Power 61-2677C Manual de usuario

Radio Shack

Radio Shack 15-1981 Manual de usuario

Radio Shack

Radio Shack 15-100 Manual de usuario

Radio Shack

Radio Shack Kameleon 4-in-One Manual de usuario

Radio Shack

Radio Shack Univer 15-2138 Manual de usuario

Radio Shack

Radio Shack Kameleon 4-in-1 Manual de usuario

Radio Shack

Radio Shack 5-In-One Learning Light-Up Remote Manual de usuario

Radio Shack

Radio Shack 6 IN 1 RF REMOTE CONTROL SYSTEM Manual de usuario

Radio Shack

Radio Shack 15-2143 Manual de usuario

Radio Shack

Radio Shack 15-2125 Manual de usuario

Radio Shack

Radio Shack Universal Remote Manual de usuario

Manuales populares de Control remoto universal de otras marcas

Pronto

Pronto Peel Manual de usuario

GE 24929 Manual de usuario

AUVIO

AUVIO Universal Home Theater Remote Manual de usuario

Philips

Philips Icon SRU4106 Manual de usuario

THOMSON

THOMSON ROC4309 Manual de usuario

Philips

Philips pm625S Manual de usuario

GE RM94931 Manual de usuario

RCA

RCA RCU600WMS - Universal Remote Control Manual de usuario

Blackweb

Blackweb BWB17AV002 Manual de usuario

Marmitek

Marmitek DoorGuard 300 Manual de usuario

Chunghop

Chunghop RM-L618 Manual de usuario

GE RM24965 Manual de usuario

Anderic

Anderic KTN828 Manual de usuario

Sunwave Tech.

Sunwave Tech. Touch Screen Remote Control Manual de usuario

Medion

Medion E74023 Manual de usuario

intensity

intensity RM02A Manual de usuario

GE RM24950 Manual de usuario

Sky

Sky MY Manual de usuario
