FEATURES

Your RadioShack Projection Clock combines a simple

design with advanced technology. You can set the clock

so it projects the current time on a wall or the ceiling for

easy nighttime viewing. Its features include:

Adjustable Projection Light — lets you project the time

on any location on a wall or ceiling. This lets you easily

see the time at night.

Large Liquid Crystal Display — makes the clock easy

to read. The current time and alarm time, the time zone

you are in, and the date and day of the week appear on

the display.

Crescendo Alarm — the alarm sounds a series of beeps

that gradually increase in volume.

Snooze Control — temporarily silences the alarm for

about 8 minutes so you can sleep a little longer.

Display Backlight — lets you see all information on the

display even when it is dark.

Supplied AC Adapter — lets you power the clock’s pro-

jection light to help extend battery life.

Three Languages — let you view the day of the week in

English, French, or Spanish.

RadioShack is a registered trademark used by Tandy Corporation.

63-969.fm Page 2 Monday, September 27, 1999 9:19 AM

Three Languages — let you view the day of the week in

English, French, or Spanish.

Note: You need the supplied AC adapter and two AA bat-

teries (not supplied) to power the projection light.

WARNING:To reduce the risk of fire or shock hazard, do not ex-

pose this product to rain or moisture.

CAUTION

RISK OF ELECTRIC SHOCK. DO NOT

OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,

DO NOT REMOVE COVER OR BACK. NO USER-SERVICE-

ABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PER-

SONNEL.

This symbol is intended to alert you to the pres-

ence of uninsulated dangerous voltage within the

product’s enclosure that might be of sufficient

magnitude to constitute a risk of electric shock.

Do not open the product’s case.

This symbol is intended to inform you that impor-

tant operating and maintenance instructions are

included in the literature accompanying this prod-

uct.

63-969.fm Page 3 Monday, September 27, 1999 9:19 AM

PREPARATION

INSTALLING BATTERIES

Your clock requires two AA batteries (not supplied) for

power. For the best performance and longest life, we rec-

ommend RadioShack alkaline batteries.

Cautions:

• Use only fresh batteries of the required size and rec-

ommended type.

• Do not mix old and new batteries, different types of

batteries (standard, alkaline, or rechargeable), or

rechargeable batteries of different capacities.

Follow these steps to install batteries.

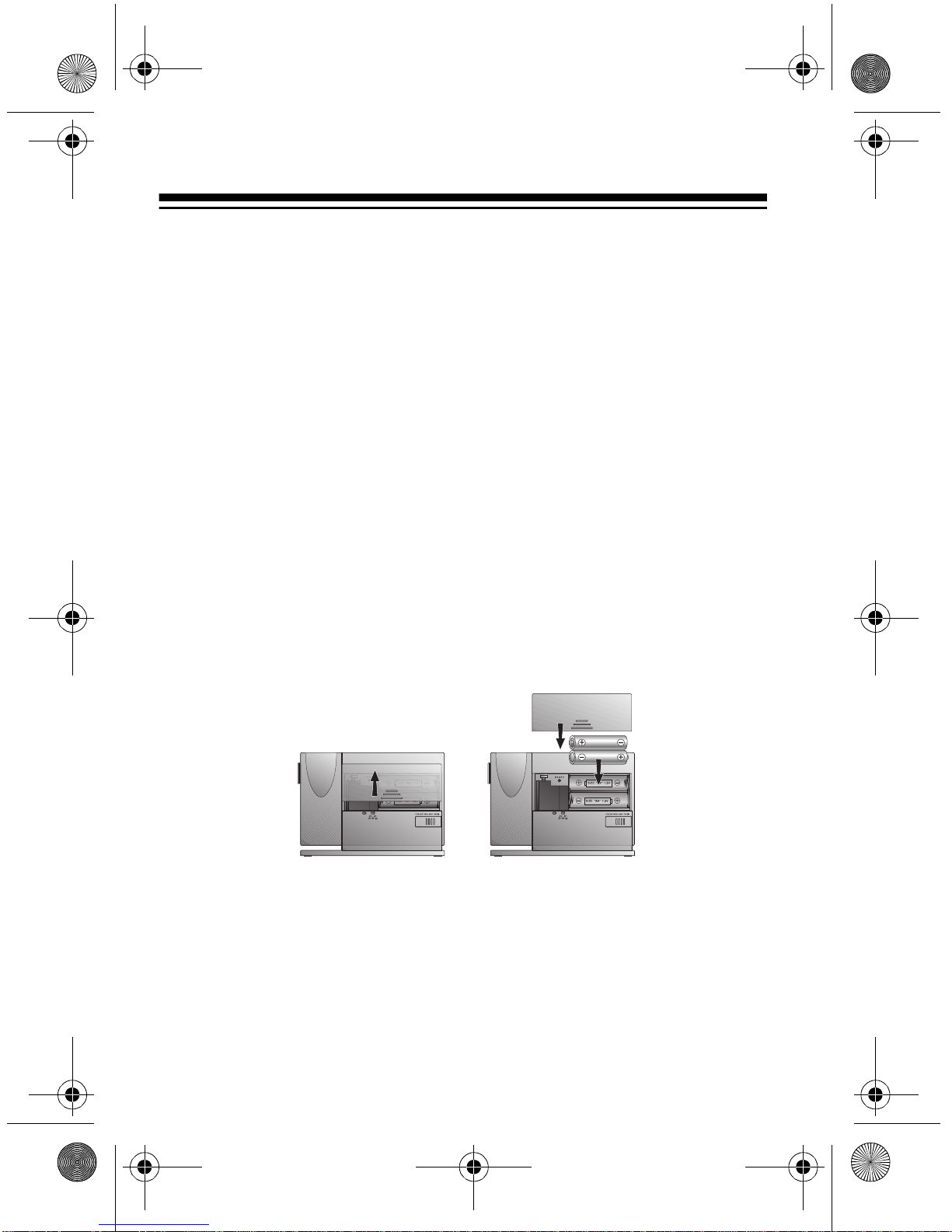

1. Slide the battery compartment cover in the direction

of the arrow to remove it.

2. Place the batteries in the compartment as indicated

by the polarity symbols (+ and –) marked inside.

63-969.fm Page 4 Monday, September 27, 1999 9:19 AM

When you install batteries, all display segments

briefly appear. Then AM 12:00 appears, followed by

the seconds display. 1appears below MONTH and 1

appears below DATE, indicating January 1. P(the

default time zone) appears above the zone indicator.

Note: The clock is preset to display the day of the

week in English. To set the clock to display in another

language, see “Setting the Clock” on Page 7.

3. Replace the cover.

When BATT appears or the clock stops operating proper-

ly, replace the batteries.

Warning: Dispose of old batteries promptly and properly.

Do not burn or bury them.

Caution: If you do not plan to use the clock for a month

or more, remove the batteries. Batteries can leak chemi-

cals that can destroy electronic parts.

CONNECTING TO AC POWER

Your clock comes with an AC adapter so you can operate

the clock’s projector light continuously from AC power.

63-969.fm Page 5 Monday, September 27, 1999 9:19 AM

Caution: You must use a Class 2 power source

that supplies 3 volts DC and delivers at least

200 mA. Its center tip must be set to positive

and its plug must fit the clock's DC 3V jack. The supplied

adapter meets these specifications. Using an adapter

that does not meet these specifications could damage

the clock or the adapter.

Follow these steps to connect the AC adapter to the

clock.

1. Slide the battery compartment cover in the direction

of the arrow to remove it.

2. Plug the AC adapter’s tip into the jack inside the bat-

tery compartment.

3. Route the adapter’s cord through the slot marked DC

3V on the back of the clock.

4. Replace the cover.

5. Plug the AC adapter’s other end into a standard AC

outlet.

63-969.fm Page 6 Monday, September 27, 1999 9:19 AM

SETTING THE CLOCK

1. Repeatedly press ZONE to select the time zone you

are in (Pacific, Mountain, Central, or Eastern). As you

press ZONE, the time zone you select is highlighted

and a letter (Pfor Pacific, Mfor Mountain, Cfor Cen-

tral, or Efor Eastern) appears above the zone indica-

tor.

2. Hold down MODE/SET until the hour digit flashes.

3. Repeatedly press +. The hour advances by 1 with

each press. (Hold down +to rapidly advance the

hour).

Note: AM appears for AM hours and PM appears for

PM hours.

4. Press MODE/SET. The minute digits flash.

5. Hold down or repeatedly press +to set the minute.

6. Press MODE/SET. The year digits flash.

7. Repeatedly press +to set the year.

8. Press MODE/SET. The current hour, minute, and day

of the week appear, and the month digit flashes.

9. Hold down or repeatedly press +to set the month.

10. Press MODE/SET. The date digit flashes.

11. Repeatedly press +to set the date.

63-969.fm Page 7 Monday, September 27, 1999 9:19 AM

12. Press MODE/SET. A letter representing the language

used for the day of the week (Efor English, Ffor

French, or Sfor Spanish) appears.

13. Repeatedly press +to select the desired language.

14. Press MODE/SET. The time, time zone, and date set-

tings appear.

63-969.fm Page 8 Monday, September 27, 1999 9:19 AM

OPERATION

To switch between viewing the seconds display and the

day of the week, press MODE/SET. To switch between

viewing the month/date and the alarm time, press ALARM

STOP/ALARM SET.

To view the time in another time zone, repeatedly press

ZONE to highlight the zone you want. The time in that

time zone appears.

To light the display for about 5 seconds, press SNOOZE/

LIGHT.

USING THE PROJECTION LIGHT

You can use the clock’s projection light to project the time

on a wall or ceiling.

To project the time, place the clock at least 18 inches

from the surface you are projecting onto, adjust the pro-

jection arm to project light onto the surface where you

want to see the time, then slide PROJECTION LIGHT ON

on the back of the clock in the direction of the arrow.

Projection Arm PROJECTION

LIGHT ON

63-969.fm Page 9 Monday, September 27, 1999 9:19 AM

Caution: The projection arm moves about 90 degrees in

either direction. Do not force it.

To focus the time on the desired position, adjust FOCUS

on the side of the projection arm.

To turn off the projection light, slide PROJECTION LIGHT

ON toward the projection arm.

With the projection light off, you can also project the time

by pressing SNOOZE/LIGHT. The projector lights for about

5 seconds then automatically turns off.

USING THE ALARM

Setting the Alarm Time

Note: If you do not press a button within about 90 sec-

onds after you pressed the previous button, the clock ex-

its its alarm setup mode. Start over at Step 1.

1. Hold down ALARM STOP/ALARM SET until the alarm

time and appear. The hour digit flashes.

2. Hold down or repeatedly press +. appears and the

alarm hour advances by 1 with each press.

63-969.fm Page 10 Monday, September 27, 1999 9:19 AM
