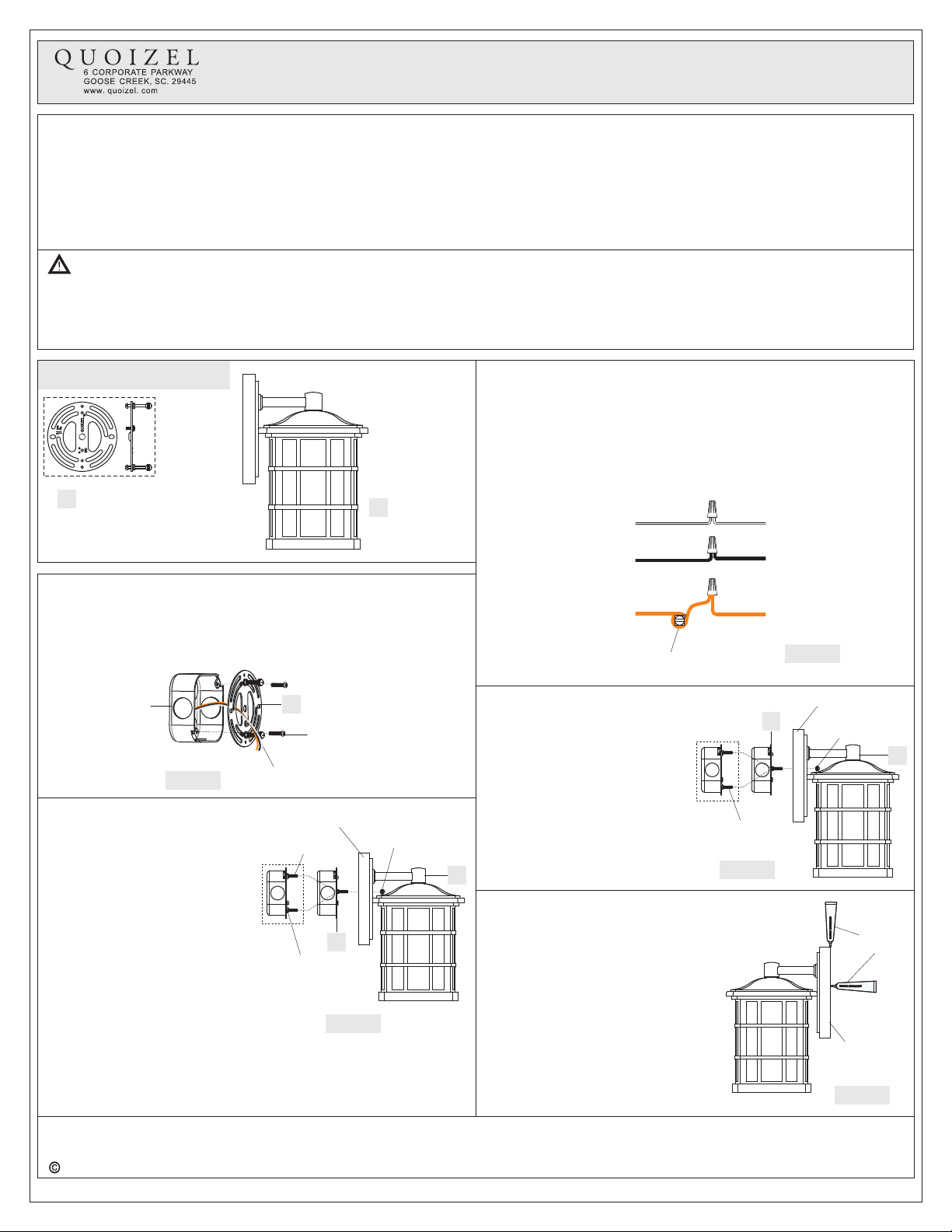

Quoizel SNNL8408K Instrucciones de montaje

Package Contents

1of2

Assembly Instruction Sheet #IS-SNNL8408_R1

For Styles SNNL8408K and SNNL8408PN

Crossbar

Assembly

Pleasegoto forproductcleaningtips.Gotothe selection.

LED16W

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

www.quoizel.com Care+Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

Fixturecanonlybemountedinthedirectionindicatedonpage2.

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.

BFixture Body

STEP 1 Install Crossbar Assembly-

A. Pass the supply wires through the Crossbar Assembly (A). Attach

the Crossbar Assembly (A) to the Outlet Box with the head of the

Green Ground Screw facing you. Secure it with Outlet Box Screws

(not included). Tighten until snug.

Supply Wires

with Ground Wire

Outlet Box Screws

(not included)

Outlet

Box

Figure 1

STEP 2 Fit Backplate to

Crossbar Assembly

on Fixture Body (B) to

the

Remove mounting balls from the

Crossbar Assembly (A). Fit the

backplate

Crossbar Assembly (A) and

secure with mounting balls.

Note: The backplate

should be snug against

the wall and the mounting balls.

on Fixture

Body (B)

not, adjust the length of the

mounting screw on the Crossbar

Assembly (A) by unscrewing the

preassembled hex nut and lock

washer and then screwing the

mounting screws in or out of the Figure 2

crossbar until the correct length is achieved. Once the backplate on

Fixture Body (B) is secure, remove the mounting ball and Fixture

Body (B) and proceed to Step 3.

Mounting

Screw

Mounting Ball

Backplate

Hex Nut and

Lock Washer

Mounting Screw

Mounting Ball

Backplate

Exterior

Grade

Caulk

Backplate

Warnings and Cautions

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

STEP 3 - Wire Connections

A. Wrap bare or green ground wire around green ground screw on the

crossbar, no less than 2 inches from the end of the wire. Tighten the

green ground screw.

B. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

Figure 3

Green Ground Screw

on the Crossbar

White wire

from outlet box White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from Fixture

Figure 4

STEP 4 Install Fixture Body-

A. Position the backplate and

Fixture Body (B) onto the

Crossbar Assembly (A).

Place the holes in the

backplate over the mounting

screws. Secure the Fixture

Body by using the mounting

balls and hand tighten the

mounting balls until snug.

Figure 5

STEP 5 -Apply Silicone Sealer

A. Make sure exterior wall surface and

fixture backplate are free of dirt

before applying caulk. Using

exterior grade caulk, caulk over top

of backplate and down other side.

Do not caulk bottom of fixture

backplate to ensure proper moisture

drainage.

Your fixture is now assembled and

ready to use. Enjoy!

2017 QuoizelInc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

RevisedDate:2017-11-03

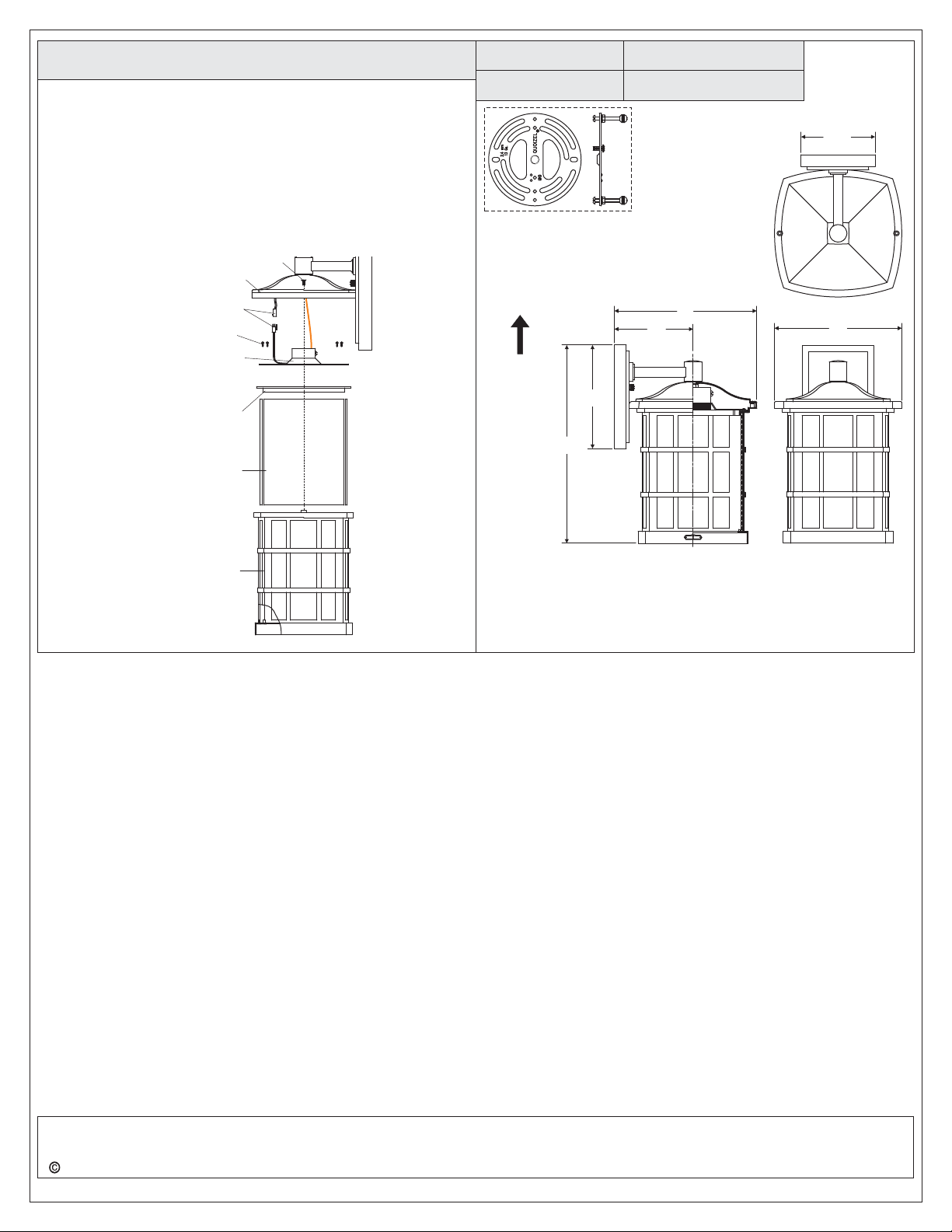

2of2

HOW TO REPLACE GLASS PANELS

Allen Screw

Glass Panel

Cage

A. Fixture Hood. Separate Quick

Connector and then remove Cage with Glass Panels from the

fixture.

B. Unscrew Screws from the Cage and remove LED Module and Heat

Sink, Glass Holders. Replace Glass Panels from the Cage and then

re-install Glass Holders, LED Module and Heat Sink . Secure with

removed Screws.

C. Connect Quick Connectors. Attach Cage with Glass Panels back

onto the Fixture Hood and secure with Allen Screws.

Unlock Allen Screws on the

Glass Holder

Fixture Hood

LED Module

and Heat Sink

Quick Connector

Screw

SNNL8408K

FINISH: MYSTIC BLACK

SNNL8408PN

FINISH: PALLADIAN BRONZE

NOTE: ALL DIMENSIONS ARE ROUNDED UP

TO THE NEAREST 1/4"

Fixture can

only be

mounted in

the direction

indicated

12.5”

6.5”

5”

9”

8”

4.5”

OUO ZEL

2017 QuoizelInc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

RevisedDate:2017-11-03
