Quoizel CCR8410CU Manual de usuario

Package Contents

Warnings and Cautions

1of2

Assembly Instruction Sheet #IS-CCR8410CU_R1

For Style CCR8410CU

2016 QuoizelInc.

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

ACrossbar Assembly

Pleasegoto forproductcleaningtips.Gotothe selection.

(3)B10CandelabraBasebulbs60WMaximum.

20-30minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtoensureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

www.quoizel.com Care + Maintenance

LightSource:

EstimatedAssemblyTime:

Preparation:

Fixturecanonlybemountedinthedirectionindicatedonpage2.

ToolsRequired: Flathead screwdriver, Phillips screwdriver, pliers, wire cutters, wire strippers, electrical tape, safety glasses.

CFixture Body

ReleasedDate:2016-11-18

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

DGlass Panel

Alternate

Mounting screw

STEP 2 Installing the Crossbar Assembly-

A. Pass the supply wires through the Crossbar Assembly (A). Attach

the Crossbar Assembly (A) to the Outlet Box with the head of the

Green Ground Screw facing you. Secure the Crossbar Assembly (A)

with Outlet Box Screws (not included). Tighten until snug

Note: Use the Alternate Shorter Mounting Screw (B) if your

installation requires a shorter mounting screw.

Supply Wires

with Ground Wire

Outlet Box Screws

(not included)

Outlet

Box A

Figure 2

Mounting Screw

or Alternate Short

Mounting Screw

STEP 3 Test Fit the Backplate to the Crossbar Assembly-

A. Remove the mounting balls from the Crossbar Assembly (A). Place

the backplate and Fixture Body (C) onto the Crossbar Assembly (A)

and secure with mounting balls. Note: The backplate and Fixture

Body (C) should be snug against the wall and held tight with the

mounting balls. If it is not, adjust the length of the mounting screw

Mounting

Ball

Backplate

Hex Nut and

Lock Washer

Figure 3

Mounting Screw

or Alternate Short

Mounting Screw

STEP 1 -Insert Glass Panels

A. Insert the U-shaped foam end of the

Glass Panel (D) into the slot in the

bottom of the cage and fasten with

the tabs in the top edge of the cage. Tab

Slot

U-shaped

Foam

Figure 1

STEP 4 - Wire Connections

A. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

Figure 4

White wire

from outlet box White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from fixture

Green Ground Screw

on the Crossbar

or alternate short

mounting screw on the

Crossbar Assembly (A)

by unscrewing the

preassembled hex nut

and lock washer and

then screwing the

mounting screws or

alternate short mounting

screws in or out of the

crossbar until the correct

length is achieved. Once

the backplate and

Fixture Body (C) is

secure, remove the

mounting ball and

Fixture Body (C) and

proceed to Step 4.

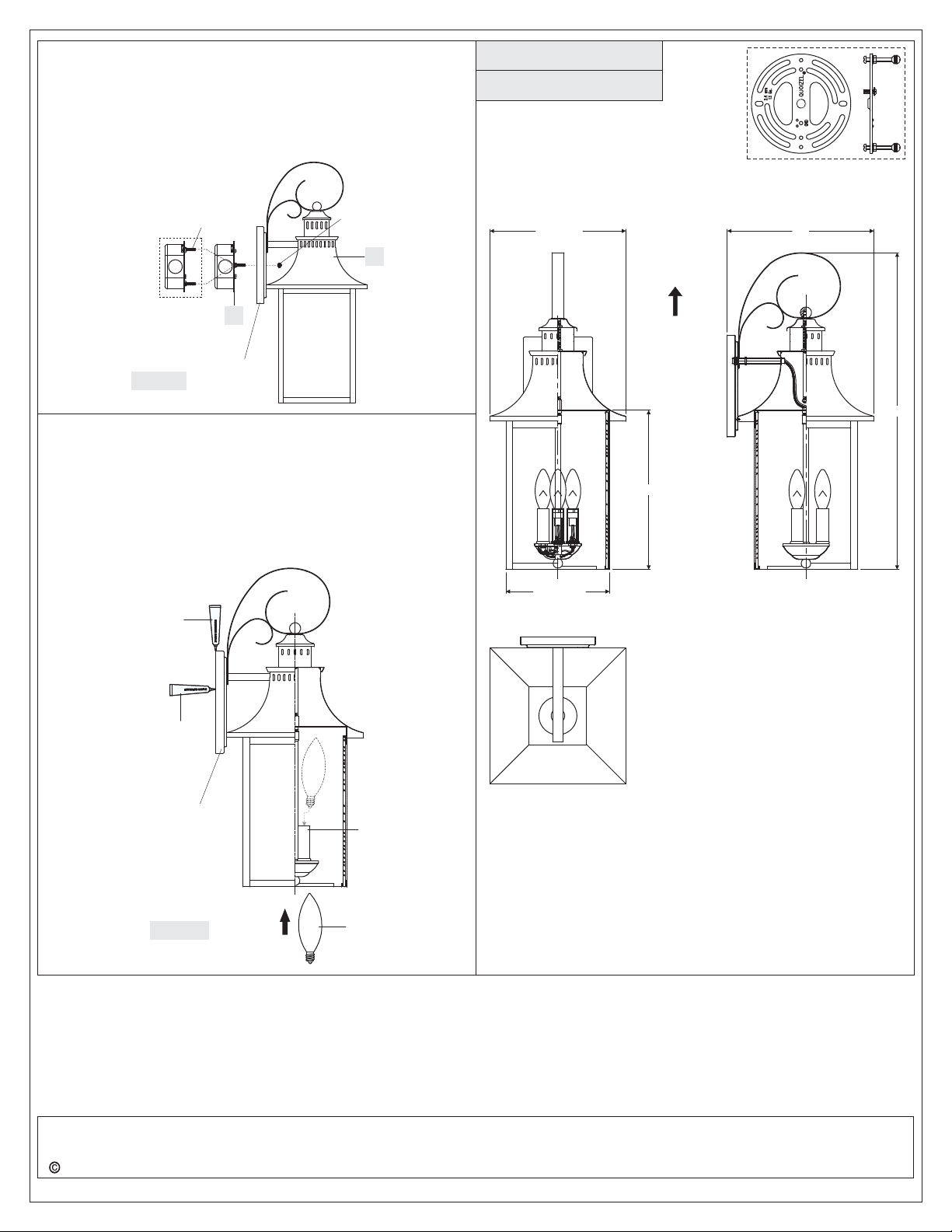

2of2

2016 QuoizelInc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

STEP 5 Install the Fixture Body-

A. Position the backplate and Fixture Body (C) onto the Crossbar

Assembly (A). Place the holes in the backplate over the mounting

screws or alternate short mounting screws. Secure the Fixture Body

by using the mounting balls and hand tighten the mounting balls

until snug.

Figure 6

STEP 6 -Install the Bulb and Apply Silicone Sealer

A. Insert the bulb onto socket and screw snugly into place.

B. Make sure the exterior wall surface and fixture backplate are free of

dirt before applying caulk. Using exterior grade caulk, caulk over

top of backplate and down both sides. Do not caulk the bottom of

the fixture backplate to ensure proper moisture drainage.

Your fixture is now assembled and ready to use. Enjoy!

Socket

Bulb (not

Supplied)

Backplate

Exterior

Grade

Caulk

CCR8410CU

FINISH: COPPER BRONZE

NOTE: ALL DIMENSIONS ARE ROUNDED

UP TO THE NEAREST 1/4"

Fixture can

only be

mounted in

the direction

indicated

ReleasedDate:2016-11-18

Figure 5

Mounting

Ball

Backplate

Mounting Screw

or Alternate Short

Mounting Screw

Exterior

Grade

Caulk

10” SQ. 11”

23.5”

11.5”

7.5” SQ.
