The ALK-MD2 and ALK-MD3 Array Link Kits

allow the user to quickly, easily and cost

effectively assemble arrays of ModularDesign

loudspeaker systems. The ALK-MD2 allows

the construction of arrays that are two

enclosures wide (Figure A) while the

ALK-MD3 can be used to assemble three-

wide arrays (Figure B). Arrays can be

constructed using any trapezoidal enclosure

full range or low-frequency model of the

MD or MD Powered product range.

Arrays of up to six enclosures may be

constructed by using multiple Array Link

Kits to add a second “row” of two or three

enclosures suspended below and from the

first (Figure C).

Splay angles between adjacent enclosures

can be adjusted in five degree increments

from 45º to 75º. (Included angle between

aiming axes) The design of the ALK-MD3

allows the splay angle between the center

enclosure and those on the left and right to

be adjusted independently.

Array Link Kits consist of a number of steel

plates, four in the case of the ALK-MD2 and

six for the ALK-MD3. These plates attach

to the top and bottom of MD enclosures,

making use of the existing suspension

attachment points. Each plate has multiple

mounting holes, all clearly labeled, that

are used to set the splay angle between

enclosures. Each kit includes all hardware

required to assemble an array as well as

three forged shoulder eyebolts to facilitate

suspension of the assembled array.

Array Link Kits

ALK-MD2 | ALK-MD3

qscaudio.com

1675 MacArthur Boulevard • Costa Mesa, CA 92626 • Ph: 800/854-4079 or 714/957-7100 • Fax: 714/754-6174

Array Link Kits 04/12/07

ModularDesign Series Accessories

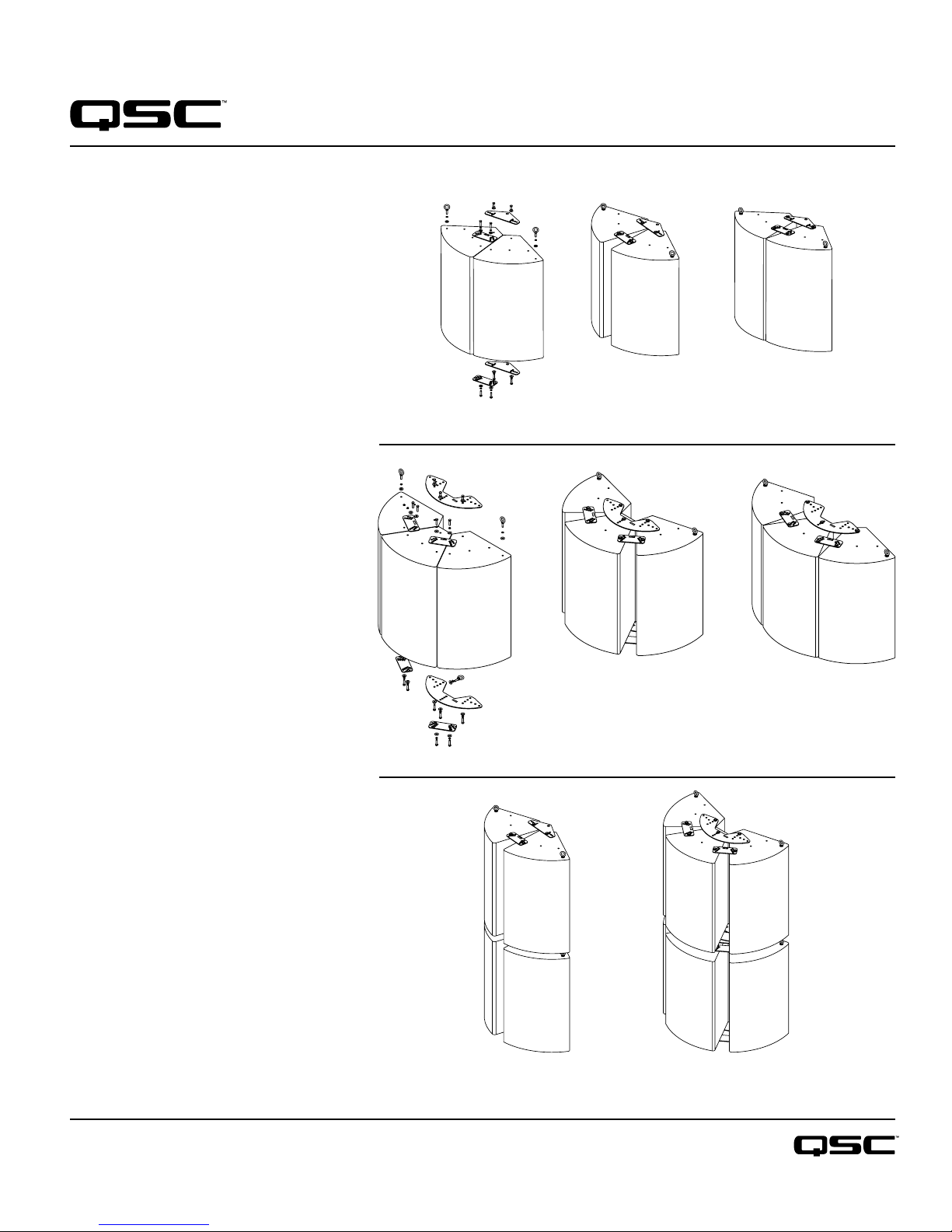

Figure A − 2-wide Arrays

Figure B − 3-wide Arrays

Figure C − 2-row Arrays

75º Splay 45º Splay

75º Splay (x2) 45º Splay (x2)
