Qlight S80AR Manual de usuario

S80AR / S80AU

Thank you for purchasing Q.Light product. Please read this

manual carefully before installing this product for safe and long

use.

▪Having a high revolving durability by using a small bearing on

the axis of rotation.

▪Signal light diffusing effectiveness is high with using a vacuum

coated reflector.

▪Buzzer volume(option): Max 90dB/m

▪

RPM : 120~140 (control freely)

▪Material : Lens-AS, Body-ABS, Reflector-thermostable ABS

▪Protection Class : IP44

▪

General Specification

Model

Voltage

Current

Bulb

Weight

Color

S80AR

S80AU

DC12V

0.484A

12V5W

T16x35 15S

0.34Kg

RED-R

AMBER

-A

GREEN

-G

BLUE-

DC24V

0.310A

24V5W

T16x35 15S

0.34Kg

AC110V

0.080A

12V5W

T16x35 15S

0.52Kg

AC220V

0.040A

12V5W

T16x35 15S

0.52Kg

▪External View Drawing

1) S80AR

S80AR

2) S80AU

S80AU

This item can connect power lines to the plate element located

at the bottom board of this item. Please read carefully this

instruction to wire.

1).Separating the bottom board and the body

Releasing the bolts(M4-1EA)④which connected the bottom

board. and separate the bottom board①and the body②then

check inside.

2).Connecting power lines

Please connect power lines refer to the upper product structure.

Releasing the bolts(M4-2EA)⑤attached on the plate element③

and connecting O type terminal or Y type terminal linked with the

power lines outside.

▪In case of product using AC voltage, connect the line without

Polarity(wire color).

▪In case of product using DC voltage, black line is negative(-).

OPERATING MANUAL

Bulb Revolving Warning Light

Product Structure

Wiring Instruction

※After finishing the power lines connection and attached the

product well, the electric power supplies by the plate element⑦

on the body②.

Indoor Outdoor

▪This product was manufactured with the structure for indoor use.

Installing in any direction is okay for indoor use.

▪Outdoor use is limited at a place where no water or very little

water percolates. Mounting also should be done only on the

vertical standing direction.

▪Mount at the place where exists low vibration, low impact, low

moisture and low dust as long as possible.

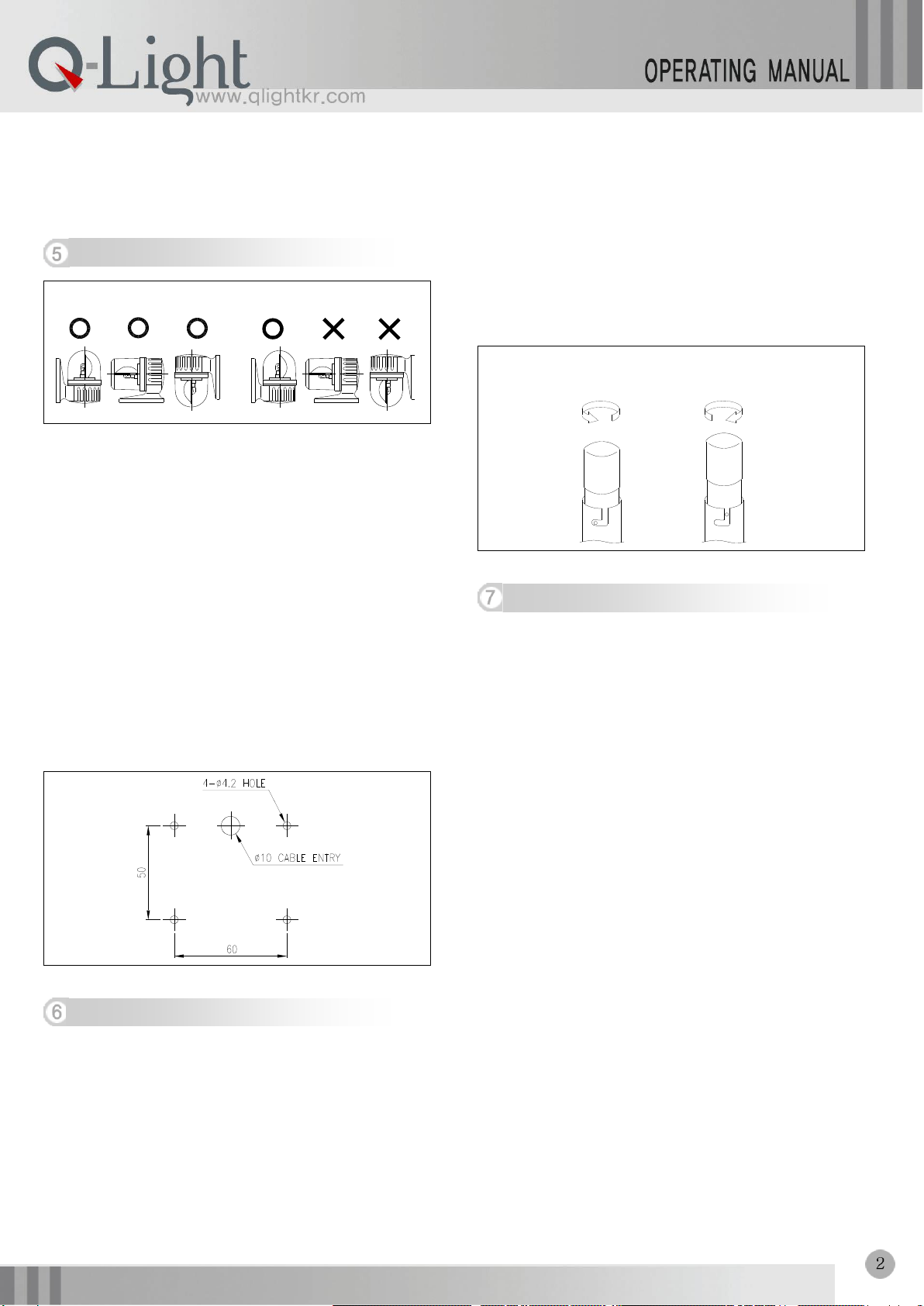

▪Please make a hole by a drill where you need to attach our

product and refer to below picture for a hole size. (Make sure

PCD from external view drawing.)

▪Please connect power lines refer to the upper wiring instruction.

▪Attach the bottom board①where you need to attach.

▪Make the product body drape over the bottom board part⑥

then push the product body into the bottom board.

▪Fix the product bottom board by using bolts④.

1) Warning!

Must turn off power supply and change bulb after 1 minute at

least.

2) Lens Removal

Remove lens by turning it counterclockwise. and make sure

related parts on the assembling board.

3) Bulb Change

▪Make sure the rated voltage and wattage of new bulb. If the

voltage of new bulb is higher than original bulb, the life of

product can be reduced and can cause damage on lens and

reflector. Therefore, please use the bulb which has the same

or lower rated voltage and wattage.

▪Bulb Removal: Press slightly the bulb downward and turn it

counterclockwise for removing.

▪Bulb Fitting: Fit new bulb into the socket by pressing it

clockwise.

Bulb removal Bulb fitting

▪If using voltage is seriously higher or lower than rated voltage, it

can reduce the self-life of the product or can cause a problem

on product operating. Make sure the using voltage does not

exceed +/-5% of the rated voltage.

▪If lens or body of the product is contaminated by chemicals such

as thinner, benzene, the product can be damaged, discolored

or deformed. Please be careful.

▪Do not give strong impact to the product. It can be a reason of

wire disconnection or short circuit.

▪Do not strongly pull the wire out from the product. It can cause a

disorder.

Mounting

Change Bulb

Caution

Situation

Main reason

Solution

Non- Lighting Partly

Wire Disconnection

of Bulb

Wire Re-connection or

Bulb Change

Feeble Lighting

Low Revolving Speed

Supplying Voltage

Lower than Rated

Voltage

Making Sure Using

Voltage

Adjust wrong for the

Revolving Speed

Make Revolving

Speed higher

Short Self-Life of Bulb

Supplying Voltage

Higher than Rated

Voltage

Making Sure Using

Voltage

Bulb overheating makes

lens shape change

Using the bulb over

rated capacity change

Change the rated

capacity bulb

Defect of

transformer(AC

Voltage Type)

Non Revolving

Problem with Motor

Contact Q.Light or

Their Agent

Neither Lighting Nor

Revolving

No Power Supply

Making Sure Power

Supply

Wrong Wiring

Making Sure Wiring

Trouble shooting

Q-LIGHT CO., LTD.

http://www.qlightkr.com

E-mail : qlightkr@qlightkr.com

Overseas Marketing Team /Plant

Tel) 055-328-4082Fax)055-328-4083

178-1 Woogye-Ri, Sangdong-Myun, Kimhae-Si,

KyungNam, Korea
