Pyronix XD10TTAM Manual de usuario
10m Pet Immune External Detector
RINS1398-1
POLISH ITALIAN ENGLISHRUSSIANSPANISH
Page: 2
XD10TTAM
1. Contents Page
2. Assembly with Bracket 3
3. Printed Circuit Board 4
4. Dip Switch Programming 5
1. 50/60Hz AC Filter 5
2. Anti-Mask Operation 5
3. Blocking (via MW) 5
4. RI 1 mode 5
5. Sensitivity 5
6. Open Mask and Alarm Relays 5
7. Buzzer Alarm 5
8. LED Enable/Disable 5
5. Connections 6
6. Lens 5 (Fitted) and Lens 3 (Supplied) 7
7. Changing the Lens 7
8. Potential Tri-detection Hazards 8
9. Initial Power Up 9
10. LED Indications 9
11. Technical Specication 10
12. Warranty 10
Page: 3
XD10TTAM
ENGLISH
2. Assembly with Bracket
Included in this detector:
1 x XD10TTAM
1 x Weather proof hood
2 x Volumetric lenses (factory tted)
2 x Horizontal curtain lenses
2 x Adjustable masking grids
2 x Fixed masking grids
*Bracket is not supplied
*
*
*
*
Page: 4
XD10TTAM
1m
15m
1m
10m

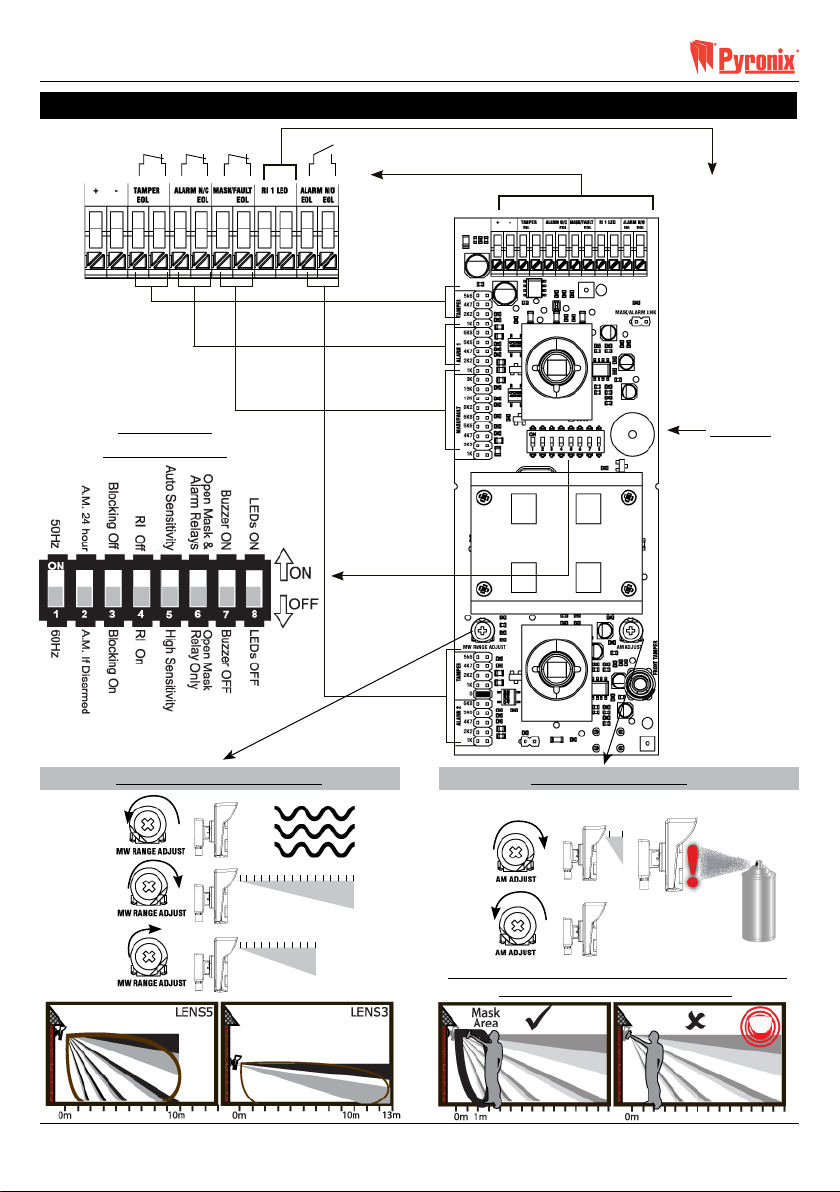

3. Printed Circuit Board
Microwave Adjustment
Dip Switch
Programming
Buzzer
Mask Adjustment
Min
1m
Mask for all 3 technologies
Min
0m
Max
15m
Default
10m
Max
1m
12V 0V
N/C N/C N/C N/O
RI: Remote Mask
Anti-blocking
control input
See page: 5
(Switches 2 & 3)
LED: Remote
LED control
input
See page: 5
(Switch 8)
Note: The mask adjustment needs to be set half
way to comply with EN50131-2-4
Page: 5
XD10TTAM
ENGLISH
4. Dip Switch Programming
1. 50/60Hz AC Filter
ON = 50Hz. OFF = 60Hz (For use with AC supplies at 60Hz)
2. Anti-Mask Operation
ON = Anti-Mask 24hr
3. Blocking (via MW)
ON = Blocking O
OFF =Blocking enabled only
when disarmed
4. RI 1 mode
RI 1 mode is used with Switch 2 and 3
Connect RI1 to arm/disarm PGM:
0V = Disarmed. 12V = Armed
Switch 2: Anti Mask Operation
OFF = Anti-Mask enabled only when disarmed
Switch 3: Blocking (via MW)
OFF = Blocking enabled only when disarmed
7. Buzzer Alarm
OFF = Anti-Mask enabled
only when disarmed
6. Open Mask and Alarm Relays
5. Sensitivity
OFF = Mask relay open
ON = Buzzer Enabled OFF = Buzzer Disabled
ON = Mask & alarm relays open
8. LED Enable/Disable
ON = Auto Sensitivity OFF = High Sensitivity
ON = LED Enabled (Remote LED disabled)
OFF = LED Disabled (Remote LED enabled)
To remotely enable the LEDs:
Connect LED to walk test PGM: 0V = Walk Test On. 12V = Walk Test O
Page: 6
XD10TTAM
5. Connections
MASK/ALARM LINK MASK/ALARM LINK
MASK/ALARM LINK
5k6
4K7
2K2
1K
0
6K8
5K6
4K7
2K2
1K
5k6
4K7
2K2
1K
0
6K8
5K6
4K7
2K2
1K
MASK/ALARM LINK
5k6
4K7
2K2
1K
6K8
5K6
4K7
2K2
1K
1K
3K
15K
12K
8K2
6K8
5K6
4K7
2K2
5k6
4K7
2K2
1K
6K8
5K6
4K7
2K2
1K
1K
3K
15K
12K
8K2
6K8
5K6
4K7
2K2
5k6
4K7
2K2
1K
6K8
5K6
4K7
2K2
1K
1K
3K
15K
12K
8K2
6K8
5K6
4K7
2K2
(i) GRADE 3 CONFIGURATION
Mask, Fault, Alarm and
Tamper on the same zone
(ii) GRADE 2 CONFIGURATION
No mask
(iii) GRADE 2 or 3 CONFIGURATION
Using 2 zones for alarm and mask
(iv) Connections to Alarm N/O
Page: 7
XD10TTAM
ENGLISH
A
Top Lens
Bottom Lens
(Volumetric)
Microwave at 10m
Top Lens
Bottom Lens
Microwave at MAX
Rubber
Gasket
Lenses Adjustable Masking Grid
Fixed Masking Grid
Lens
Masking grid (If
used) or xed
masking grids
6. Lens 5 (Fitted) and Lens 3 (Supplied)
7. Changing the Lens
Page: 8
XD10TTAM
Do not partially or
completely obscure
the detector’s eld of view
with large objects
Using Adjustable Masking Grid
Using Fixed Masking Grid
8. Potential Tri-detection Hazards
Action Bottom LEDs Top LEDs
LED Colours: RED GREEN BLUE ORANGE
Powering Up
Top PIR Triggered
Microwave Triggered
Top PIR Failed Self Test
Microwave Failed Self Test
Tri Cover Alarm
Bottom PIR Triggered
Bottom PIR Failed Self Test
Mask Processing
Latched Mask/Blocking
Low Voltage
Page: 9
XD10TTAM
ENGLISH
MASK/ALARM LINK
5k6
4K7
2K2
1K
0
6K8
5K6
4K7
2K2
1K
MW RANGE ADJUST
MW RANGE ADJUST
MW RANGE ADJUST
AM ADJUST
AM ADJUST
AM ADJUST
5k6
4K7
2K2
1K
6K8
5K6
4K7
2K2
1K
3K
15K
12K
8K2
6K8
5K6
4K7
2K2
1K
5k6
4K7
2K2
1K
0
6K8
5K6
4K7
2K2
1K
9. Initial Power Up
10. LED Indications
+12v
Casing 3mm ABS, 0.4mm HDPE in Lens Area
Lenses 2 x Lens 5 (UV Compensated)
2 x Lens 3 Optional (UV Compensated)
Tri-Detection Method 2 low noise dual element passive infrared sensors
and a microwave doppler unit
Tri-Masking Adjustable from 0M to 1M. Covers all 3 technolo-
gies.
Sensitivity Selectable AUTO or HIGH
Temperature Compensation Digital
Detection Speed 0.25 - 2.5m/s
Operating Voltage 9-16VDC, 13.8VDC typically
Current Consumption 24mA @ 13.8VDC quiescent
Relay Output 3 x SELV limits, 60VDC 50mA (42.4VAC peak)
Mounting Height & Range 1.8m - 2.4m = 10m (Lens 5)
1.5m = 13m (Lens 3)
Pet Immunity Lens 5 = 10kg (2 x Volumetric)
Lens 3 = 25kg (2 x Horizontal Curtain)
Tamper Switch 12VDC 50mA both front and rear
Storage Temperature -40°C to +80°C (+40°F to 176°F)
Operating Temperature -30°C to +70°C (+22°F to 158°F)
Emissions EN55022 Class 2
Immunity EN50130-4
Page: 10
XD10TTAM
This product is sold subject to our standard warranty conditions and is warranted against
defects in workmanship for a period of two years.
In the interest of continuing improvement of quality, customer care and design, Pyronix
Ltd reserves the right to amend specications, without prior notice.
11. Technical Specication
12. Warranty
