Pyle PLCMTRDVR46 Manual de usuario
Content
(manual)..........................................................................Error! Bookmark not defined.
Notice.............................................................................................................................2
product function andApplication.................................Error! Bookmark not defined.
product function...................................................................................................................... 3
Product Application....................................................................Error! Bookmark not defined.
Product description......................................................................................................4
panel operational specification............................................................................................... 4
Backboard function................................................................................................................. 5
Connection ............................................................................................................................... 6
Remote control function..............................................................................................7
Operating instructions.................................................................................................8
Main interface instructions..................................................................................................... 8
Menu operation........................................................................................................................ 8
Playback interface..................................................................................................................11
Accessories..................................................................................................................12
Product maintenance.....................................................Error! Bookmark not defined.
Product maintenance..................................................................Error! Bookmark not defined.
Notice...............................................................................Error! Bookmark not defined.
Notice
For your safety, don’t watch video or operate monitor when driving. Non-professionals don’t
dismantle the product without permission. Please consult after service agency or send it to the
local service department when product in failure.
Caution: Please install the product in legal position; we disclaim any legal liability due to incorrect
installation.
Attention: When in cold weather, there appears dark screen during starting up. The display screen
will slowly resume to normal with the increasing temperature after power on.
product function and Application
7’’ Digital LCD panel ,16:9 display
Resolution:800*R.G.B*480
Panel key : touch button
Remote control
System language: English, Simplify Chinese, Traditional Chinese
System resource:4 ways real time record
Video standard: PAL & NTSC
Image compression: MOTION JPEG
Video compression: AD PCM
AV format :AV record the real time
video record: Automatic
Searching by: file name .time
4 channel with 4 pin connector or RCA connector (optional)
Audio input 1 channel with 4 pin connector or RCA connector
Display Single. Quad picture
DVR image: 640*480
recording Speed: 30 FPS
Video Save: SD card support 32G
Local playback : support
Trigger input :4 triggers
one battery built in PCB board
Power supply: DC-12V -24V
Working temperate：0℃~60℃
Bracket : U shape iron bracket or stand bracket
sunshade
Storage temperate: -10℃~70℃
180mm*121mm*24mm Dimension: 180mm*121mm*24mm
weight:0.63KGS
Product Application
This product adopts digital TFT panel display real-time monitoring of high definition, the
SD card storage medium. The monitor built in DVR single image recording or quad image
recording function. Support one audio recording, with speaker and remote control. easy to be
installed in different kinds of vehicles. With on radiation, low consumption, beautiful and vivid
image, nice panel, adjustable pole distance etc features.
Product description
panel operational specification
1) sunshade
2) 7 inch LCD screen
3) DVR indicator light: Blue is power on, flash red is recording
4) Loud speaker
5) ：Menu key:pasue recording . return back in menu and playback status
6) ：CH1 Key: Enter CH-1 ,select left in menu ,Select last song in playback
7) ：CH2 ：Enter CH-2 ，select right in menu. Select next song in playback
：POWER: when power on, recording /stop recording switch. Long press power key to
three seconds can turn off monitor. Short press power key can turn on monitor. To choose play
/pause in menu status. Long press power key to ten seconds can reset system
8) ：CH3: Enter CH3, Select down direction in menu status. It’s volume decrease in
playback status
9) ：CH4: Enter CH4, select up direction in menu status. It’s Volume increase in
playback status
10) ：Mode: quad images button To choose the volume decrease/ play /pause in
playback status
11) Remote window
12) Plastic screw
2、
SD card slot
Notch : to install the bracket
Signal lead wire
3、Connection
4 PIN
Red: DC 12V /24V power supply
Black wire: ground
Brown wire: CH1 trigger
Green wire: CH2 trigger
Blue wire: CH3 trigger
Grey wire: CH4 trigger
1、CH1 : V1 signal input
2、CH2: V2 signal input
3、CH3: V3 signal input
4、CH4: V4 signal input

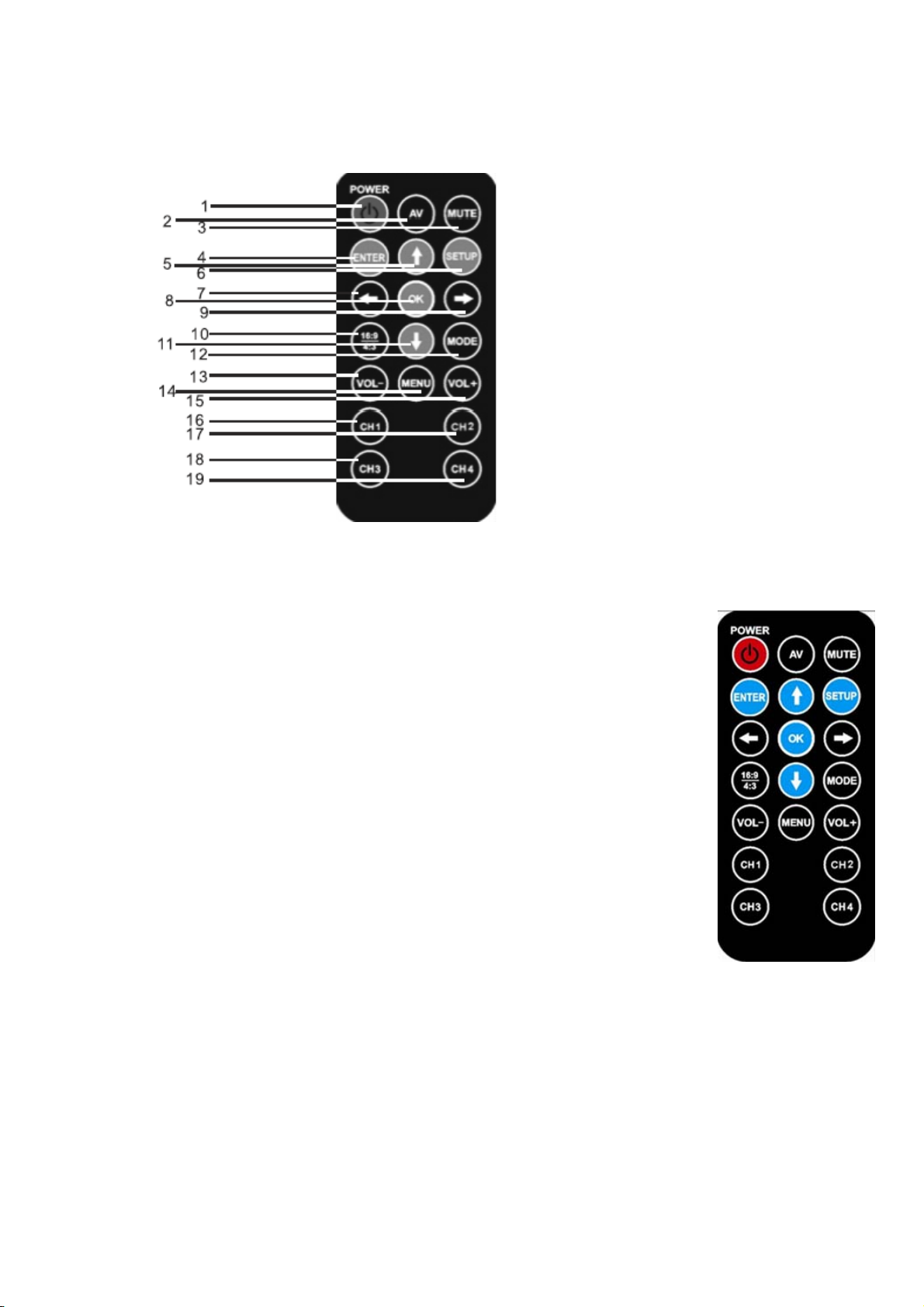

Remote control function
1. Turn on/off power
2. Switch at CH1/CH2/CH3/CH4
3. Sounds off
4. Enter: when DVR operating, switch at record & playback
5. UP: When DVR operating, select up
6. When DVR operating, can select menu set. To exit in menu status.
Return video file list in playback.
7. Left direction key: select left .last song in playback status
8. OK key: recording / stop recording switch in recording status. Confirm
in menu status。Play / pause in playback status
9. Right key: Select right in menu status. Next song in playback status
10. 16:9 / 4:3 key, Switch aspect ratio
11. Down direction key: Select down direction
12. MODE Key: Switch image effect mode
13. VOL – Key: decrease the sound, decrease analogy quantity
14. MENU key: To enter menu
15. VOL+ key: Increase the sound, increase analogy quantity
16. CH1 key: Enter CH1
17. CH2 key: Enter CH2
18. CH3 key: Enter CH3
19. CH4 key: Enter CH4
Operating instructions
1.Main interface instructions
1) CH1/CH2/CH3/CH4：CH1/CH2/CH3/CH4 channel display
2) ：Real data and time display
3) REC instruction: recording when “REC” in red word. Recording stopped when “REC” in
white word
4) A single video amplification
2、Menu operation
1) Press the “ ”key on remote control to set “Contrast ”
“Brightness”“Saturation”menu, then press“” and “ ”
to set the parameter
2) Press the““ ”key on remote control to set the volume. Press
the “ ” key on remote control to set mute
3)Setting :Press the“ ”key on remote control to enter the main menu,
Before entering the main menu will have a waiting process, ( see figure as
follows)
1. Video play: Enter videoplay menu( see figure as follows), select
the video and play video by remote controller to playback
2. Time Setting: Enter the menu of Time setting (see figure as
follows).user can set the date and time then save the setting.
3. Camera: Enter the menu of the camera set (see figure as follows),
to select the target channel (current view or all channels). (Notice:
change the set of the recording channel will occupy memory
large space; the system will be reset after exit the camera set.
Recording Time min(s): Enter the menu of REC Time min(s);
select the recording time from 3 minutes to 10 minutes to set for
