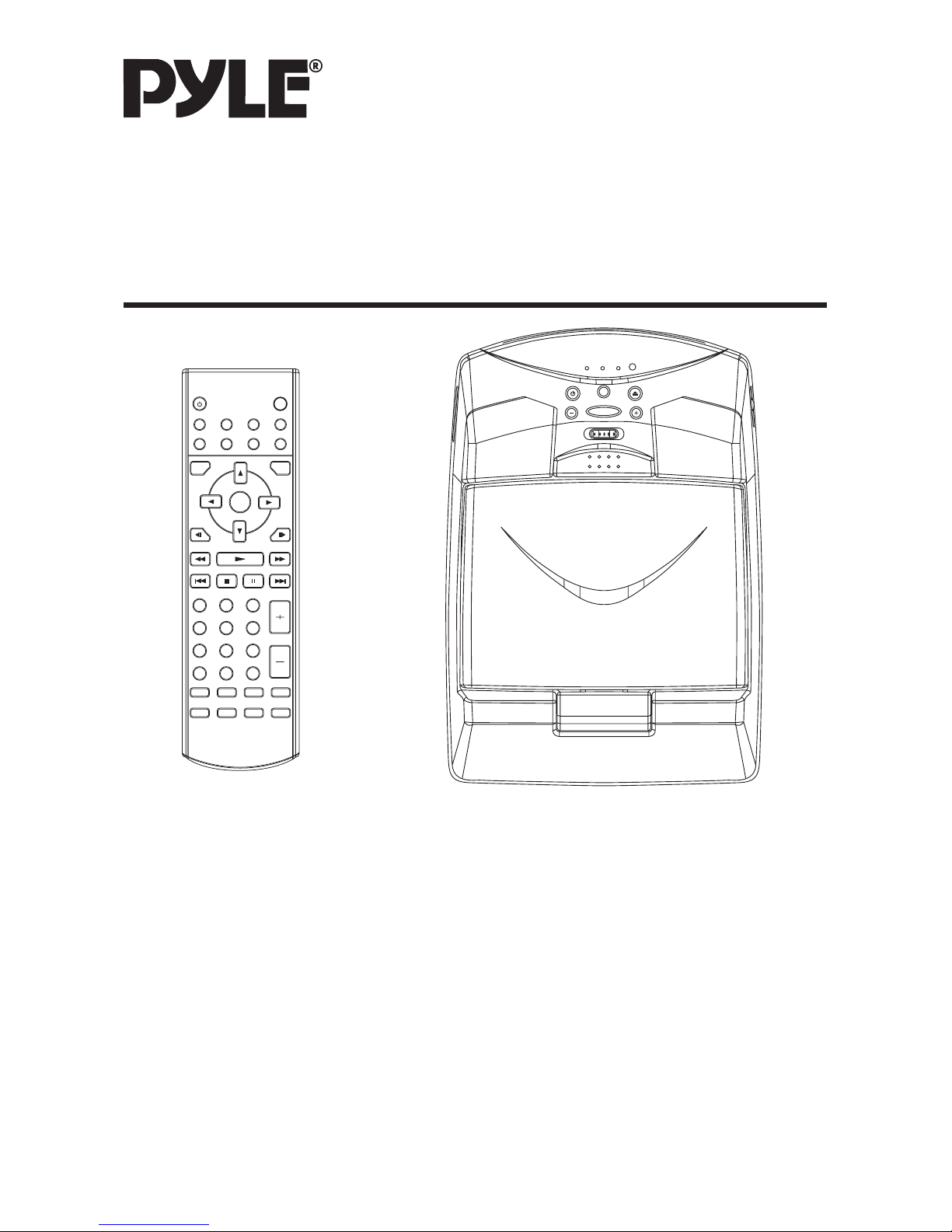

OWNER’S MANUAL

Mobile Video System

• Digital Audio Out-Coaxial

• DVD Player

• Multi Color TFT Monitor

• Multi-subtitle Languages Function

• Multi-audio Languages Function

• Multi-angle Function

• Parental Control

• Remote Control

PLRDVD7

www.pyleaudio.com

FEATURES

Compatible with PAL DVD (Video

CD) and NTSC DVD (Video CD)

This player can play discs recorded in

either PAL or NTSC format.

• A single LSI chip now integrates all

major DVD playback circuit functions

including MPEG2 decoder, video D/A

converter, and audio decoders.

• L/R stereo analog audio outputs for

connection to existing head unit aux

inputs. Video output is composite

video.

• Supplied remote handles

multi-function software (multi-language

audio-track/subtitle, multi-angle, multi-

story, etc.), plus all basic functions.

USE THIS PRODUCT SAFELY

When Driving

Keep the volume level low enough to be

aware of road and traffic conditions.

When Car Washing

Do not expose the product to water or

excessive moisture. This could cause

electrical shorts, fire or other damage.

When Parked

Parking in direct sunlight can produce

very high temperatures inside your

vehicle. Give the interior a chance to

cool down before starting playback.

Use the Proper Power Supply

This product is designed to operate with

a 12 volt DC, negative ground battery

system (the regular system in a North

American car).

Protect the Disc Mechanism

Avoid inserting any foreign objects into

the slot of this player.

Failure to observe this may cause

malfunction due to the precise

mechanism of this unit.

Use Authorized Service Centres

Do not attempt to disassemble or adjust

this precision product. Please refer to

the Service Centre list included with this

product for service assistance.

For Installation

The unit should be installed in a

horizontal position with the front end up

at a convenient angle, but not more than

30°.

CONTENTS

Safety Information ........................................................................................4

Disc Notes .....................................................................................................5

The Player......................................................................................................6

Installation .....................................................................................................8

Replacing the Car Demo Lamp ...................................................................9

Electric Connection ....................................................................................10

Remote Control...........................................................................................11

Location and Function of Keys.............................................................................11

Preparing the Remote Control..............................................................................13

Loading/Ejecting a disc..............................................................................13

Loading a Disc ......................................................................................................13

Ejecting a Disc ......................................................................................................13

Operation .....................................................................................................14

Basic Play .............................................................................................................14

Menu Function......................................................................................................16

On-Screen Display Function.................................................................................16

Multi-audio Language Function............................................................................17

Title Menu Function ..............................................................................................18

Multi-Subtitle Language Function ........................................................................18

Multi-angle Function .............................................................................................18

MP3 Disc Play.......................................................................................................18

Setup ............................................................................................................19

Initial Setup ...........................................................................................................19

General Setup.......................................................................................................19

Speaker Setup ......................................................................................................21

Audio Setup ..........................................................................................................21

Preferences Setup ................................................................................................22

Defaults Table .......................................................................................................24

Trouble Shooting.........................................................................................25

Specifications..............................................................................................26

CAUTION:

MOBILE DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

MOBILE DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE MOBILE

DVD PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE

SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.

DO NOT OPEN COVERS AND - DO NOT

REPAIR YOURSELF. REFER SERVICING

TO QUALIFIED PERSONNEL.

WARNING:

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE

RECOMMENDED ACCESSORIES.

•THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is protected

by method claims of certain U.S. patents

and other intellectual property rights

owned by Macrovision Corporation and

other rights owners. Use of this

authorized by Macrovision Corporation,

and is intended for home and other

limited viewing uses only unless

otherwise authorized by Macrovision

Corporation. Reverse engineering or

disassembly is prohibited.

SAFETY INFORMATION

Region Management Information

Region Management Information:

This Mobile DVD Player is designed and

manufactured to respond to the Region

Management Information that is recorded

on a DVD disc. If the Region number

described on the DVD disc does not

correspond to the Region number of this

Mobile DVD Player, this Mobile DVD

Player cannot play this disc.

DISC NOTES

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

•DVD-ROM

•DVD-R/DVD-RAM

•CDV

•CD-G

Handling and Cleaning

•Dirt, dust, scratches and warping disc

will cause misoperation.

•Do not place stickers or make

scratches on discs.

•Do not warp discs.

•A disc should always be kept in its

case when not in use to prevent from

damaging.

•Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown below. To

remove the rough edges, press the side

of the pen or pencil against the inside

and outside edges of the disc.

Rough spots

on inside edge

Ball point pen

or pencil

Rough spots on

outside edge

Label side up

Do not touch

the underside

of the disc

Do not bend

Wipe the disc from center

toward the outside edge

THE PLAYER

5 3 10 201 48 11 9 2 7 6 5 22

16 17 18 19

1. POWER ( )

2. EJECT ( )

3. MENU

4. MOD

5. Car Dome Lamp

6. Light Switch

7. VOLUME +

8. VOLUME -

9. IR

10. Indicator Light for DVD

11. Indicator Light for AV

12. Disc slot

13. 7 inch TFT Color Monitor

14. Earphone volume control knob

15. Jacks for Earphone

16. DC 12V IN

17. AV IN

18. AV OUT

19. DIGITAL AUDIO

20. INFRARED TRANSMITTING

WINDOW (For the unit with infrared

transmitting function only)

21. Open button: Press the button to

eject the screen display from the base

at a little angle.

THE PLAYER

7 INCH TFT COLOR MONITOR

INSTALLATION

1. Determine the mounting location and drill four mounting holes (See Fig.1).

2. Attach the mounting bracket to the holes with the tapping screws (ø4x10).

3. Let the two levers aim at the slots on the DVD bracket to fix the display unit.

4. Open the monitor to display the five screw holes.

5. Attach the unit to the bracket with the mounting bolts (M 3.5x10).

6. Insert five rubber caps to the screw holes.

7. When the installation has completed, you can also turn the display upward or

downward, left or right to adjust the viewing angle. (See the arrowhead symbol in

Fig.2).

Fig. 1

Tapping Screws (ø4x10)

Mounting Bracket

Levers

DVD Bracket

Slots

Rubber Caps

Mounting Bolts (M3.5x10)

Fig. 2

REPLACING THE CAR DOME LAMP

Follow the directions shown below for a new lamp changing.

1. Press the open button to eject the screen display and turn it upward.

2. Position light switch to “OFF”.

3. Push back the lamp cover and open it. (Refer to the following figure)

4. Remove and discard the old lamp.

5. Install a new bulb.

6. Close the cover.

Bulb Specification

Diameter: ø8mm

Length: 28mm

Voltage Spec.: DC12V, 5W

CAR DOME LAMP WIRING

Color Connection

Red Power Supply

White Interior Light System

Black Ground

Note:

Lamp Cover

Bulb

Light Switch

Line for Car Dome Lamp

ELECTRIC CONNECTION

VIDEO OUT

AUDIO L OUT

AUDIO R OUT

VIDEO IN

AUDIO L IN

AUDIO R IN

DC 12V IN

CIGARETTE LIGHTER

YELLOW

WHITE

RED

YELLOW

WHITE

RED

DIGITAL AUDIO

Tabla de contenidos

Otros manuales de Sistema de vídeo para coche de Pyle

Pyle

Pyle PLTV7.5DIN Manual de usuario

Pyle

Pyle View PLDVD7M Manual de usuario

Pyle

Pyle PLVS9 Manual de usuario

Pyle

Pyle PYLE View Series PLVSMN7 Manual de usuario

Pyle

Pyle PLVSR7B Manual de usuario

Pyle

Pyle PLD43MU Manual de usuario

Pyle

Pyle PLDNV78I Manual de usuario

Pyle

Pyle PLD58MUT Manual de usuario

Pyle

Pyle Mobile Video System PLD41MUT Manual de usuario

Pyle

Pyle PLDTVN65 Manual de usuario

Pyle

Pyle PLVIN70 Manual de usuario

Pyle

Pyle PLRD125 Manual de usuario

Pyle

Pyle PL1SN104 Manual de usuario

Pyle

Pyle PYLE View Series PLVSMN56 Manual de usuario

Pyle

Pyle View PLD179U Manual de usuario

Pyle

Pyle PL71PHB Manual de usuario

Pyle

Pyle PLRD106 Manual de usuario

Pyle

Pyle PYLE PLDCS400 Manual de usuario

Pyle

Pyle PYLE View Series PLVSR7IR Manual de usuario

Pyle

Pyle PYLE View Series PLTFT72 Manual de usuario

Pyle

Pyle PLVWR770T Manual de usuario

Pyle

Pyle PLHR77 Manual de usuario

Pyle

Pyle PLD70BT Manual de usuario

Pyle

Pyle PLVWR1752 Manual de usuario

Manuales populares de Sistema de vídeo para coche de otras marcas

Stinger

Stinger HEIGH10 RB10RAM13B Manual de usuario

Eonon

Eonon E1057 Manual de usuario

Milion

Milion D2223 Manual de usuario

Metra Electronics

Metra Electronics 99-8153 Manual de usuario

Voxx Electronics

Voxx Electronics HR8MA1 Manual de usuario

Axxera

Axxera AV604Bi Manual de usuario

Clarion

Clarion NX706E Manual de usuario

Pyle view

Pyle view PLDN74BTi Manual de usuario

Clarion

Clarion NX602 Manual de usuario

PowerAcoustik

PowerAcoustik PTID-5850N Manual de usuario

RCA

RCA DRC6296 - Twin 9" Mobile DVD System Guía del usuario

Lanzar

Lanzar SVDVD5 Manual de usuario

Kia

Kia MTXM100YPPE Manual de usuario

Eonon

Eonon E1060 Manual de usuario

Macrom

Macrom M-AN900 Manual de usuario

Hyundai

Hyundai BAPE-L3000N Manual de usuario

r.LiNK

r.LiNK RL2-UCON8-SM Manual de usuario

Blaupunkt

Blaupunkt DVP 01C Manual de usuario
