Pyle PLD184V Manual de usuario

PLD184V

OWNER'S MANUAL

Mobile Video System

www.pyleaudio.com

Anti Theft Flip Down Detachable Panel

Car DVD/VCD/CD/MP3 Player

Auxiliary Input Function

AM/FM Digital Pll Tuning Radio

Parental Control

VFD Moving Display

Remote Control

CONTENTS

Safety Information.......................................................................................

Disc Notes ..................................................................................................

Installation ..................................................................................................

Electric Connection ....................................................................................

Remote Control ..........................................................................................

Basic Operation ........................................................................................

Setup .........................................................................................................

Specifications ...........................................................................................

Trouble Shooting ......................................................................................

MP3/WMA/JPEG Disc Play .....................................................................

AUX Operation .......................................................................................

On-Screen Display Function ...................................................................

Multi-Audio Language Function ...............................................................

Multi-Subtitle Language Function ............................................................

Multi-Angle Function .............................................................................

Title Menu Function ...............................................................................

General Setup ........................................................................................

Speaker Setup .......................................................................................

Dolby Digital Setup ................................................................................

Preferences Setup .................................................................................

Defaults Table ........................................................................................

SAFETY INFORMATION

CAUTION:

WARNING:

REGION MANAGEMENT INFORMATION:

THIS DVD PLAYER IS A CLASS I LASER PRODUCT. HOWEVER THIS DVD

PLAYER USES A VISIBLE/INVISIBLE LASER BEAM WHICH COULD CAUSE .

HAZARDOUS RADIATION EXPOSURE IF DIRECTED. BE SURE TO OPERATE

THE DVD PLAYER CORRECTLY AS INSTRUCTED.

USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF

PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN

HAZARDOUS RADIATION EXPOSURE.DO NOT OPEN COVERS AND DO NOT

REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

EQUIPMENT TO RAIN OR MOISTURE.

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, AND ANNOYING

INTERFERENCE, USE ONLY THE RECOMMENDED ACCESSORIES.

THIS DEVICE IS INTENDED FOR CONTINUOUS OPERATION.

This product incorporates copyright protection technology that is protected

by method claims of certain U.S. Patents and other intellectual property rights

owned by Macrovision Corporation and other rights owners.Use of this

and is intended for home and other limited viewing uses only unless

otherwise authorized by Macrovision Corporation. Reverse engineering or

disassembly is prohibited.

This DVD Player is designed and manufactured to respond to the Region

Management Information that is recorded on a DVD disc. If the Region number

described on the DVD disc does not correspond to the Region number of this

DVD Player, this DVD Player cannot play this disc.

Disc formats supported by this

player

Discs which cannot be played

this player

Handling and Cleaning

Disc Cleaning

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

DVD-ROM

DVD-R/DVD-RAM

CDV

CD-G

Dirt, dust, scratches and warping disc

will cause misoperation.

Do not place stickers or make

scratches on discs.

Do not warp discs.

A disc should always be kept in its

case when not in use to prevent from

damaging.

Do not place discs in the following

places:

1.Direct sunlight

2.Dirty, dusty and damp areas

3.Near car heaters

4.On the seats or dashboard

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

with

DISC NOTES

Note:

A disc may become somewhat

scratched (although not enough to

make it unusable) depending on your

handle it and conditions in the usage

environment.Note these scratches

indication of any problem

player.

A new disc may have rough edges on

its inside and outside edges.If a disc

with rough edges is used, the proper

setting will not be performed and the

player will not play the disc.Therefore,

remove the rough edges in advance

by using a ball point pen or pencil as

shown on the right.To remove the

rough edges, press the side of the

pen or pencil against the inside and

outside edges of the disc.

are not an

with the

Preparing New Discs with

Spots

Rough

VIDEO

CD-RW

Rough spots

outside edge

Ball point pen

or pencil

Rough spots

on inside

edge

Label side

Do not touch

the

underside

of the disc

Do not

bend

Wipe the disc from

center

toward the outside

edge

Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

Before finally installing the unit, connect the wiring temporarily and make sure

all connected up properly and the unit and the system work properly.

Use only the parts included with the unit to ensure proper installation. The use

unauthorized parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or

modifications of the vehicle.

Install the unit where it does not get in the driver s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

If installation angle exceeds 30 from horizontal, the unit might not give its

performance.

Avoid installing the unit where it would be subject to high temperature, such

direct sunlight, or from hot air, from the heater, or where it would be

dirt or excessive vibration.

This unit can be properly installed either from "Front"(conventional DIN

or "Rear"(DIN Rear-mount installation, utilizing threaded

the unit chassis). For details, refer to the following

illustrated installation methods.

NOTES:

DIN FRONT/REAR-MOUNT

it is

other

optimum

as from

subject to dust,

Front-mount)

screw holes at the sides of

INSTALLATION

1.WHILE INSTALLING THE FRONT PANEL, PLEASE MOUNT THE LEFT SIDE FIRST,

AND MAKE THE DIRECTION HOLE ON THE FRONT PANEL AIM AT THE LEFT GUIDE

ON THE UNIT

2.THAN PUSH THE RIGHT SIDE TO THE RIGHT GUIDEMOUNT

KEY PLATE

PLASTIC TRIM OUT

KEY PLATE

3.PUSH IT TO INSTALL THE

FRONT PANEL COMPLETELY .

DASH BOARD

METAL MOUNTING

STRAP

CONSOLE

SLIDE BRACKET

HOUSING

HEX BOLT

HEX NUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

INSTALLATION

(FIG.3) (FIG.4)

(FIG.2)

PROTECTIVE CASE

FRONT PANEL

(FIG.1)

FRONT PANEL

OPEN BUTTON

GUIDE KNOB

CAUTION: DO NOT INSTALL THE DETACHABLE PANEL BEFORE

CONNECTING THE WIRE.

1. The unit is designed for negative terminal of the battery which is connected to the

vehicle metal. Please confirm it before installation.

2. If the car interior is extremely hot, as after being parked in the sun, do not use the

player until the car has been driven for a while to cool off the interior.

3. Press the OPEN button to flip down the front panel (see fig.1), Slide the guide knob

to remove the right side first, then take away the front panel. (see fig.2) and put it in the

protective case (see fig.3) for safe keeping.

4. Install the front panel back into its bracket and then push it back to the position for

playing (see fig.4).

ELECTRIC CONNECTION

VIDEO IN YELLOW

RCH IN RED

LCHINWHITE

GREY SUBWOOFER

VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

AUX(optional)

RCA CABLE

FRONT RCA WHITE L

RCH RED

LCH WHITE

FRONT RCA RED R

VIDEO OUT 1 YELLOW

REAR RCA OUTPUT

CABLE (optional)

FRONT RCA OUTPUT

CABLE

(FOR RCA LINE OUT VERSION ONLY)

GREY

GREY/BLACK

FRONT

Rch SPK.

VIOLET

VIOLET/BLACK

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

REAR

Lch SPK.

AUTO

ANTENNA BLUE

FUSE

GROUND(B-)

MEMORY

BACK-UP(B+)

IGNITION

SWITCH(B+)

ANTENNA CONNECTOR

RED

YELLOW

BLACK

MAIN UNIT

REAR

Rch SPK.

FRONT

Lch SPK.

CHOKE

BOX

19 9

BAND

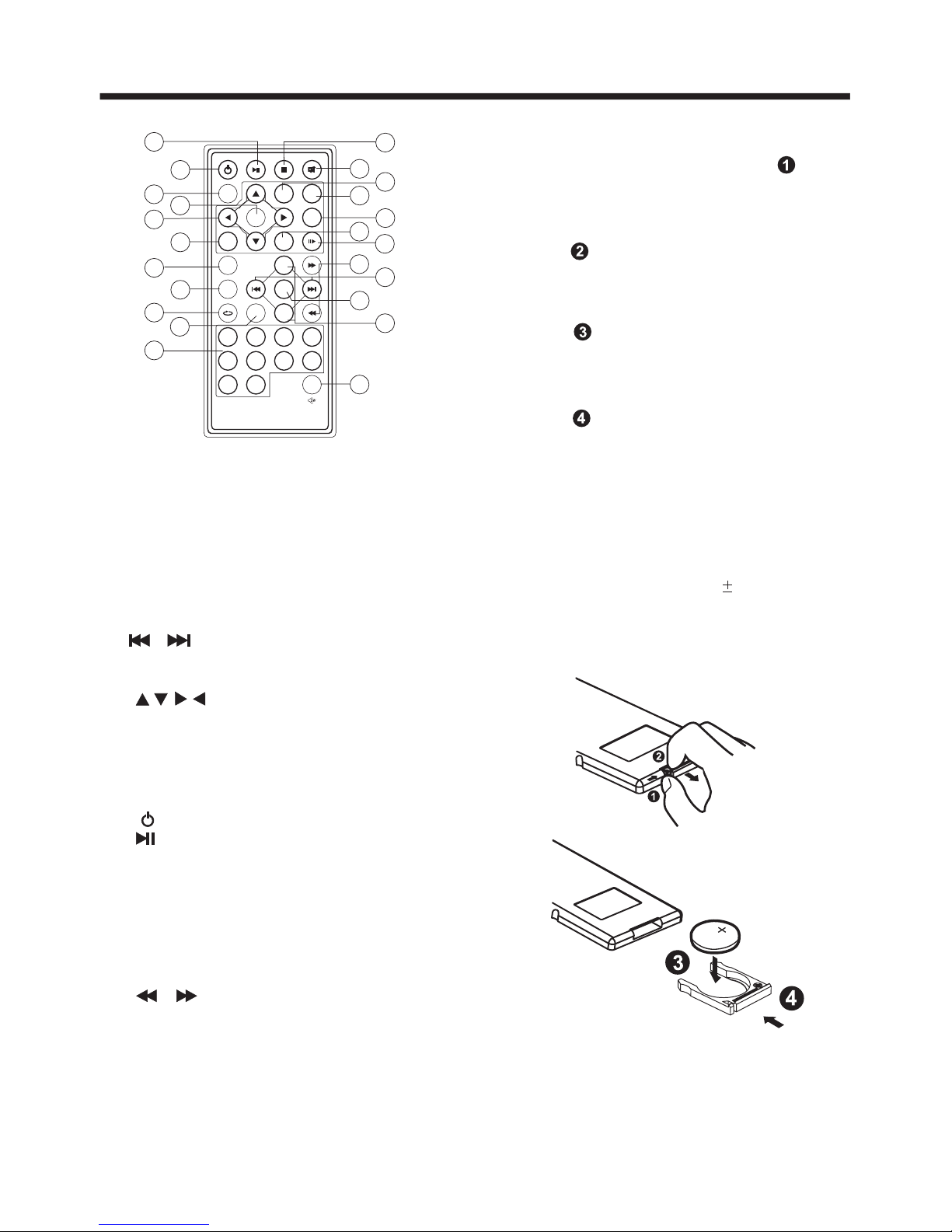

REMOTE CONTROL

1. Clk

2. Mode

3. Stop

4. Setup

5. Mo/st

6. Subtitle

Lo/dx

7. Repeat

8. /

9. Sel

10. VOL+/-

11.

12.Menu

Sub

13.Band

(OSD)

14.

15.

16.Mute

17.Title

18.Slow

19.Angle

20.EQ

21. /

22.Enter

23. 0 - 9

Display And Set The Clock.

Select Playback Mode.

Stops Playback.

Accesses The Setup Menu.

Select The Sound Mode.

Selects a subtitle language.

In radio mode, depress it for

stronger signal.

Repeat chapter,track,title ,all.

Go to next chapter or track.

Change the Audio mode.

Adjusts volume level.

Selects an item in menu.

Accesses menu on a DVD disc.

press it to switch the

Subwoofer On or Off .

Select the desirec bands.

display the disc information.

Switches device On and Off.

Stars or Pause playback.

Press it to mute down sound.

Display title menu, if available

Changing of the view angle

on multi-angle DVD disc.

turn to equalization function.

Confirm the Track/Chapter.

Numeric buttons.

Changing for slow forward/

reverse playback motion

start forward/reverse rapidly.

PREPARING THE REMOTE

CONTROL

INSERTING THE BATTERIES

Using the Remote Control

Face the remote control towards the

player front face IR mark (remote control

signal receiver).

Operation angle: About 30 degree in

each the direction of the front of the

IR mark.

1.First push to inside

)And

then Remove the battery holder as

the direction indicated by the arrow

(See. ).

as the direction

indicated by the arrow (See .

2.Replace the battery Set a new battery

property with (+)side up as illustrated

.(See. )

3.Insert the battery holder. Push in the

holder to the original position

.(See. )

BASIC OPERATION

1.OPEN BUTTON

Press it to flip down the front panel

then you can insert the cd disc into the

CD compartment. And you can find the

(EJECT)button .Press it to eject the disc.

A.Volume:Adjust volume level by

using VOL + / VOL - knob..

Note: The unit is initially set to

volume mode.

VOLUME 6

B.Bass:Press SEL button one time.

Adjust bass level by using VOL + / VOL -

knob.

..........................

BASS +8

C.Treble:Press SEL button two times.

Adjust treble level by using VOL + / -

knob.

..........................

TREBLE -2

D.Balance:Press SEL button three times.

Adjust sound balance between left and

right speakers by using VOL + / VOL -

knob.

Balance

-2

E.Fader:Press SEL button four times.

Adjust sound balance between front

and rear speakers by using VOL + /

VOL - knob.

Fader

2-3.VOL+/VOL- & SEL BUTTON

Press it to change audio mode through

volume, bass, treble, balance, and fader

modes. Rotate VOL + /VOL- knob to

adjust the selected mode.(The corresp-

onding value will show on the display.)

811

69 12

18 4

15 2

Tabla de contenidos

Otros manuales de Receptor de coche de Pyle

Pyle

Pyle PLCD39 Manual de usuario

Pyle

Pyle PLCD70MUBT Manual de usuario

Pyle

Pyle PLR27MPBU Manual de usuario

Pyle

Pyle PLCD48MP3 Manual de usuario

Pyle

Pyle PLCDUSB64MP3 Manual de usuario

Pyle

Pyle PL71PHB Manual de usuario

Pyle

Pyle PLD96MU Manual de usuario

Pyle

Pyle PLMRB29B Manual de usuario

Pyle

Pyle PLCDCS90 Manual de usuario

Pyle

Pyle PLTVR5 Manual de usuario

Pyle

Pyle AM/FM Receiver/CD Player Manual de usuario

Pyle

Pyle PYLE Plus Series PLCD68MP3 Manual de usuario

Pyle

Pyle PLCD9MR Manual de usuario

Pyle

Pyle PLCD29 Manual de usuario

Pyle

Pyle PLCD85XMP Manual de usuario

Pyle

Pyle PLCD6MRKT Manual de usuario

Pyle

Pyle Mobile Audio System PLMR18 Manual de usuario

Pyle

Pyle PLTD145 Manual de usuario

Pyle

Pyle PLINDVTB7 Manual de usuario

Pyle

Pyle PLTS73FX Manual de usuario

Pyle

Pyle PLCD94M Manual de usuario

Pyle

Pyle PLCDUSB88MP3 Manual de usuario

Pyle

Pyle PLCD79MP Manual de usuario

Pyle

Pyle PLCD45MP3 Manual de usuario

Manuales populares de Receptor de coche de otras marcas

Motorola

Motorola VWA63 Manual de usuario

Nextar

Nextar D3201 Manual de usuario

Alpine

Alpine CDE-163BT Manual de usuario

Pioneer

Pioneer DEH-P645R Manual de usuario

Axxera

Axxera XDMA7600 Instrucciones de funcionamiento

XM OnyX Manual de usuario

Sound Storm

Sound Storm STM93R Manual de usuario

Soundstream

Soundstream VIR-5000 Manual de usuario

Avson

Avson MKT Platform Manual de usuario

Sony

Sony MEX-1HD - Audio Library System Manual de usuario

Pioneer

Pioneer DVH-P500UB Manual de usuario

JVC

JVC KD-AHD69 Manual de usuario

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manual de usuario

Sony

Sony CDX-4160 - Cd Receiver Manual de usuario

XFIRE AUDIO

XFIRE AUDIO BMW42S Manual de usuario

VDO

VDO CD 2253 Manual de usuario

Volvo

Volvo 13 84 580 Manual de usuario

ZENEC

ZENEC ZE-160DVD Manual de usuario
