Pyle PFMRA340BB Manual de usuario

Features:

• 2-Channel Audio Amplier

• Rugged & Durable Marine Grade Construction

• Water Resistant & Weatherproof Design

• Bluetooth Receiver for Wireless Music Streaming Ability

• USB Flash & SD Memory Card Readers

• MP3 Digital Audio File Compatibility

• LCD Digital Display Screen

• RCA (L/R) Audio Connectors

• Spring-Loaded Speaker Terminals

• Connect & Stream Audio from External Devices

• Heavy Duty Aluminum Alloy Heatsink

• Side Panel Button Control Center

• Volume, Bass, Treble Rotary Controls

• Built-in Thermal, Overload & Speaker Short Protection

• Includes Wall Power Adapter

• Power ON/OFF Switch

BT Wireless Connectivity:

• Works with All of Today's Latest Devices

• (Laptops, Computers, Smartphones, Tablets, etc.)

• Smart Auto Connect Pairing Ability

• Bluetooth Version: 2.1

• Bluetooth Network Name: Pyle

• Wireless Range: About 50' ft.

Technical Specs:

• MAX Power: 200 Watt ( I 00W x 2)

• Amplier Type: Class-D Circuit

• Marine Grade Rating: IP-41

• Impedance: 4 Ohm

• Frequency Response : 10 - 40kHz

• Channel Separation : > 65dB

• T.H.D.: <1.0%

• S/N Ratio : > 95dB

• Maximum USB Flash Support: 32 GB

• Digital Audio File Support: MP3, WMA, WAV

• Power: 1 I 0/220V (DC 12.5V Power Adapter)

• Dimensions (LxWx H): 10.2" x 8.6" x 2.1"

• Sold as: I

PFMRA340BB

PFMRA350BW

Weather Resistant Audio Amp System

with MP3/USB/SD Readers, 200 Watt

USER MANUAL

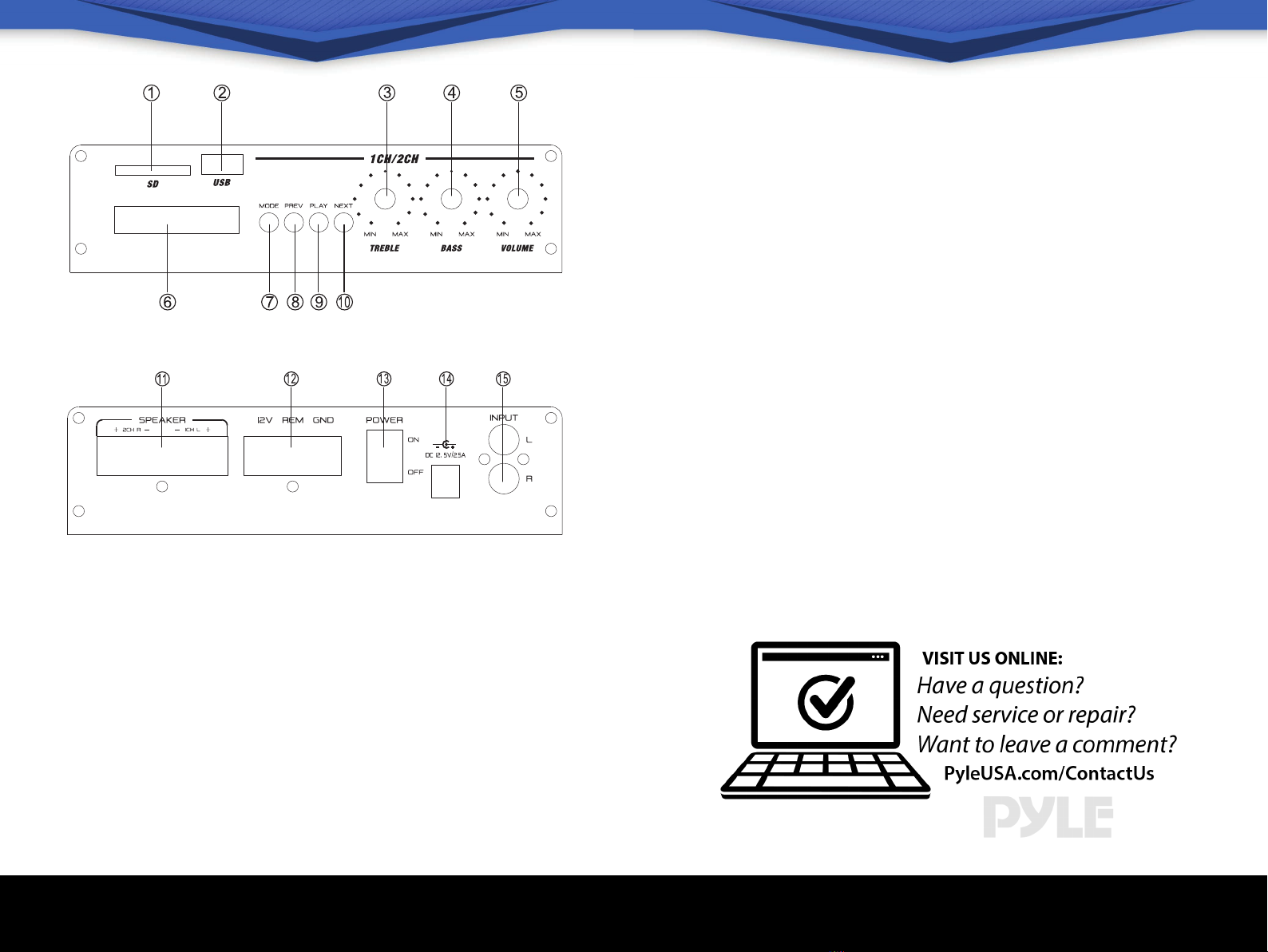

Marine Amplier

1. SD Card input for MP3 player

2. USB input for MP3 player

3. Treble Volume Control

4. Bass Volume Control

5. Master Volume Control

6. Display screen

7. Input select

8. Previous song

9. PIay/Pause function

10. Next song

11. Amplier output jack

12. Power plug

13. Power ON/OFF Switch

14. Power Adapter jack(1 2.5V/2.5A)

15. Audio Input(L/R)

BLUETOOTH OPERATION INSTRUCTION:

External devices which have a built-in Bluetooth feature can be

connected to this amplier wirelessly to play through the

amplier's speakers. If your amp is connected to speakers, you will

hear audible tones which will help for connecting.

1. At rst be sure that the amplier is powered on, and turn the

volume to low.

2. Press "MODE" button on the front panel, the unit is automatically

ready to pair with your devices when you here two "Tone".

3. Turn on the Bluetooth of your external device.

4. Search for available Bluetooth devices and make sure to be

within range of your amp, and wait for your device to select

"PYLE " on the pairing devices lists of Bluetooth networks.

5. You can now play music on your external device through the

amplier.

Notes: This Marine Amplier has a bluetooth prioritized

function, unit will auto enter BT mode when your external

devices are in the wireless range.
