Pyle view VIEW PLVW1045R Manual de usuario

PLVW1045R

10.4" Flip Down TFT-LCD Color

Monitor with IR

TABLE OF CONTENT

INSTALLATION GUIDE

FUNCTION KEYS

2.1 OF

2.2 FUNCTIONS OF REMOTE CONTROL

TROUBLE SHOOTING

3.1 NO POWER

3.2 NO FUNCTION OF REMOTE CONTROL

3.3 NO DISPLAY OR NOT CLEAR

FUNCTIONS FRONT PANEL

4. ACCESSORIES

5. SPECIFICATIONS

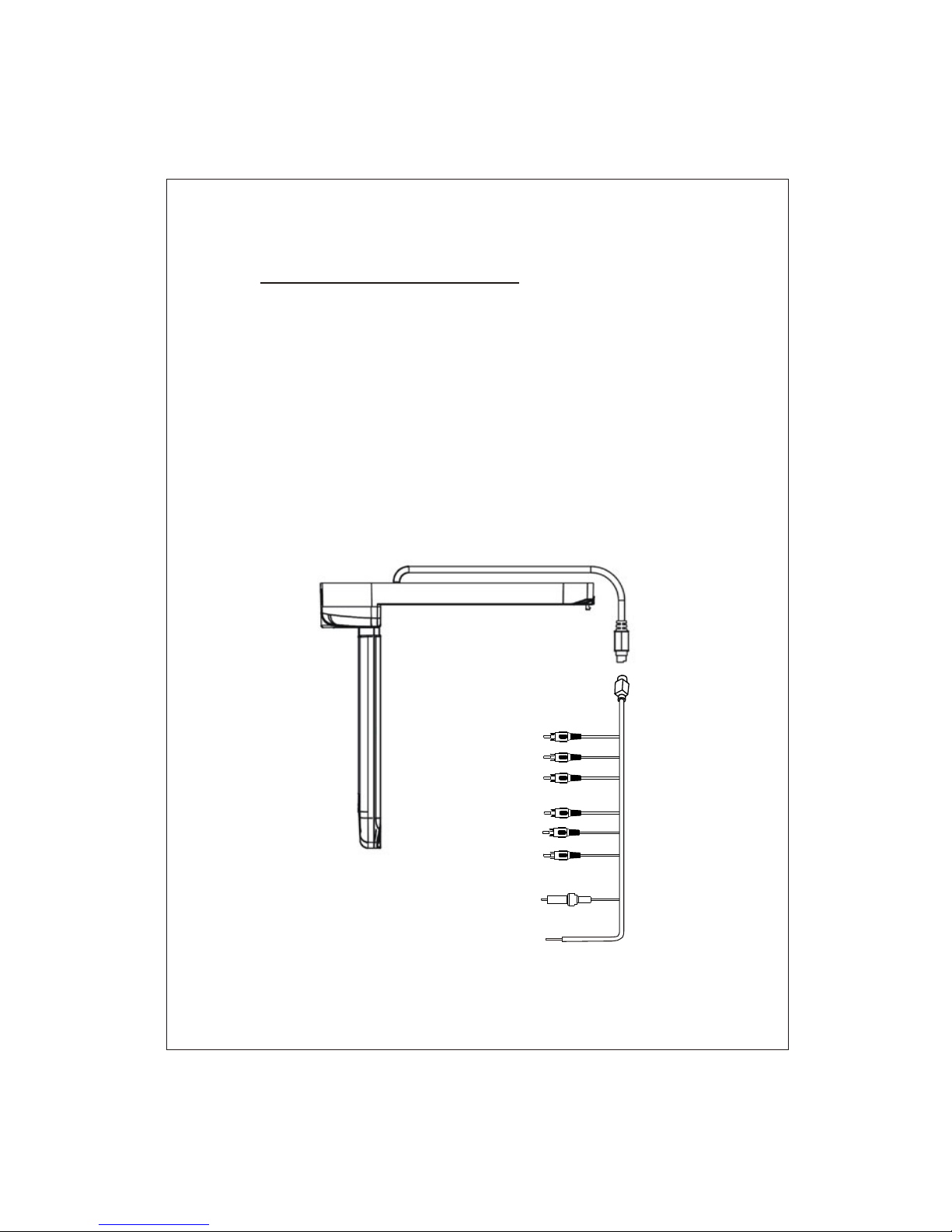

1. INSTALLATION GUIDE

1. On a towel or soft cloth, gently place the monitor unit "face

down" on a stable work surface.

2. Locate the pigtail with the DIN connector.

3. Connect the DIN connector to the interface cable provided.

4. Connect the RED wire th the positive (+) battery terminal.

5. Connect the Black wire to a chassis electrical ground point.

6. Connect the cable with YELLOW RCAjack to Video Input

sources for your Video Program material.

7. Connect the cable with RED and WHITE RCA jack to Audio

sources for your Audio Program material.

Red wire to +12VDC battery

Black wire to electrical ground

Yellow

RED

WHITE

Yellow

RED

WHITE

AV 1

AV 2

2. FUNCTION KEYS

2.1 OFFUNCTIONS FRONT PANEL

POWER: 1. Press the "POWER" button once, it will be "POWER

Press it again, it will be "POWER OFF."

ON."

1. Pop up the OSD menus. Press the "Menu" button again to

enter the OSD menus. When in sub-menu, press.

"EXIT" to go back to the main menu.

1. Press the "UP/DOWN" key to increase or decrease value

2. Make item selection in OSD menus to increase or decrease

parameters as well..

MENU:

UP/DN:

Inc / Dec KEY

POWER

AV1/AV2 MUTE

REMOTE CONTROLLER

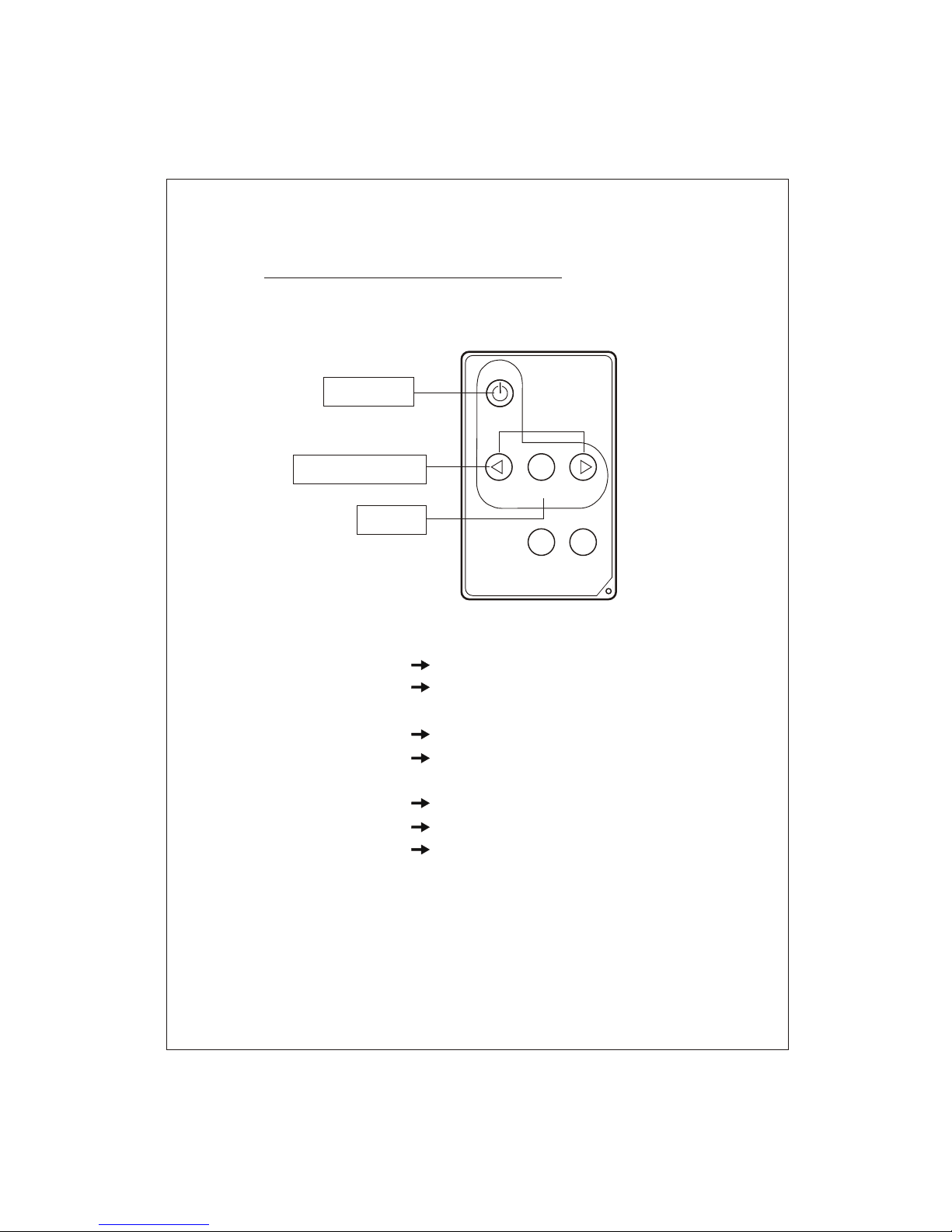

2.2 FUNCTIONS OF REMOTE CONTROL

Brightness: Brightness, contrast adjustment

Video Control: RGB color density, deviation, sharpness

adjustment

OSD Function: OSD adjustment and display methods

Image: Switch the source of signal AV1 and AV2

Inputs.

Audio: Only control Mute

Recall: Return to the initiatives

Exit: Exit

PRess "Menu key", it will display a crosswise bar with digits. To

use U/D key to adjust value and press "Menu key" to confirm the

adjustment and then the crosswise bar and digits will disappear, or

press "Exit" to leave OSD function directly.

3. TROUBLE SHOOTING

3.1 NO POWER

1. Make sure the power cable has been pluged in.

2. Make sure the plug has 12V~14V, may use another

electrical appliance to test it.

3.2 NO FUNCTION OF REMOTE CONTROL

1. Make sure the batteries are in good condition and installed

properly.

2. Make sure the remote control is aiming at the receiver, and

there are no obstacles in between.

3. Perhaps, it is too far away from the receiver. Normal

distance is within 7 meters.

3.3 NO DISPLAY OR NOT CLEAR

1. Check the video signal wires if they are connected

properly.

2. Make sure the TV/Video is in proper position.

4. ACCESSORIES

PS2/CAR CABLE

INSTALLATION BRACKET

USER MANUAL

SCREW PACK

REMOTE CONTROL

5. SPECIFICATIONS

ITEM DESCRIPTION

LCD Panel Type

Screen Size:

Display Resolution (dot):

Active Area:

Pixel Pitch:

Back Light:

LCD Profile Ratio:

Contrast Ratio:

Brightness:

Power Input Consumption:

System:

Video Input:

Viewing Angle:

Dimensional Outline (mm):

Operation Temperature:

Storage Temperature:

Humidity:

Monitor Weight:

Safety Certifications:

Monitor Rotate:

10.4" a-Si TFT active matrix

26.4cm diagonal (10.4 inch)

640(H) x 3(RGB) x 480(V)

165(W) x 95(H)

0.33(H) x 0.33(V)mm

CCFL (Cold cathode filament tube)

4 : 3

200 : 1

220 cd/m2

DC12V 10% less than 0.8A

NTSC and PAL auto switch

SCEAM is available

Composite video signal 1Vp-p 75 ohms

PS2 x 2

Lift & Right 45 degree

Down 20 degree Top 30 degree

265.0mm(W) x 268mm(H) x 40.8mm(D)

0 C ~ +60 C

-20 C ~ +80 C

10 ~ 90%

1.8kg

UL FCC CE TUV

Right 90 & Left 90

* Recommend for use with PYLE'S PLVWH1 wireless headphones.
