Pyle view PLVW20T Manual de usuario

20" CEILING MOUNT TFT-LCD MONITOR

WITH TV TUNER SYSTEM & IR HEADPHONE

PLVW20T

1. Table of Contents------------------------------------------------------1

2. Warning ----------------------------------------------------------------1

3. Usage Notice---------------------------------------------------------- 2

4. Package ----------------------------------------------------------------3

5. Function Descriptions-------------------------------------------------4

6. -------------------------------------------------4

7. ----------------------------------------- 5

8. --------------------------------------------- 6

9. ----------------------------------------------7

10. Closing Monitor-------------------------------------------------------7

11. OSDMenus inA/V Source --------------------------------------------8

12. Remote Control--------------------------------------------------------9

13. Appendix--------------- ------------------------------------------------9

14. Specifications ------------------------------------------------------- 10

15. TV TUNER BOX -----------------------------------------------------11

16. Remote ControlFunction --------------------------------------------11

17. TunerIntstallation and ElectricalConnections --------------------12

18. Installation -----------------------------------------------------------12

19. Specifications --------------------------------------------------------16

Start Your Installation

Setting Up The Dome Lamps

Installation Your Monitor

Operating the Monitor---

Table of Contents

WARNING

This unit is not intended for installation in the front Driver / Passenger Compartment

where it may be seen by the Driver. Installation of this unit in any portion of the vehicle

which could impair or distract the Driver is improper and dangerous and

assumes No liability whatso ever for failure to follow the proper installation of this

product.

To reduce the risk of electric shock, please do not expose this unit to rain, moisture or

open the unit. Dangerous high voltages are present inside the unit.

Our warranty could be voided if you make changes or modifications not expressly

approved by

Usage Notice

Follow all warnings, precautions and maintenance as

recommended in this user's manual to maximize the life of

your LCD monitor

To avoid the damage of the LCD monitor and risk of

electronic shock, do not allow the LCD monitor to get wet.

If the monitor gets wet, turn off the power, unplug the

power cord and send the LCD monitor to your local dealer

or our service cen-ter as soon as possible.

Use a regular power specification of DC 12V . Do not use

any other power supply with different voltage.

Do not place objects on or suspend them with the power

cord.

This will damage the power cord.

Do not tangle or twist the power cord . And do not expose it

to any heated object.

Do not try to repair the power cord when it is damaged or

broken, change a new one immediately.

Avoid dropping any metal objects or inflammable liquids

into the LCD monitor from ventilation slots.

Do not attempt to open or disassemble the LCD monitor

yourself as this may cause electronic shock.

When there is smoke or peculiar smell in use, unplug the

power cord immediately and send it to your local dealer or

our service center.

When there is damage to the LCD monitor casing, send it to

your local dealer or our service center.

Do not use this LCD monitor in areas susceptible to

excessive dust, dirt, and humid.

Do not install the LCD monitor in areas that are exposed to

direct sunlight, extreme heat, and extreme cold

environment.

Do not expose the LCD monitor to rain or moisture.

Package

This LCD monitor comes with all the items below. Check to make

sure your unit complete. Contact your dealer immediately if

anything is missing.

* 20" High RES TFT-LCD Wide Screen Monitor

* Overhead Console Mounting Bracket

* Credit Card Size Remote Control with Batteries

* Interface Cable with RCA jacks for Audio / Video

Connection and 12V DC

* User's Manual

* Warranty Card

* Infrared Wireless Headphone

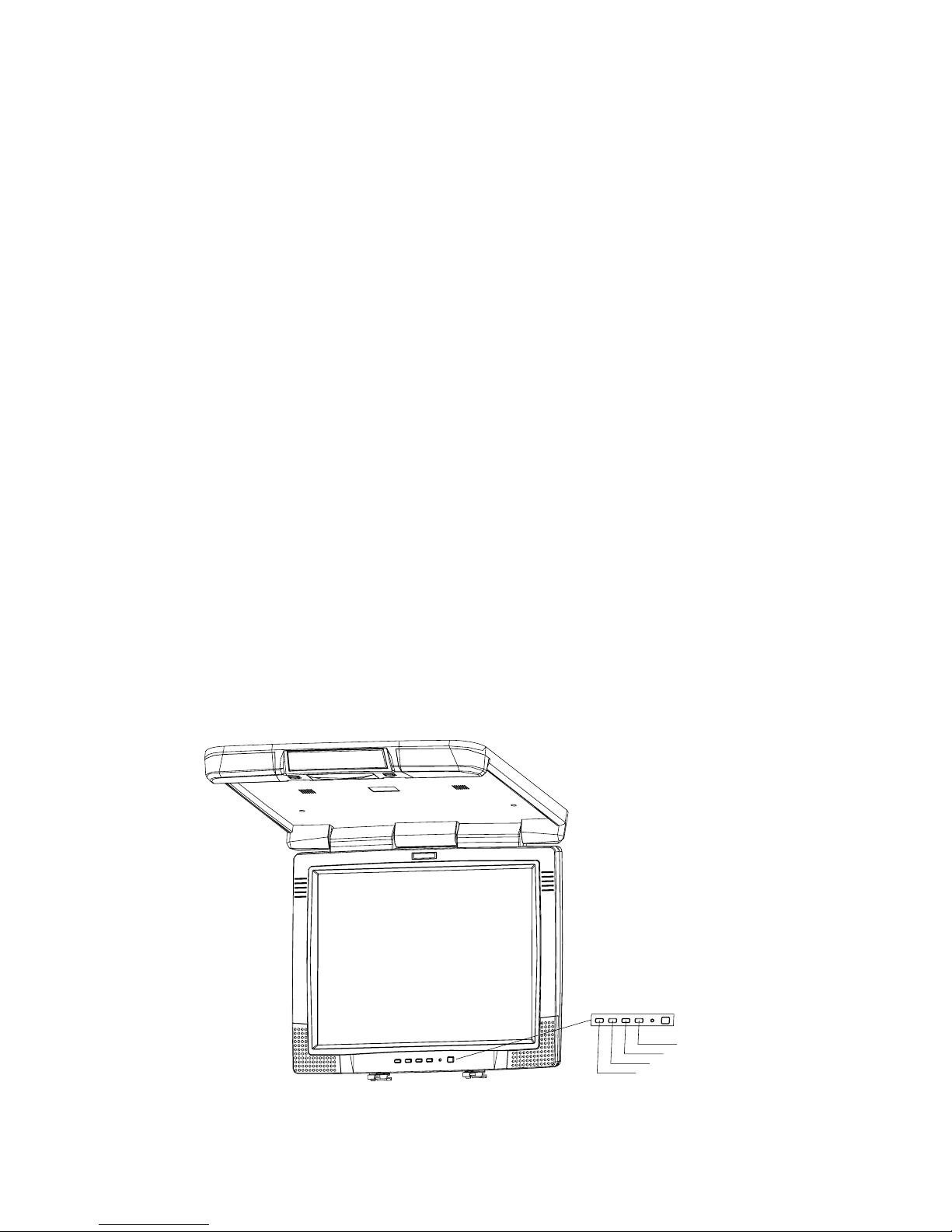

User Control Overview

*Panel Control

POWER

DOWN

Start Your Installation

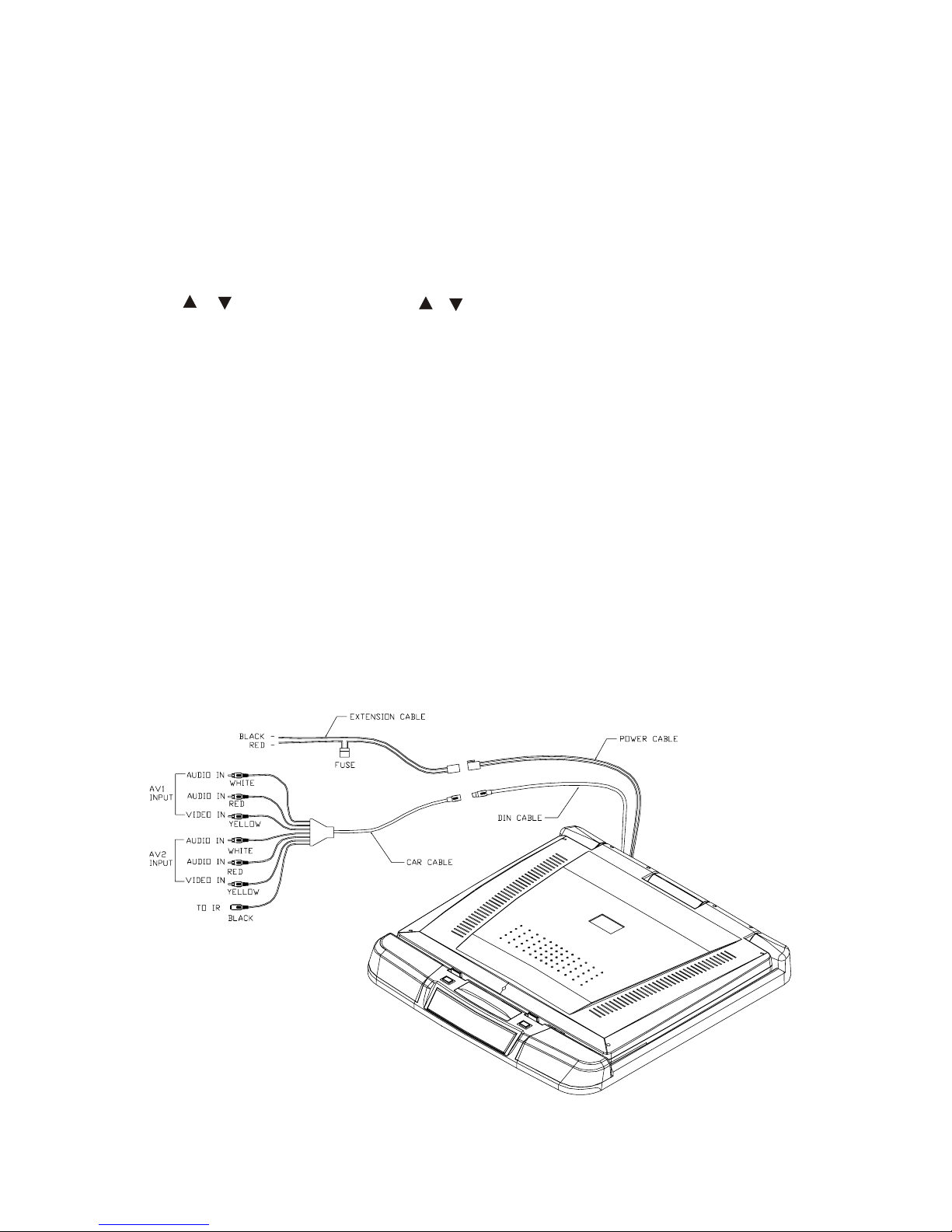

* Monitor connection

Function Descriptions

* Menu: Press the "MENU" button to pop up the OSD menus.

* / Keys: 1. Press the " / " key to increase or decrease volume.

2. Make item selection in OSD menus to increase or

decrease parameters as well.

* Mute: Press the "Mute" button from the remote control

to turn off the sound of the LCD monitor.

* Power: You may also turn the monitor on and off with the

"Power" button.

Setting Up The Dome Lamps

*Operating the dome Lamps

1. There are three function buttons for the Dome lamps operation: OFF,

DOOR, and ON. (Refer to the following figure)

A. OFF: To turn off the lamps.

B. DOOR: To make the lamps turn on

only when car doors are

opened.

C. ON: To turn on the lamps.

* The electric circuit figure

Point Power Cord Color Connection

Red

White

Black

Connecting With Power Supply

Connecting With Sensor of Car Doors

For Ground Connection

* Remarks:

OFF

DOOR

LAMPS R

BATTERY +

DOOR

ON OFF

ON OFF DOOR

1. There is no wiring connection necessary at"B" point as

"B" has been connected when the metal bracket is

screwed in.

2. Only use 12 volt DC power.

Installation your Monitor

Take care to select a suitable installation location and secur method

fastening for the monitor:

*The unit should not distractor obstruct the driver.

*The installation should not inhibit the entry to, or the exit from the

vehicle.

*The unit should not interfere with other vehicle components e.g.,

(sliding sunroof).

*Make sure the unit is installed to a secure, mounting location

and cannot become dislodged in the event of an emergency stop.

*Do not support the unit using only the vehicle interior fabric roof

lining.

*If driving screws is required, take care not to penetrate through the

other sheet metalof the vehicle.

*Avoid prolonged use of the monitor when the engine is not running

to prevent draining the vehicle battery.

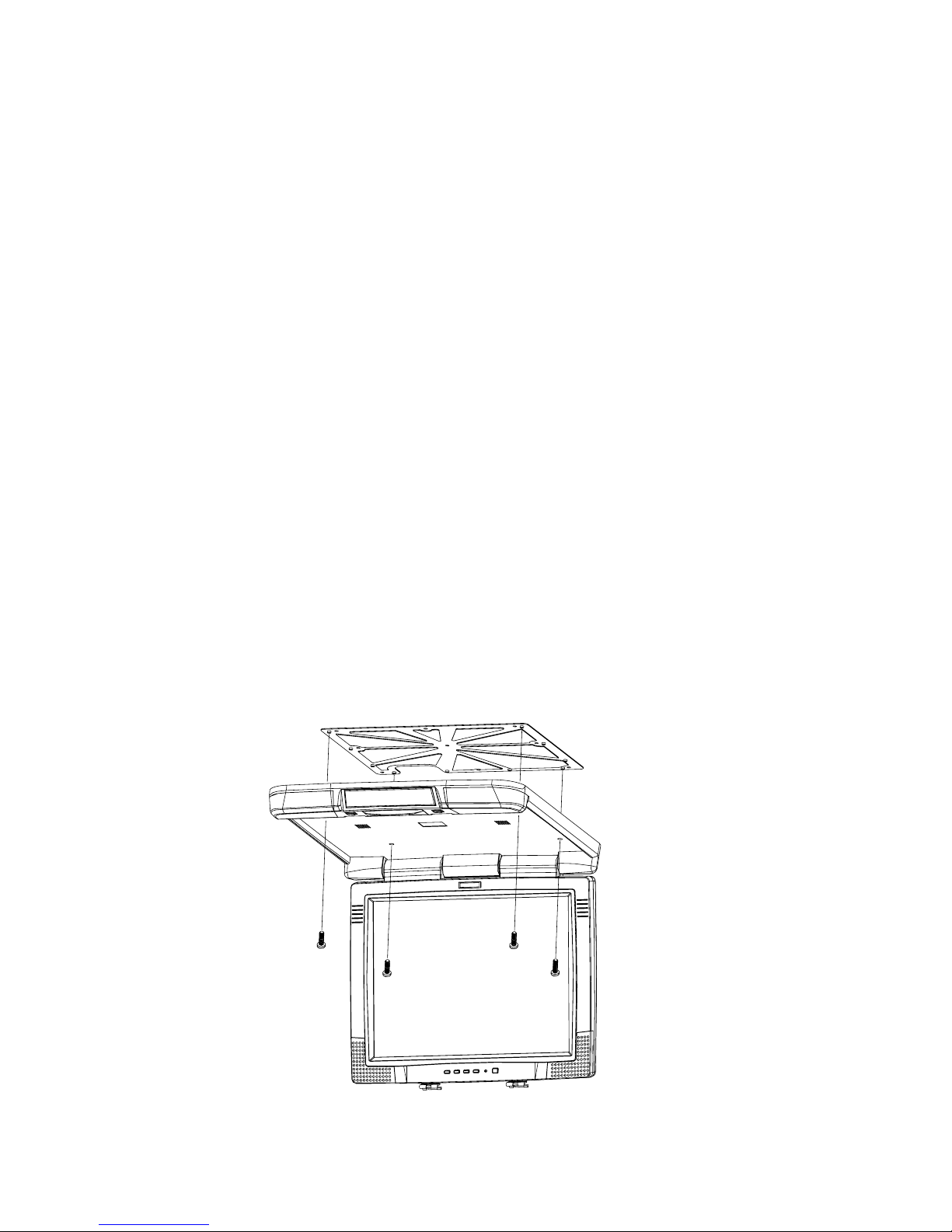

*Place the mounting metal plate with the nuts facing upward, then,

mount the monitor using the screws included.

Closing Monitor

1. Return the monitor to the central viewing position.

(Refer to the following figure)

2. Push the monitor back into the monitor base unit until

the screen engages with the release button.

Operating the Monitor

* Powering up the monitor

The monitor will be automatically turned on when releasing the

monitor from the base unit and "OFF" when it is closed.

Operating Instructions

Opening the Monitor

1. Press the monitor release button to lower the LCD screen.

2. Lower the monitor until is at the proper viewing angle.

(Refer to the following figure.)

* OSD Menus in A/V Source

MAIN MENU

CUBS.1 = NTSC

H. SYNC = +15.7K Hz

V. SYNC = +60.0Hz

BRIGHTNESS

CONTRAST

COLOR

HUE

SOURCE

AUDIO

RECALL

EXIT

SOURCE

AUTO DETECT

VIDEO 1

VIDEO 2

RETURN

AUDIO

MUTE

VOLUME

RECALL

RETURN

A. Source Selection Menu

B. Audio Input Selection Menu

VOLUME

* Quick Adjustment OSD Menus

1. By pressing "MENU" button, you may open the MAIN MENU, using " " or " "

buttons to pick out OSD functions.

2. In order to select desire options, it is necessary to press "MENU" again to

enter each mode, than using " "/ " " toincrease or decrease parameters as well.

3. Press " " or " " button directlyto adjust speakervolume.

4. Press the " EXIT" mode to store your selected parameter and

leave the OSD Menus.

Appendix

Changing the New Battery in Remote Control

1. Push the battery case button to wards the right. (As shown # 1 in

below figure)

2. Pull the battery case away from the remote control. As shown

# 2 in below figure) Change a new battery.

Cassette Button

2Battery

Remote Control

1234

5678

POWER

MUTE

TV/AV

TV/CATV

SETUP

FM/AM

Monitor

FUNC

MODE

CHVOL

Power

MUTE

FUNCTION / OSDMENU

MODE VIDEO 1/ VIDEO 2

DOWN
