PVI NICKELSHIELD PV 5369 Manual de usuario

Product is patented in the U.S., Canada, and Mexico.

PVI INDUSTRIES, LLC

FORT WORTH, TEXAS 76111

PV 5369 07/04 (800) 784-8326 •www.pvi.com

ATMOSPHERIC GAS • PACKAGED WATER HEATER

NICKELSHIELD®- NICKEL-PLATED STORAGE TANK

TANK SERIES 125 GALLONS

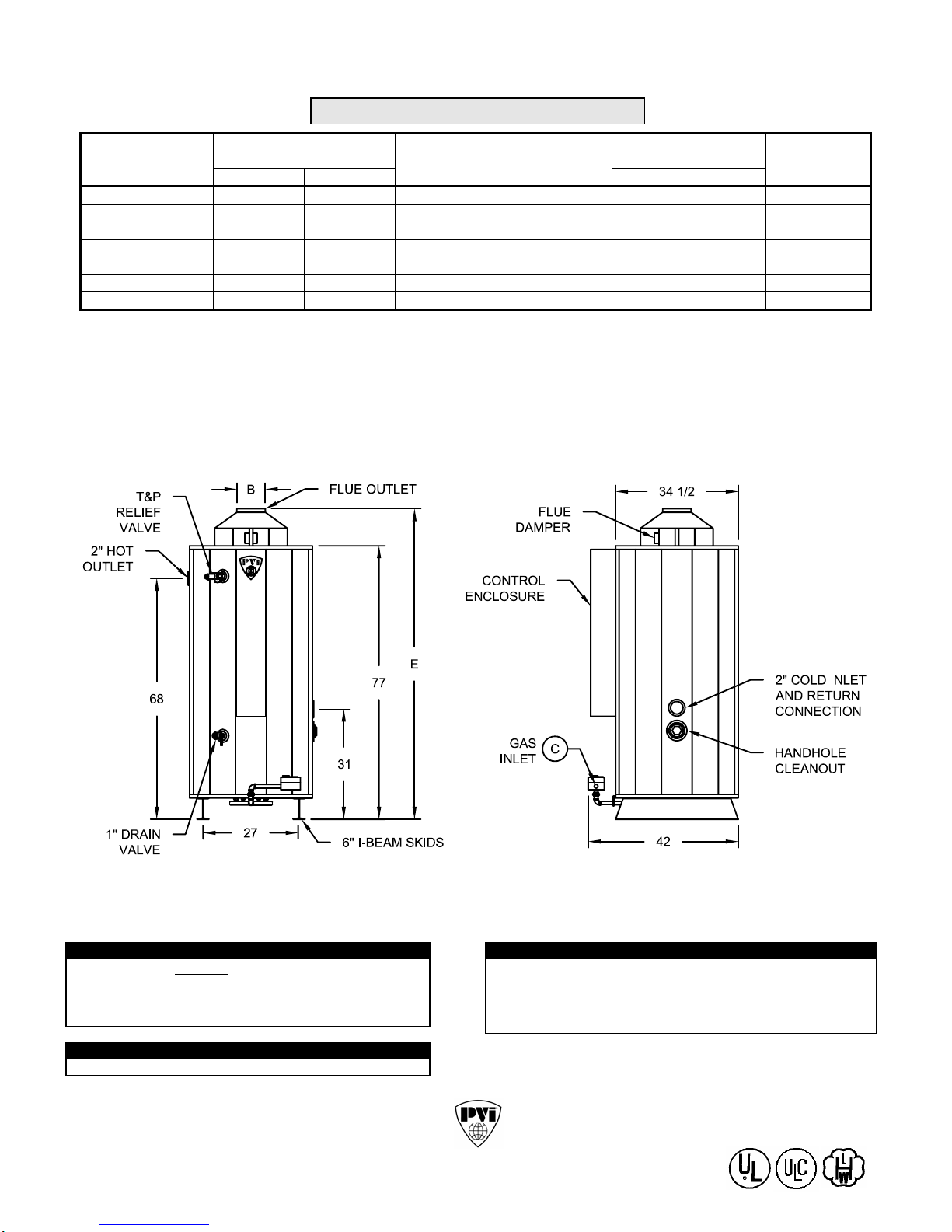

Recovery gph cDimensions

(inches)

Model Number 40° - 120°F 40° - 140°F

Input

Btu/h

* Min. Inlet Flow

Gas Pressure

"W.C. B C E

Shipping

Weight

lbs

14 N 125A-G 168 134 140,000 4.5 5 3/4 86 980

20 N 125A-G 239 191 199,000 4.5 6 3/4 86 1030

27 N 125A-G 324 259 270,000 4.5 7 3/4 86 1090

40 N 125A-G 479 383 399,000 4.5 8 3/4 87 1170

54 N 125A-G 648 518 540,000 6.5 10 1 87 1330

72 N 125A-G 864 691 720,000 6.5 12 1 87 1430

80 N 125A-G 960 768 800,000 7.0 12 1 1/4 87 1490

cRecoveries based on 80% thermal efficiency. ASHRAE 90.1 compliant for efficiency and standby loss.

* The information presented is for natural gas 0.6 S.G. – For operation with propane (LP gas), consult the factory.

* For operation outside this range, consult the factory.

Dimensions are in inches unless otherwise notes.

For standard and optional equipment, see form #PV 6070.

STANDARD GAS PRESSURE REQUIREMENTS:

SEE TABLE FOR MINIMUM PRESSURE BY MODEL NUMBER.

MAXIMUM STATIC INLET GAS PRESSURE: 14 W.C.

FOR GAS PRESSURES OUTSIDE OF THIS RANGE,

CONTACT YOUR PVI REPRESENTATIVE.

ELECTRICAL REQUIREMENTS:

CONTROL VOLTAGE: 115V, 1Ø, 60 HZ., 2 AMPS

VENTING REQUIREMENTS:

TYPE B VENTING.

ENTIRE VENT SYSTEM SHOULD NEVER BE SIZED BASED

UPON THE VENT CONNECTION DIAMETER EXCLUSIVELY.

CHECK NATIONAL FUEL GAS CODE UNDER "ATMOSPHERIC."

PVI RESERVES THE RIGHT TO CHANGE THE DESIGN AND

SPECIFICATION WITHOUT NOTICE.
