PVI Vecoax MiniMod 2 Manual de usuario
VECOAX MINIMOD RACK 4 STEP BY STEP INSTALL GUIDE
NOTE: BEFORE INSTALLATION
Please test each MiniMod 2 unit UNMOUNTED ON A TEST BENCH with your Test TV
before installing your units to ensure you are receiving the Test Pattern signal. Then
Program your unit. If installing Multiple units, ensure each unit has its own frequency
it’s broadcasting on as well as Major/Minor Channel numbers.
To test, simply connect your TV with a short piece of Coax cable to the RF Out of the
Unit. Then, scan for channels on your test TV. No HDMI needs to be connected for
this test. This will display our test pattern on your TV once you scan for digital cable
channels. By default, our unit is set to QAM (J.83B Cable) mode.
Please refer to the unit’s Manual for programming instructions.
1.) Your MINIMOD RACK kit comes with MiniMod 2 units and rack mount plate.
(Fig 1.)
2.) On the side panel of the MiniMod with the RF In/Out, unscrew the connector
nuts from the RF connectors, and remove the nuts and washers. (Fig. 2)

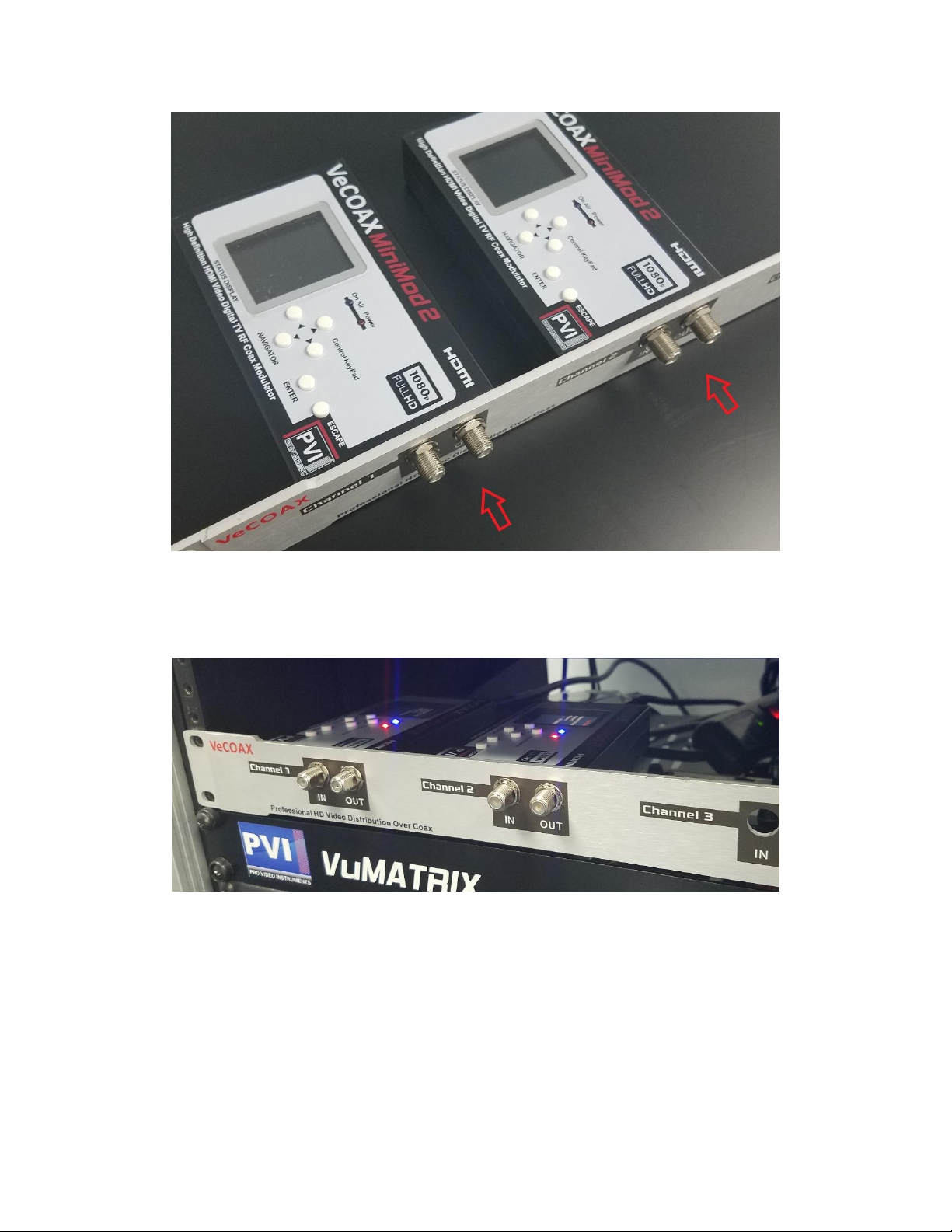

3.) Place the RF In/Out connectors through the In/Out holes in the rack mount
plate. (Fig. 3)
4.) Replace the washers and connector nuts. Ensure connector nuts are snugly
secured onto the plate. (Recommended to hand-tighten using a 11mm socket.)
(Fig. 4)
5.) Repeat steps 2 through 5 for each MiniMod unit. (Fig. 5)
6.) Install assembled Rack series onto your rack mounts. (Fig. 6)
