INSTALLATION GUIDE
ENGLISH v1.0
code: RS4288
Name: 42U RACK server cabinet, floor standing, ready-to-assemble 800x800
IM RS4288
Edition: 1 from 20.02.2020
Supersedes: -------------
EN
1. Intended use:
The RACK 19” cabinet enables integrating CCTV, AC, I&HAS, RTV, LAN, or other systems in medium and big companies. It is
intended for devices manufactured in enclosures of the 19'' standard. Due to the RACK cabinets, the devices are aesthetically mounted
and protected against mechanical damage.
2. Specifications:
W=800, H=2055, D=800 [mm, +/-2]
- RACK mounting rails: cold-rolled steel SPCC 2mm RAL 9004 - bolted
- horizontal mounting rails: cold-rolled steel SPCC 1,5mm - bolted
- frame: cold-rolled steel SPCC 1,2mm RAL 9004 - welded
- front door: 5mm toughened glass / SPCC 1,2mm RAL 9004 - hinged
- side panel: cold-rolled steel SPCC 1,2mm RAL 9004 - removable
- rear door: cold-rolled steel SPCC 1,2mm RAL 9004 - hinged
1000 kg (with leveling feet)
- adjustable distance between front and rear RACK rails
- ventilation holes in the top and bottom panel
- possible mounting of a fan unit in the top panels - RAWP (max. 3 pcs.)
- cable ducts in the top and bottom panel
- two cable management panels, vertical, mounted in front of cabinet
- 4 casters without locks and 4 leveling feet included
- possible assembly of a 100mm high plinth - RAC188M
- lockable front door (2 keys in set)
- lockable rear door (2 keys in set)
- side panel - lock assembly possible - RAZB16
- ready-to-assemble
RoHS, 12 months from the date of purchase

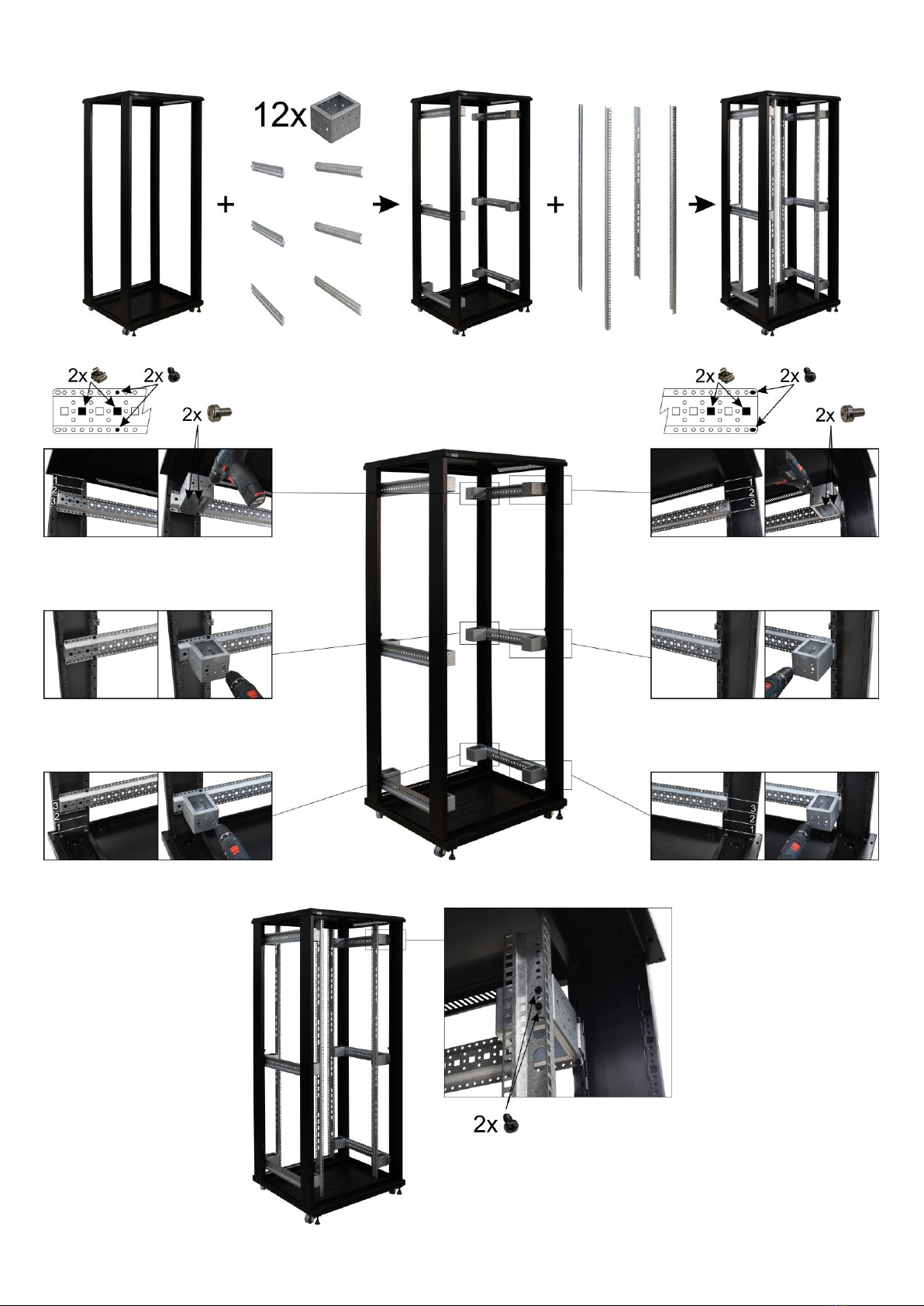

3. Structure of the RACK cabinet.
