Pulsar RUPS812T Manual de usuario

RUPS812T

v.1.0

RUPS 13,8V/8x1A/TOPIC

RACK mounted buffer power supply for up to 8 HD cameras.

EN*

Edition: 2 from 30.03.2017

Supercedes the edition: 1 from 28.01.2016

www.pulsar.pl RUPS812T RACK POWER

Features:

DC 13,8V/8x1A uninterruptible power supply for

powering HD cameras (8A max.)

8 outputs independently protected

by 1A melting fuses

wide range of mains supply AC: 176÷264V AC

high efficiency 85%

battery charging and maintenance control

excessive discharging (UVP) protection

battery output protection against short circuit and

reverse connection

battery charge current: 1A

(batteries 1x7Ah / 1x17Ah / 1x28Ah)

control of voltage presence at the AUX1 ÷ AUX8

outputs

acoustic indication of failure

LED optical indication: AC, DC, TEMP, LoB, ALARM,

AUX1 ÷ AUX8

the ALARM technical output of collective failure

–relay type, activated by:

230V AC power loss

low voltage of the PSU (<11,5V)

activation of the output fuse in the camera power

supply circuit

too high temperature of the PSU (>70°C)

the PSU failure

protections:

SCP short-circuit protection

OVP overvoltage protection

overvoltage protection

overload protection OLP

forced cooling (fan)

warranty –2 year from the production date

Sample application of the RACK power supply unit.

www.pulsar.pl RUPS812T RACK POWER

CONTENTS:

1. Technical description.

1.1. General description

1.2. Block diagram

1.3. Description of PSU components and connectors

1.4. Specifications

2. Installation.

2.1. Requirements

2.2. Installation procedure

3. Operating status indication.

3.1. LED indication

3.2. Technical output

3.3. Acoustic indication

4. Operation and use.

4.1. Overload or short circuit of the PSU output

4.2. Battery-assisted operation

4.3. Maintenance

1. Technical description.

1.1. General description.

The RUPS812T buffer power supply unit is designed for uninterrupted power supply of up to 8 HD cameras

requiring stabilized voltage of 12V DC (+/- 15%). The PSU provides voltage of U=13,8V DC.Current efficiency:

Output current 8A + 1A battery charge.

Total device current + battery: 9A max.

In case of power decay, a battery back-up is activated immediately. The PSU is fitted with 8 outputs

protected independently with melting fuse 1A. The power supply is fitted with the ALARM output of collective

failure. In case of failure, relay contacts are switched automatically, which is accompanied by acoustic and optical

indication (the corresponding led goes on). The power supply construction is based on the switch mode PSU with

high energy efficiency and is located in an enclosure adapted for mounting in standard RACK 19” cabinets.

1.2. Block diagram.

Fig.1. The block diagram of the PSU.

1.3. Description of PSU components and connectors.

Table 1. Components of the front panel of the power supply.

Element no.

[Fig. 2]

Description

AC OK –green LED, indicating the presence of 230V voltage

DC OK –green LED, indicating the presence of DC voltage

TEMP –red LED, indicating too high temperature of the power supply (>70°C)

LoB –red LED, indicating too low battery voltage (<11,5V)

LED ALARM –red LED failure indication

Green LED AUX1 ÷ AUX8 –voltage indication at the AUX outputs

www.pulsar.pl RUPS812T RACK POWER

AUX1 ÷ AUX8 –independently protected outputs

BAT –battery output

ALARM –technical output of collective failure –relay

BUZZER, micro switch, turning ON / OFF of acoustic indication

switch in the top position, indication ON

switch in the down position, indication OFF

F1 ÷ F8, melting fuses in the camera power supply circuits AUX (+), F1A

230V AC INPUT, power socket 230V AC, power cable 1,5m included

FMAINS,fuse in the supply circuit 230V AC, T 3,15A/250V

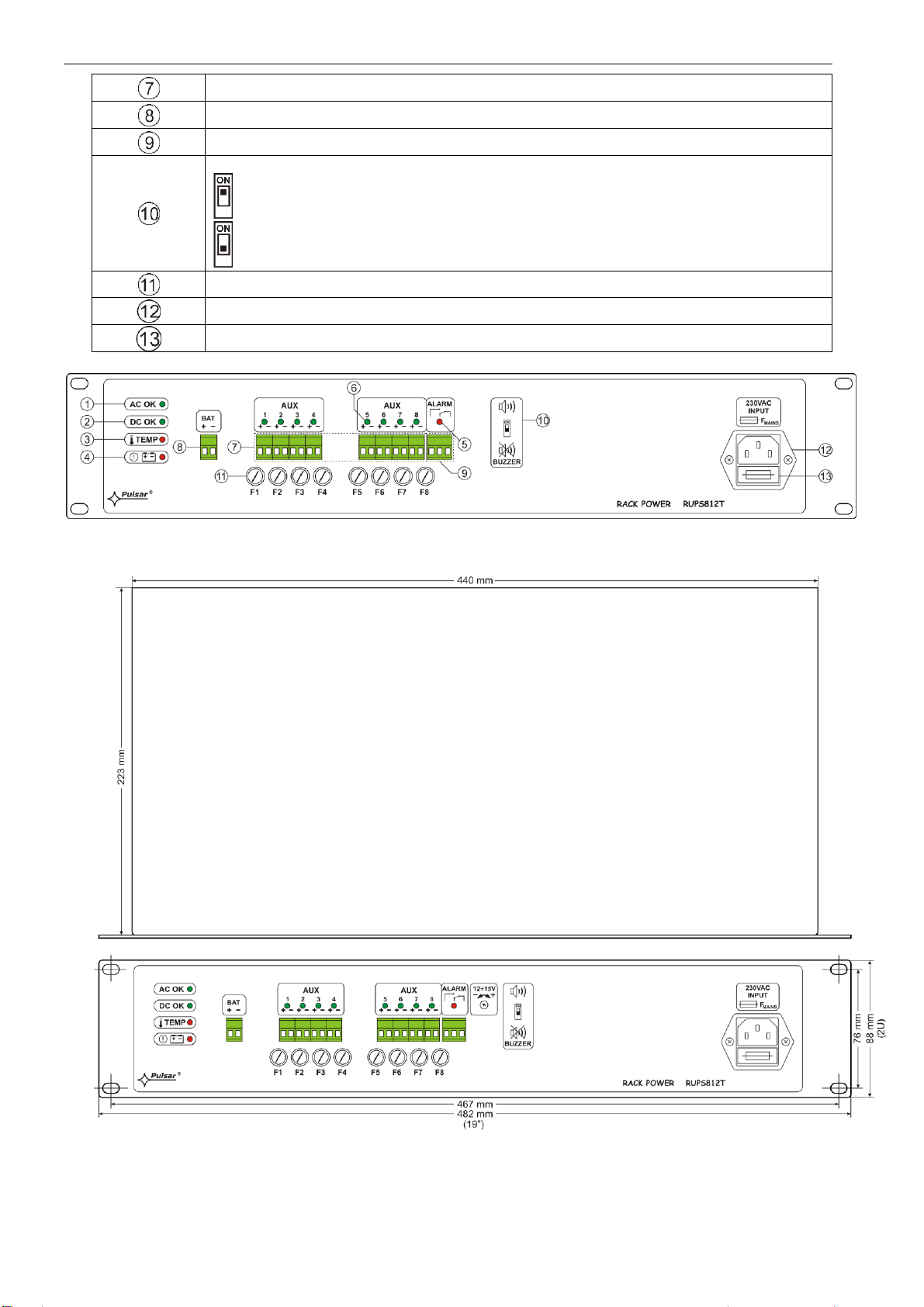

Fig. 2. The front power of the power supply unit.

Fig.3. The view of the PSU.

www.pulsar.pl RUPS812T RACK POWER

1.4. Specifications.

- electrical parameters (tab.2)

- mechanical parameters (tab.3)

- operation safety (tab.4)

- operating parameters (tab.5)

Electrical parameters (tab. 2).

Mains supply

176÷264V AC

Current up to

1,1A@230V AC max.

Supply power

124W max.

Efficiency

85%

Output voltage

11V ÷ 13,8V DC –buffer operation

9,5V ÷ 13,8V DC – battery-assisted operation

Output current

8 x 1A + 1A battery charge

Ripple

120 mV p-p max.

Battery charge current

(batteries 1x7Ah / 1x17Ah / 1x28Ah)

1A max. (+/-5%)

Short-circuit protection SCP

8 x F 1A melting fuse

Overload protection OLP

Current consumption by PSU systems

105% ÷ 150% of the PSU power, automatic return

0,22A

Overvoltage protection OVP

>16V (automatic recovery)

Battery circuit protection SCP and reverse

polarity connection

polymer fuse PTC

Surge protection

varistors

Excessive discharge protection UVP

U<9,5V (+/-5%) –disconnect of connection battery

Optical indication of operation:

LED: AC, DC, TEMP, LoB, ALARM, AUX1÷AUX8

Acoustic operation indication:

Piezoelectric indicator ~75dB/0,3m

The ALARM technical output of collective failure

Relay type: 1A@ 30VDC/50VAC

The FMAINS fuse in the 230V power supply circuit

T 3,15A

F1÷F8 fuses in the camera power supply circuits

AUX(+)

F 1A

Mechanical parameters (tab. 3).

Enclosure dimensions

W=19”, H=2U; 482 x 88 x 223 mm (WxHxD)

Fixation

four-point butt mounting to RACK profiles –the set include 4 M6 screws + cage nuts

Net weight

5,30kg / 5,70kg

Enclosure

Steel plate RAL 9005, black

Connectors

230V AC input: the IEC C14 socket with a fuse, power cable 1,5m

(included)

Outputs: ALARM, AUX1÷AUX8: Φ0,5-2,1 (AWG 24-12) 0,5-2mm2

Notes

Forced cooling (fan).

Operation safety (tab.4).

Protection class PN-EN 60950-1:2007

I (first)

Protection grade PN-EN 60529: 2002 (U)

IP20

Electrical strength of insulation:

- between input and output circuits of the PSU (I/P-O/P)

- between input circuit and PE protection circuit (I/P-FG)

- between output circuit and PE protection circuit (O/P-FG)

3000 V/AC min.

1500 V/AC min.

500 V/AC min.

Insulation resistance:

- between input circuit and output or protection circuit

100 MΩ, 500V/DC

Operating parameters (tab.5).

Environmental class

Operating temperature

-10ºC...+45ºC

Storage temperature

-20ºC...+60ºC

Relative humidity

20%...90%, without condensation

Vibrations during operation

unacceptable

Impulse waves during operation

unacceptable

Direct insulation

unacceptable

Vibrations and impulse waves during transport

According to PN-83/T-42106

www.pulsar.pl RUPS812T RACK POWER

2. Installation.

2.1. Requirements.

The PSU RACK shall be mounted by a qualified installer with appropriate permissions and qualifications for

230V/AC installations and low-voltage installations (required and necessary for a given country). The device shall

be mounted in confined spaces, according to the environment class II, with normal air humidity (RH=90% max.

without condensation) and the temperature from -10°C do +45°C.

During normal operation the total current consumption of the receivers cannot exceed

I=8A. Maximum battery charging current is: 1A.

Total device current + battery: 9A max.

As the PSU is designed for a continuous operation and is not equipped with a power-switch, therefore an

appropriate overload protection shall be guaranteed in the power supply circuit. Moreover, the user shall be

informed about the method of unplugging (usually through assigning an appropriate fuse in the fuse-box). The

electrical system shall follow valid standards and regulations.

2.2. Installation procedure.

1. Before installation, cut off the voltage in the 230V power-supply circuit.

2. Mount the power supply in a RACK 19" cabinet as shown below:

- Mount M6 cage nuts

- Secure the enclosure with 4xM6 screws

3. Connect the receivers’ cables to the terminals AUX1...AUX8.

4. If needed, the following technical connections can be made:

- ALARM –technical output of collective failure

5. Connect the battery to the +BAT- terminals:

- battery output (+): terminal BAT+

- battery output (-): terminal BAT-

6. Connect the ~230V AC power cord with the IEC C13 plug (included) to the 230V AC power supply and turn on the

power (~230V).

7. Check the PSU operation indicator.

3. Operating status indication.

3.1. LED indication.

The PSU has 13 LED lights at the front panel:

GREEN LED:

on –the PSU is supplied with 230V AC

off –no 230V AC supply

GREEN LED:

on –DC voltage at the output of the switch mode PSU

off –no DC voltage at the output of the switch mode PSU

RED LED:

on –failure

www.pulsar.pl RUPS812T RACK POWER

off –no failure

RED LED:

ON –too high temperature of the switch mode power supply

(>70°C)

OFF –standard temperature of the switch mode power supply

RED LED:

on –battery voltage <11,5V

off –battery voltage >11,5V

GREEN LED:

on –DC voltage in the AUX1…AUX8 output

off –no DC voltage in the AUX1…AUX8 output

3.2. Technical output.

The power supply is fitted with the ALARM output of collective failure (relay type). A collective failure can

be triggered by the following events:

- 230V AC mains power failure

- Melting fuse activation F1÷F8

- Failure of the switch mode power supply

- Too high temperature of the switch mode power supply (>70°C)

- Low battery voltage (<11,5V)

Fig. 4. Electrical diagram of the ALARM collective output of failure.

CAUTION! In Fig.4 the set of contacts shows a potential-free status of the relay, which

corresponds to power supply failure.

3.3. Acoustic indication.

A collective failure is indicated by the piezoelectric indicator, 1 beep every second. The acoustic indication

can be turned off by changing the ON / OFF position of the switch .

switch in the up position, indication ON

switch in the down position, indication OFF

www.pulsar.pl RUPS812T RACK POWER

4. Operation and use.

4.1. Overload or short circuit of the PSU output.

The AUX1 ÷ AUX8 power supply outputs are protected against short circuit by melting fuses; in the case of

fuse failure, it should be replaced with a fuse of the same type.

4.2. Battery-assisted operation.

In case of a main power outage, the device is immediately switched into a battery-assisted operation.

The PSU is equipped with the discharged battery disconnection system. During

the battery-assisted operation, reducing voltage below 9,5V at the battery terminals will

cause battery disconnection.

4.3. Maintenance.

Any and all maintenance operations may be performed following the disconnection of the PSU from the

power supply network. The PSU does not require performing any specific maintenance measures. In case of fuse

replacement, use a replacement of the same parameters.

WEEE LABEL

Waste electrical and electronic equipment must not be disposed of with normal household

waste. According to the European Union WEEE Directive, waste electrical and electronic

equipment should be disposed of separately from normal household waste.

Pulsar

Siedlec 150, 32-744 Łapczyca, Poland

Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50

E-mail: biuro@pulsar.pl, sales@pulsar.pl

http:// www.pulsar.pl, www.zasilacze.pl

Tabla de contenidos

Otros manuales de Fuente de alimentación de Pulsar

Pulsar

Pulsar PSBEN 3012D/LCD Manual de usuario

Pulsar

Pulsar GREEN POWER plus HPSBOC 2512B Manual de usuario

Pulsar

Pulsar PSDC09125T Manual de usuario

Pulsar

Pulsar PSBS 2512C Manual de usuario

Pulsar

Pulsar POE0448 Manual de usuario

Pulsar

Pulsar PSG2 Series Manual de usuario

Pulsar

Pulsar PSBEN 10A12D/LCD Manual de usuario

Pulsar

Pulsar PSBEN 2024B/LCD Manual de usuario

Pulsar

Pulsar BLACK POWER PSBEN 2012C Manual de usuario

Pulsar

Pulsar PSC12015 Manual de usuario

Pulsar

Pulsar AWZ 500 Manual de usuario

Pulsar

Pulsar HPSB Series Manual de usuario

Pulsar

Pulsar AWZ 250 Manual de usuario

Pulsar

Pulsar HPSBOC 2512B Manual de usuario

Pulsar

Pulsar EN54-5A17LCD Manual de usuario

Pulsar

Pulsar EN54-7A40LCD Manual de usuario

Pulsar

Pulsar PSBEN 2024C Manual de usuario

Pulsar

Pulsar PSBEN 3012D Manual de usuario

Pulsar

Pulsar PSCLB13830 Manual de usuario

Pulsar

Pulsar GREEN POWER CCTV PSDCB09125C Manual de usuario

Pulsar

Pulsar PSBEN 10A12C/LCD Manual de usuario

Pulsar

Pulsar PSCL12020 Manual de usuario

Pulsar

Pulsar PSCV3512 Manual de usuario

Pulsar

Pulsar PSB-24V7A Manual de usuario

Manuales populares de Fuente de alimentación de otras marcas

Monacor

Monacor PS-12CCD Manual de usuario

VOLTIMA

VOLTIMA MagicBox 15 Manual de usuario

Agilent Technologies

Agilent Technologies 6032A Manual de usuario

Miller

Miller Auto Deltaweld 452 Manual de usuario

BCP

BCP PUOUBK Hoja de instrucciones

HC 2210 Manual de usuario

Puls

Puls CT5.241 Manual de usuario

OCZ

OCZ ZX1250W Manual de usuario

iseg

iseg ECH 238 Manual de usuario

Power

Power XXL A Series Manual de usuario

Agilent Technologies

Agilent Technologies 6631B Manual de usuario

Renogy

Renogy PHOENIX 300 Manual de usuario

HP 6200B Manual de servicio

Epson

Epson Stylus Scan 2500 Manual de funcionamiento

Puls

Puls MiniLine ML50.100 Manual de usuario

Puls

Puls AS-Interface SLA4.100 Manual de usuario

Kenwood

Kenwood PS-60 Manual de usuario

Elmdene

Elmdene G1380xN-y-s Series Manual de usuario
