INSTALLATION GUIDE

ENGLISH

Code: ARAD2

Name: RACK 2U/400mm universal enclosure

for RACK 19" cabinets

Metallic enclosure for RACK cabinet: CCTV, KD, SSWiN, RTV, LAN

IM ARAD2

Edition: 2 from 20.03.2017

Supersedes: 1 from 25.10.2012

1. Intended use:

Due to its design, the ARAD2 enclosure is intended for mounting inside RACK 19'' cabinets. This general-purpose

enclosure may serve as an auxiliary element for integrating CCTV, AC, I&HAS, RTV, LAN systems in RACK 19'' cabinets. It

is intended for mounting alarm control panels, AC controllers, power supply units, batteries, etc.

2. Description

The enclosure is equipped with a mounting plate for mounting electronics/transformers/power supply units. The

enclosure can accommodate a 7Ah/12V battery and it features tampering protection (against unwanted opening). To

enable leading cables into the enclosure, one can buy a cable protection conduit of any length and a cable gland. The

conduits and the cable glands are available at the following codes:

1) ARAP16P –cable gland, inside diameter 16 mm –connection between the protection conduit and the enclosure

2) ARAP21P –cable gland, inside diameter 21 mm –connection between the protection conduit and the enclosure

3) MM019 –cable protection conduit , inside diameter 16 mm

4) MM020 –cable protection conduit, inside diameter 21 mm

The ARAD2 enclosure has a space for up to 2x ARAP16P and 3x ARAP21P cable glands.

Optionally, ARAW45 fans can be mounted. They trigger airflow inside the enclosure after exceeding 45oC. One

enclosure can accommodate max. two fan units in the rear part of the enclosure.

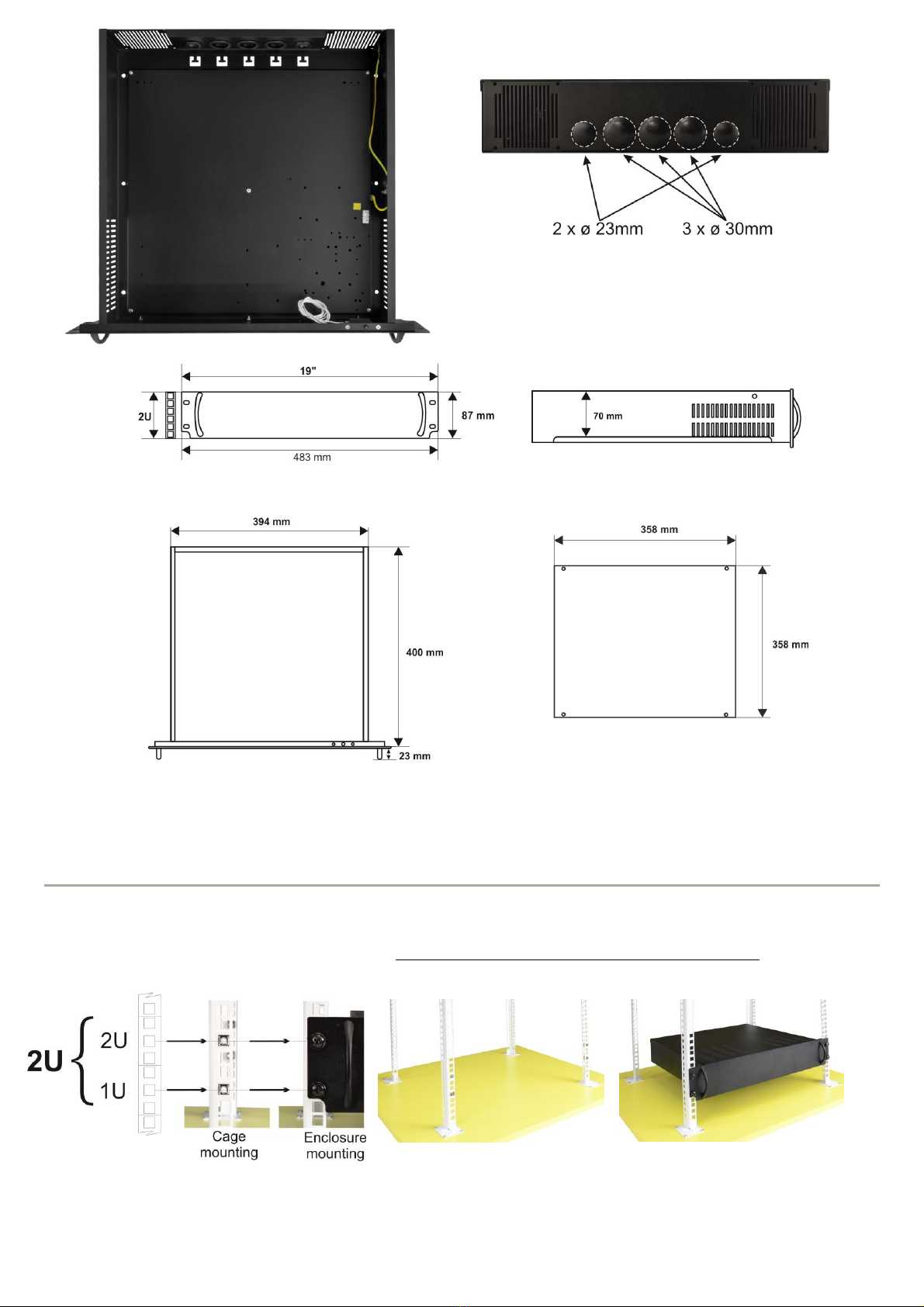

Dimensions of the mounting plate

3. Assembling instructions:

The ARAD2 enclosure can be mounted in two ways:

1. Mounting without the ARAS… rails, no extension slide, the front part is the load-bearing part of the enclosure.

This method of installation is dedicated for economic versions with a load capacity of up to 5 kg.

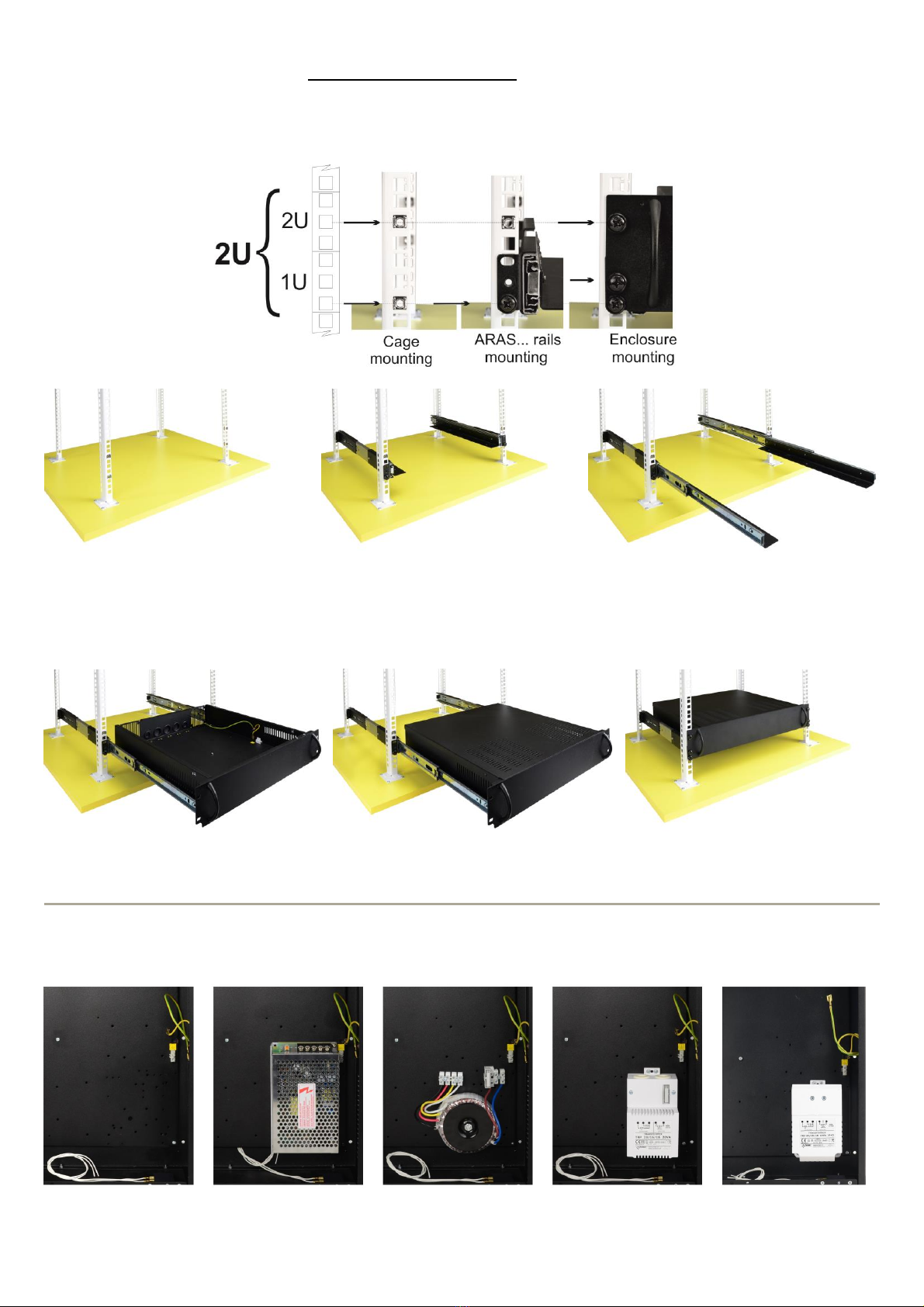

2. Mounting with the ARAS… rails - full extension slide of the RACK cabinet, rails of the ARAS…series are the load-

bearing part of the enclosure. Dedicated for up to 30kg load.

2.1. Mount cage nuts for M6 screws in the RACK cabinet, as shown in Figure below, and mount the ARAS rails

(depending on the depth of the RACK cabinet). Make sure that the rail is correctly mounted horizontally and its

length between the front and rear RACK profile is properly adjusted.

2.2. Mount the ARAD enclosure on fully extended ARAS rails using 6xM4 screws (complete with ARAS rails).

Tighten the screws from the inside. The enclosure is mounted in the front of the RACK rails - using 4xM6 screws.

4. Accessories:

Power supplies PS…/PSB…/PSBOC… series

Transformers of the following series TOR/TRP/TRZ

Empty mounting Empty mounting Enclosed power supply Transformers Transformers

plate PS.., PSB.., PSBOC.. series units TOR… series TRP… series TRZ 20/40 series

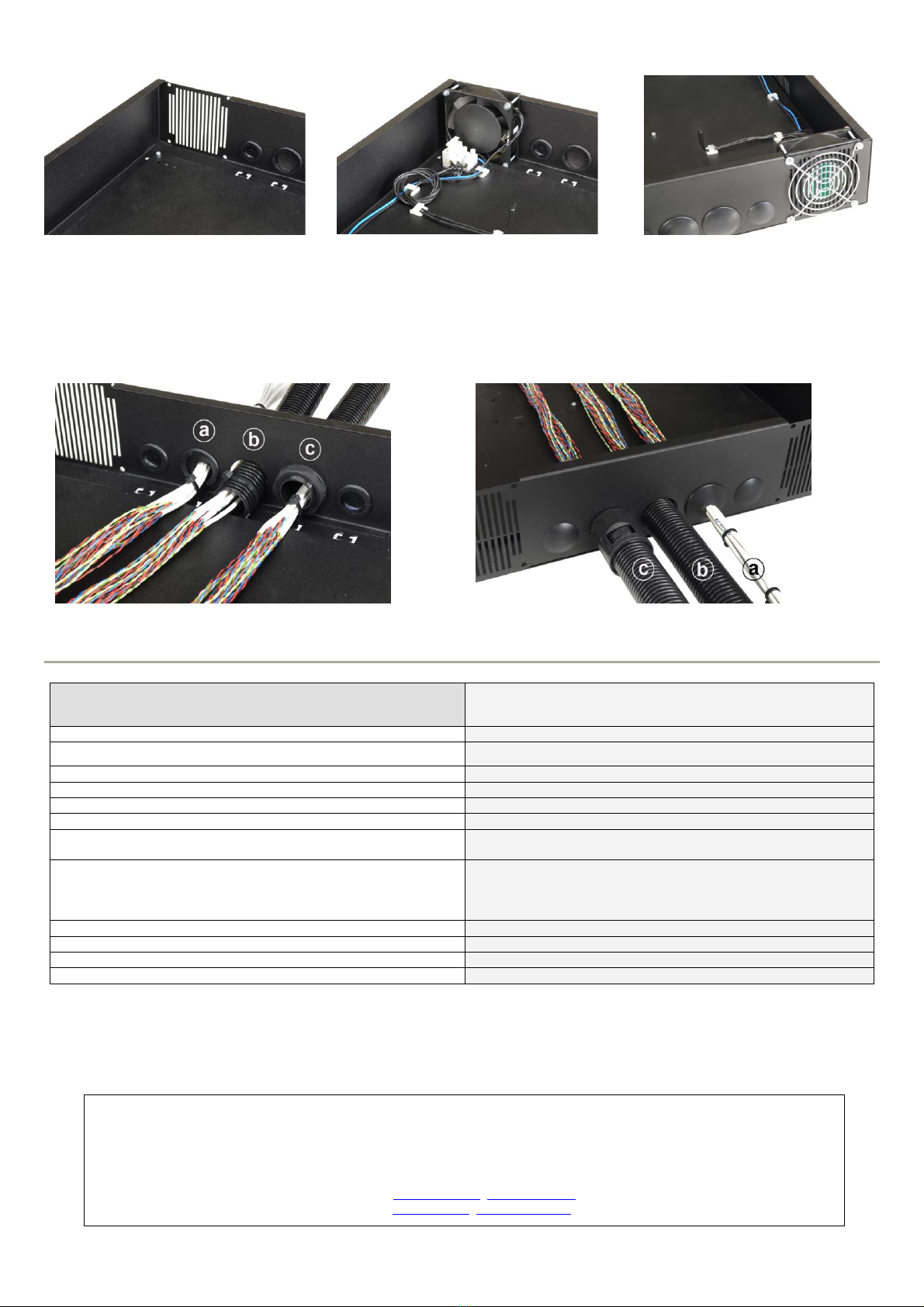

The ARAW45 fan

Cable glands and protection tubes

Wires can be introduced in three ways:

a) - Through rubber grommets,

b) - Using the MM019/MM020 protection tubes,

c) - Using the MM019/MM020 protection tubes and the ARAP16P/ARAP21P cable glands.

5. Specifications

SPECIFICATIONS

Fitting battery

7Ah/12V

Tampering protection

1x –against unwanted opening of the enclosure

Max. load of TAMPER output

500mA@50VDC

Enclosure: IP

IP 20

Operation temperature

-10ºC÷40ºC

Relative humidity RH –max.

90 [%]

Internal dimensions

(W x H x D)

390 x 70 x 395

[-/+2] [mm]

Materials

Sheet metal DC01, 1,0mm thick + front panel thickness:

1,5mm

Rust protection

Colour: RAL 9005 BLACK

Use

inside

Net weight

~5,20 [kg]

Gross weight

~5,95 [kg]

Declarations, warranty

CE, 2 year from the production date

PRODUCENT / PRODUCER

Pulsar

Siedlec 150,

32-744 Łapczyca, Poland

Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50

e-mail: biur[email protected], sales@pulsar.pl

http:// www.pulsar.pl, www.zasilacze.pl
