Provision CHALLENGER PRO Guía de inicio rápido

CHALLENGER PRO

2 WIRE - Video Intercom System

Technical Guide

This techni

cal document is published for information purposes by

PROVISION SECURITY PRODUCTS

. In a policy of ongoing improvement,

PROVISION

SECURITY PRODUCTS

reserves the right to modify the contents of this document and the features of the products referred to herein at any time and

without

prior notice. Any such modifications shall be reflected in subsequent editions of this document

CONTENT

Section1 - Introduction 1

System Features

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

HomeApplications

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Apartment Applications

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

System Function

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

4-5

Section2 - Units and Installations 6

Door Station

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Parts and functions

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Place NamePlate

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7

Adjusting CameraAngle

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 7

ElectronicSpecifications

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Door Station Mounting

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Terminal Descriptions

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

DIP user code settings

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Door lock connection

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

10-11

Monitor

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Features

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

ElectronicSpecifications

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Terminal Descriptions

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Intercom function

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Color Picture Memory

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

SD Card

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

User Code Setup

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Monitor Extending Connection

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Accessories

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

PRO-PS5

Power Supply

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

PRO-DPS

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

PRO-DBC

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

PRO-DBC

4 Unit

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Section3 - Cables and Connections 24

General Rules for Installation

- - - - - - - - - - - - - - - - - - - - - -

Connecting the Connectors

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Installation Height

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Door Station Install Condition

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Table of Cables and Distance

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

System Wirings and Connections

- - - - - - - - - - - - - - - - - - -

1. Basicone to one wiring and CableLength

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

2. Multi monitors IN

OUT wiringmode

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

3. Multi monitorsStar wiring mode

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

4. Multi Door Stations star wiring mode

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Section4 -System Setup 36

What’s User Code

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

What'sSlaveAddress

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Installation setup on monitor

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Shortcut for touch screen calibration of monitor

- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

Section1-Introduction

System Features

• TheProvisionChallenger Pro 2 wire system can be easilyinstalled in simple domestic home installations or

complex apartmentinstallationswith up to 4 entrances. The best feature aboutChallenger Pro is thatall

products in the range are compatible and configurable to suitalmost any installation requirement

• Provision ChallengerPro offersa variety ofdoor stationsto suitthe fussiestof customers. Choose from the

superslim wall/desktop mounted 3.5” PRO16 through to the 10” PRO21 allwith colorfulinterface and touch

screen operation.Where required Picture memoryoption isavailable with PRO27, PRO692,PRO10,and

PRO25 monitors

• Choose from a variety ofdoor stationsranging froma basic1 button modelup to code keypad or card reader

with all in one design styles. Adjustable camera and IP67 fullstainless steel construction are standard

features acrossthe Provision ChallengerPro door station range.

Home Applications

Supports up to 16monitorsand 4 door stations. 2 lock are also supported at each entrance

Apartment Applications

Supports up to 32monitors and 4 door stations.1 lock is also supported at each entrance

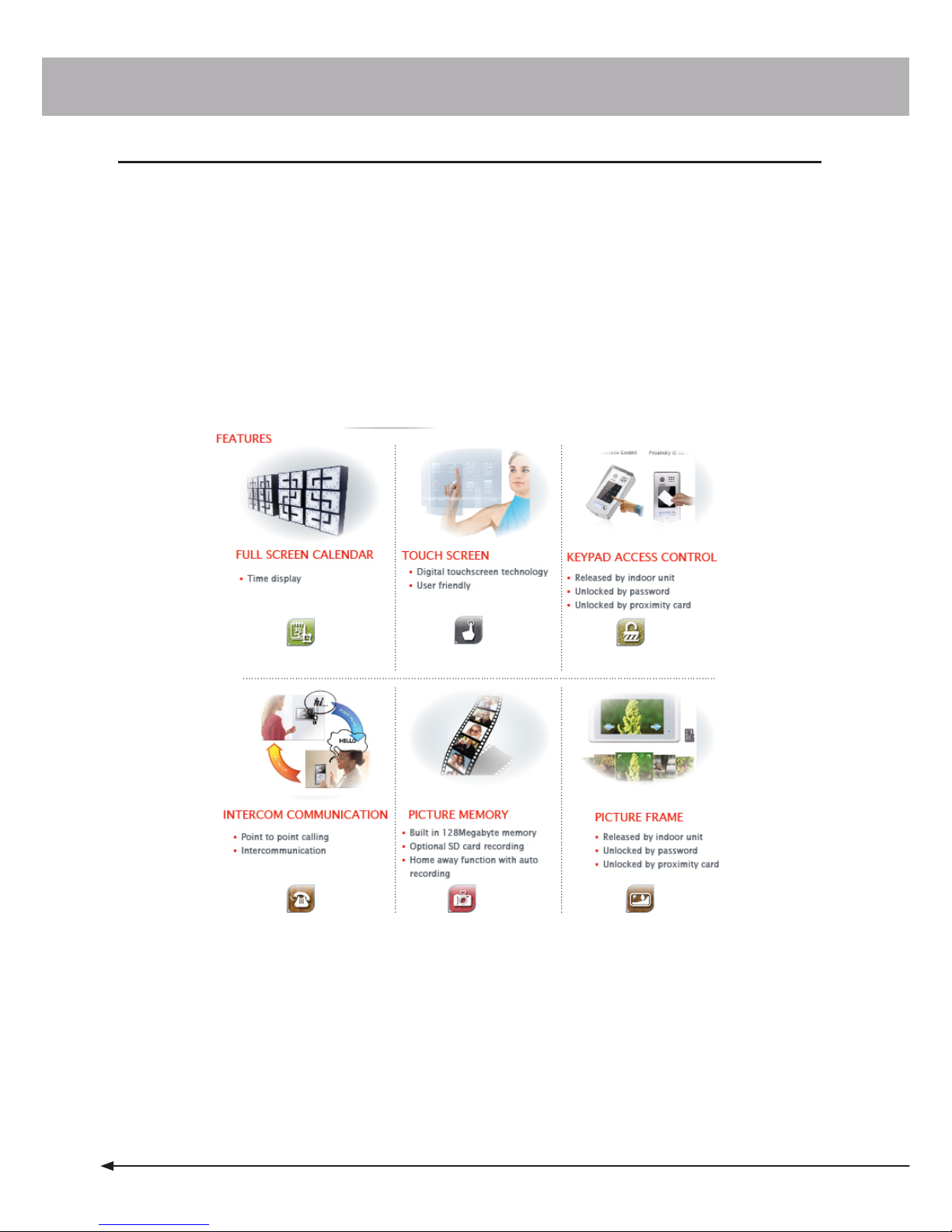

System Function

Internal monitor station

۞Full range line 3.5’’/4’’/5’’/7’’/10’’ digital TFT;

۞Super slim design with surface mounting;

۞Touch screen operation with friendly interface;

۞Intercom by name list and selective intercom;

۞Selective monitoring each door stations or CCTV cameras;

۞Inner 128M flash picture memory and extended SD card recording (SD card not supplied);

۞Digital Photo Frame function;

۞Wall & Desktop installation;

۞12 melody options;

۞Mute function

PRO

System

Technical Guide

Door station

۞Metal housing (Aluminium/Zinc

–

Alloy/ Stainless steel options-all IP66 weather rated);

۞High resolution adjustable camera (CCD, ARS camera);

۞Two independent relays for two locks control;

۞Code lock control & Proximity access control

۞Name plate display;

۞Camera adjustable;

۞Night

view;

Additional features:

۞Calling from door station;

۞Dual communication with external unit;

۞Dual intercom communication between indoor units;

۞Unlock during calling, conversation, monitoring;

۞Two locks for separate control;

۞Picture capture and continuous photo shooting, Home

away function of auto

recording;

Digital Photo Frame function (limited to PRO27, PRO692, PRO10, and PRO25

monitorssupporting SD card);

۞Multi languages choosing & SD card languages upgrading;

176

Section2-UnitsandInstallations

Door

Station

Features

• Full zinc alloypanel.

• Pin

hole color CCD camera.

• Cameraangleadjustable.

• Night

view LED.

• Backlight name plate.

• DIP switches for multi door station configuration.

• Direct connect to electronic lock of 12Vdc.

• Exit button.

• Plug

in connector to connect bus line.

PRO591 PRO592

Parts and functions

Camera

Lens

Night View

LED

Speaker

Nameplate

Call

Button

Microphone

Rainy Cover
