ProTon pack V2 Manual de usuario

proTon pack

V2 USER MANUAL (draft 1.0)

patent pEndIng

proTon packV2

page 2

Table of Contents

1. Product Features

A. Main Proton Pack Frame (exterior)

B. Main Proton Pack Frame (interior)

C. Main Proton Pack Frame (sides)

D. Power Pigtail Cables

E. Standard Kit Contents

2. Introduction & Basic Usage

A. General Description

B. Basic Use

3. Power System

A. Power System Introduction

B. 14v Priority swap mode

C. 14v Parallel swap mode

D. 28v mode

E. LED Indicators

F. Circuit Breakers

4. Battery Plates

A. Standard Plates

B. Swapping Battery Plates

C. Using 26v Batteries

5. Peripheral Mounting

A. Using the Velcro pads

B. Proton Pack Hard Mounts

C. Using the Dovetail Spine

D. Using the Center Spine Cheeseplate

6. Proton Pack Accessories

A. Using the Strain Relief Cable

B. Using the Rain Cover

C. Attaching the Waist Belt

D. Attaching the Heavy Lift System

7. Care & Maintenance

A. Removing & Cleaning the Backpack pad

B. Accessing the Internal Electronics Case

C. Replacing Circuit Pop Breakers

D. Replacing Battery Fuses

8. Technical Information

 A.ProtonPackSpecications

B. Pin-outs

C. Detailed Dimensions

...................................................................................... page 3

.............................................................................. 3

................................................................................ 4

.................................................................................. 5

..................................................................................................... 6

.................................................................................................... 7

..................................................................... page 8

...................................................................................................... 8

.......................................................................................................................... 8

............................................................................................ page 9

........................................................................................... 9

.................................................................................................. 9

............................................................................................... 9

........................................................................................................................ 9

................................................................................................................ 10

.............................................................................................................. 11

.......................................................................................... page 11

.......................................................................................................... 11

............................................................................................. 11

....................................................................................................... 12

.............................................................................. page 13

................................................................................................. 13

........................................................................................... 13

............................................................................................. 14

........................................................................ 14

....................................................................... page 15

...................................................................................... 15

.................................................................................................... 15

............................................................................................. 16

................................................................................ 16

............................................................................ page 17

............................................................... 17

................................................................... 19

................................................................................. 20

.............................................................................................. 20

............................................................................ page 22

......................................................................................... 22

.......................................................................................................................... 23

.................................................................................................. 24

proTon packV2

page 3

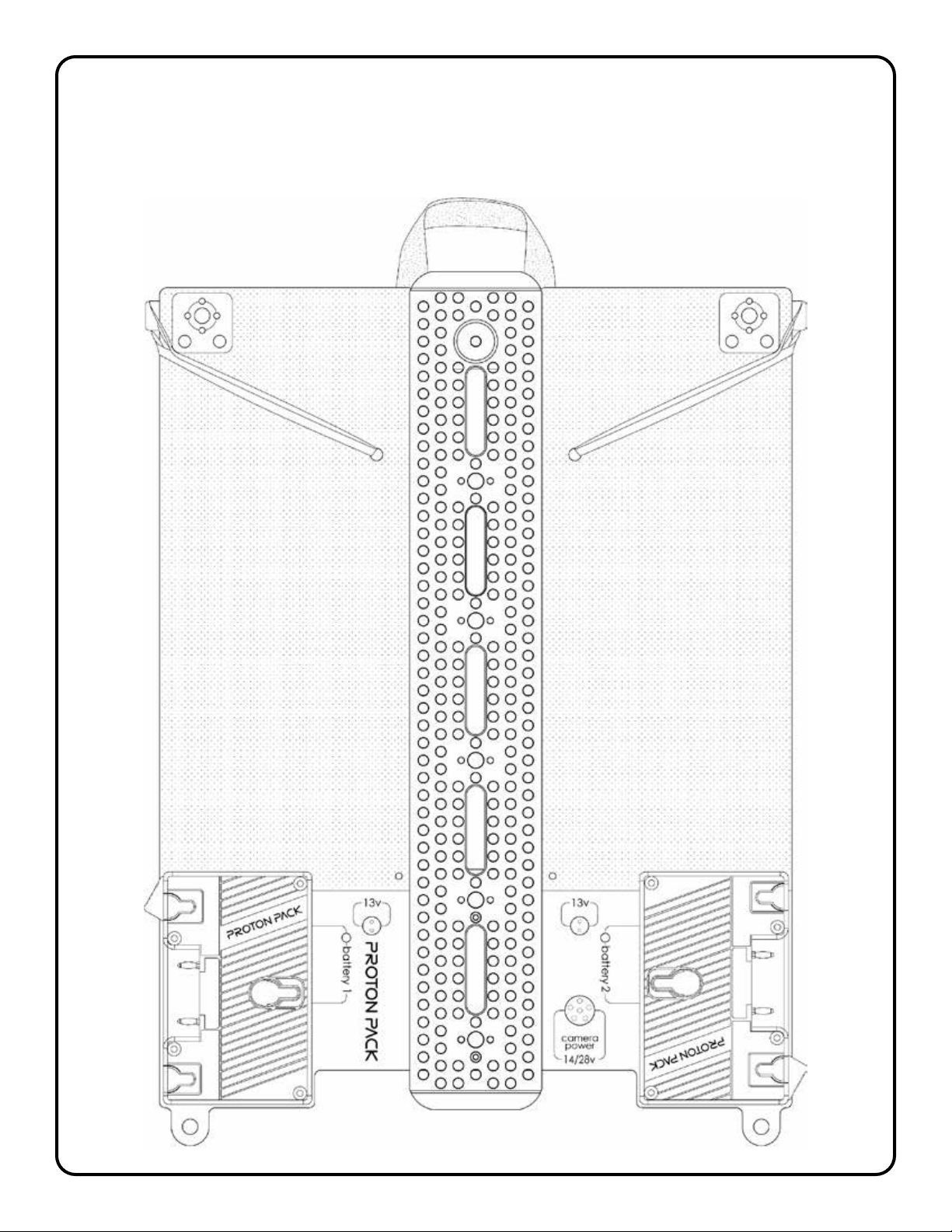

A. Main Proton Pack Frame (exterior)

carry strap webbing

6pin Lemo

main camera power port

(battery voltage)

really cool logo

3/8-16 accessory mount

w/ Arri anti-rotation holes

3/8-16 thread

w/ Arri holes

3/8-16 accessory mount

w/ Arri anti-rotation holes

velcro padvelcro pad

15mm rod

1/4-20 thread

15mm rod

1/4-20 thread

rubber

band

center spine

Arri-standard

dovetail &

cheeseplate

5/8” baby pin

1/4-20 thread

1/4-20 thread 3/8 inch

pass-through

channel

13v regulated

P-tap port

13v regulated

P-tap port

battery plate 1

(primary*)

battery 1 LED

indicator

battery 2 LED

indicator

strain relief /

3/8-16 thread

*depending on selected mode

strain relief /

3/8-16 thread

13v regulated

2pin Lemo port

13v regulated

2pin Lemo port

rubber

band

battery Plate 2

(backup*)

1. Product Features

proTon packV2

page 4

battery

breaker

aks power

off

breaker

battery

SN 00012

proTon packV2

green:

yellow:

red:

good voltage

low voltage

below cutoff/dead

blue (flash):

red (fast flash):

red (slow flash):

current overdraw

electrical fault

overheat fault

camera power :

aks power:

2pin lemos:

batt. voltage & amps

6A total [2x 2pin & 2x p-tap]

pin1 (

), pin2 (+)

proTon pack

B. Main Proton Pack Frame (interior)

carry strap webbing

carbon ber

15mm rod

center spine Arri-standard

dovetail & cheeseplate

rod mounting block

pad

attachment

strap

pad

attachment

plate

pad

attachment

plate

pad

attachment

strap

rod mounting block

15mm rod

1/4-20 thread

15mm rod

1/4-20 thread

5/8” baby Pin

release screw

shoulder strap shoulder strap

backpack pad

carbon ber

plate

waist belt

attachment

slot

waist belt

attachment

slot

carbon ber

plate

Strain Relief /

3/8-16 thread

Strain Relief /

3/8-16 thread

proTon packV2

page 5

C. Main Proton Pack Frame

(left-side) (right-side)

carry strap webbing

center spine Arri-

standard dovetail

& cheeseplate

camera circuit

breaker (10A)

accessory circuit

breaker (5A)

rod mounting block

backpack

pad

backpack

pad

attachment

strap

pad

attachment

plate

pad

attachment

plate

pad

attachment

strap

rod mounting block

15mm rod

1/4-20 thread

15mm rod

1/4-20 thread

5/8” baby Pin

1/4-20 thread

shoulder strap shoulder strap

waist belt

attachment

slot

waist belt

attachment

slot

Strain Relief /

3/8-16 thread

battery plate 1

(primary*)

battery plate 2

(backup*)

*depending on selected mode

510

proTon packV2

page 6

D. Proton Pack Power Pigtail Cables

14v 4pin XLR Pigtail 14v 3pin XLR Pigtail 28v 3pin XLR Pigtail

Pin#1 (

), Pin#2 (+)

Pin#1 (

), Pin#4 (+) Pin#1 (

), Pin#2 (+)

proTon packV2

page 7

E. Standard Kit Complete Contents

(1x) Proton Pack Backpack Rig

(1x) Hard Shipping Case with Padded Interior and Lid Organizer

(3x) Power Pigtail Cables

(1x) Removable Waist Belt

(1x) Rain Cover

(1x) Strain Relief Cable

(2x) Preston 7pin Motor Cables (straight to right angle)

(1x) 3pin Fischer Run/Stop extension cable (female plug to male plug)

(3x) SDI BNC Cables (straight to right angle)

(1x) 5pin Lemo timecode input cable (to BNC)

(1x)  Rangendersensorcable(yourchoice:Cinetape/Sniper/Lightranger)

(1x) Standard four port P-Tap splitter box

(1x) Extra long four port P-Tap splitter box

proTon packV2

page 8

2. Introduction & Basic Usage

A. General Description

ProtonPackisabackpack-worncameraaccessoriesplatform.Itprovidesmountingoptionsfor:

• Batteries (gold mount or v-mount)

• MDR

• Wireless HD Transmitter

• Timecode generator

• Cinetape readout

• Focus Monitor

Handheld shooting and cramped spaces often require cameras to be made as small as possible.

DPs often request that the camera be completely stripped-down. Proton Pack provides a solution to

accomplishthesebuildswithoutcompromisetonormalwork-ow.

Velcro surfaces and cheeseplates allow attachment for all of your professional accessories.

Camera builds can now be reduced to only body, lens, & focus motor. Proton Pack’s power system is

ready for 14v or 28v cameras and provides regulated 13v breakout power (2x p-tap & 2x Lemos) for all

peripherals.

IdealforworkingwithArriAlexaMini,RedDSMC2,andlmcameras,ProtonPackisacomplete

system providing all custom umbilical cables and accessories you will need for any build.

B. Basic Usage

• Begin by choosing the appropriate power pigtail for your camera system. For any camera that can

accept ±12v DC power the “14v” pigtails are always preferred as they maintain hot-swapability when

changing batteries. Pick the “14v” 4pin XLR or 3pin XLR pigtail based on the power cable included with

your camera*. For ±24vcamerasystems(35mmlm,AlexaLF/65,etc.)pickthe“28v”3pinXLRpigtail

• Install the power pigtail into the 6pin 2B Lemo “Camera Power” port on the Proton Pack main chassis.

• Strip down the camera body to the bare minimum of rigging (cage, baseplate, etc.). Leave only

essential accessories for shooting and operating (lens, monitor, focus motor, hand grips, etc.)

• Using Velcro or other brackets, mount all required peripherals

(Teradek/MDR/Cinetape/etc.) onto the Proton Pack frame

(Seeg.1foratypicalarrangement).

• Run power for all peripherals (using their standard power

cables) from the two 13v p-tap or two 13v 2pin Lemo ports

on the Proton Pack.

• Connect your camera power cable to the Proton Pack

Pigtail you installed earlier.

• Using the included long cables in your kit now make all

other connections between camera and Proton Pack. We

recommend starting at the camera side and taking up any

additional slack in the cables at the Proton Pack frame.

• Once the umbilical is fully assembled, we suggest attaching

the strain relief cable from umbilical to camera cage & also

securing the umbilical to the Proton Pack using the strain

relief loops at the bottom left or right corners.

• Attach batteries to both battery plates.

• Power on the camera and all accessories.

• With the Proton Pack worn by camera operator, AC or grip,

now begin shooting.

• Change batteries as needed when indicated by the yellow

“low voltage” LED.

g.1

*An 8 ft 6 in long camera power cable is ideal

proTon packV2

page 9

3. Power System & Power Modes

A. Power System Introduction

Proton Pack can provide power for both 14v and 28v camera systems from the “camera power”

port on the main chassis. This mode is automatically selected when installing either a 14v or 28v power

pigtail cable. 14v mode has hot swap. In 28v mode there is NOT full hot swap when changing batteries.

Camera power is a direct pass-through from your battery plates. Voltage and ampacity will be

reectiveofthebatteriesinuse.

The system also has four built-in ports for

powering peripherals/accessories. There are

two Anton Bauer type p-tap ports and two

standard 2pin Lemo ports. All four outputs are

regulated at 13v DC and will provide that

voltage regardless of 14v or 24v voltage mode.

Hotswappingcanbeconguredina

“Priority”or“Parallel”protocolbyippingthe

small toggle switch located underneath “battery

plate2”(seeg.2).

g.2

B. 14v “Priority” Power Mode

This is the standard operating mode for your Proton Pack and it will ship to you with this mode pre-

selected. Choose this mode by installing one of the “14v” power pigtail cables and leaving the internal

toggle switch set to “A-->B” (right position).

In this mode your Proton Pack will always prioritize “battery plate 1” (left-hand) when there is a

healthy battery installed on that plate. “Battery plate 2” will constantly be kept in reserve as a backup if

the primary battery should die or be removed.

Only the LED on the battery plate actively supplying power will be illuminated in this mode.

C. 14v “Parallel” Power Mode

If battery plate prioritization is notdesired,yourProtonPackcanbereconguredtodrawfromboth

battery plates simultaneously. Choose this mode by installing one of the “14v” power pigtail cables and

changingtheinternaltoggleswitchto“A&B”(leftposition)(seeg.2).

In this mode the power system will actively favor whichever source has the higher voltage thus

draining both batteries in a relatively symmetrical pattern. Hot swap will function as normal whichever

battery is removed during a swap. It is recommended that batteries of approx. equal charge are used.

Both LEDs on the Proton Pack will be illuminated in this mode.

D. 28v Power Mode

Usethismodeforlmcamerasandlargercamerasystemsrequiring>24v.Choosethismodeby

installing the “28v” power pigtail (internal toggle switch has no effect in this mode). To achieve > 24v

bothbatteriesareconguredinseriessohotswapisNOTavailableinthismode.Make sure to safely

power down digital cameras before swapping batteries in 28v mode.

Both LEDs on the Proton Pack will be illuminated in this mode.

proTon packV2

page 10

E. LED Indicators

There are two multi-color LEDs on the Proton Pack chassis, one for each battery input.

• GREEN = Good voltage ( >13v / >26v)

• YELLOW = Low voltage ( < 13v / < 26v)

• RED = Dead battery

• OFF = Battery not active or no battery present

• BLUE FLASH = Over current warning ( >10A camera, >5A accessories)

• RED FAST FLASH = Electrical system fault

• RED SLOW FLASH = System overheat ( >185 deg. F)

MODE:28v

Drawingfrom:battery1&2

Batteries:dead

MODE:28v

Drawingfrom:battery1&2

Batteries:low

MODE:28v

Drawingfrom:battery1&2

Batteries:good

MODE:14v,Parallel

Drawingfrom:systemoff

Batteries:bothdead

MODE:14v,Parallel

Drawingfrom:battery1

Batteries:1good,2dead

MODE:14v,Parallel

Drawingfrom:battery1&2

Batteries:1good,2low

MODE:14v,Parallel

Drawingfrom:battery1&2

Batteries:good

MODE:14v,Priority

Drawingfrom:systemoff

Batteries:bothdead

MODE:14v,Priority

Drawingfrom:battery2

Battery:low

MODE:14v,Priority

Drawingfrom:battery2

Battery:good

MODE:14v,Priority

Drawingfrom:battery1

Battery:low

MODE:14v,Priority

Drawingfrom:battery1

Battery:good

Tabla de contenidos

Manuales populares de Accesorios para cámaras de otras marcas

Viltrox

Viltrox EF-NEX Instrucciones de instalación

Calumet

Calumet 7100 Series CK7114 Manual de usuario

Ropox

Ropox 4Single Series Manual de usuario

Cambo

Cambo Wide DS Digital Series Instrucciones de funcionamiento

Samsung

Samsung SHG-120 Manual de usuario

Ryobi

Ryobi BPL-1820 Manual de operación

Aegis

Aegis ABL-36020P Manual de usuario

Pentax

Pentax Data Back Fc Manual de usuario

Fantasea

Fantasea EyeGrabber F Series Manual de usuario

Honeywell

Honeywell HDZ20HD Manual de usuario

EGO

EGO BA1400T Manual de usuario

Sima

Sima SRW-62 Manual de usuario

Shape

Shape A7SSMKIT Manual de usuario

Slide Kamera

Slide Kamera HST-2 Manual de usuario

Power works

Power works 2902613 Manual de usuario

SES

SES SE-2047-2 Manual de usuario

Olympus

Olympus PT-EP05L Manual de usuario

Starlite

Starlite OctoDome nxt Manual de usuario

proTon pack v2 Manual de usuario

Manuales populares de Accesorios para cámaras de otras marcas
