Prospec INFPRV450 Manual de usuario
*This stereo should not be washed with a pressure
washer neither should it be washed with chemicals.
A wet sponge or damp cloth will suffice.*
This product is serviced exclusively by Prospec Electronics Inc. and must be
returned to Prospec for in and out of warranty repairs. It can not be serviced
under warranty by other Infinity service centers.
For service contact us :
3325 South Morgans Point Road Mt Pleasant SC 29466
Tel 843-849-9037
Or visit: www.prospecelectronics.com
INFPRV450 Owner’s Manual
3325 South Morgans Point Rd. | Mt. Pleasant, SC 29466
. .
P: 843 849 9037 | www.prospecelectronics.com
1
Table of Contents
Table of Contents ----------------------------------------------------------------- 1
Product Description -------------------------------------------------------------- 2
Installation Instructions ---------------------------------------------------------- 3
Wiring Configuration ------------------------------------------------------------ 4
General Function of Buttons ---------------------------------------------------- 5
Sign up Display & Home Menu ------------------------------------------------ 6
General Operations --------------------------------------------------------------- 7
General Settings ------------------------------------------------------------------ 7
Radio Section Operation ------------------------------------------------------- 10
SiriusXM Section Operation ----------------------------------------------- 12
Bluetooth Section Operation -------------------------------------------------- 16
USB Section Operation -------------------------------------------------------- 18
iPod/iPhone Operation --------------------------------------------------------- 20
AUX Section Operation -------------------------------------------------------- 21
Troubleshooting ----------------------------------------------------------------- 22
R
23
Troubleshooting
Advisory Name
The radio has detected a fault with the SiriusXM antenna. The antenna
cable may be either disconnected or damaged.
Verify that the antenna cable is connected to the SiriusXM Connect
Vehicle Tuner.
Inspect the antenna cable for damage and kinks. Replace the antenna
if the cable is damaged.
SiriusXM products are available at your local car audio retailer or
online at www.shop.siriusxm.com.
The following information helps you self-diagnose common issues without the need for
contacting SiriusXM support.
Recommended Description
Check Antenna
The radio is having difficulty communicating with the SiriusXM
Connect Vehicle Tuner. The tuner may be disconnected or damaged.
Verify that the SiriusXM Connect Vehicle Tuner cable is securely
connected to the radio.
Check Tuner
No Signal The SiriusXM Connect Vehicle Tuner is having difficulty receiving
the SiriusXM satellite signal.
Verify that your vehicle is outdoors with a clear view of the sky.
Verify that the SiriusXM magnetic mount antenna is mounted on a
metal surface on the outside of the vehicle.
Move the SiriusXM antenna away from any obstructions.
Inspect the antenna cable for damage and kinks.
Consult the SiriusXM Connect Vehicle tuner installation manual for
more information on antenna installation. Replace the antenna if the
cable is damaged. SiriusXM products are available at your local car
audio retailer or online at www.shop.siriusxm.com.
Subscription
Updated
The radio has detected a change in your SiriusXM subscription status.
Press ENTER button to clear the message.
Visit www.siriusxm.com or call 866-635-2349 in the USA or 877-
438-9677 in Canada if you have questions about your subscription.
Channel Not
Available
The channel that you have requested is not a valid SiriusXM channel
or the channel that you were listening to is no longer available.
You may also see this message briefly when first connecting a new
SiriusXM Connect Vehicle tuner.
Visit www.siriusxm.com for more information about the SiriusXM
channel line up.
Channel Not
Subscribed
The channel that you have requested is not included in your SiriusXM
subscription package or the channel that you were listening to is no
longer included in your SiriusXM subscription package.
In the U.S.A., visit www.siriusxm.com or call 1-866-635-2349 if you
have questions about your subscription package or would like to
subscribe to this channel. In Canada, visit www.siriusxm.ca or call
1-877-438-9677.
Channel Locked The channel that you have requested is Locked by the radio Parental
Control feature. See the description on Parental Control, page 14 for
more information on the Parental Control feature and how to access
locked channels.
2
Product Description
This Infinity PRV450 incorporates a 3.5” TFT color screen, ready to complement
your day whether you are on the water, motorcycle, UTV trail, or farm. Following
the same footprint as the popular INFPRV250, this stereo is synonymous with
excellence. In fact, the INFPRV450 was listed as one of the top new products of
2016 by Boating Industry magazine. Check in with us often to see what the next
Prospec experience will bring!
The INFPRV450 incorporates the following features:
AM/FM
Bluetooth Audio Streaming with ID tagging
USB input and control-for USB drives only
Auxiliary input
3.5” color TFT screen / Waterproof faceplate
50W x 4 amplifier
Wired remote option
U.S. and European tuning
Charging through USB
3 pair of RCA output including subwoofer output
TM
SiriusXM-Ready (SiriusXM connect tuner and subscription required)
Can Bus Control via NMEA2000
The Infinity brand is part of Harman International Industries. In 1958, Harman
Kardon developed the world’s first stereo receiver and we are proud to bring
you the world’s first Infinity marine color screen receiver!
Sirius, XM and all related marks and logos are trademarks of Sirius XM Radio
Inc. All rights reserved.
对折 基 准线
对折 基 准线
22
Troubleshooting
*Note: In many respects, a stereo acts much like a computer and occasionally requires a
reboot. In the unlikely event of product malfunction, a reset can usually fix the issue.
For software reset operation, please refer to page 8.
Issue
No power
No Sound
No Reception
USB stick not
reading
Cause
1. Incorrect wiring
2. Fuse is blown
3. Low battery voltage
1. Speaker connection
came loose
2. Bad speaker
3. Output blown
4. Volume too low on
media device
1. Antenna not firmly
seated in socket
1. File must be a mp3
or wma file
Solution
1. Double check wiring
2. Replace fuse
3. Check voltage of vehicle battery
with multimeter. Voltage must
be at least 11V.
1. Double check connections.
2. Replace bad speaker with known
good speaker and connect.
3. Send unit in for repair.
4. Increase volume of media device
1. Insert firmly
1. Convert format to mp3 or mwa.
While in Bluetooth mode:
No Connection 1. You are not connect
to the “PRV”
address on your
portable media
device.
2. Out of range
3. The connection is
already in use.
1. Choose “PRV”
2. Bring portable media device closer
to the receiver. Device needs to be
within 30’.
3. Ask the person who first paired to
drop out.
3
Installation
A mounting gasket has been added inside the package for convenience. Trace along
the outside edge of the gasket thus revealing your cutout.
Mounting Illustration
1. Avoid installing stereo
below cupholders!
Make sure mounting
substrate is flat to avoid
flexing of the plastic.
2. Use the back bracket and
studs to affix the unit. Install
the U bracket behind the unit,
using two nuts per bolt for
ultra hold.
3. To avoid possible water
ingress into wire harness
area, route the harness in
the downward direction
as shown above.
Instructions:
1. Install jamb nuts (4) loosely on mounting
studs (3), so they will not touch mounting
brackets (5) when installed.
2. Slip mounting bracket (5) on and make
flush with mounting surface (2).
DO NOT RIGHTEN
3. Snug spring washer (6) and outer nuts (7)
against mounting plate (2).
DO NOT TIGHTEN
4. Position jamb nuts approximately 1/16”
from mounting bracket.
5. Tighten outer nuts completely.
6
7
5
4
3
2
1
21
AUX Section Operation
1. To Select USB mode
At Home Menu, press TUNE Up or Down to move the highlight to AUX source, then
press ENTER button to go into the AUX mode.
Note: highlight movement indicated by the icon background change.
The use of auxiliary mode allows you to play
the portable music device through the
headphone jack.
Note: An additional accessory/adaptor must be
purchased in order for this to happen.
Prospec's part, SEAMINI2 or
SEAUSBMINI36 fulfills this option.

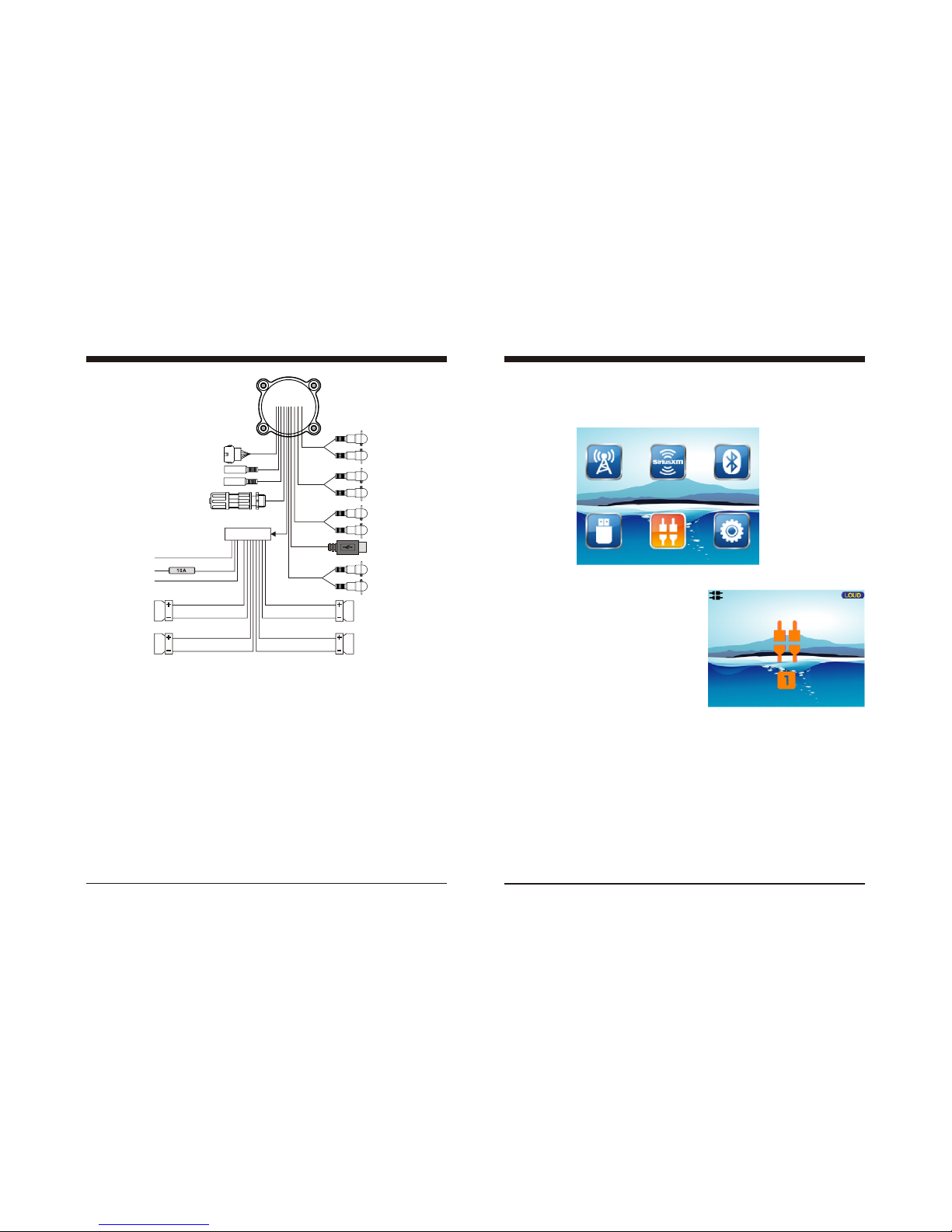

Wire Configuration
12P CONNECTOR
(REM)
( ACC )
( GROUND )
FUSE
BLUE
RED
BLACK
GRAY
GRAY/BLACK
VIOLET
VIOLET/BLACK
(FRONT RIGHT )
( REAR RIGHT )
GREEN
GREEN/BLACK
WHITE
WHITE/BLACK
( FRONT LEFT )
( REAR LEFT )
(USB)
RED
WHITE
(AUX)
(ANT JACK)
RED
WHITE
(REAR LINE OUT)
(SiriusXM)
RED
WHITE
(SUBWOOFER)
6P REMOTE
CONTROL
RED
WHITE
(FRONT LINE OUT)
(CAN BUS)
NOTE:
1. When wiring, the red lead is recommended to be wired to ACC/ignition power lead.
2. Make sure that the black wire on the wiring harness is connected to a good ground point
on the boat. If the chassis f the boat is used as a ground point, make sure that the surface
is scraped clean of paint before attaching the wire to it. It is recommended to connect the
black ground wire directly to negative terminal (-) of the boat battery.
3. Before wiring your system, disconnect your boat battery’s positive (+) cable. This helps
prevent damage in case of a short.
4
注：切边后的成品尺寸一定为 145x210mm
对折 基 准线
对折 基 准线
20
1. Connect
Connect an iPod/iPhone to the USB socket, it will read the files automatically. The track
information displays on the screen once playback starts.
2. Play/Pause Play
While iPod/iPhone playing, simply press the PAUSE button to pause the playback, and
press it again to resume playback.
3. Track Up/Down
While iPod/iPhone playing, simply press TUNE Up or Down button to select the next or
previous track.
3. Track Repeat play
While iPod/iPhone playing, simply press MENU button to activate navigation, it will
highlight at RPT, then press MENU button to toggle select Track Repeat or RPT OFF.
(Note: Refers to play current track repeatedly.)
4. Random play
While iPod/iPhone playing, simply press MENU button to activate navigation, then press
TUNE Down button to move highlight to RDM, then press MENU button to toggle
select Track Random or RDM OFF.
(Note: Refers to play all the tracks in a random sequence.)
iPod/iPhone Operation
Only display when EQ / LOUD ON
was selected in the Settings.
ID3 tag:
Song name
Artist
Album
Play/Pause
RPT: Track Repeat play
RDM: Track Random play
Track No.
Track elapse time
Play mode
Note: refers to PLAY; refers to PAUSE.
Note: Please make sure the iPod/iPhone cable is connected correctly.
And it is recommended to use the original cable for connection.
5
General Function of Buttons
MENU
ENTER
1
5
3
2
6
4
1. POWER, MUTE, PAUSE button
- With unit off, press to power the unit on.
- With the unit on, press and hold for over 2s to power the unit off.
- In Radio, SiriusXM, AUX mode, press to MUTE sound output,
press again to resume sound output.
- In USB, BT Music mode, press to PAUSE playback, press again
to resume playback.
2. MENU, ENTER button
- In any status, press and hold for 2s to navigate to home display.
- In source playing status, quick press to activate the bottom navigation function.
(Note: Bottom navigation function is disabled after 5s without operation.)
- In any selection status, press ENTER to confirm selection.
3. VOLUME Up button
- Simply press it to increase volume level.
4. VOLUME Down button
- Simply press it to decrease volume level.
5. Tune Up button
- In playing status, press to select the next station, channel, or track.
- In bottom navigation mode, press to move highlight upward/over.
6. Tune Down button
- In playing status, press to select the previous station, channel, or track.
- In bottom navigation mode, press to move highlight downward/over.
19
4. Track Up/Down
While USB playing, simply press TUNE Up or Down button to select the next or previous
track. To fast forward or rewind, press and hold TUNE button.
5. Scan Play
While USB playing, simply press MENU button to activate navigation, it will highlight
at SCAN, now repeat press MENU button to toggle select Track Scan, Directory Scan, or
SCAN OFF. (Note: The play mode icon would change simultaneously.)
6. Repeat play
While USB playing, simply press MENU button to activate navigation, then press TUNE
Down button to move highlight to RPT, repeat press MENU button to toggle select Track
Repeat, Directory Repeat, or RPT OFF. (Note: The play mode icon would change
simultaneously.)
7. Random play
While USB playing, simply press MENU button to activate navigation, then press TUNE
Down button to move highlight to RDM, repeat press MENU button to toggle select
Track Random, Directory Random, or RDM OFF. (Note: The play mode icon would
change simultaneously.)
8. F.LIST (Folder / File Search)
While USB playing, simply press MENU button to
activate navigation, then press TUNE Down button
to move highlight to F.LIST, press ENTER button
to go inside the F.List.
In F.List, press TUNE Up or Down button to choose
desired Folder, press ENTER to display sub-directory
or files inside, press TUNE Up or Down button to
choose desired file and press ENTER button to play it.
Refers toplay current track repeatedly.
Refers to play the tracks in current Directory repeatedly.
Refers to play all the tracks in normal sequence.
Refers to play all the tracks in a random sequence.
Refers to play the tracks in current Directory in a random sequence.
Refers to play all the tracks in normal sequence.
USB Section Operation
Refers to play the first 10s of all the tracks in the USB device.
Refers to play the first 10s of all the tracks in current Directory.
Refers to play all the tracks in normal sequence.
6
Sign Up Display & Home Menu
2. Home Menu (Source display)
At Home Menu, press the TUNE Up/Down button to move to desired source and press
ENTER button to confirm.
Radio SiriusXM BT Music
USB AUX IN Settings
1. Sign Up Display
Once the unit powered on, the introductory home screen appears for 4 seconds, then
switches to the last played mode before power off occurred.
Push
Note: icon background changes to two toned burnt orange
when selected. For example, Radio mode is the selected
mode in above picture.
注：切边后的成品尺寸一定为 145x210mm
对折 基 准线
对折 基 准线
18
USB Section Operation
1. To Select USB mode
At Home Menu, press TUNE button to move the highlight to USB source, then press
ENTER button to go into the USB mode.
Note: This input is dsigned to read and play USB drives (mp3 and wam files), not media/
phones.
You can charge most phones through the USB input. Music, however, needs to be
played back by using eigher BT or Aux input.
2. USB Screen Description
3. Play/Pause Play
While USB is playing, press the PAUSE button to pause the playback, and press
again to resume playback.
Only displays when EQ / LOUD ON
was selected in the Settings.
ID3 tag:
Song name
Artist
Album
Play/Pause
SCAN: Intro Scan play (Track / Directory Scan play)
RPT: Repeat play (Track / Directory Repeat play)
F.List: To display the Directory / File List
RDM: Random play (Track / Directory Random play)
Track No.
Track elapse time
Play mode
Note: refers to PLAY; refers to PAUSE.
General Operations
7
1. VOLUME Control
2. MUTE Control
In Radio, SiriusXM, or AUX mode, press
MUTE button to mute sound output; press
again to resume sound output.
In any mode, press VOL UP/DN button to
adjust volume level.
Press and hold VOL button to adjust volume
level rapidly.
3. General Settings
Press and hold MENU button to go back to
Home Menu, then press TUNE UP/DN button
to move highlight to Settings source. Then
press ENTER button to go into the Settings
mode.
3-1. Bass Control
In Settings screen, press TUNE Up or Down button
to select Bass, then press VOL Up or Down button
to adjust Bass level.
3-2. Treble Control
In Settings screen, press TUNE Up or Down button
to select Treble, then press VOL Up or Down button
to adjust Treble level.
对折 基 准线
对折 基 准线
17
4. Play/Pause Play
Once the BT device being paired is successful, music will begin to play.
Note: For some Bluetooth enabled phones, you might activate play from your phone first.
It depends on the phone itself.
While BT Music playing,
Note: With the Bluetooth connection disconnected, once you power on the unit next time,
it will establish the Bluetooth connection automatically.
press the PAUSE button to pause the playback, and press it
again to resume playback.
5. Track Up/Down
While BT Music is playing, press TUNE Up or Down button to select the next or
previous track.
6. Disconnect
In BT Music playing mode, in order to disconnect the BT device, press MENU button
to activate bottom navigation, it will highlight at DISCONN, press ENTER button to
disconnect the BT connection.
Note: When your BT device battery is at low charge, the Bluetooth connection may
occasionally be lost. To maintain good connectivity ensure that your BT device battery
is adequately charged.
7. Connect
With BT device paired OK, but disconnected, if you want to reestablish the BT connection,
press MENU button to activate bottom navigation, it will highlight at CONNE. Press
ENTER button to connect the BT device.
Note: refers to PLAY; refers to PAUSE.
Bluetooth Section Operation
8
3-3. Balance Control
In Settings screen, press TUNE Up or Down button
to select Balance, then press VOL Up or Down button
to adjust Balance level.
3-4. Fader Control
In Settings screen, press TUNE Up or Down button
to select Fader, then press VOL Up or Down button
to adjust Fader level.
3-5. Loud Control
In Settings screen, press TUNE Up or Down button to
select Loud, then press VOL Up or Down button to
select ON or OFF.
3-6. EQ Selection
In Settings screen, press TUNE Up or Down button to
select EQ, then press VOL Up or Down button to select
Off, Classics, Jazz, Pop or Rock.
3-7. Subwoofer Gain Control
At Setting screen, press TUNE Up or Down button to
select Subwoffer, then press VOL Up or Down button
o adjust Subwoofer Gain level.
3-8. I-Volume Control
At Setting screen, press TUNE Up or Down button to
select I-Volume, then press VOL Up or Down button
to adjust the Initial Volume Level. This feature controls
the maximum volume level desired when powered on.
General Settings

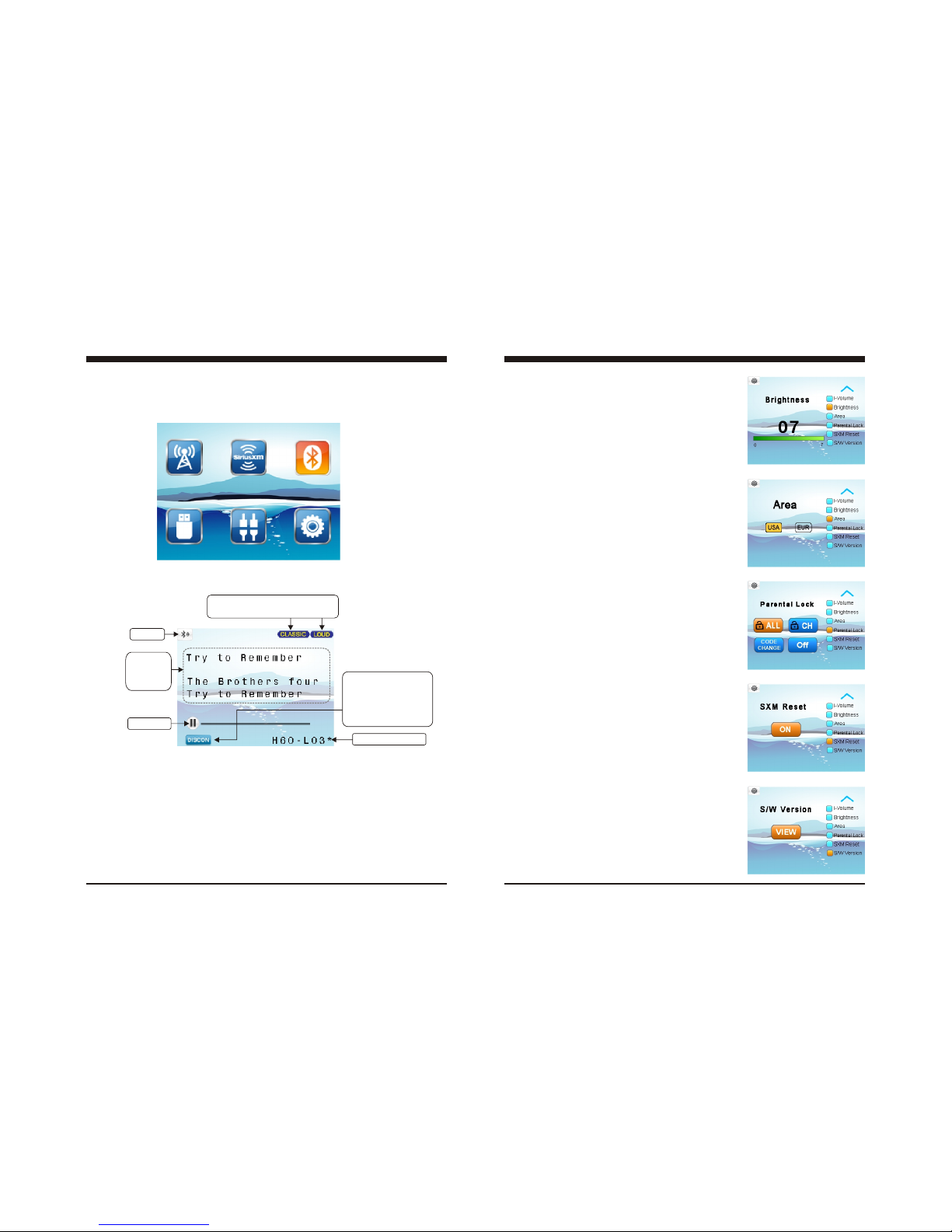

16
Bluetooth Section Operation
1. To Select Bluetooth mode
At Home Menu, press TUNE button to move the highlight to Bluetooth source, then simply
press ENTER button to go into the Bluetooth mode.
Note: highlight movement indicated by the icon background change.
2. Bluetooth Screen Description
3. Pair BT Device
If there is no BT device paired, go to settings on the BT device and turn the Bluetooth
option ON. Pick “PRV” option on your Bluetooth enabled device.
(if you are prompted for a password, the code entered will be “1234”.)
If there was previously a BT device paired, simply press MENU button to highlight
CONN and press ENTER to establish the BT connection.
Only displays when EQ / LOUD ON
was selected in the Settings.
ID3 tag:
Song name
Artist
Album
Play/Pause
CONN: To establish Bluetooth connection.
DISCON: To disconnect the BT Device.
BT icon
If already has BT device
connected, here display
DISCON.
If no BT device connect,
here display CONN.
Paired device name.
9
3-9. Brightness Adjustment
In Settings screen, press TUNE Up or Down button to
select Brightness, then press VOL Up or Down button
to adjust Brightness level.
3-10. Area Selection
In Settings screen, press TUNE Up or Down button to
select Area, then press VOL Up or Down button to
select USA or EUR.
3-11. SiriusXM Parental Lock - Change Code
In Settings screen, press TUNE Up or Down button to
select Parental Lock. Then press VOL Up or Down
button to select Parental Lock sub-features.
Please refer to SiriusXM Section Operation for details.
3-12. SXM Reset
At Setting screen, press TUNE Up or Down button to
select SXM Reset, then ENTER button to reset the
SXM Tuner.
3-13. Software Version View, Software Reset
At Setting screen, press TUNE Up or Down button to
select S/W Version, then press MENU button to active
highlight at VIEW and press ENTER button to view
the Software Version.
Software Reset:
In Software Version display status, press TUNE UP,
TUNE DN, and TUNE UP in sequence, then press
and hold TUNE DN for 7s to reset the unit.
Note: It will be necessary to re-enter the radio preset
memories and other personal settings as these
will have been erased when the software was
reset. After resetting the unit, ensure all
functions are operating correctly.
General Settings
Otros manuales de Receptor estéreo de Prospec
Manuales populares de Receptor estéreo de otras marcas
Pioneer
Pioneer SX-1000TA Manual de usuario
Yamaha
Yamaha MusicCast TSR-5B3D Manual de usuario
Sony
Sony STR-DE335 - Fm Stereo/fm-am Receiver Manual de usuario
Sony
Sony STR-DG500 - Multi Channel Av Receiver Manual de usuario
Panasonic
Panasonic AJSD955B - DVCPRO50 STUDIO DECK Manual de usuario
Pioneer
Pioneer SX-838 Manual de usuario
