ProSpec
SKOPE Top Mount Fridge
Hydrocarbon
Service Manual
MAN80326 Rev. 1.3 Nov. 2023
:
ProSpec
SKOPE Top Mount Fridge
Hydrocarbon
Service Manual
MAN80326
Rev. 1.3 Nov. 2023
© 2022 SKOPE Industries Limited. All rights reserved.
SKOPE Industries Limited reserves the right to alter specifications without notice.
is a registered trademark of SKOPE Industries Limited.
SKOPE INDUSTRIES LIMITED
Head Office
PO Box 1091, Christchurch
New Zealand
A.B.N. 73 374 418 306
AU: 1800 121 535
NZ: 0800 947 5673
E-mail: [email protected]
Website: www.skope.com
Trademark Infringement
The SKOPE trademark on this product is infringed if the owner, for the time being, does any of the
following:
• Applies the trade mark to the product after its state, condition, get-up or packaging has been
altered in any manner.
• Alters, removes (including part removal) or obliterates (including part obliteration) the trade
mark on the product.
• Applies any other trade mark to the product.
• Adds to the product any written material that is likely to damage the reputation of the trade
mark.
Notice of the above contractual obligations passes to:
• Successors or assignees of the buyer.
• Future owners of the product.
SKOPE ProSpec Upright Series
Service Manual iii
Contents
1 Servicing Hydrocarbon
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
SKOPE Hydrocarbon Service Requirements . . . . . . . . . . . . . . . . . . .6
2 Specifications
Models. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
3 Installation

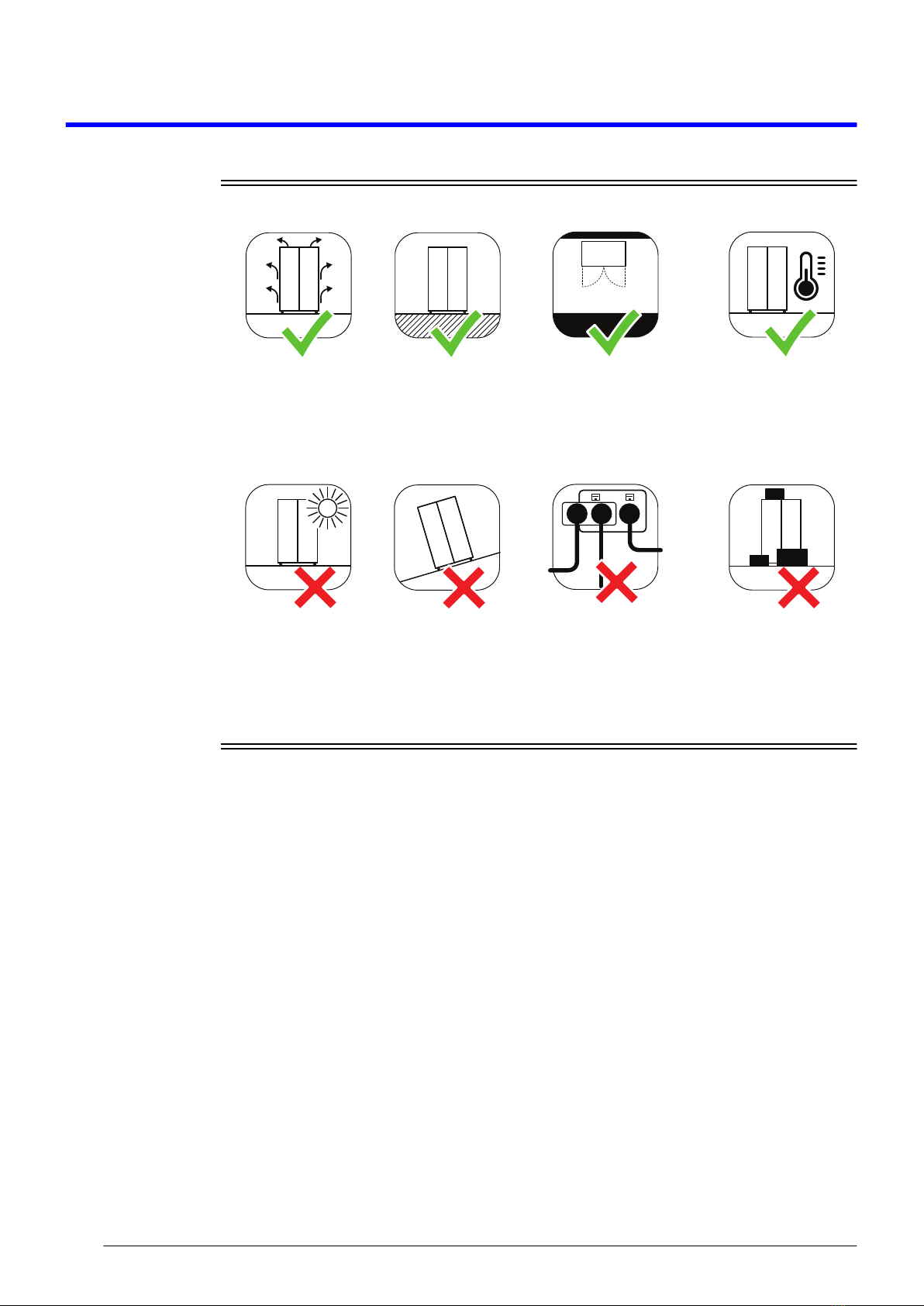

Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

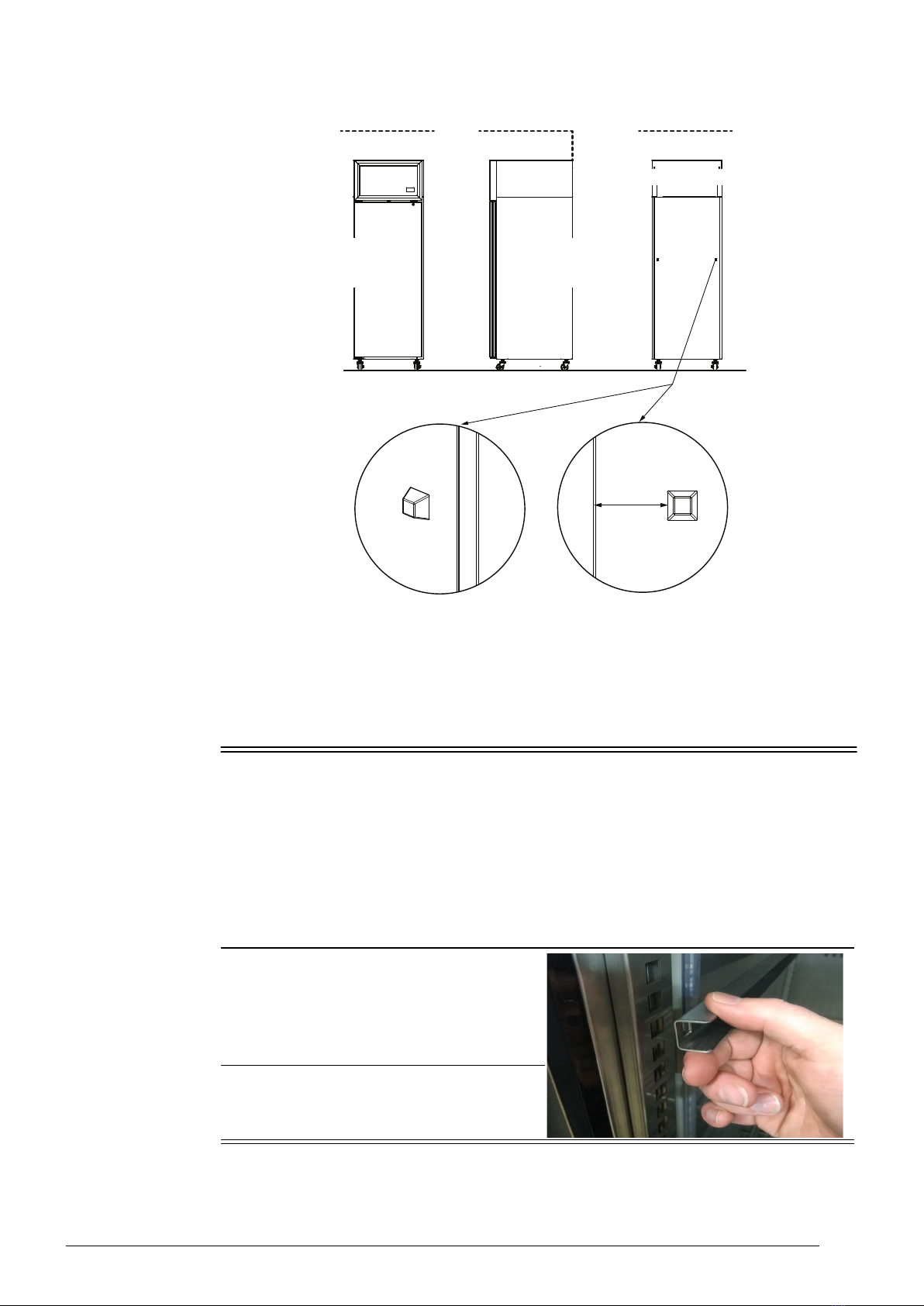

Ventilation Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Shelves . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

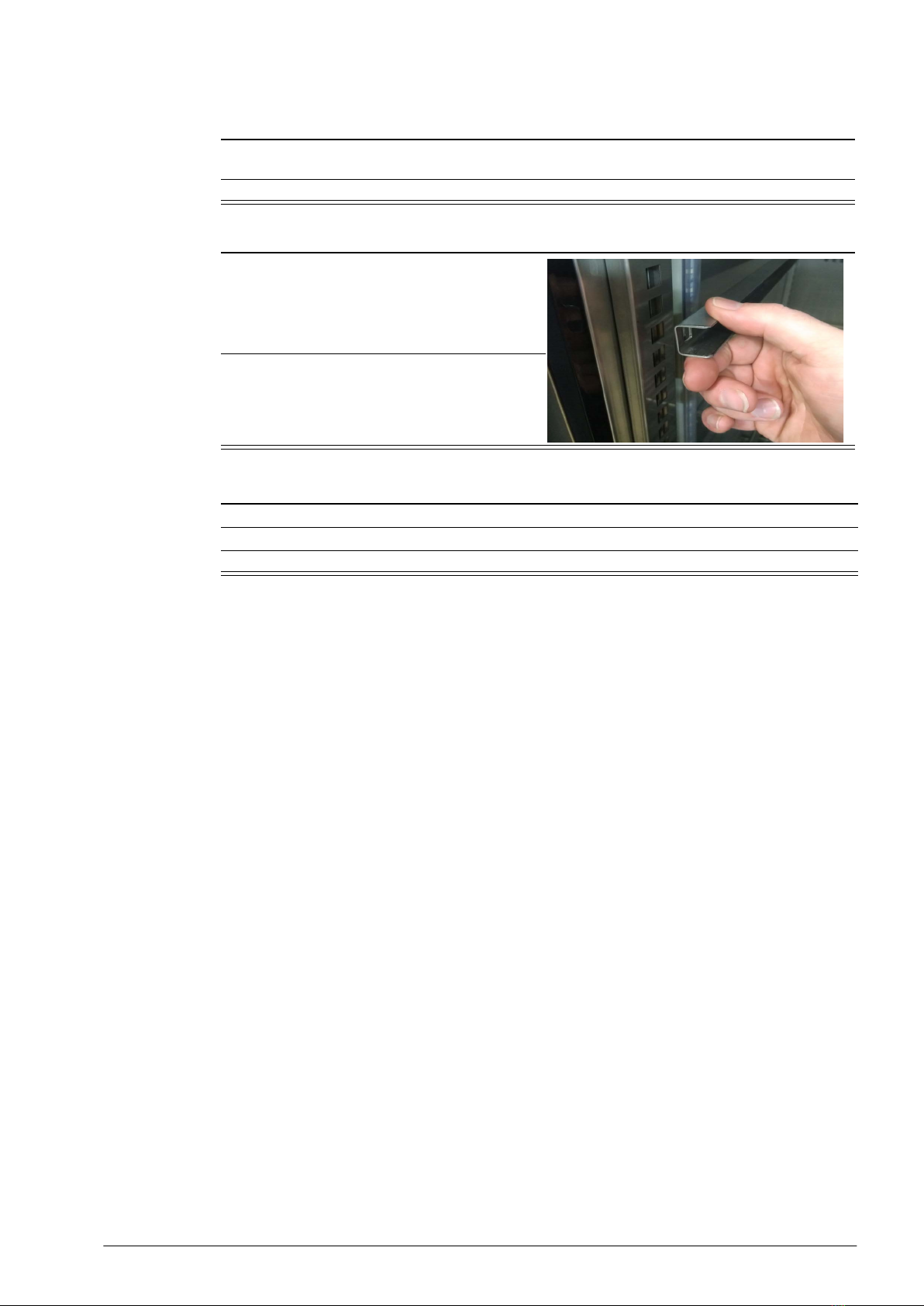

Shelf Support Strips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Repositioning Shelves. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
4 Operation
Loading Product . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Light Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5 Electronic Controller
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SCS Connect Field App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
SCS Connect Track App . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
SKOPE-connect App. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Controller Faceplate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Buttons and Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Service Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
SCS Connect Field App and Track App. . . . . . . . . . . . . . . . . . . . . . .13
Connecting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
App Categories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Faults and Alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
6 Replacement Procedures
Lighting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Doors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Alignment Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25
Replacing the Gasket . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Removing and Refitting the Door . . . . . . . . . . . . . . . . . . . . . . . . .25
Replacing the Capstan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Refrigeration System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Before Servicing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
On-site Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Off-site Work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Refrigeration Cartridge Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Not Cooling Fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Removing the Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29
Replacing the Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Diagnostics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Cartridge Electrics Box Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 32
Cartridge Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Condenser Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
Evaporator Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
SKOPE ProSpec Upright Series
Service Manual
iv
Compressor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Compressor Electrics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Controller Location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
QC Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Replacing the Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Door Switch. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Control Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Evaporator Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Condenser Probe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
7 Wiring
Model: ProSpec 1 and 2-door Fridge . . . . . . . . . . . . . . . . . . . . . . 41
8 Spare Parts
Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
One-door Fridge – Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . 42
Two-door Fridge – Main Assembly . . . . . . . . . . . . . . . . . . . . . . . . 43
Cabinet Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
One-door Fridge – Cabinet Assembly. . . . . . . . . . . . . . . . . . . . . . 44
Two-door Fridge – Cabinet Assembly. . . . . . . . . . . . . . . . . . . . . . 45
Solid Door Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Front Panel Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Fridge Cartridge Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Electronic Controller Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Electrics Box Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51
9 Maintenance
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Cabinet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Condenser Coil . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
10 Troubleshooting
Electronic Controller . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54
Cabinet and Refrigeration Cartridge . . . . . . . . . . . . . . . . . . . . . . . . . 54
On-site Work Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
5
SKOPE ProSpec Upright Series
Servicing Hydrocarbon
Service Manual
1 Servicing Hydrocarbon
Overview
This cabinet uses hydrocarbon (HC) R290 as its refrigerant. R290 is a natural refrigerant that
has a very low environmental impact.
Special service requirements are needed, as R290 is a flammable refrigerant.
Safety hazards
The main hydrocarbon safety hazards are:
• Flammability
• Venting of hydrocarbon and compressor oil
• Asphyxiation
Service requirements
Do not interfere with the refrigeration system. All refrigeration maintenance and repairs must
be undertaken according to the SKOPE Hydrocarbon Service Requirements. See the “SKOPE
Hydrocarbon Service Requirements” below for more information, including examples of
hazardous activities.
Electrical safety precautions
To comply with safety and radio interference regulations, make sure you route wiring correctly
and use the correct components. In order to maintain safety and compliance with regulations,
any wiring that is disturbed during servicing must be replaced and secured in its original
position.
6Servicing Hydrocarbon
Service Manual
SKOPE ProSpec Upright Series
SKOPE Hydrocarbon Service Requirements
Servicing must only be performed by approved SKOPE Service Technicians, and must meet all requirements in the
SKOPE Hydrocarbon Service Policy (available from SKOPE), including the following:
Hydrocarbon work – SKOPE Service Policy
It is the responsibility of the service technician to follow SKOPE’s Hydrocarbon equipment service policy
and by accepting a service work order they agree to the following (where applicable):
xMUST – Ensure all workers are trained in the SAFETY of hydrocarbon products to the appropriate
level for the work required.
xMUST – Follow all Local Safety Regulations relevant to flammable refrigerant gases.
oAustralia should reference - AIRAH Flammable Refrigerants – Safety Guide
oNew Zealand should reference – Flammable Refrigerant Safety Documentation
(Refrigerant License NZ)
xMUST – Adhere to all on-site (workplace) Health and Safety requirements
xMUST – Not modify or alter the design of SKOPE equipment in any way
xMUST – In cases where the refrigeration system is not readily removable from the cabinet; then the
entire cabinet MUST be sent to the Hydrocarbon workshop for repair.
xMUST – ONLY use SKOPE OEM Spare Parts; or identical replacement parts. Any variation in
replacement part may render the system non-compliant and unsafe.
xMUST – Follow all best practice work activities for servicing hydrocarbon refrigerants (SKOPE
recommend attending specific hydrocarbon refrigeration handling training courses). Nitrogen must
be used for purging system before commencing “Hot Work” – brazing.
xMUST – Adhere to relevant SKOPE Service Manual. If any contradiction, the local Regulations take
precedence over SKOPE requirements
xMUST – Work only in suitable, safe and compliant work spaces. Personal Protective Equipment
must always be used when working on Hydrocarbon equipment.
xMUST – Service people diagnosing refrigeration faults must always carry and utilise Flammable Gas
detectors when working on Hydrocarbon equipment.
xMUST – Prior to any service work; know where and how to safely and quickly isolate power supply
to cabinet
xMUST – Not perform any Hot Work (brazing etc.) in the field. These are to be completed in a suitable
service depot / workshop (in a dedicated specific Hazardous Work Area compliant to local
flammable gas regulations)
xMUST – Not transport a refrigeration system with a known active leak. If there is an active leak the
refrigerant must be safely removed (with use of Bullet Piercing Valve or Line Tap valves) before
transporting. Valves must be removed at the hydrocarbon service depot once repair is completed.
xMUST – All hydrocarbon workshop areas must have emergency plans; that includes suitable
evacuation and fire control plans and equipment.
xMUST – Only use refrigerant grade hydrocarbon, to precise mass specified on removable
refrigeration system serial label.
xMUST – Be accurate refrigerant charge; The refrigerant mass is ultra-low charge and must only be
measured in by accurate scales to +/- 1.0gram. Refrigerant MUST not be overcharged; or added to
an already charged system.
xMUST – Use identical drier replacement; as any change will affect gas charge volume; and effect
reliability compliance and safety.
xMUST – Any pipework replacement, must be identical to genuine SKOPE parts.
xMUST – Not introduce a sparking device inside a cabinet or inside a removable refrigeration system.
Battery drills should not be used.
xMUST – Not perform any activity that could stress a refrigeration pipe (unless in a workshop).
xMUST – Get customer authorisation to permanently swap a removable refrigeration system.
xMUST – Have the Wellington Drive SCS Field app installed on a Bluetooth enabled device carried by
the service technician (exception is for cabinets that do not utilise the Wellington Drive Controller).
The app should be utilised for safe, accurate diagnosis of the system and it is required to complete
a controller replacement in the field.
xRECOMMENDED – Have the Wellington Drive SCS Track app installed on a Bluetooth enabled device
carried by the service technician. This passive app collects system data from the Wellington Drive
SCS Connect Controller and transmit it to the cloud.
xLogistics companies may be used to transport a complete refrigerator where no separation of the
refrigeration system occurs. Logistics companies are not required to be contracted to this SKOPE
Service Policy.
7
SKOPE ProSpec Upright Series
Specifications
Service Manual
2 Specifications
Models
This product service manual is applicable to the SKOPE ProSpec top mount upright fridges
detailed in the table below. Refer to the relevant product specification sheet (available on the
SKOPE website: www.skope.com) for specifications.
Table 1: Model specifications
Series Model SKOPE ID Cartridge
ProSpec Fridge Series
PG21.UPR.1.SD PP1R
HB0070832517A
PG21.UPR.2.SD PP2R
8Installation
Service Manual
SKOPE ProSpec Upright Series
3 Installation
Installation Guidelines
When installing this cabinet, ensure you consider and meet the installation guidelines below.
Ventilation Requirements
See the diagram over for ventilation requirements.
When positioning the cabinet, ensure there is at least a 300 mm space above the top panel.
Adequate ventilation around the refrigeration cartridge is essential for efficient operation. The
air surrounding the refrigeration cartridge must not exceed 40°C.
Keep the ventilation slots at the top of the cabinet clear at all times and never store cardboard
cartons or other objects on top of the cabinet.
In certain climatic conditions, condensation may form on the back of the cabinet. If this is
observed, ensure air circulation between cabinet and wall by adhering two of the enclosed
self-adhesive blocks to the cabinet back as shown.
Ventilation
Ensure all ventilation
requirements below are
met.
Door Opening
Allow adequate space for
the door/s to open and
close properly.
Sunlight
Do not install the cabinet
in direct sunlight.
Uneven Surface
Do not install the cabinet
on an uneven surface.
Surface
The installation surface
must be capable of
supporting the loaded
cabinet.
Power Supply
Do not overload the power
supply.
Blocking Ventilation
Do not store boxes or items
in front or on top of the
cabinet.
Climate Class
The cabinet must be
installed in an environment
within its climate class.
The climate class is stated
on the cabinet rating label
inside the cabinet.
9
SKOPE ProSpec Upright Series
Installation
Service Manual
Shelves
The cabinet is fitted with five wire shelves per door, which may be positioned at different
heights to suit various products
Shelf Support
Strips Each wire shelf is held in place by two shelf support strips, which engage in the shelf support
strips and slide up and down to the desired shelf position.
The support strips are numbered for easy location of shelf clips. View the numbers in the
bottom left hand corner of the shelf clip.
No below clearance required
Min. 300 mm above* Min. 300 mm above*
Adhesive Blocks
If required use two adhesive blocks on the rear of the cabinet. Position
the blocks on the left and right hand sides of the cabinet, approximately
half way up and 50 mm from the cabinet edge.
No side
clearance
required
No behind
clearance
required
Rear top sign*
50 mm
Procedure 1: To fit a shelf support strip
The shelf support strips hook into vertical supports
on the left and right sides of the cabinet.
1. Engage the rear hook on the shelf support strip
first, then the front hook.
2. Check that the shelf support strip is secure.
10 Installation
Service Manual
SKOPE ProSpec Upright Series
Repositioning
Shelves
Procedure 2: To remove a shelf support strip
1. Pull the front of shelf support strip up and away from the vertical support. This will free up the
front section of the support strip.
2. Pull the rear shelf support strip forward and away from the cabinet.
Procedure 3: To adjust the shelf support strip
The cabinet vertical supports are spaced at different
heights to allow for various shelf positions.
1. Remove the shelf support strip as above.
2. Hook the shelf support strips into the notch
features on the cabinet vertical supports.
Procedure 4: To reposition a standard shelf
1. Unload the shelf and remove it from the cabinet.
2. Move each shelf to the new position in the shelf support strips (see Procedure 3).
3. Replace the shelf back in the cabinet, and reload the product.
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
