USER’S MANUAL

PLED2963A-B

LED TV

All manuals and user guides at all-guides.com

all-guides.com

Contents

Introduction

Warning

Caution

Important Information

Attaching or Removing the Stand

Installing Batteries to the Remote Control

Identifying Front and Rear Panel

Connection Suggestion

Main Unit Description

Remote Control

OSD Basic Adjustment

How Do I Clean The TV

Troubleshooting

Specifications

FCC Compliance Statement



All manuals and user guides at all-guides.com

Introduction

Thank you very much for purchasing your LED TV. It serves as a normal colour TV

and a PC monitor. To enjoy your set fully from the very beginning, read this manual

carefully and keep it handy for future reference.

INSTALLATION

Locate the receiver in the room where direct light does not strike the screen. Total

darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect

lighting is recommended for comfortable viewing.

Allow enough space between the receiver and the wall to permit ventilation.

Avoid excessively warm locations to prevent possible damage to the cabinet or

premature component failure.

This TV can be connected to AC 100-240V~ 50/60Hz.

Do not install the TV in a location near heat sources such as radiators, air ducts,

direct sunlight, or in closed compartments and closed areas. Do not cover the

ventilation openings when using the TV.

The indicator light will last for about 30 seconds after the power has been turned

off.

Wait until the indicator light goes out before repowering the TV.

User manual x1

Warranty card x1

Power cable x1

Remote control x1

Battery (pair, AAA) x1

Accessories list for this TV set:

All manuals and user guides at all-guides.com

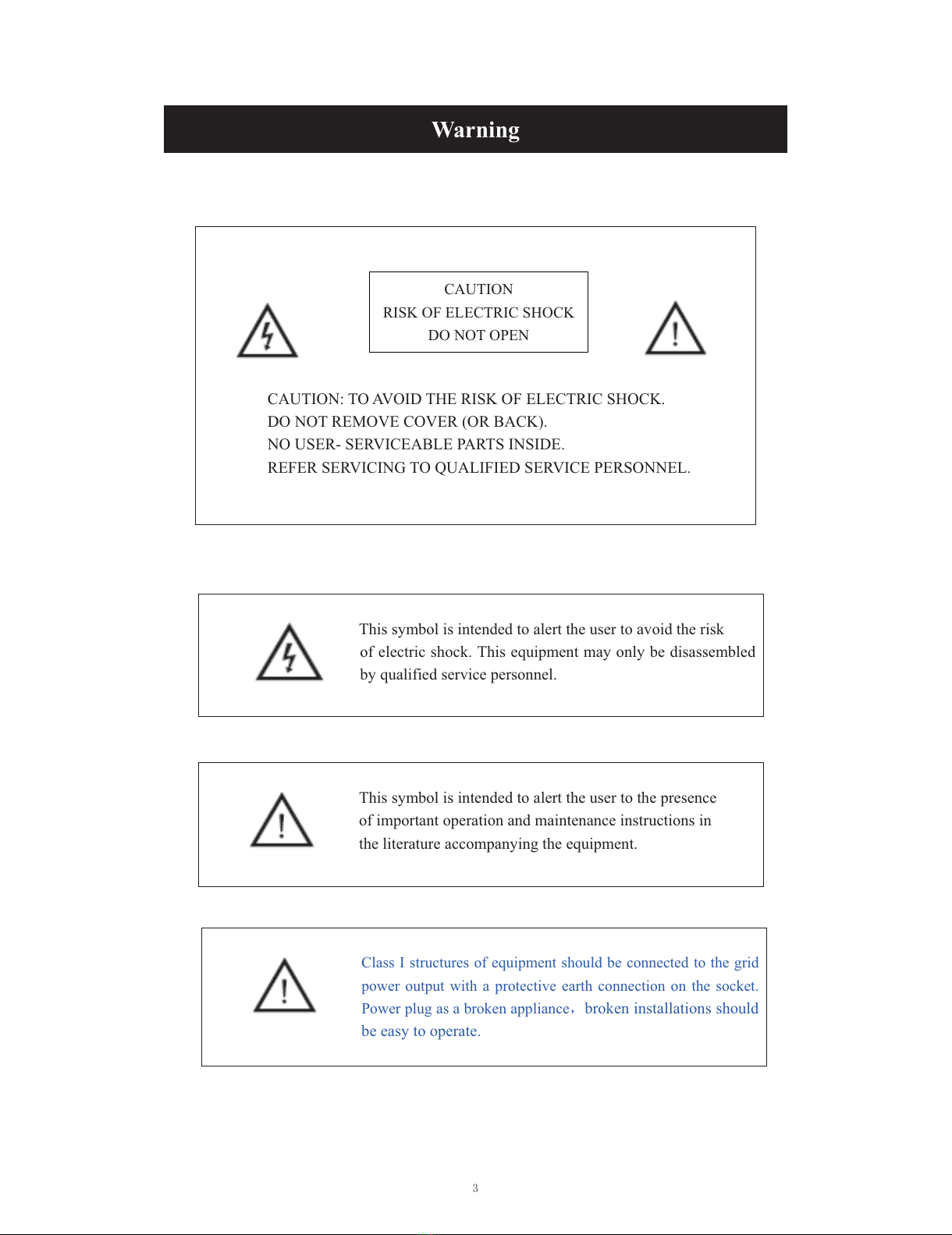

Warning

This symbol is intended to alert the user to avoid the risk

of electric shock. This equipment may only be disassembled

by qualified service personnel.

This symbol is intended to alert the user to the presence

of important operation and maintenance instructions in

the literature accompanying the equipment.

CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER- SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

Class I structures of equipment should be connected to the grid

power output with a protective earth connection on the socket.

Power plug as a broken applianceˈbroken installations should

be easy to operate.



All manuals and user guides at all-guides.com

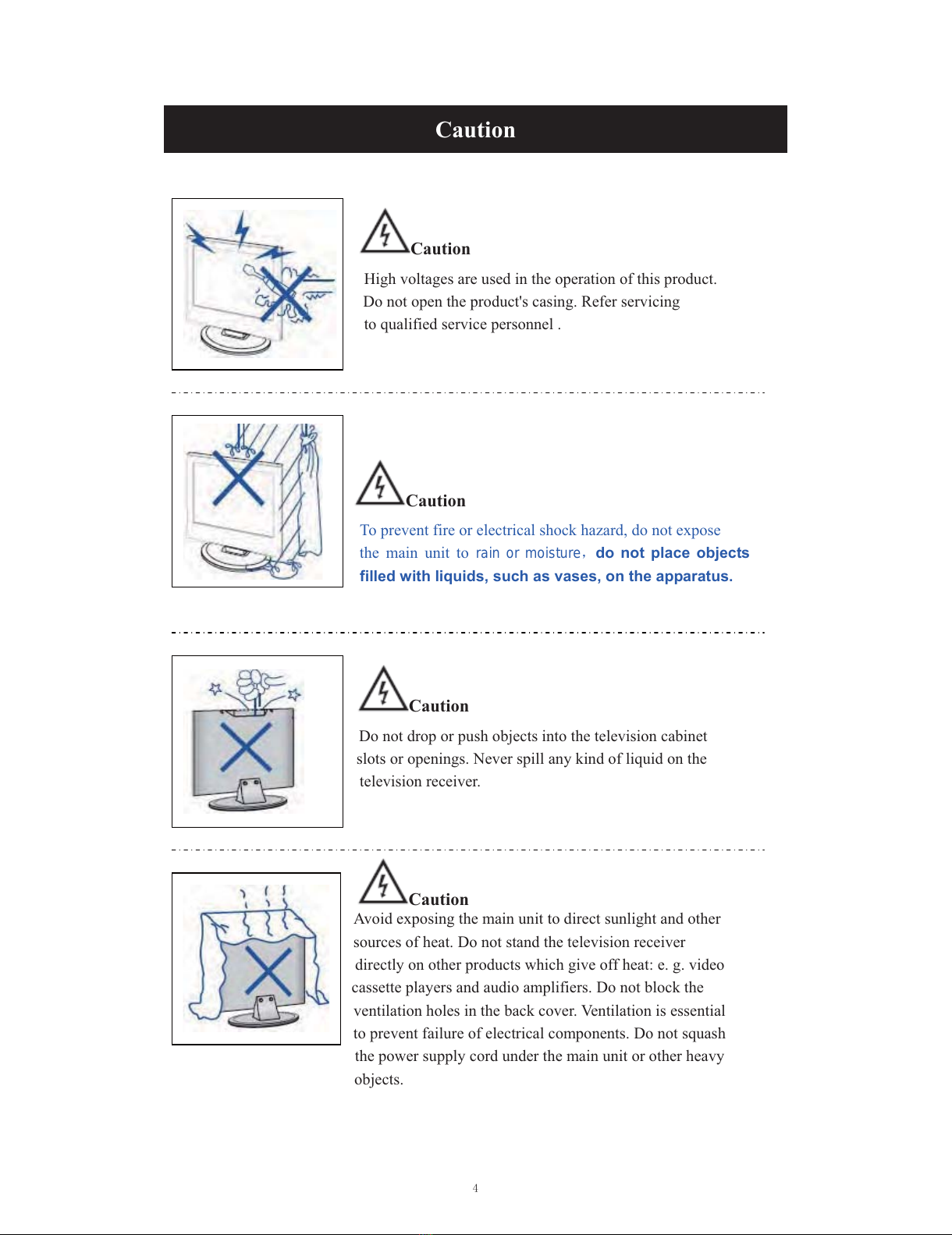

Caution

High voltages are used in the operation of this product.

- Do not open the product's casing. Refer servicing

to qualified service personnel .

Caution

To prevent fire or electrical shock hazard, do not expose

the main unit to rain or moistureˈdo not place objects

filled with liquids, such as vases, on the apparatus.

Caution

Do not drop or push objects into the television cabinet

slots or openings. Never spill any kind of liquid on the

television receiver.

Caution

Avoid exposing the main unit to direct sunlight and other

sources of heat. Do not stand the television receiver

directly on other products which give off heat: e. g. video

cassette players and audio amplifiers. Do not block the

ventilation holes in the back cover. Ventilation is essential

to prevent failure of electrical components. Do not squash

the power supply cord under the main unit or other heavy

objects.



All manuals and user guides at all-guides.com

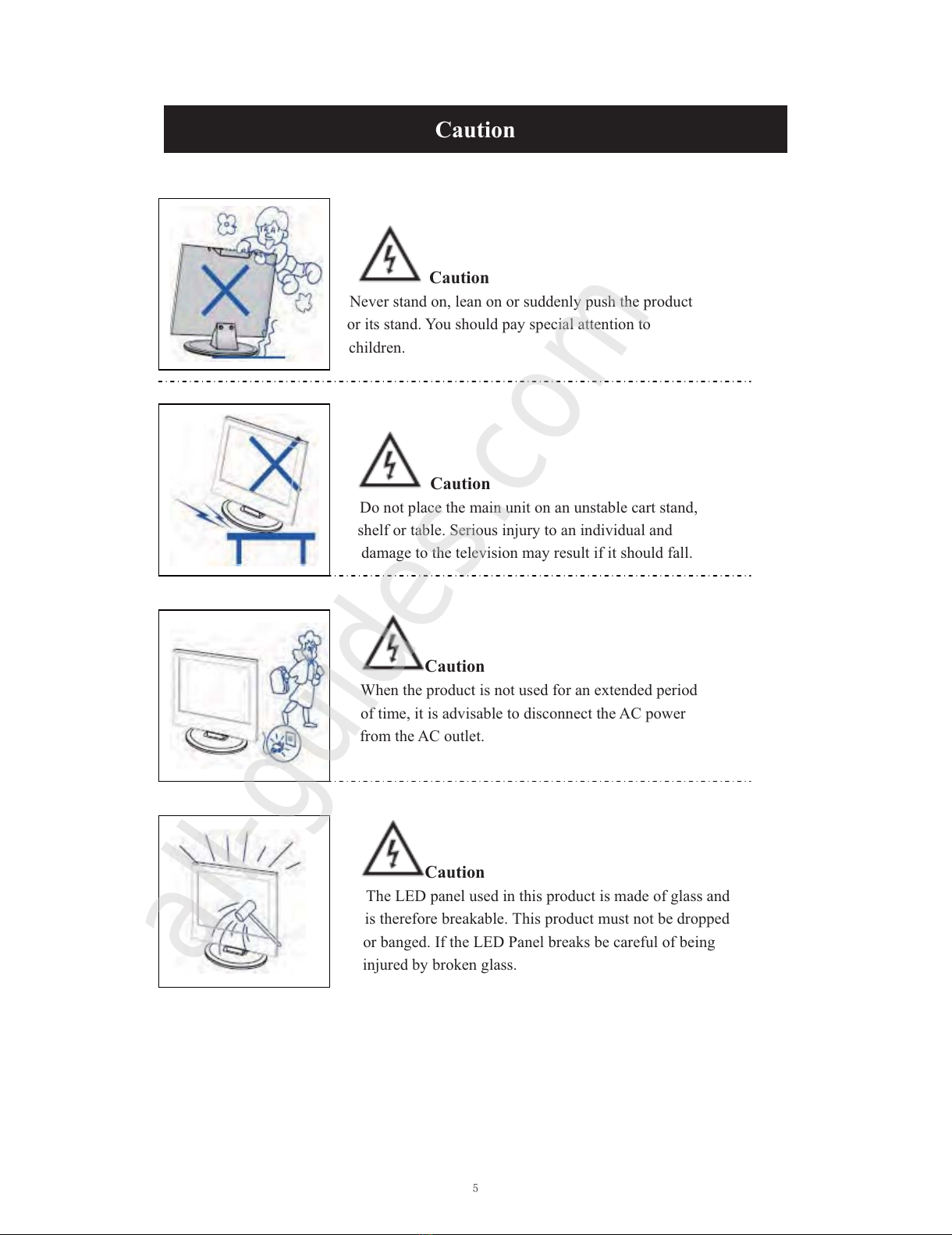

Caution

Never stand on, lean on or suddenly push the product

or its stand. You should pay special attention to

children.

Caution

Do not place the main unit on an unstable cart stand,

shelf or table. Serious injury to an individual and

damage to the television may result if it should fall.

Caution

When the product is not used for an extended period

of time, it is advisable to disconnect the AC power

from the AC outlet.

Caution

The LED panel used in this product is made of glass and

is therefore breakable. This product must not be dropped

or banged. If the LED Panel breaks be careful of being

injuredbybrokenglass.



All manuals and user guides at all-guides.com

all-guides.com

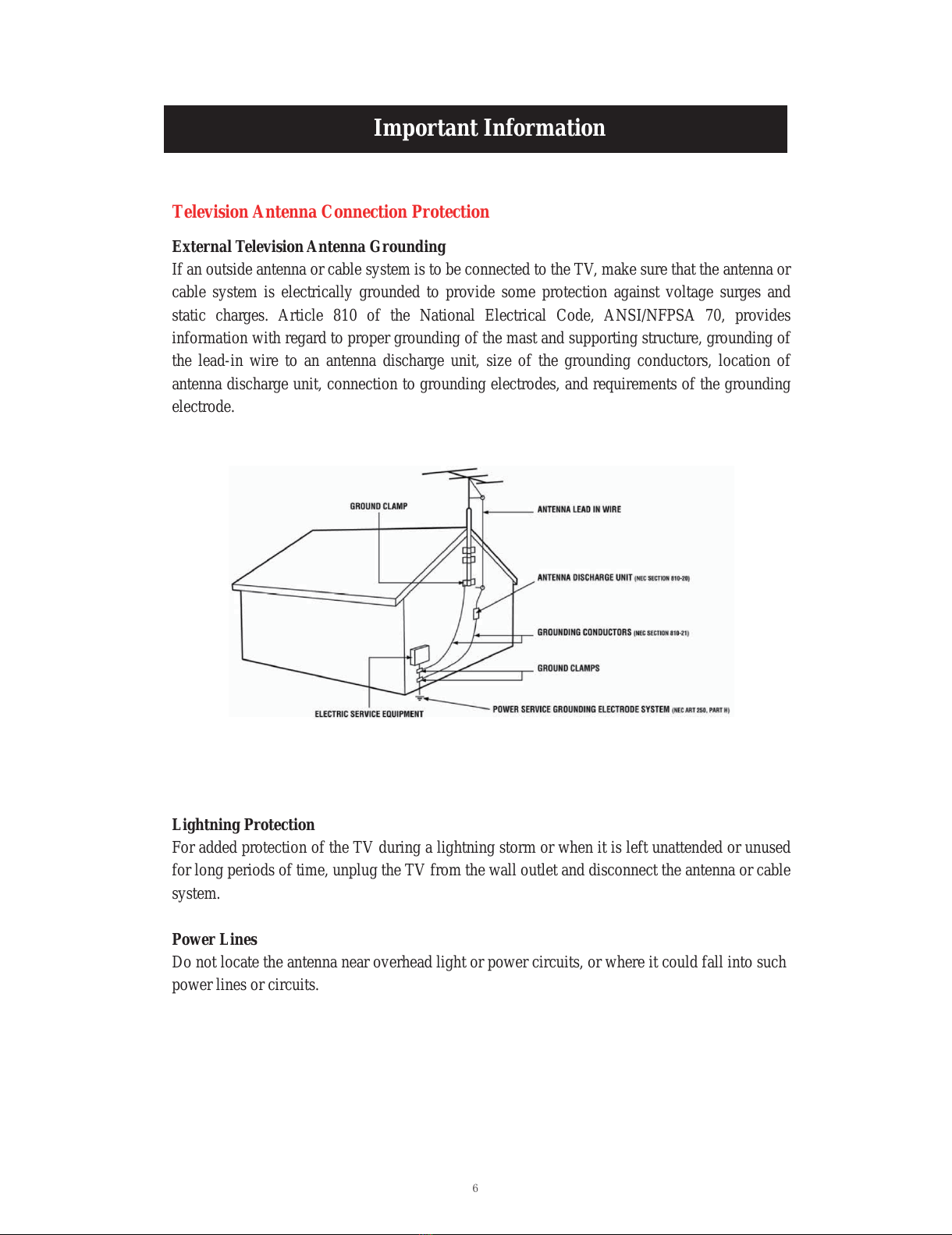

Television Antenna Connection Protection

Important Information

External Television Antenna Grounding

If an outside antenna or cable system is to be connected to the TV, make sure that the antenna or

cable system is electrically grounded to provide some protection against voltage surges and

static charges. Article 810 of the National Electrical Code, ANSI/NFPSA 70, provides

information with regard to proper grounding of the mast and supporting structure, grounding of

the lead-in wire to an antenna discharge unit, size of the grounding conductors, location of

antenna discharge unit, connection to grounding electrodes, and requirements of the grounding

electrode.

Lightning Protection

For added protection of the TV during a lightning storm or when it is left unattended or unused

for long periods of time, unplug the TV from the wall outlet and disconnect the antenna or cable

system.

Power Lines

Do not locate the antenna near overhead light or power circuits, or where it could fall into such

power lines or circuits.



All manuals and user guides at all-guides.com

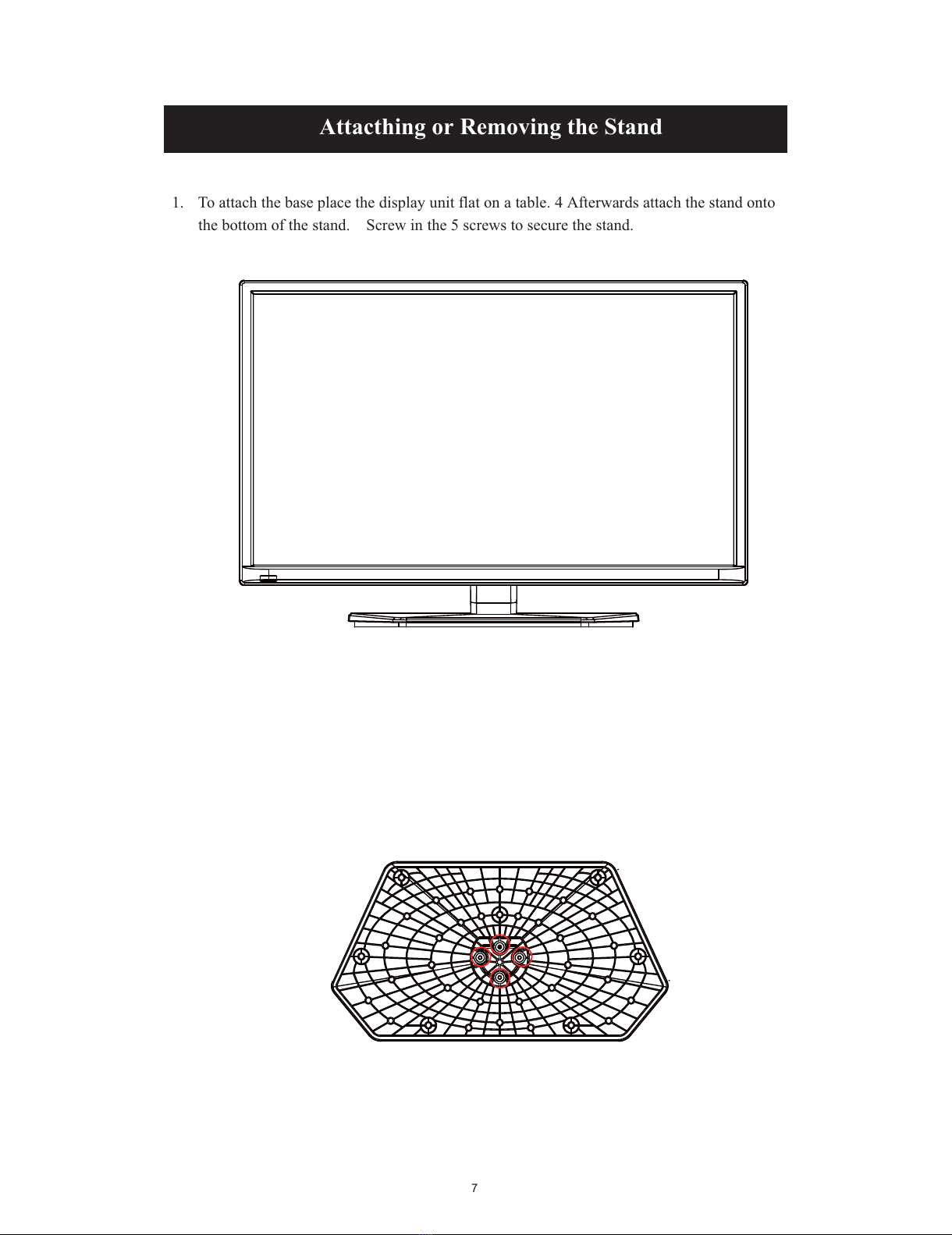

Attacthing or Removing the Stand

1. To attach the base place the display unit flat on a table. 4 Afterwards attach the stand onto

the bottom of the stand. Screw in the 5 screws to secure the stand.

All manuals and user guides at all-guides.com

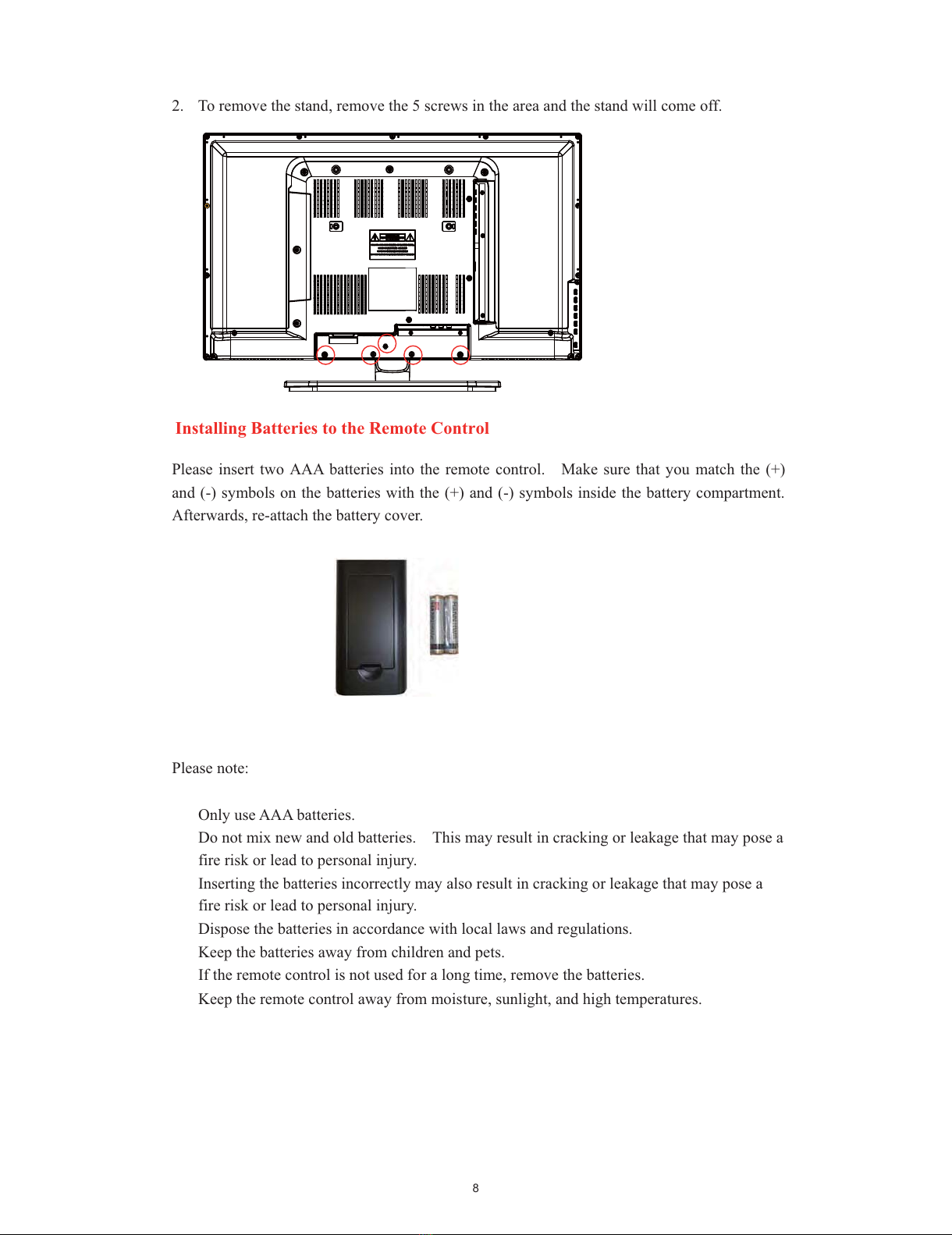

2. To remove the stand, remove the 5 screws in the area and the stand will come off.

Installing Batteries to the Remote Control

Please insert two AAA batteries into the remote control. Make sure that you match the (+)

and (-) symbols on the batteries with the (+) and (-) symbols inside the battery compartment.

Afterwards, re-attach the battery cover.

Please note:

Only use AAA batteries.

Do not mix new and old batteries. This may result in cracking or leakage that may pose a

fire risk or lead to personal injury.

Inserting the batteries incorrectly may also result in cracking or leakage that may pose a

fire risk or lead to personal injury.

Dispose the batteries in accordance with local laws and regulations.

Keep the batteries away from children and pets.

If the remote control is not used for a long time, remove the batteries.

Keep the remote control away from moisture, sunlight, and high temperatures.

All manuals and user guides at all-guides.com

Front View

Rear View Mounting Pattern

Identifying Front and Rear Panel

INDICATOR LIGHT – The light is red when power is plugged in but the TV is not turned on.

The light turns blue when the TV is turned on. Because of the LED in the panel, the TV

might take 10 – 12 seconds to power on.

REMOTE SENSOR – The remote sensor receives all the commands from the remote control.

Mounting Specification : 200mm x 100mm using screw size M4. Length of screw should not

exceed 8mm. Please Note : The 8mm length of screw refers to how deep the screw can go

inside the mounting holes. When you’re buying screws, you should add the original 8mm to

the thickness of your mounting plate in order to get the total screw length.

All manuals and user guides at all-guides.com
