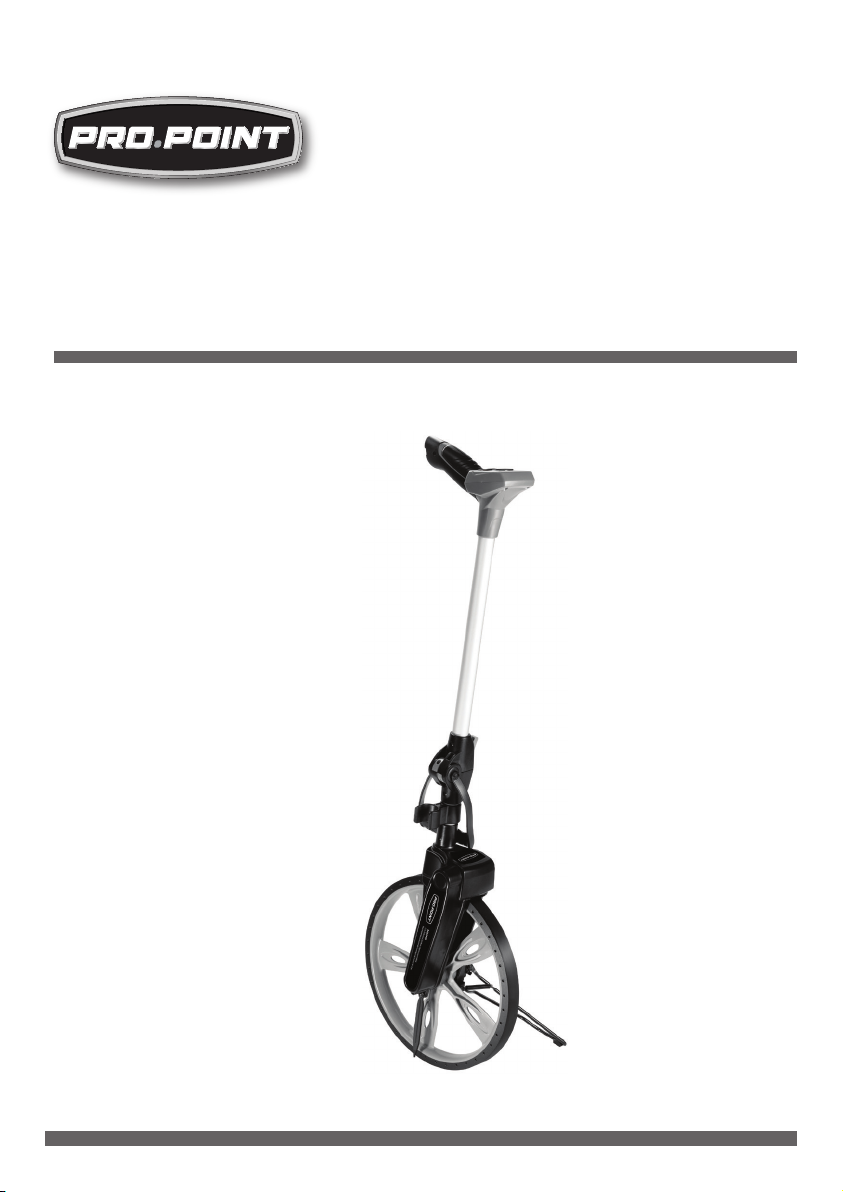

User Manual

V 3.05 8424400

12 in. Professional SAE/Metric Digital

SURVEYOR'S WHEEL

2 For technical questions call 1-800-665-8685

V 3.05 8424400

12 in. Professional SAE/Metric Digital

SURVEYOR'S WHEEL

SPECIFICATIONS

Standard of

Measurement

SAE and Metric

Measuring Range SAE: 9,999 ft, 11 in.

Metric: 9,999 m, 99 cm

Applications Measurement of long distances, where use

of a tape is not ideal. Essential measurement

tool for surveyors, landscaping, contractors,

estimators, community clubs, etc.

Features Foldable design for easy storage. High

traction tire mounted on high impact ABS

wheel. Easy grip pistol type handle with reset,

hold button, 5 memory slots and backlight.

Kick stand. Protective zippered storage case.

INTRODUCTION

Essential measurement tool for surveyor, landscaping, contractors,

estimators, community clubs, etc.

12 in. Professional SAE/Metric Digital

Surveyor's Wheel

Visit www.princessauto.com for more information 3

8424400 V 3.05

12 in. Professional SAE/Metric Digital

SURVEYOR'S WHEEL

IMPORTANT SAFETY

PRECAUTIONS

1. Wear protective equipment such as protective gloves

and eye protection approved by the Canadian Standards

Association (CSA) or American National Standards Institute

(ANSI) when using the tool.

2. Do not clean tool with organic solvents.

3. Store in a clean, dry area. If measuring wheel will not be used

for a long time, remove the batteries to prevent leakage.

PARTS IDENTIFICATION

ALCD Display

BControl button

CHandle

DAluminum Bar

EFolding Wrist

FWheel Housing

GWheel

HKickstand

12 in. Professional SAE/Metric Digital

Surveyor's Wheel

4 For technical questions call 1-800-665-8685

V 3.05 8424400

BUTTON IDENTIFICATION

Power On and Off Button

Unit Change Button

Reset and Memory Selection Right

Backlight and Memory Selection Left

Memory Mode and Writes Read Out

Into Memory

Hold and Release Read Out

12 in. Professional SAE/Metric Digital

Surveyor's Wheel

Visit www.princessauto.com for more information 5

8424400 V 3.05

DISPLAY

1Metric / SAE Unit Symbol (Meter / Feet)

2Metric / SAE Unit Symbol (Centimeter / Inches)

3Low Power Symbol

4Hold Symbol

5Memory Symbol

OPERATION

POWER ON/OFF

Turn the tool On by pressing the On/O button and holding the

button for two seconds. Press the button again to turn the tool O.

UNIT CHANGE

Press the M/Ft button to switch the unit of measurement from

Metric to SAE.

SET TO ZERO

Press and hold the Reset and Memory Selection

Right button for two seconds to set the number

to zero.

12 in. Professional SAE/Metric Digital

Surveyor's Wheel

6 For technical questions call 1-800-665-8685

V 3.05 8424400

HOLD CURRENT READ OUT

Press the Hold and Release Read Out button to

hold the current read out or release the held

read out.

BACKLIGHT

Press and hold the Backlight and Memory Selection

Left button for two seconds to turn on the

backlight. The backlight will turn on for

ﬁfteen seconds then turn o automatically.

MEMORY

There are ﬁve memory spaces to store

measurement numbers. These memories will keep

the reading even when the battery has

been removed.

Step Button Display

1. Press the Esc/Hold

button to hold

the number.

2. Press the Memory/

Enter button to

enter into the

Memory mode.

3. Select the memory

slot by toggling

the Left or Right

buttons. The

memory space will

twinkle when it

is selected.

12 in. Professional SAE/Metric Digital

Surveyor's Wheel

Visit www.princessauto.com for more information 7

8424400 V 3.05

4. Press the Memory/

Enter button to

save the held

number in the

selected memory

slot. Previous

memory will be

over written.

5. Press the Esc/Hold

button to leave the

memory mode.

POWER SAVING MODE

The tool will turn o automatically if there is no usage in a ﬁve

minute period.

LOW POWER

The low power symbol will light up when the tool is almost out of

battery power.

MAINTENANCE

Periodically wipe the tool with a damp cloth and mild detergent.

Do not use abrasives or solvents.

12 in. Professional SAE/Metric Digital

Surveyor's Wheel

8 For technical questions call 1-800-665-8685

V 3.05 8424400

BATTERY REPLACEMENT

1. Open the battery compartment by using a screwdriver to

remove the screw holding the cover in place.

2. Replace the 9 volt battery with a new 9 volt battery.

DISPOSING OF THE TOOL

If your tool has become damaged beyond repair, do not throw it

out. Bring it to the appropriate recycling facility.

8424400 12 IN. PROFESSIONAL SAE/METRIC V3.05

DIGITAL SURVEYOR'S WHEEL

For technical questions call 1-800-665-8685

OPERATION

WALL-TO-WALL MEASUREMENT

1. Place the measuring wheel on

the ground with the back of

the wheel against the wall.

2. Drive the wheel in a straight

line towards the opposite wall.

3. Stop the wheel against

the wall.

4. Record the reading on

the counter.

5. Add the reading to the diameter of the wheel.

WALL-TO-POINT MEASUREMENT

1. Place measuring the wheel on

the ground with the back of

the wheel against the wall.

2. Drive the wheel in a straight

line towards the endpoint.

3. Stop the wheel with the lowest

point over the mark.

4. Record the reading on

the counter.

5. Add the reading to the radius of the wheel.

V3.05 12 IN. PROFESSIONAL SAE/METRIC 8424400

DIGITAL SURVEYOR'S WHEEL

Visit www.princessauto.com for more information

POINT-TO-POINT MEASUREMENT

1. Place the measuring wheel on

the starting point with lowest

point of the wheel on the mark.

2. Proceed to the next mark at

the end of the measurement.

3. Record the reading on the

counter. This is the final

measurement between the

two points.
