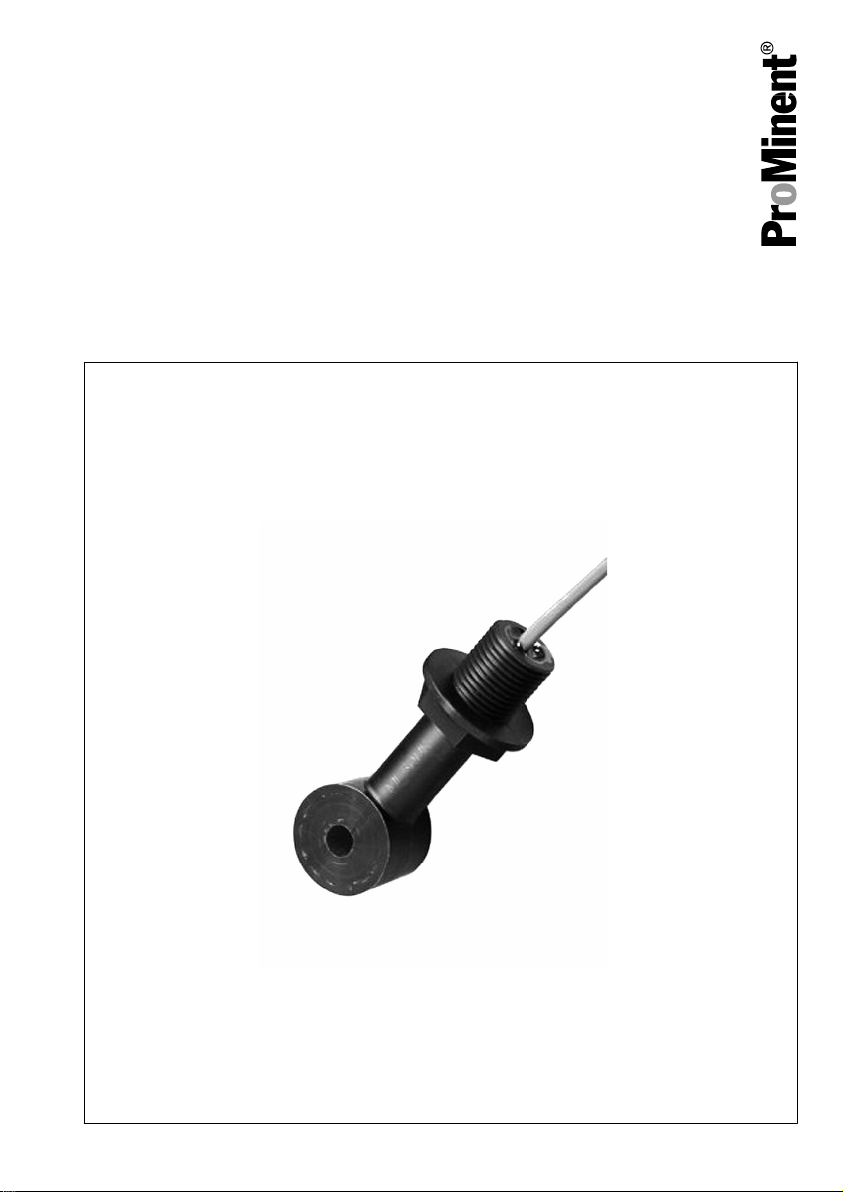

DULCOTEST® sensor for inductive conduc‐
tivity
ICT 8 - mA - 200mS/cm
Assembly and operating instructions
A2647
EN/DE
Target group: commercial use.Part number 982054 Version: BA DT 162 05/19 DE
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
Overall Table of Con‐
tents
EN DULCOTEST® sensor for inductive
conductivity ICT 8 - mA -
200mS/cm........................................... 3
1 Function......................................... 6
2 Storage and transport of the
sensor............................................ 7
2.1 Storage....................................... 7
2.2 Transport.................................... 7
2.3 Packaging material..................... 7
3 Assembly and installation.............. 8
3.1 Assembly.................................... 8
3.2 Electrical installation................... 9
4 Disposal of used parts................. 11
5 Technical data............................. 12
5.1 Standards complied with and
Declaration of Conformity......... 12
DE DULCOTEST® Sensor für induktive
Leitfähigkeit ICT 8 - mA -
200mS/cm ........................................ 15
1 Funktion....................................... 18
2 Lagern und transportieren des
Sensors....................................... 19
2.1 Lagern...................................... 19
2.2 Transport.................................. 19
2.3 Verpackungsmaterial................ 19
3 Montage und Installation............. 20
3.1 Montage................................... 20
3.2 Elektrische Installation.............. 21
4 Altteileentsorgung........................ 23
5 Technische Daten....................... 24
5.1 Eingehaltene Normen und
Konformitätserklärung.............. 24
Overall Table of Contents
2
DULCOTEST® sensor for inductive conduc‐
tivity
ICT 8 - mA - 200mS/cm
Assembly and operating instructions
A2647
EN
Target group: commercial use.Part number 982054 Version: BA DT 162 05/19 DE
Please carefully read these operating instructions before use. · Do not discard.
The operator shall be liable for any damage caused by installation or operating errors.
The latest version of the operating instructions are available on our homepage.
General non-discriminatory approach In order to make it easier to read, this docu‐
ment uses the male form in grammatical struc‐
tures but with an implied neutral sense. It is
aimed equally at both men and women. We
kindly ask female readers for their under‐
standing in this simplification of the text.
Supplementary information
Please read the supplementary information in its entirety.
Information
This provides important information relating to the correct operation of the unit or is intended
to make your work easier.
Warning information
Warning information include detailed descriptions of the hazardous situation.
The following symbols are used to highlight instructions, links, lists, results and other elements in
this document:
Tab. 1: More symbols
Symbol Description
Action, step by step.
⇨Outcome of an action.
Links to elements or sections of these instructions or other applicable docu‐
ments.
nList without set order.
[Button]
Display element (e.g. indicators).
Operating element (e.g. button, switch).
‘Display /GUI’
Screen elements (e.g. buttons, assignment of function keys).
CODE Presentation of software elements and/or texts.
Supplemental directives
4
Table of contents
1 Function.................................................................................................................................. 6
2 Storage and transport of the sensor........................................................................................ 7
2.1 Storage........................................................................................................................... 7
2.2 Transport........................................................................................................................ 7
2.3 Packaging material......................................................................................................... 7
3 Assembly and installation........................................................................................................ 8
3.1 Assembly........................................................................................................................ 8
3.2 Electrical installation....................................................................................................... 9
4 Disposal of used parts........................................................................................................... 11
5 Technical data....................................................................................................................... 12
5.1 Standards complied with and Declaration of Conformity.............................................. 12
6 Index..................................................................................................................................... 13
Table of contents
5
1 Function
The sensor is used for measuring electrolytic conductivity in aqueous sample media. The sensor
works on the inductive measuring principle.
The sensor’s signal processing electronics are integrated in the sensor housing.
The sensor is factory-calibrated.
The sensor needs a 12 ... 24 V DC supply and has a 4 ... 20 mA current loop output, all contained in
a 6-wire, unshielded cable.
The 4 ... 20 mA cable transmitter is housed in a moulded module adjacent to the sensor body on the
cable.
The cable length is: 2 m between the sensor and cable transmitter and 10 m between the cable
transmitter and monitor.
Do not shorten or otherwise modify the cable.
The sensor can be fitted with a flange and has a ½” BSP thread.
The sensor has an integral temperature measurement, which is used to calculate the temperature
compensation of the conductivity output value. You do not need an additional temperature sensor
for temperature compensation of the output signal. Temperature compensation is done within the
sensor’s electronics and the standard setting is 1.7 %/°C.
The sensor has three measuring ranges:
n0 ... 2 mS
n0 ... 20 mS
n0 ... 200 mS
Model Temperature Fixing thread Interface Electronics
ICT 8 0 ... 50.0 °C ½' BSP parallel TTL Internal
Typical applications
The sensor is predominantly designed for appli‐
cations in water treatment and for water moni‐
toring, e.g.:
nContaminated waste water and process
water
nAir conditioning plants and chillers
nBlowdown control in cooling towers,
nFlushing baths,
nVehicle washing systems,
nSalt water desalination (feed),
nSwimming pool water control.
You can also use the sensor in contaminated
water, which is chemically inert to PP/EPDM
(depending on the design of the sensor).
Function
6
2 Storage and transport of the sensor
User qualification: instructed user
Original packaging
Damage to the product.
–
Only transport, ship and store the
sensor in its original packaging.
–
Retain the packaging including the
polystyrene inserts.
2.1 Storage
Permissible ambient temperature: -10 °C ... +60
°C.
Humidity: maximum 90 % relative air humidity,
non-condensing.
Other: No dust, no direct sunlight.
Maximum storage period of the sensor in its
original packaging and normal atmosphere: 2
years.
2.2 Transport
The sensor should be transported in its original
packaging and in compliance with the permis‐
sible environmental conditions. No further spe‐
cial conditions have to be observed in relation
to transport.
2.3 Packaging material
Dispose of packaging material in an environ‐
mentally responsible way. All packaging com‐
ponents carry the corresponding recycling code
.
Storage and transport of the sensor
7
3 Assembly and installation
3.1 Assembly
Installation site
A2648
64,50
20,00
47,5 2,8 24,50
20,50
10,50
10,00
52,50
Ø 32,50
Ø 37,00
1/2“ BSP
Ø 52,50
27,5 A/F
I.
Fig. 1: Dimensions and thread
I. Minimum distance of the sensor body to
other surfaces
Ensure that there is unimpeded access for subsequent calibration.
The mounting must be secure and low-vibration.
Avoid direct sunlight.
Make sure that the medium flows correctly through and around the sensor.
Maintain a minimum distance from the sensor to the tube wall when installing in pipework, as
described in Fig. 1.
Fit the sensor into a suitable bypass fitting, as described in the operating instructions for the
bypass fitting.
Assembly and installation
8
3.2 Electrical installation
Interface cable
Mains voltage
+12 ... +24 V
0 V
PLC
+
-
4 ... 20 mA input
Red
Brown
Orange
Green
Yellow
Black
A2777

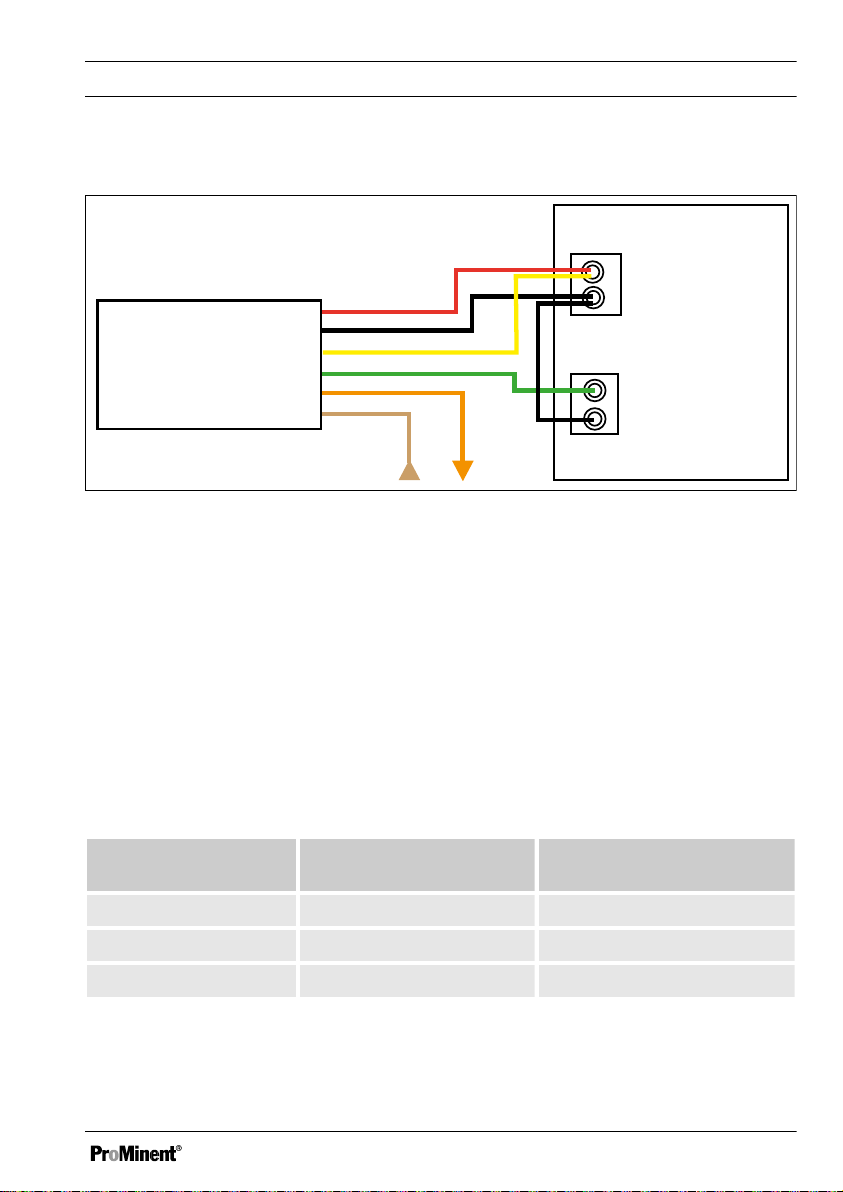

Fig. 2: Electrical installation
Cable colours
nRed: +12 V ... 24V DC at 50 mA
nBlack: Power supply 0 V
nYellow: 4 ... 20 mA current loop output, positive line
nGreen: 4 ... 20 mA current loop output, negative line (return)
nOrange: Range selection, wire 1
nBrown: Range selection, wire 2
The negative pole of the power supply needs to be connected to the negative pole of the PLC’s ana‐
logue input.
Tab. 2: Measuring range selection:
Measuring range Measuring range 1 (orange
lead)
Measuring range 2 (brown lead)
20 mS/cm open open
200 mS/cm connected to 0 V open
2 mS/cm open connected to 0 V
Assembly and installation
9
Connecting the sensor to measuring modules
Connect the ICT 8 sensor for inductive conductivity to the mA/mA or mV/mA module of a
DACb or AEGIS II controller.
Tab. 3: AA module terminals for channel 1 and channel 2, VA module terminals for channel 2
Measuring range GND terminal IN terminal V+ terminal
2 mS/cm Brown + Black Green Yellow + Red
20 mS/cm Black Green Yellow + Red
200 mS/cm Orange + Black Green Yellow + Red
Assembly and installation
