BEFORE GETTING STARTED

This document is designed to aid you to get started with the device. If you experience problems following these

guides or need further information pertaining to the device, please visit our website at www.prolink2u.com.

All speciﬁcations are subject to the manufacturer’s conﬁguration at the time of shipping and may change

without prior notice, written or otherwise.

Quick Start Guide

Line Interactive UPS

MODEL NO:

PRO700SFT/SFTU

PRO850SFTU

PRO1200SFT/SFTU

Version 1.00

(English / Indonesian)

EN 1

CAUTION:

To prevent the risk of ﬁre or electric shock, install in a temperature and humidity controlled

indoor area free of conductive contaminants. (See the speciﬁcations for the acceptable

temperature and humidity range.)

To reduce the risk of overheating the UPS, DO NOT cover the UPS' cooling vents and avoid

exposing the unit to direct sunlight or installing the unit near heat emitting appliances such

as space heaters or furnaces.

DO NOT attach non-computer-related items, such as medical equipment, life-support

equipment, microwave ovens, or vacuum cleaners to UPS.

DO NOT plug the UPS input into its own output.

DO NOT allow liquids or any foreign object to enter the UPS. DO NOT place beverages or any

other liquid-containing vessels on or near the unit.

In the event of an emergency, press the OFF button and disconnect the power cord from the

AC power supply to properly disable the UPS.

DO NOT attach a power strip or surge suppressor to the UPS.

If the UPS is with metal chassis, for safety purpose, grounding is a must during UPS

installation in order to reduce leakage current below 3.5mA.

Attention hazardous through electric shock. Also with disconnection of this unit from the

mains, hazardous voltage still may be accessible through supply from battery. The battery

supply should be therefore disconnected in the plus and minus pole at the quick connectors of

the battery when maintenance or service work inside the UPS is necessary.

Servicing of batteries should be performed or supervised by personnel knowledgeable of

batteries and the required precautions. Keep unauthorized personnel away from batteries.

When replacing the batteries, use the same number and type of batteries.

Internal battery voltage is 12VDC. Sealed, lead-acid, 6-cell battery.

DO NOT dispose of batteries in a ﬁre. The battery may explode. DO NOT open or mutilate the

battery or batteries. Released electrolyte is harmful to the skin and eyes.

Unplug the UPS prior to cleaning and DO NOT use liquid or spray detergent.

A battery can present a risk of electric shock and high short circuit current. The following

precaution should be observed before replacing batteries:

10.

11.

12.

13.

14.

15.

ii.

iii.

iv.

Remove watches, rings, or other metal objects.

Use tools with insulated handles.

Wear rubber gloves and boots.

Do not lay tools or metal parts on top of batteries.

Disconnect charging source prior to connecting or disconnecting batteries terminal.

1. Important Safety Warning

EN 2

2. Package Contents

Note:

If any of above item is not packed in your package when open, please consult your reseller immediately.

3. Product Overview

Front View Rear View

PRO700SFT/PRO700SFTU

PRO850SFTU

Legend:

LCD display

(Refer to LCD Operation for details)

Power Switch

AC Input

4Output receptacles

5USB port

(only applicable for SFTU model)

English

One (1) unit of Line Interactive UPS

One (1) piece of Quick Start Guide

FOR PC ONLY

Front View Rear View

Legend:

LCD display

(Refer to LCD Operation for details)

Power Switch

AC Input

4Output receptacles

5USB port

6RJ11 Ports:

Modem/Fax Protection

EN 3

PRO1200SFT/PRO1200SFTU

Front View Rear View

Legend:

LCD display

(Refer to LCD Operation for details)

Power Switch

AC Input

RJ45/RJ11 Ports

Output receptacles

USB port

(only applicable for SFTU model)

EN 4

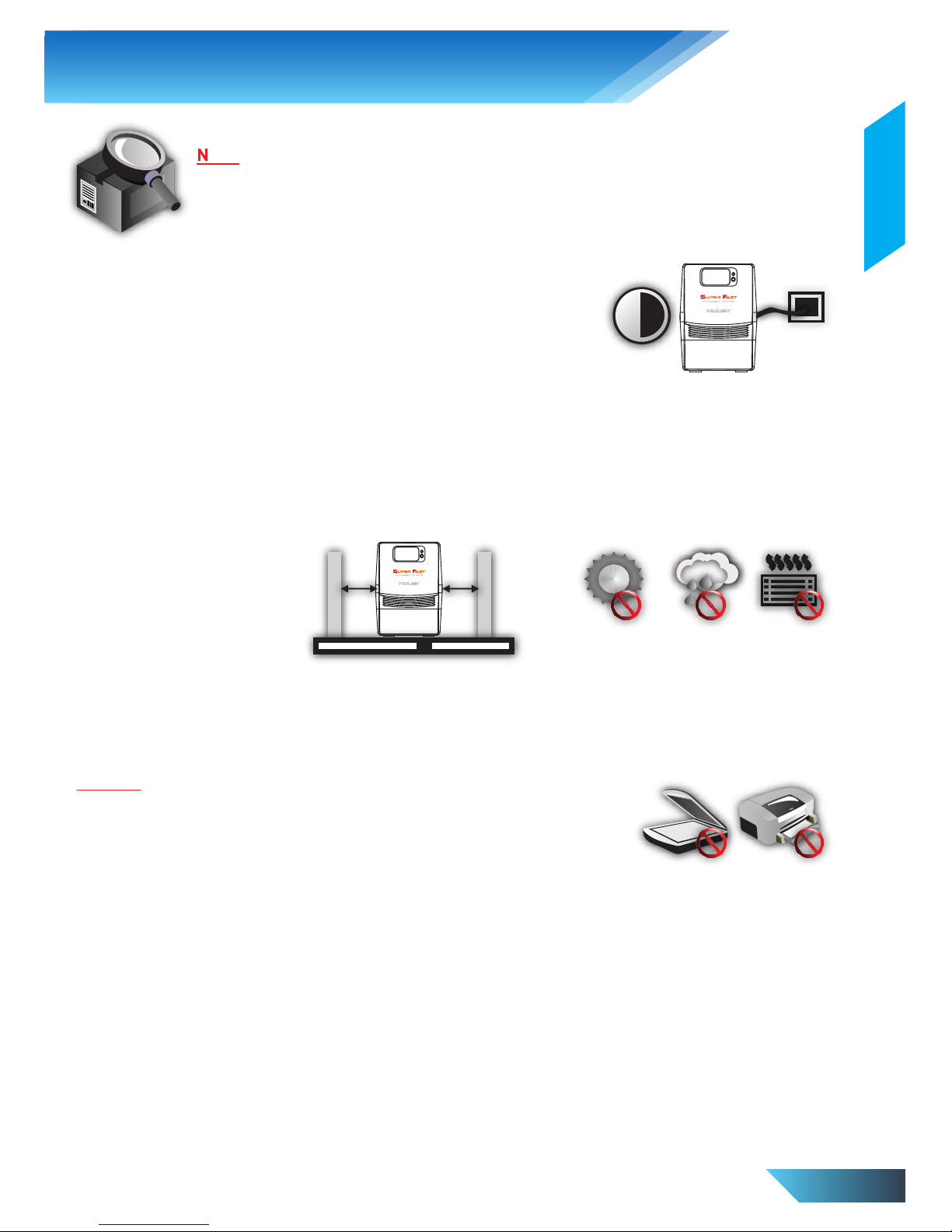

Connect Communication Cable

Connect Communication Cable (only applicable for the models with USB port)

Turn On/Off the Unit

Turn on the UPS unit by pressing the power switch. Turn off the UPS unit by pressing again the

power switch.

20cm 20cm

Placement & Storage Conditions

Install the UPS in a protected area that is free of excessive dust and has adequate air ﬂow. Please

place the UPS away from other units at least 20 cm to avoid interference. DO NOT operate the

UPS where the temperature and humidity is outside the speciﬁc limits. (Please check the specs

for the limitations.)

6 Hours

Connect to Utility and Charging

Plug in the AC input cord to the wall outlet. For the best results,

suggest to charge the battery at least 6 hours before initial use. The

unit charges its battery while connecting to the utility.

Connect the Loads

Plug in the loads to output receptacles on the rear panel of the UPS. Simply turn on the power

switch of UPS unit, and then devices connected to the UPS will be protected by UPS unit.

CAUTION:

NEVER connect a laser printer or scanner to the UPS unit. This may

cause the damage of the unit.

Note:

Before installation, please inspect the unit. Be sure that nothing inside the package

is damaged.

4. Installation & Initial Startup

English

EN 5

Note:

If backlight shuts off, you may activate it by touching the screen.

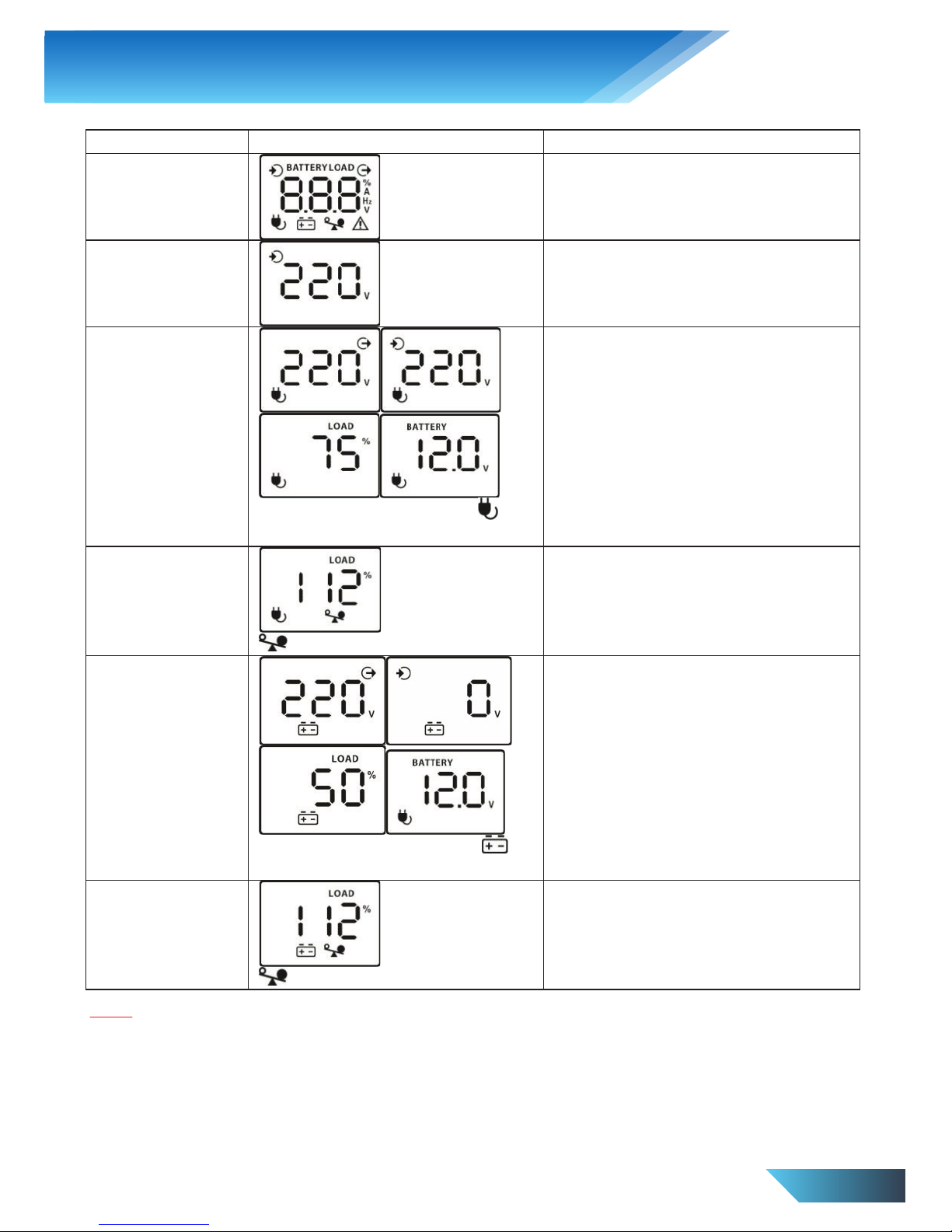

5. LCD Operation

UPS Mode

LCD

Description

UPS Power on

When UPS is powered on, it will

enter this mode for few seconds.

Standby Mode

Only input voltage is displayed even

LCD is touched again.

AC Mode

When AVR is functioning,

icon will ﬂash every second.

LCD information will be displayed in

the following order when LCD is

touched.

1. Output voltage

2. Input voltage

3. Load level

4. Battery voltage

Overload in AC

mode

icon will ﬂash.

When overload occurs, alarm will

beep every 0.5 second.

Battery Mode

When battery level is low,

icon will ﬂash.

Alarm will beep every 10 seconds

and LCD information will be

displayed in the following order

when LCD is touched.

1. Output voltage

2. Input voltage

3. Load level

4. Battery voltage

Overload in

battery mode

icon will ﬂash.

When overload occurs, alarm will

beep every 0.5 second.

EN 6

Use the table below to solve minor problems.

Please follow steps below to download and install monitoring software:

Go to the website http://www.power-software-download.com

Click ViewPower software icon and then choose your required OS to download the software.

Follow the on-screen instructions to install the software.

When your computer restarts, the monitoring software will appear as an orange plug icon

located in the system tray, near the clock.

7. Troubleshooting

6. Software Download & Installation

English

Problem

Possible Cause

Solutions

No words displayed on

the front panel.

Low battery.

Charge the UPS for at least 6 hours.

Battery fault.

Replace the battery with the same

type of battery.

The UPS is not turned on.

Press the power switch again to turn

on the UPS.

Alarm sounds

continuously.

UPS fault.

Please check fault code table for the

details.

When power fails,

back

-up time is

reduced

The UPS is overloaded.

Remove some critical load.

Battery voltage is too low.

Charge the UPS at least 6 hours.

Battery defect. May be due to

high temperature operation

environment,

or improper

operation

of battery.

Replace the battery with the same

type of battery.

The mains supply is

normal

, but the UPS i

operating in

battery

mode.

Power cord is loose.

Reconnect the power cord properly.

If any abnormal situations occur that are not listed above, please call for service immediately.

EN 7

8. Fault Code

Fault condition

LCD

Solutions

Output short circuited

Disconnect short-circuited loads

and restart the UPS again.

Overload fault

Disconnect all output loads and

restart the UPS again.

Overcharge

Call for service immediately.

Bad or severely

discharged battery

Please replace the battery.

High output voltage fault

Call for service immediately.

If fault alarm occurs, please call for service immediately.

EN 8

9. Speciﬁcations

English

Model

PRO700SFT/SFTU

PRO850 SFTU

PRO1200SFT/SFTU

CAPACITY

650 VA

850 VA

1200 VA

INPUT

Voltage

230 VAC

Voltage Range

140~300 VAC

Frequency Range

50/60Hz (Auto sensing)

OUTPUT

Voltage Regulation

+/ -10% (batt mode)

Frequency Range

50 or 60 Hz +/ -1 Hz

Transfer Time

2-8 ms

2-6 ms, 10ms (max)

Waveform

Simulated Sine Wave

BATTERY

Type & Number

12 V/ 8.2 AH x 1

12 V/ 10 AH x 1

12 V/ 8.2 AH x 2

Charging Time

2 - 4 hours recover to 90% capacity

INTERFACE

USB Port

(only applicable for SFTU models)

DISPLAY

LCD Display

Input voltage, output voltage, battery voltage, load level and UPS status

PHYSICAL

Dimension

(DxWxH) mm

287 x 10 0 x 142 350 x 146 x 160

Net Weight (kgs)

4.25

4.9

ENVIRONMENT

Humidity

0-90 % RH @ 0 -40° C (non -condensing)

Noise Level

Less than 40 dB

MANAGEMENT

Via USB connection

(only applicable for

SFTU models)

Supports Windows 2000/2003/XP/Vista/2008/7, Linux, Unix, and MAC

Note:

#1: Only applicable for model PRO700SFTU, PRO850SFTU and PRO1200SFTU.

ID 1

1. Peringatan Penting Keselamatan

PERHATIAN:

Untuk mencegah resiko kebakaran atau sengatan listrik, pasang pada daerah yang suhu dan

kelembabannya terkontrol (Lihat spesiﬁkasi untuk rentang suhu dan kelembaban yang

ditentukan.)

Untuk mengurangi resiko overheating dari UPS, JANGAN menutup ventilasi UPS dan

menempatkan pada daerah yang terkena sinar matahari langsung atau menempatkan dekat

dengan peralatan yang memancarkan panas.

JANGAN menghubungkan perangkat yang tidak berhubungan dengan computer, seperti

peralatan medis, oven microwave, atau vacuum pembersih pada UPS.

JANGAN menyambung input UPS ke output UPS itu sendiri.

JANGAN biarkan cairan atau benda asing masuk kedalam UPS. JANGAN menempatkan

minuman atau cairan dekat dengan unit.

Dalam keadaan darurat, tekan tombol OFF dan cabut kabel power dari sumber listrik untuk

memastikan UPS benar benar dalam kondisi tidak aktif.

JANGAN menambatkan power strip/surge pada UPS.

Jika UPS menggunakan casing dari bahan logam, untuk tujuan keselamatan, grounding

menjadi keharusan disaat menginstal UPS untuk mengurangi kebocoran arus dibawah

3.5mA.

Perhatian tersengat listrik sangat berbahaya. Juga dengan melepaskan unit ini dari sumber

listrik, tegangan berbahaya masih tersimpan pada baterai. Kabel baterai juga harus dilepas

disaat melakukan perawatan atau perbaikan UPS jika diperlukan.

Perbaikan pada baterai harus dilakukan oleh personil yang memiliki pengetahuan tentang

baterai dan tindakan pencegahan jika diperlukan. Jauhkan dari personil yang tidak mengerti.

Ketika mengganti baterai, gunakan nomor dan jenis baterai yang sama.

Tegangan baterai internal adalah 12VDC. Sealed, lead-acid, baterai 6-cell.

JANGAN membuang baterai kedalam api. Baterai dapat meledak. JANGAN membuka atau

merusa baterai. Elektrolit yang terlepas berbahaya bagi kulit dan mata.

Cabut UPS sebelum melakukan pembersihan dan JANGAN gunakan deterjen cair atau spray.

Baterai dapat menimbulkan resiko sengatan listrik dan hubungan singkat. Perhatikan

beberapa pencegahan berikut sebelum mengganti baterai:

10.

11.

12.

13.

14.

15.

ii.

iii.

iv.

Lepaskan jam tangan, cincin, atau benda logam lainnya.

Gunakan alat yang terisolasi.

Pakailah sarung tangan dan sepatu bot dari bahan karet.

Jangan meletakan peralatan atau logam diatas baterai.

Cabut kabel yang terhubung langsung ke sumber listrik sebelum menyambung/mencabut

kabel terminal pada baterai.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unión Postal Universal de PROLiNK

PROLiNK

PROLiNK PRO850SU Manual de usuario

PROLiNK

PROLiNK Master III Series Manual de usuario

PROLiNK

PROLiNK EnerHome PRO PRO700 Manual de usuario

PROLiNK

PROLiNK MASTER II Series Manual de usuario

PROLiNK

PROLiNK PRO850VU Manual de usuario

PROLiNK

PROLiNK MASTER II Series Manual de usuario

PROLiNK

PROLiNK PRO800-QS Manual de usuario

PROLiNK

PROLiNK PRO700C Manual de usuario

PROLiNK

PROLiNK Giant PRO600-S/L Manual de usuario

PROLiNK

PROLiNK MASTER II Series Manual de usuario

PROLiNK

PROLiNK PRO Series Manual de usuario

PROLiNK

PROLiNK PWR9000 Series Manual de usuario

PROLiNK

PROLiNK PROFESSIONAL I Series Manual de usuario

PROLiNK

PROLiNK MASTER II Series Manual de usuario

PROLiNK

PROLiNK PRO850SFCU Manual de usuario

PROLiNK

PROLiNK Professional II+ Series Manual de usuario

PROLiNK

PROLiNK PRO1201SFC Manual de usuario

PROLiNK

PROLiNK PWR7000 Series Manual de usuario

PROLiNK

PROLiNK INSPIRE 703SFC Manual de usuario

PROLiNK

PROLiNK PRO700V Manual de usuario

PROLiNK

PROLiNK PRO1200SV Manual de usuario

PROLiNK

PROLiNK PRO2000LD Manual de usuario

PROLiNK

PROLiNK PRO700SFC Manual de usuario

PROLiNK

PROLiNK MASTER II Series Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
