Projectiondesign F80 Manual de usuario

professional projector series

F80

WUXGA or 1080p resolution

3-chip DLP® technology

up to 8500 ANSI lumens

Advanced Color Optical Processing

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

www.projectiondesign.com

COMPATIBLE

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

F80 series

The projectiondesign F80 series of three-chip DLP® projectors is

our top professional model, and is made for large screen imaging

and the ultimate image quality for in demanding users.

Markets and applications

With its brightness, numerous conﬁguration, performance, and warranty options, the F80 series is made for strict

requirements. It is made for large screen imaging in auditoriums, staging, or other applications that require the

ultimate in detail and reliability, such as multi channel imaging, or visualisation centres.

www.projectiondesign.com

Key features

The projectiondesign professional series of projectors

include high resolution, high performance products

made and conceived especially for graphically

challenging appllications such as scientiﬁc

visualisation, motion simulation, medical imaging, and

public displays.

As our utmost concern is image quality and operational

reliability, all professional series projectors are available

with 24/7 operation warranties, and a wide range

of conﬁguration options to ensure the best possible

application ﬁt and customer satisfaction.

series

RealColor colour management provides completely unique colour management accuracy

Full 24 / 7 warranty covers any operating environment and installation requirement

DYnamicBlack™ gives totally unique dynamic range for a three-chip projector

ACOP optical colour processing enables user selectable color gamuts

3-chip DLP® technology for outstanding colours and dynamics

Choice of WUXGA and 1080p resolution options.

Professional

projector

www.projectiondesign.com

DLP technology

– chosen for reliability

The DLP technology from Texas Instruments® is

chosen for its unmatched reliability performance, and

its unique coupling with long lasting image quality.

With a widely recognized and proven reliability record,

and high brightness and contrast, all whilst displaying

utterly natural colours, it is the obvious choice for

heavy duty applications, or applications that are that

run continuously, or are mission critical. Independent

testing has proven DLP technology to be the most

reliable of all microdisplays; not degrading when

subjected to UV light, inherent in all projectors. Unlike

competing technologies, showing severe image

quality degradation after only a few thousand hours,

DLP technology remains constant over hundreds of

thousands of hours.

overview

Three chip DLP

Three chip DLP technology is renowned for producing

formidable on-screen images, and combines the DLP

reliability and accuracy for even better colours . With

a wealth of brightness from the 3-chip engine’s high

efﬁciency, and many options for accurately adjusting

colour and brightness performance, the F80 series can be

tailored to suit a a vast number of of applications, focusing

on large screen video centric displays and events.

WUXGA or 1080p resolution

The projectiondesign F80 can be conﬁgured with either

WUXGA or 1080p resolution for computer or video centric

applications. In large auditoriums and with large screens,

where computer imaging with maximum detail accuracy

is the primary concern, 1920x1200 pixels (WUXGA)

is the obvious choice, and fully compatible with the

legacy 1600x1200 format. Furthermore, for video centric

applications, the 1920x1080 (1080p) pixel resolution

perfectly ﬁts high deﬁntion video and data. Additionally,

for editing and video centric applications where a menu

line, or additional inforamtion is needed on screen

simultaneously with the unaltered 1080p video image,

WUXGA resolution gives just that.

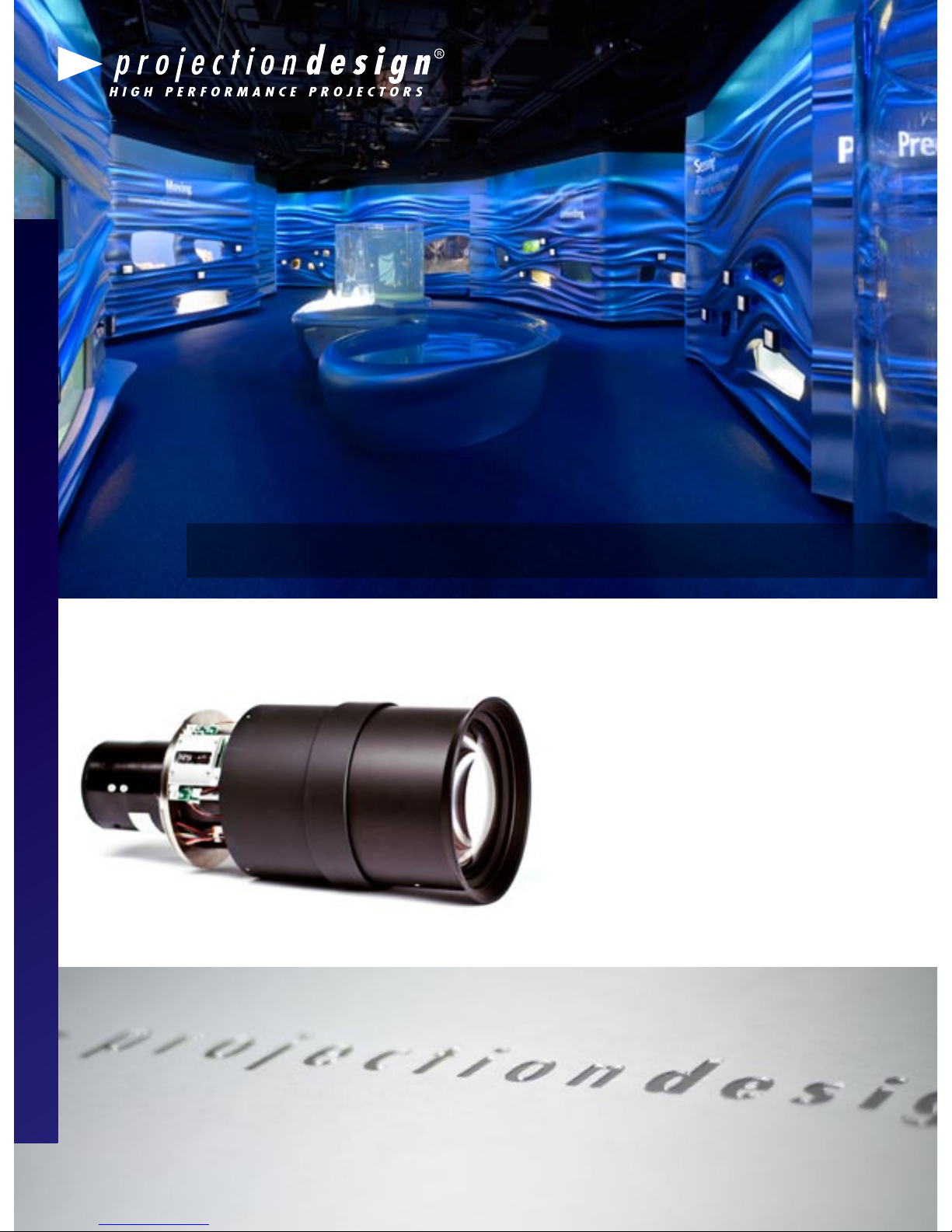

California Academy of Sciences, California, USA.

The California Academy of Sciences in San Fransisco, USA, uses more than 30 projectiondesign projectors in various conﬁgurations.

Precision projection lenses

The F80 series features a wide range of custom designed, precision

ground projection lenses for the best quality imaging, and the most

secure and reliable setup. Key features include inﬁntely adjustable IRIS

and aperture settings, and motorized zoom, focus and lens shift with

memory for use in multiple settings and installations with programmed

calibration and screen setups. Most importantly, every single lens uses

Low Dispersion (LD) aspherical glass and aspherical lens elements for

high quality focusing and sharpness, as welll as high optical interﬁeld

contrast, resulting in very high image quality. Unlike many competing

projector ranges, the lenses are designed and made with high resolution

in mind, not taking standard, off the shelf lenses for use in higher

performance applications. The range of lenses span from an an ultra

wide angle 0.74 : 1, to a long tele zoom at 6.24 : 1, and comprises ﬁve

lenses.

A wide range of lenses, from ultra wide 0.74 : 1 to 6.24 : 1 gives unique ﬂexibility in

installations and placement of product.

applications and features

RealColor colour calibration

Each F80 projector is uniquely characterised and calibrated during its manufacture. Unique optical performance values

are recorded and matched to the electronics processing in order to secure perfect on-site calibration. With RealColor, it is

possible to match any number of projectors, and ensure they all project the same primaries and grey scale, without going

through a very complicated process.

What RealColor gives

RealColor provides a unique and quick way to calibrate and set up perfect images for any number of projectors. RealColor

can alter imagery by changing simple characteristics such as the colour temperature of the image – perfectly along the

black body curve, or very complex things such as each colour’s relative saturation and x/y coordiantes. In fact, it is perfect

to within 0.002 along all axes of measurement. RealColor works by mathematically calculating each colour independently.

Advanced Color Optical Processing

The F80 series projectors feature new and revolutionary projectiondesign

optical color processing technology. By combining ﬁxed and motorised

optical ﬁlters for each colour channel, the projector can be optically calibrated

with near inﬁnite accuracy. It also means that by the ﬂick of a switch, you

can change the projected colour gamut from standard computer graphics

optimized, to comply with for instance REC709 (High Deﬁnition programming)

All this without any loss of bit depth, as the compensation is purely optical, and

not electronic. Unlike competing projectors, where colour calibration is based

upon a simple yellow notch ﬁlter to change the green point of the picture, or

simply by changing electronic values, ACOP is vastly superior in all aspects.

0.9

0.8

0.5

0.3

0.2

0.1

0.6

0.7

0.90.80.50.40.30.20.1 0.6 0.7

0.4

colour management and performance

active

stereo

ACOP

Colour matching

Like all other projectiondesign professional projectors, the F80 series features numerous possibilities and alternatives for matching of several projectors, so that they all appear

and perform similarly. Actual colour matching is realized through several process steps, including that of hand selecting units that are very closely performing optically. Additionally,

colour matching is realized using extensive features of the RealColor colour management suite, so that every single projector performs absolutely similarly.

www.projectiondesign.com

DynamicBlack™ for outstanding dynamics

The F80 series features unmatched dynamics amongst large venue

projectors. The unique DynamicBlack™ functionality can automatically

adapt to the input histogram of the signal, and ajdust so that image output

contrast is maximised at any one point in time. This creates much more

dynamic imaging, and a more involving experience. If the DynamicBlack™

functionality is not desired, the user can manually adjust IRIS and settings to

match a constant, desired output level, with constrast up to 15 000 : 1, and

brightness levels to match that of the desired screen size requirement.

DynamicBlack™ automatically adjusts output to the input signal, and maximises available contrast in the

image. The result is unmatched dynamic performance.

active

stereo

ACOP

revolutionary

colour

performance

Original lamp with projectiondesign optimised ﬁxture mechanics.

Low Total Cost of Ownership

Thanks to its complex and robust build and

construction, the F80 series requires very little

maintenance and in-life servicing. There are no

user serviceable parts inside, and it does not

have any ﬁlters or other parts that need periodical

replacement. That means it does not require a costly

and high frequency maintenance contract. Similarly,

and compared to similarly performing Xenon high

power lamps, lamp replacement cost is low*, and

typical lamp life is long. In total, a very cost effective

projector over time, resulting in a very low cost of

ownership.

* When replacing lamps, it is adviced to use only original

parts and accessories, as non original aftermarket lamps

may reduce performance, damage the projector, and void

warranties.

Low Frequency Maintenace programme

Our Low Frequency Maintenance programme can be set to automatically notify of required service and maintenace.

When run continuously, moving parts such as fans and colour wheels require periodic replacement in order to secure

and enable heavy duty, and continuous operation. With the F80, the shortest duty cycle of any one component – run

in full power mode, is as long as 8000 hours, meaning a full year’s operation in 24/7 without any maintenance. Add hot

svwappable lamps to that, and you have a projector simply does not need to be turned off.

Designed for full 24/7 operation

All projectiondesign professional projectors feature

full 24/7 operation warranties. That means they are

designed to operate continuously. There is no ﬁne

print. Designing for 24/7 operation requires a lot of

attention to detail. Some technologies are better

than others when it comes to withstand the abuse of

time. We use only components that have predictable

behaviours, for instance fans, colour wheel motors,

and electronic components that are designed by their

respective manufacturers to do the same - withstand

time. There are no off-the-shelf components. That is

why we also closely monitor the creation of every detail,

apply dedicated thermal management, and use speciﬁc

materials in all parts of the process.

applications and features

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

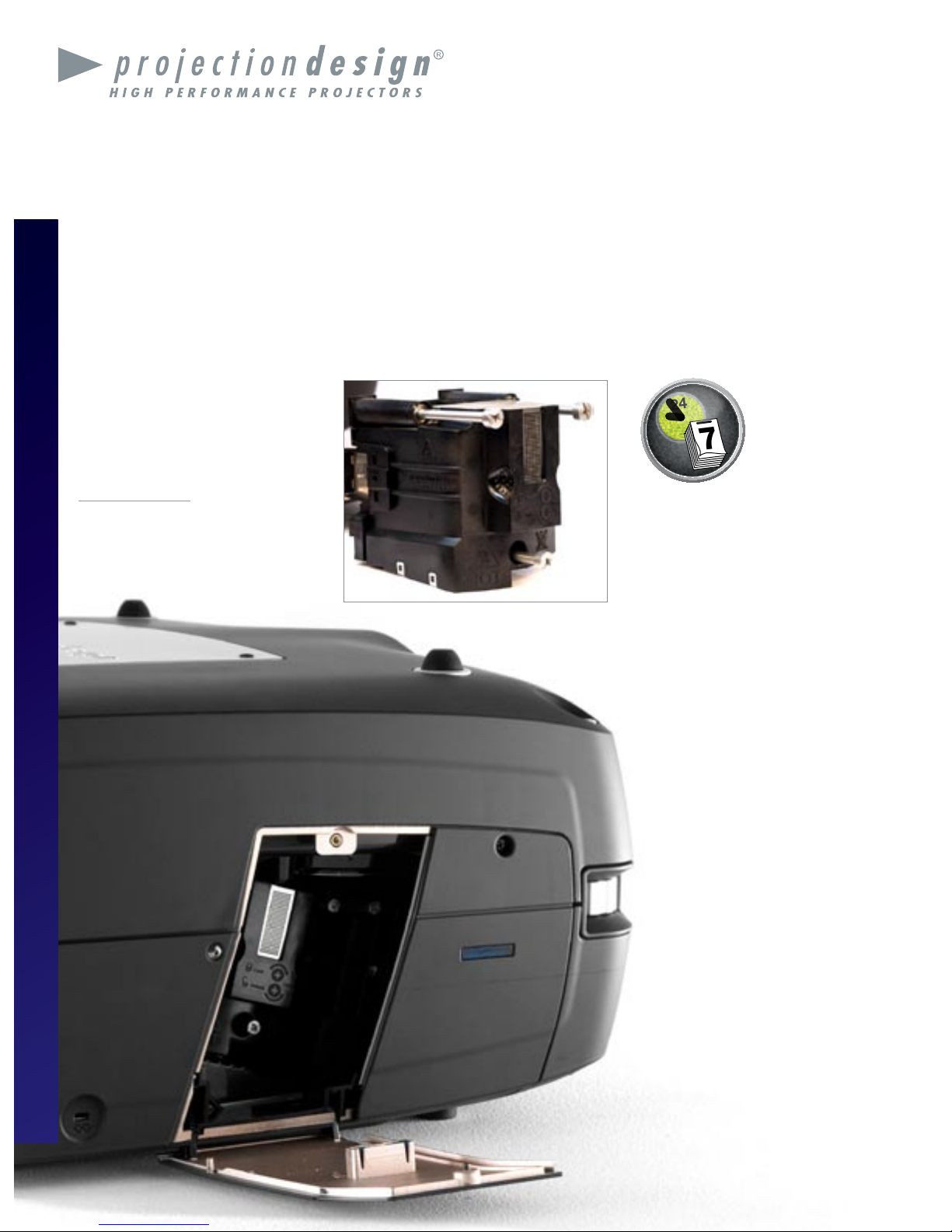

Changing lamps is easily done from the side of the projector.

active

stereo

ACOP

www.projectiondesign.com

projectiondesign in-house EMC lab.

In-house acoustics lab.

Every single F32 projector is rigorously tested, and

characterised in-house. We keep test records and

performance statistics for every single unit. Also, as

we put our pride into making great projectors, they are

not passed down an automated production line, but

enjoy the careful management of people at all stages of

their manufacture. That also means we are personally

responsible for all of them. In addition, every single

projector is made to speciﬁc order. That means that the

conﬁguration ordered is the conﬁguration built, and only

existing in that particular installation.

Immaculate

process

management

In house development and

process management

Every single part of the F80 series projectors is

developed, rigorously tested, and veriﬁed in-house

at projectiondesign. With more than 800 models and

variations of projectors in regular manufacture, test,

research and veriﬁcation facilities include everything from

acoustical analysis labs, to a full featured FCC certiﬁed

EMC lab, environmental labs for lifetime and operational

testing, such as temperature variations and testing of

vibration resistance, as well as our own optics lab and

various test and demo .

www.projectiondesign.com

RoHS compliant PCB assembly line.

F80 series undergoing vibration testing.

projectiondesign warehouse is completely automatic.

Extensive input compatibility

Two discrete digital inputs, HDMI and DVI-D enables simple and source switching setups in smaller installations. Both inputs feature HDCP - High bandwidth Digital

Content Protection. The F80 also features legacy formats such as RGBHV over VGA, and a 5-BNC input, in addtion to standard video formats. Importantly, the F80

features a projectiondesign unique interface, XPort™, for connection to third party modules, as well as standard modules provided by projectiondesign. Currently, an

HD-SDI module is available for direct connection to such sources and formats.

ProNet Asset Management

Adding to the serviceability and in-life monitoring features, the projectiondesign ProNet.Manager asset management suite

can be set up to monitor and report on an unlimted number of projectors in a dedicated or corporate network, in a single

site, or in multiple sites. ProNet monitors every single aspect of the projector, from individual lamp and fan statuses, to

operating hours, usage statistics, and any other related information.

ProNet.enterprise

ProNet.site 1

ProNet.site n

ProNet.site 2

ftp

service

www.projectiondesign.com

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

Black------

Grey------

White------

Silver-------

techncal speciﬁcations

Technical speciﬁcations

projector DLP® digital projector

display technology three chip DMD™ (Digital Micromirror Device™) connectivity computer 1x HDMI (1.3)

concept sealed, all-glass optical design with lens shift 1x DVI-D

available resolutions 1920 x 1200 1920 x 1080 1x 15-pin DSUB

brightness standard 8500 8000 1x BNC x5

REC709 5500 5000 video 1x HDMI (v1.3) (HDCP)

1x DVI-D (HDCP)

contrast ratio up to 15 000 : 1 (on/off) (automatically adaptive) 1x RCA x3 YUV

colours 30-bit 1x 4-pin mini DIN Y/C

colour management accuracy ± 0.002 on x, y, z axis 1x RCA composite video

image processing latency ~ 22 ms on graphics port control and communication 1x RJ45 TCP/IP network port

input signal compatibility computer up to 1920 x 1200 pixels 2x RS232 9-pin DSUB (in / out)

RGBHV, RGBS, RGsB 1x USB – mouse control & ﬁrmware upgrade

horizontal scan frequency 15 - 150 kHz 2x 12V (60mA) triggers (screen drop / aspect)

vertical scan frequency 48 - 190 Hz 1x RC repeater, 3.5mm mini jack

video HDTV (1080i, 720p, 576i/p, 480i/p) other 2x conﬁgurable XPort™ (front- / back end)

NTSC 3.56/4.43, PAL BGHI, M, N, SECAM supplied accessories cables 4m power cord (country dependant)

bandwidth 205 MHz analog RGB other backlit IR remote control

165 MHz digital RGB (DVI or HDMI) product documentation

optics available lenses ﬁxed focal ultra wide angle EN22 (503-0172-00) general dimensions (dwh) 505 x 604 x 250 mm (ex. lens)

ﬁxed focal wide angle EN23 (503-0173-00) weight about 24 kg (net, ex. lens)

standard zoom EN21 (503-0136-00) about 38 kg (shipping)

short tele zoom EN24 (503-0174-00) environmental RoHS, WEEE

short tele zoom EN26 (503-0176-00) security 4-digit PIN code, Kensington lock

focusing distance 0.7 - 20m power requirements 100 – 240 VAC, 50/60 Hz, +/- 10%

optical lens shift vertical and horizontal <1050W power consumption

EN22 on axis only BTU/hr <2900

lens iris control F/2.1 – 6.5 for all lenses, continuously adjustable conformances CE, CSA “C/US”, FCC Class A, CCC

DynamicBlack™user adjustable operating temperature 10 – 40ºC / 32 – 104ºF, 0 – 1500 m

shutter mechanical 0 – 35ºC / 32 – 95ºF, 1500 – 3000 m

ACOP colour ﬁlters standard RGB operating and storage 20 – 90% RH

REC 709 available colours soft touch rubber black matte

warranties standard 2 years, full 24/7 operation

lamp 2 x 330W UHP™ 500 hours or 90 days on lamp

lamp life 2000 hrs (max typical) (5000 hrs in eco relay mode) up to 5 years total extended warranty available.

replacement lamp part no. 400-0700-00 conditions apply.

Tabla de contenidos

Otros manuales de Proyector de Projectiondesign

Projectiondesign

Projectiondesign Action three Manual de usuario

Projectiondesign

Projectiondesign F35 Manual de usuario

Projectiondesign

Projectiondesign one mk II Manual de usuario

Projectiondesign

Projectiondesign F1 sxga Manual de usuario

Projectiondesign

Projectiondesign F1 sxga Manual de usuario

Projectiondesign

Projectiondesign FS33 IR Manual de usuario

Projectiondesign

Projectiondesign F1+ SXGA+ Manual de usuario

Projectiondesign

Projectiondesign F85 Manual de usuario

Projectiondesign

Projectiondesign three 1080 Manual de usuario

Projectiondesign

Projectiondesign evo XGA Manual de usuario

Projectiondesign

Projectiondesign FS35 WQXGA Instrucciones de instalación y funcionamiento

Projectiondesign

Projectiondesign F35 Manual de usuario

Projectiondesign

Projectiondesign F82 series Manual de usuario

Projectiondesign

Projectiondesign evo22SX+ Manual de usuario

Projectiondesign

Projectiondesign WUXGA 1080 Manual de usuario

Projectiondesign

Projectiondesign avielo spectra Manual de usuario

Projectiondesign

Projectiondesign F32 Manual de usuario

Projectiondesign

Projectiondesign Action three 1080 Manual de usuario

Projectiondesign

Projectiondesign cineo3+ 1080 Manual de usuario

Projectiondesign

Projectiondesign F32 SX+ Manual de usuario

Projectiondesign

Projectiondesign F3 xga Manual

Projectiondesign

Projectiondesign FR12 Manual de usuario

Projectiondesign

Projectiondesign Action three 1080 Manual de usuario

Projectiondesign

Projectiondesign Action one mk III Manual

Manuales populares de Proyector de otras marcas

iEmmet

iEmmet MP-312 Manual de usuario

Epson

Epson VS400 Manual de usuario

Sony

Sony VPL-HS10 Marketing Specifications & Features Manual de usuario

Sony

Sony VPL-HW65ES Manual de servicio

Toshiba

Toshiba TLP-791U Manual de usuario

Philips

Philips LC1341 Guía de referencia

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manual de usuario

NEC

NEC NP600S EDU Manual de usuario

BenQ

BenQ SH753P Manual de usuario

Eiki

Eiki EK-623U series Manual de usuario

Epson

Epson PowerLite Pro Cinema 6020UB Manual de usuario

Epson

Epson PowerLite Home Cinema 705HD Manual de usuario

Christie

Christie LHD700 Manual de usuario

Navitar

Navitar FX Manual de usuario

InFocus

InFocus LitePro 560 Manual de usuario

Sony

Sony SRX-R815P Manual de usuario

Vivitar

Vivitar DP1500 X Manual de usuario

Acer

Acer C20 Series Manual de usuario
