H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 3 -

TABLE OF CONTENTS

APPLICATION............................................................................................................................................................. 4

GENERAL FEATURES ............................................................................................................................................... 4

FUNCTIONING ............................................................................................................................................................ 5

DECLARATION OF CONFORMITY............................................................................................................................ 5

MECHANICAL INSTALLATION.................................................................................................................................. 5

TEST RUN ................................................................................................................................................................... 6

Cables and fuses.......................................................................................................................................................... 7

Main and Control Circuit Wiring ................................................................................................................................... 8

Connecting the power line ................................................................................................................................. 8

Connecting the motor......................................................................................................................................... 8

Connecting the protective earth......................................................................................................................... 8

Connecting the control circuitry.......................................................................................................................... 8

PUTTING IN OPERATON THE FREQUENCY CONVERTER FOR THE FIRST TIME.............................................. 9

ASSIGNMENT AND CONNECTION OF THE V3D TERMINAL BLOCK ................................................................. 10

Jumper settings.......................................................................................................................................................... 11

Connections of the incremental rotation speed encoder (IRE) and thermal protection of the motor......................... 11

Connecting the brake resistor .................................................................................................................................... 12

Connecting a two-wire (4÷20mA) remote transmitter ................................................................................................ 12

ASSIGNMENT AND CONNECTION OF THE VLD / VHD TERMINAL BLOCK ...................................................... 13

Jumper settings.......................................................................................................................................................... 14

High voltage terminal block ....................................................................................................................................... 14

Connections of the incremental rotation speed encoder (IRE) and thermal protection of the motor......................... 15

Connecting the brake resistor .................................................................................................................................... 15

Connecting a two-wire (4÷20 mA) remote transmitter ............................................................................................... 16

±10 V analogue input ................................................................................................................................................. 16

OPERATING THE CONVERTER.............................................................................................................................. 17

Programming terminal................................................................................................................................................ 17

Operating from the computer ..................................................................................................................................... 17

Operating terminal...................................................................................................................................................... 18

Controlling terminal .................................................................................................................................................... 18

Functions of the push buttons (operating and controlling terminal)................................................................. 18

PROGRAMMING (operating and controlling terminal)......................................................................................... 19

Programming procedure ............................................................................................................................................ 19

Quick menu ................................................................................................................................................................ 19

DRIVING TECHNOLOGY SUPPLEMENTS.............................................................................................................. 19

4x16 character display ............................................................................................................................................... 19

Potentiometer............................................................................................................................................................. 20

Selection of the brake resistors at dynamic braking .................................................................................................. 20

MAINTENANCE......................................................................................................................................................... 20

GUARANTEE AND REPAIR..................................................................................................................................... 20

FREQUENCY CONVERTER SELECTION GUIDE................................................................................................... 21

PERIPHERAL EQUIPMENT SELECTION GUIDE ................................................................................................... 22

H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 4 -

Dear Customer!

Thank you for having decided in favour of PROCON Ltd’s frequency converter.

This Instruction Manual contains all information necessary for starting up and operating the frequency

converter. Read this manual before installing the frequency converter.

Follow all safety measures, warnings and instructions described in this manual.

The manufacturer bears no responsibility for any personal injury and/or material damage arising from not

taking into consideration the warnings in this manual.

At receiving the frequency converter, please check up followings:

▪Make sure that the frequency converter is not damaged. If you detect any damage of the frequency

converter contact the manufacturer.

▪Check the data plate of the device to make sure that you received the ordered model. If not, please contact

the manufacturer

Following graphic symbols will be used in this manual:

This symbol is used for those instructions whose negligence could cause electric shock, severe injury or

even death.

This symbol is used for those instructions whose negligence could cause fire and injury.

This symbol is used for those instructions whose negligence could cause personal injury, damage in the

equipment and property damage.

Important information

APPLICATION

The V3D, VLD and VHD series frequency converters are digitally programmable appliances.

They are suitable for the near loss-free regulation of the rotation speed of any type of three-phase asynchronous

motors with squirrel-cage rotor from 0.55 kW to 250 kW power ratings, at 400 V.

The converters comply with the requirements of the standards relating to control devices for use in the electric

industry.

GENERAL FEATURES

Line voltage

3 x 380 ÷ 440 V AC ± 10 %

Line frequency

50 ÷ 60 Hz (sine wave)

Motor voltage

3 x 0 ÷ actual value of the input voltage (PWM modulated sine wave)

Motor frequency

0 ÷ 1000 Hz (free programmable)

Protection grade

IP20 (optionally IP54)

Line filter

Complies with the EN 55011 B1 standard (equipped with built-in RF filter)

Ambient temperature

0°C ÷ +40 °C

Relative humidity

maximum 90 % (non-condensing)

Storage temperature

-20 °C ÷ +60 °C

Requirements for the

place of the installation

Install the drive in an area free from:

▪oil, oil mist, dust, metal shavings, water or other foreign materials,

▪combustible materials (e.g., wood),

▪harmful gases and liquids,

▪excessive vibration,

▪chlorides,

▪direct sunlight

Orientation

The frequency converter must always be mounted in vertical position, with provision

for the ventilation requirements.

H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 5 -

FUNCTIONING

The alternating voltage from the power line is rectified by a line diode bridge, then electrolytic capacitors smooth

out the pulsating voltage. The intelligent IGBT end stage, driven with sinusoidal modulated pulses, delivers to the

motor a voltage of variable amplitude and frequency. Following the description of the programming, until the motor

reaches its nominal revolution the voltage vs. frequency relation can optionally be changed, according to the

character of the load. (Linear, quadratically modified or knee point characteristics can be programmed.)

At low frequencies the ohmic resistance of the motor winding can be compensated (U boost).

Below the nominal revolution the frequency converter is capable of delivering nominal torque; beyond it the

converter delivers constant power.

The converter can be equipped with an optional braking resistor.

DECLARATION OF CONFORMITY

The frequency converters have been manufactured with considering following directives:

Frequency converters

V3D, VLD, VHD

Machinery directive

2006/42/EK

Low voltage directive

2014/35/EU

Electromagnetic Compatibility (EMC) directive

2014/30/EU

Applied standards

EN 13849-1:2008

EN 61800-5-2:2016

EN 60034-1:2017

EN 61800-5-1:2007

EN 60664-1:2008

EN 61800-3:2017

8CAUTION

These products serve for being mounted into machineries.

These products are allowed to be put into service only after the machinery comprising the product was found to

comply with the above directives about machineries.

According to the directions on electromagnetic compatibility (EMC) the listed products are not considered as

products which can be operated alone. The electromagnetic compatibility can only be evaluated after the product

was incorporated in the whole system. Certification of this evaluation refers not to the stand-alone product but to

the complete machinery.

MECHANICAL INSTALLATION

The appliance belongs to protection class IP-20 and is allowed to be operated as a built-in unit only.

Should the appliance need increased protection due to the conditions (water, dust, aggressive materials), use at

least protection IP-54. If the appliance is installed by the user, the issues cooling and arranging the cables need to

be consulted with the manufacturer.

8CAUTION

The manufacturer takes no responsibility for damages caused by incorrect installation.

200

FREQUENCY

CONVERTER

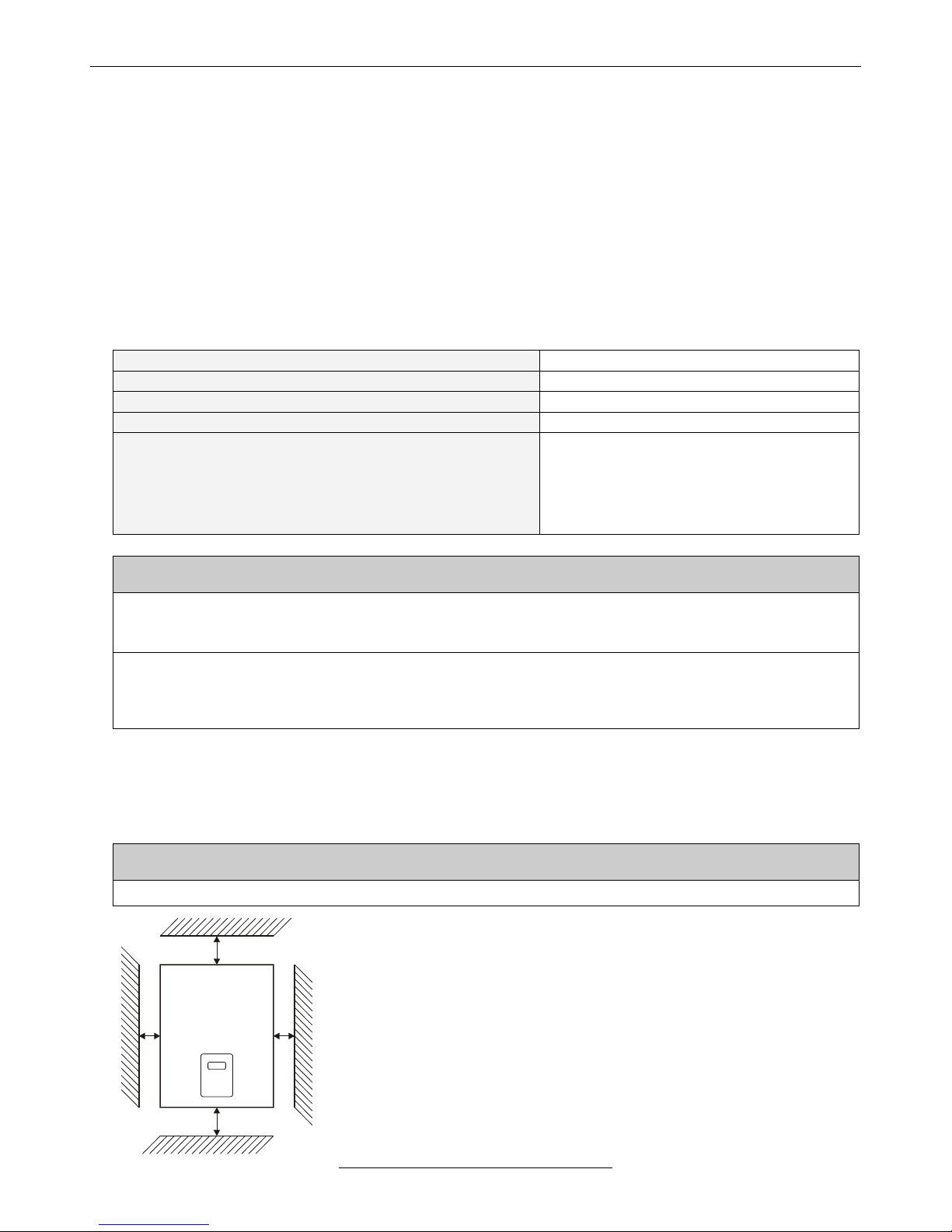

▪Beside the side walls at least 50mm, below and above the unit at least 200

mm free space must be provided.

▪If the device is built in closed control cabinet, overheating of the inside room

must be prevented with proper ventilation!

▪The slots for fresh air and used air must be held free to assure proper

ventilation. The filters of the slots must be cleaned regularly!

▪At IP54 versions the cooling is facilitated with heatsinks of increased size

that must be placed outside the cabinet, with maintaining the IP54

protection!

▪On demand the manufacturer builds the equipment in a cabinet of proper

size.

▪At types with forced ventilation the inlet openings should be on the bottom

side, the ventilated outlets on the upper side (possible diagonally)

H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 6 -

TEST RUN

In the course of the installation and test run the manufacturer’s attached wiring instructions and the instructions of

the effective standards must be complied with.

8CAUTION

Test run, maintenance, repair and component replacement in the frequency converter are allowed to be

performed by authorized specialist only!

6WARNING

ELECTRICAL SHOCK HAZARD

Negligence of these warnings could cause severe injury or even death!

Prior to the total discharge of the capacitors the terminal blocks of the motor must not be touched!

Prior to wiring the connectors of the device switch off the whole power supply of the device! The internal

capacitor remains in charged state even after switching off the power supply. Installation is allowed to be started

if the power LED has ceased lighting.

When taking the equipment from could environment to the place of installation vapour may condense.

Prior to installation wait until the temperature of the equipment equalizes with that of the environment and the

device becomes totally dry.

The appliance must not be put into operation in humid environment.

The circuitries of the frequency converter must not be modified or changed.

In switched-on state the covering of the device must not be removed and any part of it must not be

touched!

The appliance must be earthed according to the standards.

8CAUTION

DANGER OF UNEXPECTED STARTING

Negligence of this warning could cause injury and property damage!

On switching the line power to the frequency converter, the device depending on its setting may

unexpectedly start the motor.

Prior to powering the frequency converter make sure that nobody stays near to the motor and the machine and

all coverings, mechanical connections, wedges, bolts and machine load are properly fastened!

7WARNING

FIRE HAZARD

Negligence of this warning could cause fire and injury!

The power line cable must not be connected to the output motor connections of the frequency converter!

Connecting the power line to the output connections could cause severe damage in the device.

Tighten all terminal screws to the specified tightening torque.

Loose electric connections may overheat.

Terminal Size

Tightening Torque [Nm]

0.8 ÷ 1.0

1.2 ÷ 1.5

2.0 ÷ 2.5

4.0 ÷ 5.0

9.1 ÷ 11.0

H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 7 -

8CAUTION

EQUIPMENT HAZARD

Negligence of this warning could cause total damage to the device.

The device is not waterproof!

Prevent the interior of the appliance from the penetration of water!

Take care that no external object (e.g. small metal part, metal powder) or liquid can get inside the device.

Avoid short circuit or ground fault at the output terminal blocks.

It is forbidden to connect any capacitor to the output. Regarding other filters, please ask the

manufacturer’s opinion.

Avoid using contactor at the output because the frequency converter may stop working due to switch-on

overcurrent.

If for other reasons using a contactor is necessary (e.g. switch-over between motors), the switchover of the

output of the frequency converter during operation must be prevented by latching.

Use the shortest possible earthing conductor and avoid earth loops.

Earthing conductors common with machines of higher power (e.g. welding machine, machine tool) must

not be used.

For wiring the control unit use shielded cable.

Use shielded twisted wires, and connect the shielding to the reference point of the inputs.

Observe proper electrostatic discharge procedures (ESD) when handling the frequency converter.

Failure to comply may result in ESD damage to the drive circuitry.

Do not operate the device with any visible damage on it or if its any part is missing.

Do not modify the circuitry of the frequency converter to avoid damages and expiring of the warranty.

Check all the wiring to ensure that all connections are correct after installing the frequency converter

and connecting other devices.

•Cables and fuses

At connecting the frequency converters use mains fuses and wires with cross-section as given in the table.

TYPE

Minimum

fuse value

(F1, F2, F3)

[A]

Recomm.

cable

[mm2]

TYPE

Minimum

fuse value

(F1, F2, F3)

[A]

Recomm.

cable

[mm2]

TYPE

Minimum

fuse value

(F1, F2, F3)

[A]

Recomm.

cable

[mm2]

V3D 0.55

6.3

0.75 ÷ 1

VLD 5.5

2.5 ÷ 4

VHD 30

16 ÷ 25

V3D 0.75

6.3

1 ÷ 1.5

VLD 7.5

4 ÷ 6

VHD 37

16 ÷ 25

V3D 1.1

6.3

1 ÷ 1.5

VLD 11

4 ÷ 6

VHD 45

100

25 ÷ 35

V3D 1.5

1.5 ÷ 2.5

VLD 15

6 ÷ 10

VHD 55

125

25 ÷ 35

V3D 2.2

1.5 ÷ 2.5

VLD 22

10 ÷ 16

VHD 75

160

35 ÷ 50

V3D 3

2.5 ÷ 4

VHD 90

200

50 ÷ 70

V3D 4

2.5 ÷ 4

VHD 110

250

70 ÷ 95

VHD 132

315

95 ÷ 120

VHD 160

355

120 ÷ 150

VHD 200

400

150 ÷ 185

VHD 250

500

240 ÷ 300

H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 8 -

•Main and Control Circuit Wiring

•Connecting the power line

At connecting the power line comply with following safety measures:

▪Use only circuit breakers that have been designed specifically for frequency converters.

▪If an input switch is used, it is allowed to be used not more than once in every 30 minutes.

▪Use an AC reactor on the input side of the drive:

•to suppress harmonic current,

•to improve the power factor on the power supply side,

•when using an advancing capacitor switch.

•Connecting the motor

At connecting the motor comply with following safety measures:

▪The output of the frequency converter has to be loaded with a three-phase motor. In case of any other load

consult with the manufacturer!

▪Never connect a power source to the drives output.

▪Never short or ground the output terminals.

▪Do not use phase correction capacitors.

▪If using a contactor between the drive and motor, it should never be operated when the drive is outputting a

voltage. Operating while there is voltage output can cause large peak currents, thus tripping the over current

detection or damage the drive.

▪For connecting the output it is recommended to use shielded cable with earthing at both ends.

▪With an output cable of longer than 30 meters, an output choke coil has to be used. If the cable length

exceeds 200 meters, the output choke coil is not enough, because of the excessive capacitive load. In this

case, a sine filter has to be used. Regarding the output choke coil or the sine filter, please ask the

manufacturer’s opinion.

•Connecting the protective earth

At connecting the earthing of the frequency converter comply with following safety measures:

▪Never share the ground wire with other devices such as welding machines, etc.

▪Always use a ground wire that complies with electrical equipment technical standards. Keep ground wires as

short as possible. Leakage current is caused by the drive. Therefore, if the distance between the ground

electrode and the ground terminal is too long, potential on the ground terminal of the drive will become

unstable.

▪When using more than one frequency converter, do not to loop the ground wire.

▪Use earth cable of same cross-section as that of the phase conductors.

•Connecting the control circuitry

At connecting the control circuitry comply with following safety measures:

▪Separate control circuit wiring from main circuit wiring and other high-power lines.

▪The connections of the SR connectors of the control circuitry (digital output) have to be separated from other

connectors of the control circuitry, unless they are used for control purposes.

▪In order to avoid operation errors use twisted pair or shielded twisted pair cables for connecting the control

circuitry.

▪Be sure to earth the shielding with the largest possible contact area between shielding and earth connection.

▪The shieldings have to be earthed at the frequency converter side of the cables.

H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 9 -

PUTTING IN OPERATON THE FREQUENCY CONVERTER FOR THE FIRST TIME

8CAUTION

Prior to put in operation the frequency converter read through thoroughly the description below!

Follow all safety measures, warnings and instructions described in this manual!

Heed the safety messages in this manual.

The operating company is responsible for any injuries or equipment damage resulting from failure to heed the

warnings in this manual.

▪Check up the operational data of the frequency converter to be put in operation.



page 4. - General features

▪Install the device according to the instructions.



page 5. - Mechanical installation

▪Study the safety measures to be complied with.



page 6. - Test run

▪Connect the cables of the power line, the motor and the control elements to the corresponding terminal

blocks.



page 10. - Assignment and connection of the V3D terminal block



page 13. - Assignment and connection of the VLD / VHD terminal block

▪If the device is equipped with brake check up the value and the placing of the brake resistor.



page 20. - Selection guide for brake resistors

▪Switch the line power to the device.

▪At devices without programming unit the motor can be started with the device’s control elements according

to the default setting (or the required setting).

▪At devices with programming unit check up and if necessary modify the preset parameters (rising times and

fall times, minimum and maximum frequency etc.)

▪If possible, perform a trial start with unloaded motor:

•inspect the operation of the motor,

•in case of opposite direction of rotation interchange both phase wires of the motor to achieve the right

basic direction of rotation,

Interchanging the phase wires at the mains side does not influence the direction of

rotation!

•with changing the reference signal (e.g. potentiometer) scan the operating frequency band,

•try the functioning of the other controls (e.g. change of direction of rotation)

▪Let the motor run with load!

▪If necessary modify the parameters (rising times and fall times, minimum and maximum frequency etc.)

▪In regulating mode tune the PID parameters

▪If the settings are appropriate save the parameters!



Programmer’s manual - menu 11-1-2: Save parameters

H - I - J FREQUENCY CONVERTERS INSTRUCTION MANUAL 0,55 ÷ 200 kW

- 10 -

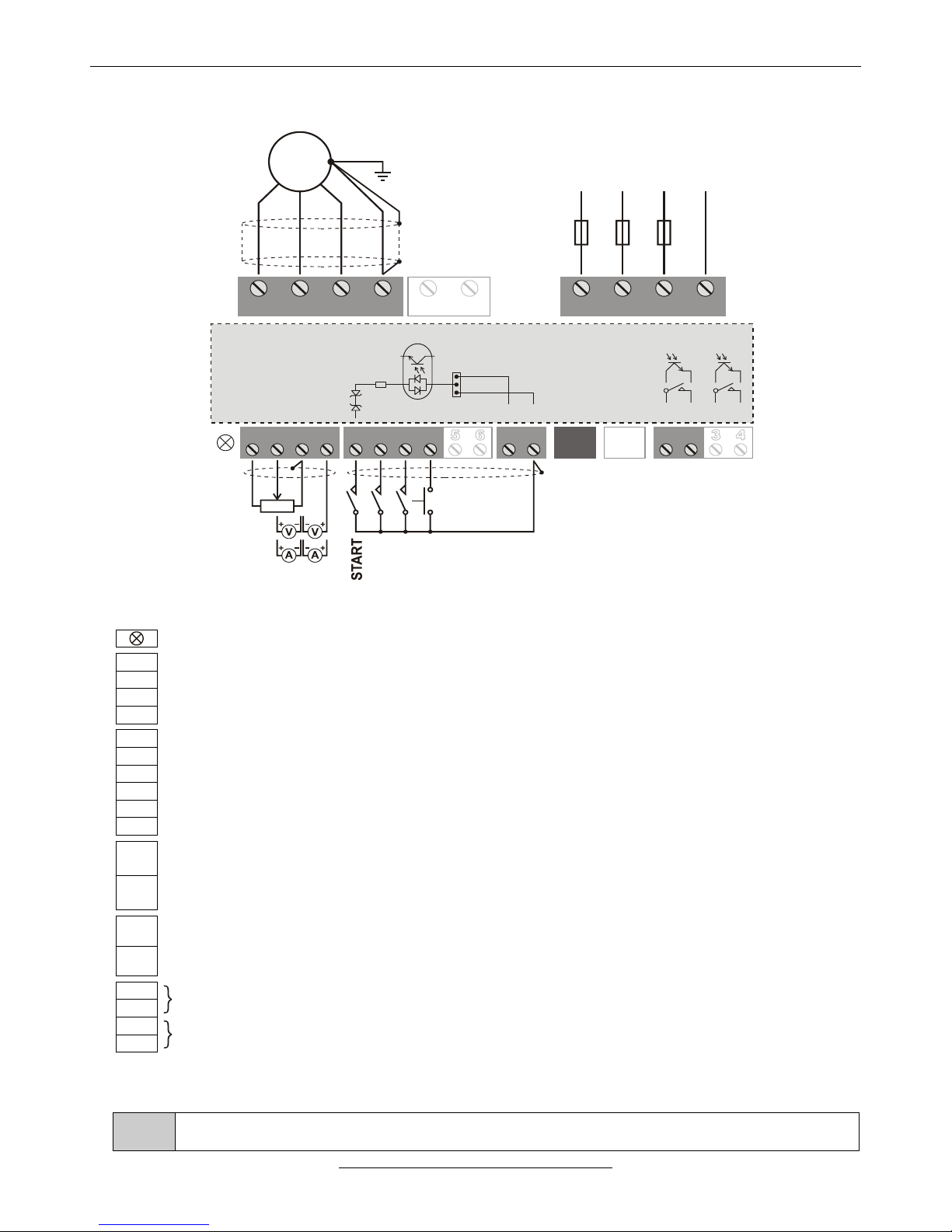

ASSIGNMENT AND CONNECTION OF THE V3D TERMINAL BLOCK

1 1 112 2 223 34 4

SA SD ST CST CSR SR

U V W PE L1 L2 L3 PE

3 x 400VAC

MOTOR R BRAKE LINE

2-10K

0÷10V

(0)4÷ 02 mA

REVERSING

JOGGING

ERROR A.

GND/D

F1 F2 F3

PNP

NPN

12V

1K2 +24V/D

GND/D

Three-colour LED (green: On, yellow: Operate, red: Error)

SA1

+10 V potentiometer driving output (max. 6 mA) (+15 V option)

SA2

Analogue input 1: potentiometer (2÷10 kΩ), 0÷10 V (200 kΩ), 4÷20 mA (0÷20 mA) (200 Ω)

SA3

GND/A (reference point of the analogue inputs)

SA4

Analogue input 2: potentiometer (2÷10 kΩ), 0÷10 V (200 kΩ), 4÷20 mA (0÷20 mA) (200 Ω)

SD1

Digital input 1 * (factory setting: start switch)

SD2

Digital input 2 * (factory setting: reversing switch)

SD3

Digital input 3 * (factory setting: jogging)

SD4

Digital input 4 * (factory setting: error acknowledgement)

SD5

Option (Digital input 5 *, or IRE(A) input)

SD6

Option (Digital input 6 *, or IRE(B) input)

ST1

+24 V/D supply voltage output (max. 100 mA)

In case of PNP logic the common point of the digital inputs (K1, K2 jumpers)

ST2

GND/D (the reference point of the +24 V/D supply voltage output)

In case of NPN logic the common point of the digital inputs (K1, K2 jumpers)

CST

Terminal serial line connector (CAN option, e.g. Master/Slave)

CSR

Option (System serial line and/or CAN)

SR1

Digital output 1 ** (factory setting: ready)

SR2

SR3

Option (Digital output 2 **) (factory setting: operate)

SR4

* Switching level of the digital inputs: 0.6 to 2 mA

** Digital outputs: relay (max. 250 V AC / 1 A or 30 V DC / 0,5 A) or optocoupler (optional) (max. 30 V DC / 10 mA)

The analogue inputs 1 and 2 (or analogue inputs 3 and 4) are not equipped with own terminals. If the

configuration includes them, they are connected to the terminals of other functions (mostly to SD5 and 6)

Otros manuales para V3D Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Convertidor de medios de Procon

Procon

Procon MelcoRETAIL MINI Manual de usuario

Procon

Procon MelCOMMS MINI Manual de usuario

Procon

Procon MelcoBEMS MINI Manual de usuario

Procon

Procon E3D 0.55 Manual de usuario

Procon

Procon MelcoRETAIL MINI Manual de usuario

Procon

Procon A1M Manual de usuario

Manuales populares de Convertidor de medios de otras marcas

SoundTraxx

SoundTraxx Blunami BLU-2200 Manual de usuario

SPROLINK

SPROLINK VA1 Manual de usuario

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manual de usuario

Nikon

Nikon AF-S TC-20E III Manual de usuario

Axis

Axis AXIS Q7406 Manual de usuario

Omega

Omega TAC80B-J Manual de usuario

Zoom

Zoom Thunderbolt TAC-2R Manual de usuario

OST

OST iConverter 10/100M Manual de usuario

Vertiv

Vertiv Netsure Manual de usuario

birddog

birddog MINI Manual de usuario

Roland

Roland GI-10 Manual de usuario

Wallenstein

Wallenstein WX310 Manual de usuario

Pace

Pace MSS 200-1 Manual de usuario

Solar Converters

Solar Converters EQ 12/24-50 Manual de usuario

CYP

CYP EL-7400V Manual de usuario

TIE

TIE MIDI 1i1o Manual de usuario

DCS

DCS Vivaldi Upsampler Manual de usuario

Westermo

Westermo MCW-211 SERIES Manual de usuario
