Procom HearthSense BF30T-BB Guía de inicio rápido

VENT-FREE GAS WALL

HEATER

OWNER’S OPERATION AND

INSTALLATION MANUAL

BLUE FLAME MODELS

BF30T-BB

WARNING: If the information in this manual is not

followed exactly, a re or explosion may result causing

property damage, personal injury or loss of life.

— Do not store or use gasoline or other ammable va-

pors and liquids in the vicinity of this or any other

appliance.

— WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any

phone in your building.

•

Immediately call your gas supplier from a neighbor’s

phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re

department.

—

Installation and service must be performed by a quali-

ed installer, service agency or the gas supplier.

WARNING: This appliance is equipped for natural and

propane gas. Field conversion is not permitted other than

between natural or propane gases.

Questions, problems, missing parts?

Before returning to your retailer, call our customer service department at

1-866-573-0674, 8:00 am - 4:30 pm CST, Monday through Friday

HearthSense 200549-05A2

TABLE OF CONTENTS

Safety ........................................................ 3

Qualied Installing Agency ........................ 4

Specications ............................................ 5

Product Features....................................... 5

Local Codes............................................... 5

Preparing For Installation .......................... 6

Unpacking.................................................. 6

Water Vapor: A By-Product Of

Unvented Room Heaters....................... 6

Air For Combustion and Ventilation........... 7

Installation ................................................. 9

Operation................................................. 18

Electrical Connection............................... 20

Electrical Wiring....................................... 20

Inspecting Burners................................... 21

Care And Maintenance............................ 22

Troubleshooting....................................... 23

Technical Service..................................... 26

Replacement Parts.................................. 27

Accessories ............................................. 27

Service Hints ........................................... 27

Warranty .................................................. 32

INSTALLER: Leave this manual with the appliance.

CONSUMER: Retain this manual for future reference.

This is an unvented gas-red heater. It uses air (oxygen)

from the room in which it is installed. Provisions for ad-

equate combustion and ventilation air must be provided.

Refer to Air For Combustion and Ventilation section on

page 7 of this manual.

WARNING: Improper installation, adjustment, al-

teration, service or maintenance can cause injury or

property damage. Refer to this manual for correct in-

stallation and operational procedures. For assistance

or additional information consult a qualied installer,

service agency or the gas supplier.

This appliance may be installed in an aftermarket,* per-

manently located, manufactured (mobile) home, where

not prohibited by local codes.

This appliance is only for use with propane or natural

gas. Field conversion by any other means including the

use of a kit is not permitted.

* Aftermarket: Completion of sale, not for purpose of resale, from the manufacturer.

SAVE THIS BOOK

PATENT INFORMATION

This product may be covered by one or more of the following United States patents:

9,829,195 9,423,123 9,441,833 9,518,732 9,752,779 9,416,977 8,764,436

8,568,136 8,516,878 8,297,968 8,281,781 8,235,708 7,967,006

7,967,007 7,730,765 7,677,236 7,607,426 7,434,447

HearthSense 3200549-05A

SAFETY

IMPORTANT: Read this owner’s

manual carefully and completely

before trying to assemble, op-

erate, or service this heater.

Improper use of this heater can

cause serious injury or death

from burns, fire, explosion,

electrical shock and carbon

monoxide poisoning.

Only a qualied installer, service

agent, or local gas supplier may

install and service this product.

WARNING: Keep the appli-

ance area clear and free from

combustible materials, gasoline,

and other ammable vapors and

liquids.

WARNING: This appliance

can be used with propane or

natural gas. It is shipped from

the factory adjusted for use with

propane.

This appliance is only for use

with the type of gas indicated on

the rating plate. This appliance

is not convertible for use with

other gases.

DANGER: Carbon monoxide

poisoning may lead to death!

CARBON MONOXIDE POISONING: Early

signs of carbon monoxide poisoning resemble

the u, with headaches, dizziness or nausea.

If you have these signs, the heater may not be

working properly. Get fresh air at once! Have

heater serviced. Some people are more af-

fected by carbon monoxide than others. These

include pregnant women, people with heart or

lung disease or anemia, those under the inu-

ence of alcohol and those at high altitudes.

NATURAL AND PROPANE GAS: Natural and

propane gas are odorless. An odor-making

agent is added to the gas. The odor helps you

detect a gas leak. However, the odor added to

the gas can fade. Gas may be present even

though no odor exists.

WARNING: FIRE, EXPLOSION

AND ASPHYXIATION HAZARD

Improper adjustment, altera-

tion, service, maintenance, or

installation of this heater or its

controls can cause death or

serious injury.

Readandfollowinstructionsand

precautions in User's Informa-

tion Manual provided with this

heater.

WARNING: Do not use any

accessories not approved for

use with this heater.

WARNING: Carefully super-

vise young children when they

are in the room with the heater.

WARNING: The re screen or

guard designed for this unvent-

ed appliance must be installed

prior to operation.

WARNING: Due to high tem-

peratures, the appliance should

be located out of tra󰀩c and away

from furniture and draperies.

WARNING: Heater becomes

very hot when running. Children

and adults should be alerted

to the hazards of high surface

temperatures and should stay

away to avoid burns and cloth-

ing ignition. Heater will remain

hot for a time after shuto󰀨. Allow

surfaces to cool before touching.

HearthSense 200549-05A4

WARNING: Do not place

clothing or other flammable

material on or near the appli-

ance. Never place any objects

in the heater.

1. Do not place propane supply tank(s) inside

any structure. Propane supply tank(s)

must be placed outdoors.

2. Heaters with a maximum input over

6,000 Btu/Hr shall not be installed in a

bathroom. Heaters with a maximum input

over 10,000 Btu/Hr shall not be installed

in a bedroom.

3. This heater needs fresh air ventilation to

run properly. This heater has an Oxygen

Depletion Sensing (ODS) safety shuto󰀨

system. The ODS shuts down the heater

if not enough fresh air is available. See Air

for Combustion and Ventilation, pages 7

through 9. If heater keeps shutting o󰀨, see

Troubleshooting, page 23.

4. Keep all air openings in front and bottom

of heater clear and free of debris. This will

ensure enough air for proper combustion.

5. If heater shuts o󰀨, do not relight until you

have provided fresh, outside air. If heater

keeps shutting o󰀨, have it serviced.

6. Do not run heater:

• Where ammable liquids or vapors are

used or stored.

• Under dusty conditions.

7. Before using furniture polish, wax, carpet

cleaner, or similar products, turn heater o󰀨.

If heated, the vapors from these products

SAFETY

may create a white powder residue within

burner box or on adjacent walls or furniture.

8. Do not use heater if any part has been

under water. Immediately call a qualied

service technician to inspect the room

heater and to replace any part of the

control system and any gas control which

has been under water.

9. Turn o󰀨 and unplug heater and let cool

before servicing. Only a qualied service

person should service and repair heater.

10. Operating heater above elevations of

4,500 feet could cause pilot outage.

11. To prevent performance problems, do not

use propane fuel tank of less than 100 lbs.

capacity.

QUALIFIED INSTALLING AGENCY

Only a qualied agency should install and

replace gas piping, gas utilization equipment

or accessories, and repair and equipment ser-

vicing. The term “qualied agency” means any

individual, rm, corporation, or company that

either in person or through a representative

is engaged in and is responsible for:

a) Installing, testing, or replacing gas piping

b) Connecting, installing, testing, repairing,

or servicing equipment; that is experienced

in such work; that is familiar with all precau-

tions required; and that has complied with

all the requirement of the authority having

jurisdiction.

HearthSense 5200549-05A

SPECIFICATIONS

Model BF30T-BB

Ignition Piezo Ignitor

Gas Type Natural Propane

BTU/Hr Input Max. (available) 30,000 30,000

BTU/Hr Input Min. (available) 15,000 24,000

Pressure Regulator Setting 4" W.C. 9" W.C.

Inlet Gas Pressure*

(inches of water)

Max. 9.5" Max. 14"

Min. 5" Min. 11"

Heater Dimensions (HxWxD) 24.1" x 25.5 x 8.46"

Carton Dimensions (HxWxD) 26.18" x 28.15" x 9.84"

Heater Weight 27.6 lbs

Shipping Weight 31.9 lbs

Electrical Requirement for Blower Kit (included)

Voltage • 120 VAC, 60 Hz

Note: Dimensions listed are outer most points on the

heater (includes control knobs and grill).

* For purposes of input adjustment.

PRODUCT FEATURES

SAFETY PILOT

This heater has a pilot with an Oxygen Deple-

tion Sensing (ODS) safety shuto󰀨 system. The

ODS/pilot shuts o󰀨 the heater if there is not

enough fresh air.

THERMOSTATIC CONTROL

The control automatically cycles the burner

on and off to maintain a desired room

temperature.

2 GAS OPTIONS AVAILABLE

Your heater is equipped to operate on either

propane or natural gas. The heater is shipped

from the factory ready for connecting to pro-

pane. The heater can easily be changed to

natural gas by having your qualied installer

follow the instructions on page 13 and the

markings on the heater.

LOCAL CODES

Install and use heater with care. Follow all

local codes. In the absence of local codes,

use the latest edition of The National Fuel

Gas Code, ANSI Z223.1/NFPA 54*.

*Available from:

American National Standards Institute, Inc.

25 West 43rd Street

New York, NY 10036

National Fire Protection Association, Inc.

1 Batterymarch Park

Quincy, MA 02269-9101

This heater is designed for vent-free op-

eration. State and local codes in some areas

prohibit the use of vent-free heaters.

State of Massachusetts: The installation

must be made by a licensed plumber or

gas tter in the Commonwealth of Mas-

sachusetts.

Sellers of unvented propane or natural

gas-red supplemental room heaters shall

provide to each purchaser a copy of 527

CMR 30 upon sale of the unit.

In the State of Massachusetts the gas

cock must be a T-handle type. The State

of Massachusetts requires that a exible

appliance connector cannot exceed three

feet in length.

HearthSense 200549-05A6

PREPARING FOR INSTALLATION

Before beginning assembly or operation of

the product, make sure all parts are present.

Compare parts with package contents list and

Figure 1. If any part is missing or damaged,

do not attempt to assemble, install or operate

the product. Contact customer service for

replacement parts.

UNPACKING

1. Remove heater from carton.

2. Remove all protective packaging applied

to heater for shipping

Figure 1 - Vent-Free Gas Heater

Control

Knob

Ignitor Button

Front

Panel

Grill Burner

Heater Cabinet

3. Check heater for any shipping damage. If

heater is damaged, promptly inform dealer

where you bought heater.

WATER VAPOR: A BY-PRODUCT OF

UNVENTED ROOM HEATERS

Water vapor is a by-product of gas combus-

tion. An unvented room heater produces ap-

proximately one (1) ounce (30 mL) of water for

every 1,000 BTUs (0.3 KWs) of gas input per

hour. Unvented room heaters are recommended

as supplemental heat (a room) rather than a

primary heat source (an entire house). In most

supplemental heat applications, the water vapor

does not create a problem. In most applications,

the water vapor enhances the low humidity

atmosphere experienced during cold weather.

The following steps will help ensure that water

vapor does not become a problem.

1. Be sure the heater is sized properly for the

application, including ample combustion

air and circulation air.

2. If high humidity is experienced, a dehu-

midier may be used to help lower the

water vapor content of the air.

3. Do not use an unvented room heater as

the primary heat source.

HearthSense 7200549-05A

AIR FOR COMBUSTION AND VENTILATION

WARNING: This heater shall

not be installed in a conned space

or unusually tight construction

unless provisions are provided

for adequate combustion and

ventilation air. Read the following

instructions to insure proper fresh

air for this and other fuel-burning

appliances in your home.

Today’s homes are built more energy e󰀩cient

than ever. New materials, increased insulation

and new construction methods help reduce

heat loss in homes. Home owners weather

strip and caulk around windows and doors

to keep the cold air out and the warm air in.

During heating months, home owners want

their homes as airtight as possible.

While it is good to make your home energy

e󰀩cient, your home needs to breathe. Fresh

air must enter your home. All fuel-burning ap-

pliances need fresh air for proper combustion

and ventilation.

Exhaust fans, replaces, clothes dryers and

fuel burning appliances draw air from the house

to operate. You must provide adequate fresh

air for these appliances. This will insure proper

venting of vented fuel-burning appliances.

WARNING: This heater shall

not be installed in a room or

space unless the required vol-

ume of indoor combustion air

is provided by the method de-

scribed in the National Fuel Gas

Code, ANSI Z223.1/NFPA 54, the

International Fuel Gas Code, or

applicable local codes.

WARNING: Iftheareainwhich

the heater may be operated is

smaller than that dened as

an unconned space or if the

building is of unusually tight

construction, provide adequate

combustion and ventilation air

by one of the methods described

in the National Fuel Gas Code,

ANSI Z223.1/NFPA 54, the In-

ternational Fuel Gas Code, or

applicable local codes.

HearthSense 200549-05A8

VENTILATION AIR

AIR FOR COMBUSTION AND VENTILATION

Outlet

Air

Ventilated

Attic

Outlet

Air

Inlet

Air

Inlet Air Ventilated

Crawl Space

Crawl

Space

To Attic

Figure 2 - Ventilation Air from Inside

Building

Figure 3 - Ventilation Air from Outdoors

Remove

Door into

Adjoining

Room,

Option 3

Ventilation Grills

Into Adjoining Room,

Option 2

12"

Ventilation

Grills

into Adjoining

Room,

Option 1

Ventilation Air From Inside Building

This fresh air would come from an adjoining

unconned space. When ventilating to an

adjoining unconned space, you must provide

two permanent openings: one within 12" of the

ceiling and one within 12" of the oor on the

wall connecting the two spaces (see options

1 and 2, Figure 2). You can also remove door

into adjoining room (see option 3, Figure 2).

Follow the National Fuel Gas Code, ANSI

Z223.1/NFPA 54, Air for Combustion and

Ventilation for required size of ventilation

grills or ducts.

Ventilation Air From Outdoors

Provide extra fresh air by using ventilation

grills or ducts. You must provide two perma-

nent openings: one within 12" of the ceiling

and one within 12" of the oor. Connect these

items directly to the outdoors or spaces open

to the outdoors. These spaces include attics

and crawl spaces. Follow the National Fuel

Gas Code, ANSI Z223.1/NFPA 54, Air for

Combustion and Ventilation for required size

of ventilation grills or ducts.

IMPORTANT: Do not provide openings

for inlet or outlet air into attic if attic has a

thermostat-controlled power vent. Heated air

entering the attic will activate the power vent.

Rework worksheet, adding the space of the

adjoining unconned space. The combined

spaces must have enough fresh air to supply

all appliances in both spaces.

HearthSense 9200549-05A

INSTALLATION

NOTICE: This heater is intended

for use as supplemental heat. Use

this heater along with your primary

heating system. Do not install this

heater as your primary heat source.

If you have a central heating system,

you may run system’s circulating

blower while using heater. This will

help circulate the heat throughout

the house. In the event of a power

outage, you can use this heater as

your primary heat source.

CAUTION: When installing

heater in a home garage

• heater pilot and burner must

be at least 18" above oor

• locate heater where moving

vehicle will not hit it

WARNING: A qualied ser-

vice person must install heater.

Follow all local codes.

WARNING: Never install the

heater

• in a bedroom or a bathroom

• in a recreational vehicle

• wherecurtains,furniture,cloth-

ing, or other ammable objects

are less than 36" from the front,

top, or sides of the heater

• in high tra󰀩c areas

• in windy or drafty areas

CAUTION: This heater creates

warm air currents. These currents

move heat to wall surfaces next

to heater. Installing heater next

to vinyl or cloth wall coverings or

operating heater where impurities

(such as tobacco smoke, aromatic

candles, cleaning uids, oil or

kerosene lamps, etc.) in the air

exist, may cause walls to discolor.

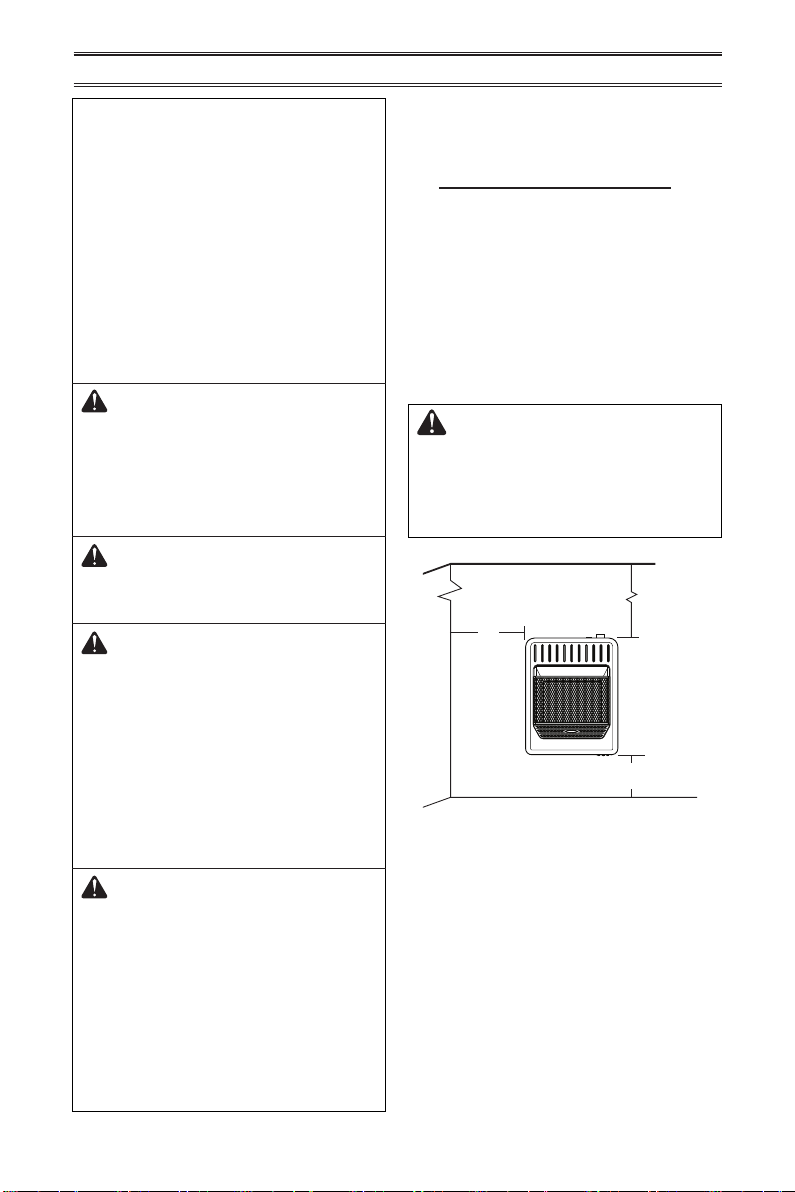

Figure 4 - Mounting Clearances as

Viewed From Front of Heater

IMPORTANT: Vent-free heaters add moisture

to the air. Although this is benecial, installing

heater in rooms without enough ventilation air

may cause mildew to form too much moisture.

See Air for Combustion and Ventilation, pages

7 and 8.

CHECK GAS TYPE

Be sure your gas supply is right for your heat-

er. Otherwise, call dealer where you bought

the heater for proper type heater.

CLEARANCES TO

COMBUSTIBLES

Carefully follow the instructions below. This

heater is a freestanding unit designed to be

mounted on a wall or set on a base.

WARNING: Maintain the

minimum clearances shown in

Figure 4. If you can, provide

greater clearances from oor,

ceiling, and joining wall.

CEILING

36"

Minimum

From

Sides of

Heater

Left

Side

Right

Side

2" Minimum to Top Surface of Carpeting,

Tile or Other Combustible Material

FLOOR

LOCATING HEATER

This heater is designed to be mounted on a

wall. For convenience and e󰀩ciency, install

heater:

1. Where there is easy access for operation,

inspection, and service.

2. In the coldest part of room.

When installing the appliance directly on car-

peting, tile or other combustible material other

than wood ooring, the appliance shall be

installed on a metal or wood panel extended

the full width and depth of the appliance.

HearthSense 200549-05A10

Figure 5 - Moving Thermostat Sensing

Bulb

Figure 6 - Removing Front Panel

INSTALLATION

1. Carefully remove bulb clips with ther-

mostat sensing bulb from the shipping

position in the back panel, see Figure 5.

2. Insert bulb clips into 2 rectangular slots

beside the shipping location (relocation

position). If clips are damaged replace with

clips located in the hardware package.

FASTENING HEATER TO WALL

INSTALLING THERMOSTAT SENSING BULB (OPTIONAL)

For Heaters with Blower Installed Only

REMOVING FRONT PANEL

Screw

Front

Panel

1. Remove 4 screws securing front panel.

2. Carefully slide front panel forward.

Mounting Bracket

The mounting bracket is located on back panel

of heater. It has been taped there for shipping.

Remove mounting bracket from back panel.

Methods For Attaching Mounting

Bracket To Wall

Use only the last hole on each end of mount-

ing bracket to attach bracket to wall. Attach

mounting bracket to a wall only in one of two

ways:

1. Attaching to wall stud: This method pro-

vides the strongest hold. Insert mounting

screws through mounting bracket and into

wall studs.

2. Attaching to wall anchor: This method

allows you to attach mounting bracket to

hollow walls (wall areas between studs)

or to solid walls (concrete or masonry).

Decide which method better suits your needs.

Either method will provide a secure hold for

the mounting bracket.

Thermostat

Sensing

Bulb

Relocation

Location

Thermostat Sensing Bulb Shipping Position

Bulb Clip

Capillary

Thermostat Sensing Bulb

Tabla de contenidos

Idiomas:

Otros manuales de Calentador de gas de Procom

Procom

Procom ML200HBA Guía de inicio rápido

Procom

Procom ML100HBAHR Guía de inicio rápido

Procom

Procom MD2TPA Manual de usuario

Procom

Procom Blue Flame Manual de usuario

Procom

Procom MN200EBC Guía de inicio rápido

Procom

Procom PCD18T Manual de usuario

Procom

Procom MN060HPA Guía de inicio rápido

Procom

Procom ML150HPA Guía de inicio rápido

Procom

Procom MDS30HGA Manual de usuario

Procom

Procom MN060HBA Guía de inicio rápido

Procom

Procom MD100TBA Manual de usuario

Procom

Procom ML060HPA Guía de inicio rápido

Procom

Procom ML170EPC Guía de inicio rápido

Procom

Procom MN200TBA-B Guía de inicio rápido

Procom

Procom BLUE FLAME MNSD100TBA Guía de inicio rápido

Procom

Procom Lost River PCILVFD18RT Guía de inicio rápido

Procom

Procom ML100HBAHR Guía de inicio rápido

Procom

Procom MN060HPA Guía de inicio rápido

Procom

Procom ML150HPA Guía de inicio rápido

Procom

Procom MD300HGA Manual de usuario

Procom

Procom MG10HBF Guía de inicio rápido

Procom

Procom MN300HGA Guía de inicio rápido

Procom

Procom MN200HBA Manual de usuario

Procom

Procom Lost River PCILVFD18-1 Manual de usuario

Manuales populares de Calentador de gas de otras marcas

Superior

Superior BGE18NV Manual de usuario

Dru

Dru Room-sealed atmospheric gas-fired heating... Manual de usuario

klover

klover TKR 35 Manual de usuario

Rothenberger Industrial

Rothenberger Industrial 035984 Manual de usuario

New Buck Corporation

New Buck Corporation 34 Manual de usuario

Hargrove

Hargrove Timberland Glow Guía de inicio rápido

Kinder

Kinder Cameo BF Manual de usuario

Qlima

Qlima GH 438 B-2 Manual

Desa

Desa 125-R Manual de usuario

Gasmate

Gasmate AH100 Series Manual de usuario

Medallion

Medallion MBP20TLB Guía de inicio rápido

Clarke

Clarke DEVIL 910SS Manual de usuario

Superior

Superior BGE18NR Manual de usuario

Brant Radiant Heaters

Brant Radiant Heaters QTD Series Instrucciones de instalación

L.B. White

L.B. White Therma Grow HW220 Manual

Sealey

Sealey LP35.V5 Manual de usuario

Italkero

Italkero Falo Evo Manual de usuario

Desa

Desa 30LP Manual de usuario
