ProAudio SCRS-5iw Manual de usuario

SCRS-5iw

Installation Guide

iw

SCR-5iw Installation Guide Rev A 121016

SCRS-5iw

STEP 1  CUT HOLE

1a. Cut hole in wall material to the dimensions shown.

STEP 2  RETRACT ALL CLAMP DOGS

3a. Loosen the dog screws and retract all four dogs fully as shown below.

3b. Re-tighten the screws to hold them in this position.

Dog (4x)

Dog Screw (4x)

6.5”

10.25”

SCRS-5iw

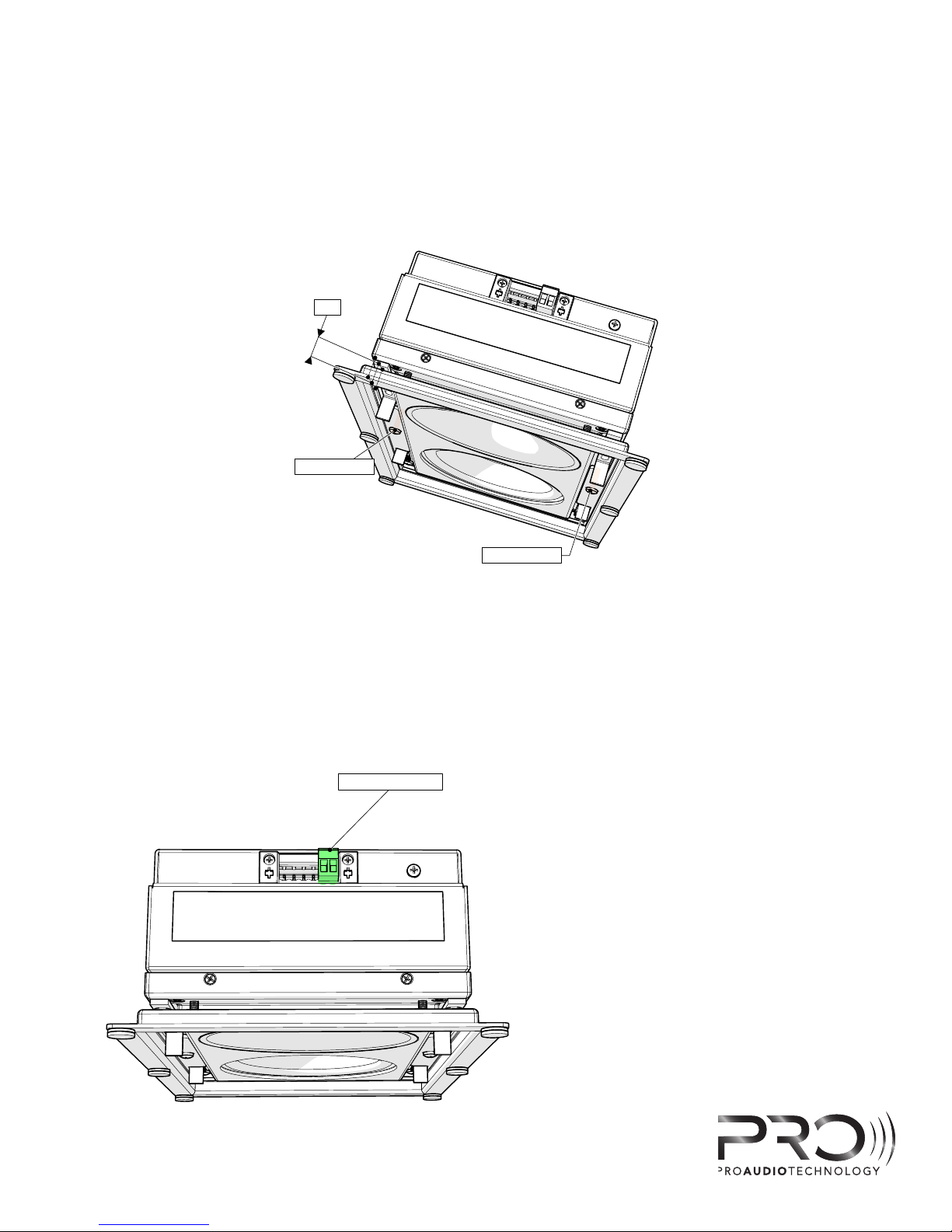

STEP 3  LOOSEN CLAMP PLATE

3a. Loosen clamp plate screws so that the distance between the front surface of the dogs and the

back surface of the clamp plate ange is slightly greater than the thickness of wall material.

Clamp Plate Screw

Clamp Plate Screw

0.50 "

STEP 4  CONNECT WIRES

4a. Using one of the supplied two-pin male Phoenix connectors, connect the speaker wire to the

connector then install the connector into the speaker as shown below. Note, when connector

is installed as shown in this view, the conductor on the left is negative terminal and the conductor

on the right is the positive terminal.

Phoenix Connector (1x)

Note: The SCRS-5iw is shipped from

the factory wired for passive operation.

These instructions are for hookup in

that mode. If you intend to run your

SCRS-5iw in bi-amp mode, please call

the factory for assistance as it will be

necessary to change the internal wiring

of the speaker.

CAUTION: DO NOT CONNECT NEGA-

TIVE AND POSITIVE WIRES TOGETHER.

AMPLIFIER DAMAGE WILL RESULT.

SCRS-5iw

STEP 5  INSTALL SPEAKER

5a. Insert speaker fully into wall opening, making sure to dress the wire so that it does not

get trapped behind the speaker enclosure.

5b. While holding the speaker in place, loosen the dog screws and extend dogs fully, then

re-tighten the screws to hold them in place.

5c. Clamp the speaker to the wall material by tightening the (2) clamp plate screws.

Clamp Plate Scew (4x)

Dog (4x)

Dog Screw (4x)

STEP 6  INSTALL GRILLE

6a. Position perforated metal grille over clamp plate frame. Powerful neodymium magnets will

snap it into and hold it in place.

Professional Home Cinema, LLC

dba Pro Audio Technology

5445 Oceanus Drive, Suite 110

Huntington Beach, CA 92649

Tel: 714-890-0418 Tel: 800-272-6085

Fax: 714-890-0536

DONE!
