MT-7062 HDMI Cable Tester

UserManual

User’s Manual

1st Edition, 2013

DESCRIPTION

The Pro’sKit MT-7062 HDMI Cable Tester is designed for

professional HDMI installations. This portable device allows installers

to quickly test, troubleshoot, and verify HDMI (high definition

multimedia interface) cables. MT-7062 is designed to test wire circuit

state of HDMI cables with Type A & C connectors conforming to 1.0,

1.1, 1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a Category 1 and

Category 2 cables

Equipped with 3 test modes, Automatically fast/slow scan or manual

test for step by step, this tool can either test the conductors in

straight、short、open、crossover in all RGB conductors.

SAFETY INFORMATION

Safety is essential in the use and maintenance of Pro’sKit equipment.

This instruction manual and any markings on the tool provide

information for avoiding hazards and unsafe practices related to the

use of this tool. Observe all of the safety information provided.

Warnings

Do not connect tester to a live circuit as it may damage the unit.

It is easy to damage this tester with charged HDMI lines.

Caution

Read all instructions in this manual before using this tester.

Failure to do so may result in damage to the tester or injury to the

user.

Do not drop or get the unit wet. Do not expose tester to extreme

humidity or direct sunlight.

Do not use this tester with its case open, or with parts removed.

Doing so may damage the tester and/or injure the user.

Repairs and maintenance must only be carried out by qualified

service personnel or qualified electricians/technicians who know

the dangers.

Follow the recommendations of any Trade Organizations or

Regulatory Agencies whose scope encompasses the use of this

tester or injury to the user.

Remove the battery when the tester not in use for longer than a

month. Chemical leakage from the battery could damage the

tester.

Please use batteries according to the specification; otherwise it

may result in damage to equipment.

CONTENTS

Your MT-7062 HDMI Cable Tester contains the following：

1. 1 x Master unit

2. 1 x Remote unit

3. 1 x Pouch bag.

4. Users’ Manual.

FEATURES：

The MT-7062 HDMI cable tester allows the fast and accurate

verification both HDMI type A and Type C cables, mapping continuity

and proper configuration and displays 19 pins and shield connection

status on both master and remote unit.

For HDMI cables Type A, C

Test all HDMI cables with Type A to A, A to C and C to C

connectors, especially for fragile, easily damaged HDMI patch

cord and in-wall HDMI cables.

Loopback function

Design with loopback function allows test HDMI type A to A, A to

C on master unit.

3 Test Modes

Fast continuity scans for testing all conductors’ status in a cable.

Slow continuity scans for testing all conductors’ status in a cable.

Manual test for step by step scan detecting of individual

conductors’ situation.

HDMI Cable Mapping

Automatically detect wiring on HDMI type A or type C condition in

straight、short、open、crossover in pin #1~#19 and Shield

conductor.

Troubleshooting

Quickly troubleshoot and verify HDTV installation and DIY

termination in the field.

SPECIFICATIONS：

Cables Tested：HDMI cables with Type A & C connectors

conforming to 1.0, 1.1, 1.2, 1.2a, 1.3, 1.3a, 1.3b, 1.3c, 1.4, 1.4a

Category 1 and Category 2 cables.

Support test (master unit and remote unit)：19 pin-to-pin wire

map and shielding detection.

Test interface of Master unit：HDMI (type A) ×2 pcs, Mini HDMI

(type C) ×1 pcs.

Test interface of Remote unit：HDMI (type A) ×1pcs, Mini HDMI

(type C) ×1 pcs.

Cable length：Under 50 meters.

Test Mode：Automatically fast scan、Automatically Slow scan、

Manual test for step by step.

Displays：19 LEDs and shield LED on both master and remote

unit.

Beeper indication.

Low battery indication：Under 6.0V

Power source：DC 9V(NEAD 1604/6F22)×1 (not included)

Dimension：Master unit：103×66×27,Remote unit：103×35×27

Weight：130g (not incuding battery)

Operating environment：32℉to 104℉(0℃to 40℃)＜80% RH

Storage environment：14℉to 122℉(-10℃to +50℃)＜70% RH

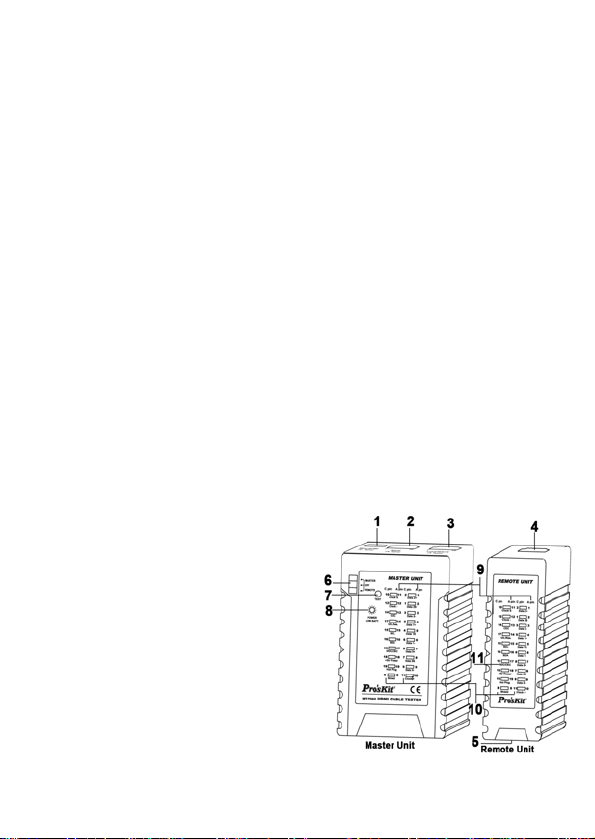

PRODUCT DIAGRAM

1. LOOPBACK：Mini-HDMI (C Type)

This socket not only can be used on Master unit loopback test but

also can be used on Master unit Mini-HDMI (C Type) with Remote

unit Mini-HDMI (C Type) to perform scan test.

2. MAIN：HDMI (A Type)

3. LOOPBACK：HDMI (A Type)

Fig 1

4. Remote unit：HDMI (A Type)

5. Remote unit：Mini-HDMI (C

Type)

6. Switch：

MASTER/OFF/REMOTE

7. TEST：Automatic fast/slow

scan or manual test for step by

step.

8. Power and low battery

indication.

9. HDMI (A Type) Pin number.

10. Mini-HDMI (C Type) Pin

number.

11. LED for indicating signal

situation.

HDMI Cable Wire / Pin And Signal Description：

HDMI

(A)Pin # Mini-HDMI

Assignment Signal Description

1 2 Data 2﹢TMDS Red Data Plus (Data 2 +)

2 1 Data 2S TMDS Red Data Shield (Data 2 Shield)

3 3 Data 2﹣TMDS Red Data Minus (Data 2 –)

4 5 Data 1﹢TMDS Green Data Plus (Data 1 +)

5 4 Data 1S TMDS Green Data Shield (Data 1

Shield)

6 6 Data 1﹣TMDS Green Data Minus (Data 1 –)

7 8 Data 0﹢TMDS Blue Data Plus (Data 0+)

8 7 Data 0S TMDS Blue Data Shield (Data 0

Shield)

9 9 Data 0﹣TMDS Blue Data Minus (Data 0 –)

10 11 Clock ﹢TMDS Clock Plus (Clock +)

11 10 Clock S TMDS Clock Shield (Clock Shield)

12 12 Clock ﹣TMDS Clock Minus (Clock –)

13 14 CEC Consumer Electronics Control

14 17 Uti./Res. Utility/Reserved

15 15 SCL Serial Clock (I2C)

16 16 SDA Serial Data (I2C)

17 13 DDC/CEC Data shield for the display data

channel and consumer electronics

control

18 18 +5V Power + 5V Power

19 19 Hot Plug Hot Plug Detect

S S Shield Shield

OPERATION

Note

When all LEDs are lighted all LEDs will decrease brightness.

Master unit shorted pins LED will be brighter than others when

shorted 2 pins above that is correct.

Shield LED will light up after #1~19 LEDs light up in sequence

on any testing mode. If the HDMI cable has a shield, the

Shield LED will light up, if without shield the LED will be

unlighted. 4

Power off：

Slide upper left switch to “OFF”，”POWER” LED will go out and the

unit will no longer work when pushing the “TEST” button.

Master unit loop continuity scan testing function

Note

When performing master unit scan test, sequence of LEDs

light up as below.

LED#1 (Data 2﹢)→LED#10 (Clock ﹢)→LED#S (Shield)→

LED#11 (Clock S)。

※ Insert one of A type connector of cable to Master unit

LOOPBACK (A Type) socket and insert the other one to

Master unit MAIN (A Type) socket for test HDMI cable A type

to A type.

※ Insert A type connector of cable to Master unit LOOPBACK (A

Type) socket and insert C type connector of cable to Master

unit Mini-HDMI (C Type) for test HDMI cable A type to

Mini-HDMI (C Type).

1. Slide upper left switch to “MASTER” then “POWER” LED

lights up, Master unit #1~19 and “Shield” LEDs will all light

up with a long beep sound then all LEDs are off except

“POWER”LED for saving power and the unit is ready for

testing.

2. Push “TEST” button to perform master unit continuity scan

test, it will continually scan 1~19 pin and shield conductor,

Master unit #1~19 and Shield LEDs will light up in

sequence fast, finally master unit LED will indicate testing

result with sound as below. The testing result will keep 5

second then all LEDs are off except “POWER” LED for

saving power. Press “TEST” button again for test.

3. Master unit scan test result with beep sound as below.

Straight：With a long “beep” sound: Meaning 1~19pin

and S pin all straight connected. (Fig 2.)

Open：with a short “beep” sound。No connected pins LED

are off. Example: Test HDMI (A Type) to HDMI (AType)

cable that pin #2, #5, #8 and #11 are not connected , or

test HDMI (A Type) to Mini-HDMI (C Type) cable that pin

#1、#4、#7、#10 are not connected. (Fig 3.)

Short：With three short “beep” sound. Shorted pins LED

will light up at same time. Example: Test HDMI (A Type)

to HDMI (AType) cable that pin #4、#5、#6 are shorted or

test HDMI (A Type) to Mini-HDMI (C Type) cable that pin

#4、#5、#6 are shorted. (Fig 4.)

Crossover：With two short “beep” sound. Crossed pins

LED will light on at same time. Example: Test HDMI (A

Type) to HDMI (AType) cable that pin #13 crossed with

pin #17 and pin #14 crossed with pin #19, or test HDMI A

Type) to Mini-HDMI (C Type) cable that pin #14 crossed

with pin #13 and pin #17 crossed with pin #19. (Fig 5.)

Fig 2. Straight Fig 3. Open

Fig 4. Short Fig 5. Crossover

Master unit with Remote unit automatic testing function

※ Insert one of A type connector of cable to Master unit MAIN (A

Type) socket and insert the other one to Remote unit A Type

connector for test HDMI cable A type toA type.

※ Insert A type connector to Master unit LOOPBACK (A Type)

and insert C type connector to Remote unit Mini-HDMI (C

Type) for test HDMI cable A type to Mini-HDMI (C Type).

※ Insert one of C type connectors of cable to Master unit

Mini-HDMI (C Type) socket and insert the other one to Remote

unite (C Type) socket for test HDMI cable Mini-HDMI (C Type)

to Mini-HDMI (C Type) socket.

1. Slide upper left switch to “REMOTE” then “POWER” LED

lights up. Master unit #1~19 and “Shield” LEDs will all light

up with a long beep sound then Master unit and Remote

unit both #1~19 and “Shield” LEDs will indicate tested

result. Testing result will keep 12 seconds then all of LED

are off except “POWER”LED for saving power.

2. Press “ TEST” button then Master unit and Remote unit

both #1~19 and “Shield” LEDs will indicate tested result.

Testing result will keep 12 seconds then all LEDs are off

except “POWER”LED for saving power.

3. LED indicates test result as below:

Straight：Master unit and Remote unit both testing

pin #1~19 and “Shield” LEDs are all lighted up. (Fig

6.)

Open：Master unit and Remote unit both no

connected pins LEDs are off. (Fig 7.)

Short：Master unit testing short pin LEDs brighter

than others. Remote unit shorted pins LEDs are off.

(Fig 8.)

Crossover：It can’t be tested on this mode.

Master unit with Remote unit slow continuity scan testing

function：

1. Press “ TEST“ button during LED indicate automatic

testing result or Press twice “ TEST“ button before LED off

for perform automatic testing, it will continually scan

#1~#19 pin and shield conductor. Master unit and Remote

unit both #1~19 and Shield LEDs will light up in sequence

very slow and sustained repeated automatic scan

2. LED indicate testing result as below：

Straight：Master unit and Remote unit both testing

pins #1~19 and Shield LEDs are all lighted up in

sequence. (Fig 6.)

Open：Master unit and Remote unit both LEDs are

off when scan to no connected pins, others LEDs are

all lighted up in sequence. Example : Test HDMI (A

Type) to HDMI (AType) cable that pin #2、#5、#8、

#11 are not connected, or test HDMI (A Type) to

Mini-HDMI (C Type) cable that pin #1、#4、#7、#10 are

not connected, or test Mini-HDMI (C Type) to

Mini-HDMI (C Type) cable that pin #1、#4、#7、#10 are

not connected. (Fig 7.)

Short：Master unit LED brighter than others and

Remote unit LED off when scan to shorted pins,

Master unit and Remote unit both LED are all lighted

up in sequence, Example : Test HDMI (A Type) to

HDMI (AType) cable that pin #4、#5、#6 are shorted,

or teat HDMI (A Type) to Mini-HDMI (C Type) cable

that pin #4、#5、#6 are shorted, or test Mini-HDMI (C

Type) to Mini-HDMI (C Type) cable that pin #4、#5、

#6 are shorted. (Fig 8.)

Crossover：Master unit LEDs light up in sequence

and Remote unit LEDs light up sequence by crossed

pins, Example : test HDMI (AType) to HDMI (A

Type) cable that pin #13 with pin#17 are crossed and

pin #14 with pin #19 are crossed, or test HDMI (A

Type) to Mini-HDMI (C Type) cable pin #13 with pin

#13 and pin #14 with pin #19 are crossed, or test

Mini-HDMI (C Type) to Mini-HDMI (C Type) cable pin

#14 with pin #13 are crossed and pin #17 crossed

with #19 are crossed. (Fig 9.)

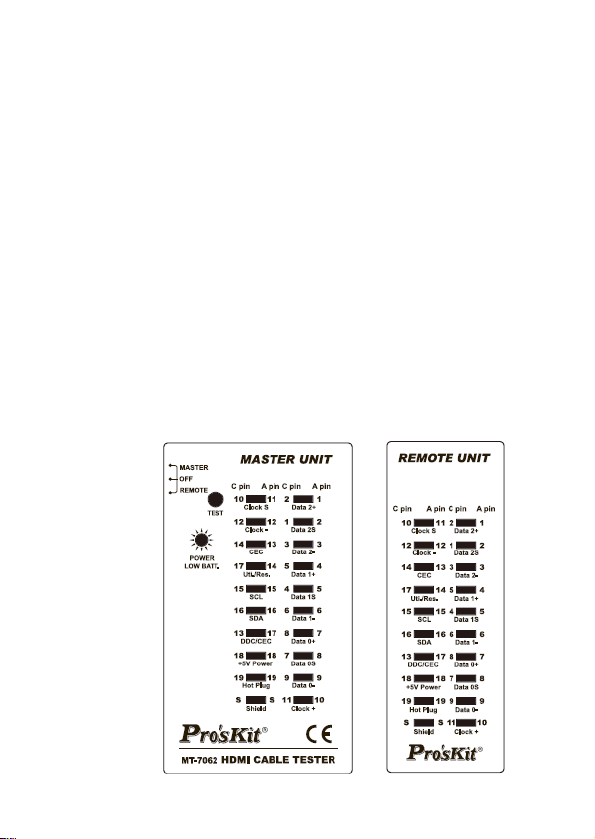

Fig 6. Straight

Tabla de contenidos

Otros manuales de Equipo de prueba de Pro's Kit

Pro's Kit

Pro's Kit MT-7071 Manual de usuario

Pro's Kit

Pro's Kit N2 Series Manual de usuario

Pro's Kit

Pro's Kit 8PK-4103IN Manual de usuario

Pro's Kit

Pro's Kit MT-8006B Manual de usuario

Pro's Kit

Pro's Kit MT-7801-FC Manual de usuario

Pro's Kit

Pro's Kit MT-7071N Manual de usuario

Pro's Kit

Pro's Kit NT-305 Manual de usuario

Pro's Kit

Pro's Kit MT-7063 Manual de usuario

Pro's Kit

Pro's Kit MT-7076 Manual de usuario

Pro's Kit

Pro's Kit NT-309 Manual de usuario

Pro's Kit

Pro's Kit MT-7068 Manual de usuario

Pro's Kit

Pro's Kit MT-7801 Manual de usuario

Manuales populares de Equipo de prueba de otras marcas

SMART

SMART KANAAD SBT XTREME 3G Series Manual de usuario

Agilent Technologies

Agilent Technologies BERT Serial Manual de usuario

Agilent Technologies

Agilent Technologies N3280A Manual de usuario

Vernier

Vernier Go Direct Voltage Manual de usuario

Lifeloc

Lifeloc R.A.D.A.R. Manual de usuario

Fluke

Fluke T5-600 Instrucciones de funcionamiento e instalación

Mercury

Mercury TSL01 Manual de usuario

MAHA

MAHA MBT Series Manual de usuario

Fuji Electric

Fuji Electric P-61 Manual de usuario

ETC

ETC SealerAtor Manual de usuario

Skyfine

Skyfine ETHYWAY V2 Manual de usuario

Appion

Appion G5 Twin Manual de usuario

PCB Piezotronics

PCB Piezotronics 8159-0112A Manual de usuario

BW Technologies

BW Technologies MicroDock II Manual de usuario

Sun Nuclear

Sun Nuclear 1027 Manual de usuario

Biomark

Biomark HPR LITE READER Manual de usuario

Hioki

Hioki 3169-20 Manual de usuario

Ashcroft

Ashcroft ATE-100 Manual de usuario
