Pro-Ject Audio Systems DAC Box E Manual de usuario

INSTRUCTIONS FOR USE

Pro-Ject DAC Box E

Dear music lover,

thank you for purchasing a Pro-Ject Audio Systems DAC Box E.

In order to achieve maximum performance and reliability you should study these instructions for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

Safety instructions

AC outlet voltages vary from country to country. Before connecting to the mains, make sure that the

voltage in your area meets the voltage requirements printed on the power supply.

The power supply is used to disconnect the unit from the mains. Make sure that the power supply is easily

accessible at all times. Never handle the device, the power supply while your hands are wet or damp.

Avoid letting liquids enter the device or the power supply. Never place any item containing liquid,

such as a flower vase on or near the device. Never spill any liquid on the device or the power supply.

Never place any naked flame sources, such as lighted candles on or near the device. The product shall not

be used in damp or wet locations, next to a bathtub, sink, swimming pool or any other similar conditions.

Connectors

Make all connections whilst the converter is disconnected from the power supply.

Take care to connect the left and right channels correctly. The right channel is usually marked red,

the left channel black or white.

Never use any other power supply than the one supplied with the unit.

Connection to the amplifier

Connect the Analog Output socket to a line input (such as AUX) on your amplifier.

Inputs

Sources with an digital output such as TV satellite/cable receiver or a game console can be connected to the

digital inputs. The inputs cannot be used simultaneously. If both inputs are connected, the optical input has

priority.

Mains power connection

Connect the low voltage plug from the power supply to the Power 18V DC socket before connecting the

power supply to the mains.

Technical specifications Pro-Ject DAC Box E

Line-level output: 1 pair RCA/phono sockets

Output voltage: 0,7Vrms

Digital outputs: 1 x coaxial (S/PDIF),

1 x optical (TOSlink®)

D/A converter: Cirrus Logic CS4344. 24Bit/192kHz

Supported audio format: PCM (LPCM). No support for multi channel formats like Dolby®AC-3 or DTS™

Sampling rates

Optical and coaxial input: 44,1kHz, 48kHz, 96kHz and 192kHz (coaxial)

Outboard power supply: 18V/500mA DC

Power consumption: 200mA DC, <1W in standby

Dimensions W x H x D (D with sockets): 120 x 32 x 100 (106)mm

Weight: 250g without power supply

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only when the problem cannot be resolved there should the

unit be sent to the responsible distributor in your country.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use. Modification or change to any part of the product by unauthorized persons release the

manufacturer from any liability over and above the lawful rights of the customer.

Pro-Ject Audio Systems is a Registered Trademark of

H. Lichtenegger.

This guide was produced by: Pro-Ject Audio Systems

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

TOSlink®is a registered trademark of Toshiba corporation. Dolby®is a registered trademarks of Dolby

Laboratories. DTS™is a registered trademark of DTS, Inc..

Tabla de contenidos

Otros manuales de Convertidor de medios de Pro-Ject Audio Systems

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC Box DS2 ultra Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems Box-Design AD Box 52 Phono Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems USB Box Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC Box FL Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems Stream Box DSA Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC box DS Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC Box DS Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC Box S USB Manual de usuario

Pro-Ject Audio Systems

Pro-Ject Audio Systems DAC Box RS Manual de usuario

Pro-Ject Audio Systems

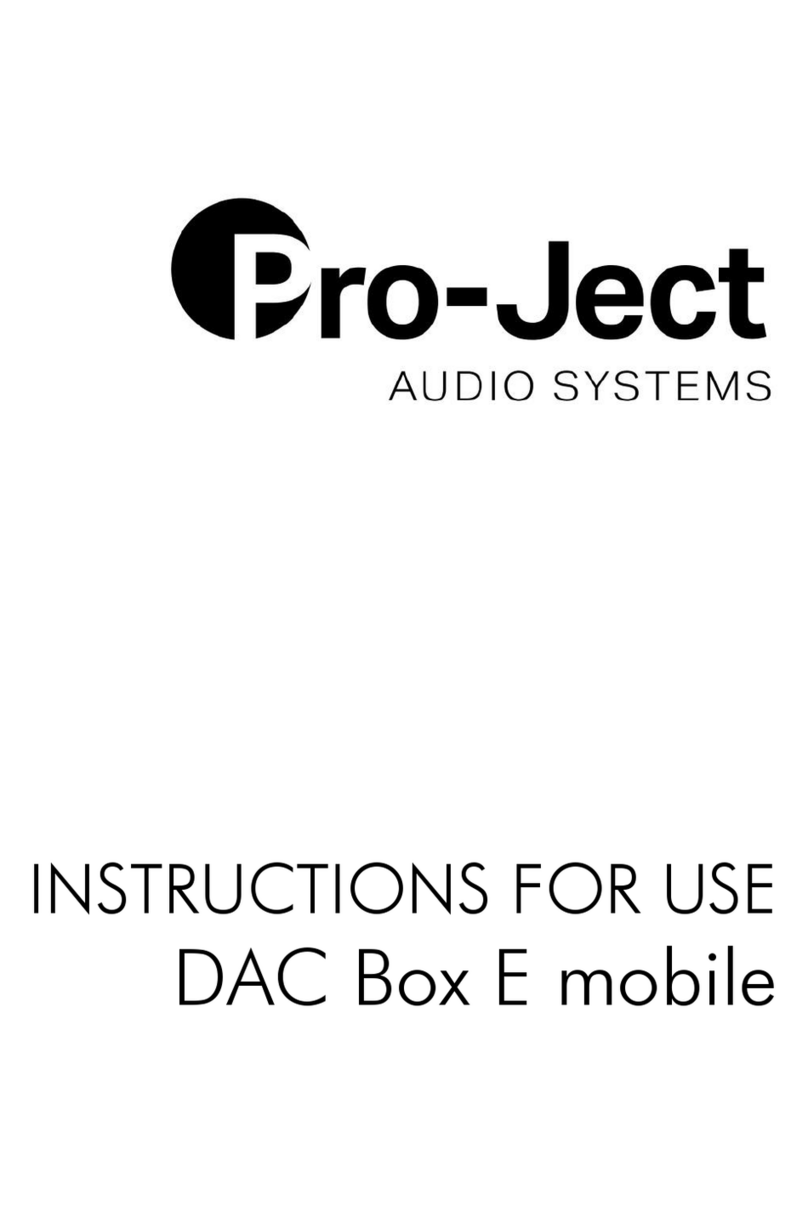

Pro-Ject Audio Systems DAC Box E mobile Manual de usuario
