USERʼS MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Keep this manual
for future reference.
Model No. PFEX19810.0
Serial No.
Write the serial number in the
space above for reference.
www.proform.com
QUESTIONS?
f you have questions, or if parts are
damaged or missing, DO NOT
CONTACT T E STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON T E WEB:
www.proformservice.com
Serial Number
Decal
2
TABLE OF CONTENTS
WARNNGDECALPLACEMENT ..............................................................2
MPORTANTPRECAUTONS ................................................................3
BEFOREYOUBEGN ......................................................................4
PART DENTFCATONCHART ..............................................................5
ASSEMBLY ...............................................................................6
HOWTOUSETHEEXERCSEBKE .........................................................11
FCC NFORMATON.......................................................................23
MANTENANCEANDTROUBLESHOOTNG ...................................................24
EXERCSEGUDELNES ...................................................................25
PARTLST ..............................................................................26
EXPLODEDDRAWNG ....................................................................27
ORDERNGREPLACEMENTPARTS ..................................................BackCover
LMTEDWARRANTY ..............................................................BackCover
PROFORM is a registered trademark of CON P, nc.
WARNING DECAL PLACEMENT
This drawing shows the
location(s) of the warning
decal(s). If a decal is
missing or illegible, see
the front cover of this
manual and request a
free replacement decal.
Apply the decal in the
location shown. Note: The
decal(s) may not be shown
at actual size.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your exercise bike before using your exercise bike.
ICON assumes no responsibility for personal injury or property damage sustained by or through the
use of this product.
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or per-
sons with pre-existing health problems.
2. Use the exercise bike only as described in
this manual.
3. It is the responsibility of the owner to ensure
that all users of the exercise bike are ade-
quately informed of all precautions.
4. The exercise bike is intended for home use
only. Do not use the exercise bike in a com-
mercial, rental, or institutional setting.
5. Keep the exercise bike indoors, away from
moisture and dust. Do not put the exercise
bike in a garage or covered patio, or near
water.
6. Place the exercise bike on a level surface,
with a mat beneath it to protect the floor or
carpet. Make sure that there is at least 2 ft.
(0.6 m) of clearance around the exercise bike.
7. Inspect and properly tighten all parts regu-
larly. Replace any worn parts immediately.
8. Keep children under age 12 and pets away
from the exercise bike at all times.
9. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the exercise bike. Always wear
athletic shoes for foot protection.
10. The exercise bike should not be used by
persons weighing more than 350 lbs.
(159 kg).
11. Always keep your back straight while using
the exercise bike; do not arch your back.
12. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
IMPORTANT PRECAUTIONS
4
Thank you for selecting the new PROFORM®1350
exercise bike. Cycling is an effective exercise for
increasing cardiovascular fitness, building endurance,
and toning the body. The 1350 exercise bike provides
a selection of features designed to make your work-
outs at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the exercise bike. f you have questions
after reading this manual, please see the front cover
of this manual. To help us assist you, note the product
model number and serial number before contacting
us. The model number and the location of the serial
number decal are shown on the front cover of this
manual.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Seat
Adjustment Knob
Seat Carriage
Adjustment Knob
Handlebar
Water Bottle Holder
Wheels
BEFORE YOU BEGIN
Pedal/Strap
Console
Leveling Foot
Power Cord
Power Switch
Length: 4 ft. 10 in. (147 cm)
Width: 2 ft. 1 in. (64 cm)
5
5/16" x 3/4" Patch
Screw (92)–1
#8 x 3/4"
Screw (94)–6
5/16" x 2 1/4" Patch
Screw (81)–1
#8 x 1/4"
Screw (70)–1
3/8" x 2 1/4" Patch
Screw (74)–4
PART IDENTIFICATION C ART
See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART L ST near the end of this manual. The number following the key
number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it has
been preattached. To avoid damaging parts, do not use power tools for assembly.
6
1
22
27
27
74
1
1. dentify the Front Stabilizer (22), which has
Wheels (27).
Attach the Front Stabilizer (22) to the Base (1)
with two 3/8" x 2 1/4" Patch Screws (74).
•To hire an authorized service technician
to assemble the exercise bike, call
1-800-445-2480.
•Assembly requires two persons.
• Place all parts in a cleared area and remove
the packing materials. Do not dispose of the
packing materials until you complete all
assembly steps.
• To identify small parts, see page 5.
•In addition to the included tool(s), assembly
requires:
one Phillips screwdriver
one adjustable wrench
Assembly will be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
ASSEMBLY
7
2
2. Attach the Rear Stabilizer (23) to the Base (1)
with two 3/8" x 2 1/4" Patch Screws (74).
74
23
1
3
2
3
3. Orient the Seat Post (3) as shown.
Loosen the indicated Post Knob (47) and pull it
outward. Then, insert the Seat Post (3) into the
Frame (2).
Move the Seat Post (3) upward or downward to
the desired position, release the Post Knob (47)
into an adjustment hole in the Seat Post, and
then tighten the Post Knob. Make sure that the
Post Knob is firmly engaged in an adjust-
ment hole. 47
Holes
5
8
4
4
29
70
3
4. Orient the Seat Carriage (4) as shown.
Locate the Seat Knob (29) on the Seat Post (3).
Loosen the Seat Knob and pull it downward.
Then, insert the Seat Carriage (4) into the Seat
Post.
Slide the Seat Carriage (4) to the desired posi-
tion, release the Seat Knob (29) into one of the
adjustment holes in the Seat Carriage, and then
tighten the Seat Knob. Make sure that the
Seat Knob is firmly engaged in an adjust-
ment hole.
Tighten a #8 x 1/4" Screw (70) into the under-
side of the Seat Carriage (4).
Holes
5. Orient the Handlebar Post (6) as shown.
Have a second person hold the Handlebar Post
(6) near the Frame (2). Locate the wire tie in the
lower end of the Handlebar Post. Tie the wire
tie to the Lower Wire (69). Then, pull the upper
end of the wire tie until the Lower Wire is routed
upward through the Handlebar Post.
Tip: Avoid pinching the Lower Wire (69).
Loosen the indicated Post Knob (47) and pull it
outward. Then, insert the Handlebar Post (6)
into the Frame (2).
Move the Handlebar Post (6) upward or down-
ward to the desired position, release the Post
Knob (47) into an adjustment hole in the
Handlebar Post, and then tighten the Post
Knob. Make sure that the Post Knob is firmly
engaged in an adjustment hole.
6
2
69
47
Holes
Wire Tie
Avoid pinching the
Lower Wire (69)
9
6
6. Orient the Handlebar (7) as shown.
While a second person holds the Handlebar (7)
near the Handlebar Post (6), connect the Upper
Wire (68) to the Lower Wire (69).
nsert the wires into the Handlebar Post (6).
Tip: Avoid pinching the wires. Attach the
Handlebar (7) to the Handlebar Post (6) with a
5/16" x 3/4" Patch Screw (92) and a 5/16" x 2
1/4" Patch Screw (81).
Avoid pinching
the wires
69
68
7
81 92
6
7
8
94
7
7. Orient the Handlebar Cover (8) as shown.
Attach the Handlebar Cover (8) to the
Handlebar (7) with two #8 x 3/4" Screws (94).
Tip: First, insert the front #8 x 3/4" Screw
(94) through the andlebar (7). Next, set the
andlebar Cover (8) on the andlebar and
tighten the front Screw. Then, tighten the
rear #8 x 3/4" Screw (94) into the andlebar
and the andlebar Cover.
63
61
8. dentify the Left Pedal (61), which is marked
with an “L.”
Using an adjustable wrench, firmly tighten the
Left Pedal (61) counterclockwise into the Left
Crank Arm (63).
Tighten the Right Pedal (not shown) clockwise
into the Right Crank Arm (not shown).
8
94
Front
Rear
10
11. Remove the screw and the cover from the back
of the Console (9).
Remove the paper from the adhesive pad on
the back of the receiver. Press the receiver onto
the indicated location inside the cover.
Connect the wire on the receiver to the wire in
the Console (9). Then, reattach the cover with
the screw.
Note: Discard any other wires that are included
with the heart rate monitor.
If you purchase the optional heart rate monitor (see page 22), follow the additional step below to install
the receiver included with the heart rate monitor.
Wires
Receiver
9
9
Cover
Screw
Attach
receiver
here
9
11
9. Locate the Upper Wires (68) inside the
Handlebar (7).
While a second person holds the Console (9)
near the Handlebar (7), connect the wires on
the Console to the Upper Wires (68). Then,
insert the wires into the Handlebar.
Tip: Avoid pinching the wires. Slide the
Console (9) onto the Handlebar (7).
Attach the Console (9) with four #8 x 3/4"
Screws (94).
10. Make sure that all parts are properly tightened before you use the exercise bike. Note: After assembly
is completed, some extra parts may be left over. Place a mat beneath the exercise bike to protect the floor.
9
7
68
68
94
Avoid pinching
the wires
Cover
Cover
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Bicicleta estática de Pro-Form
Pro-Form
Pro-Form 290SPX Manual de usuario
Pro-Form
Pro-Form PFEL14721-INT.0 Manual de usuario
Pro-Form
Pro-Form 920 S EKG Manual de usuario
Pro-Form

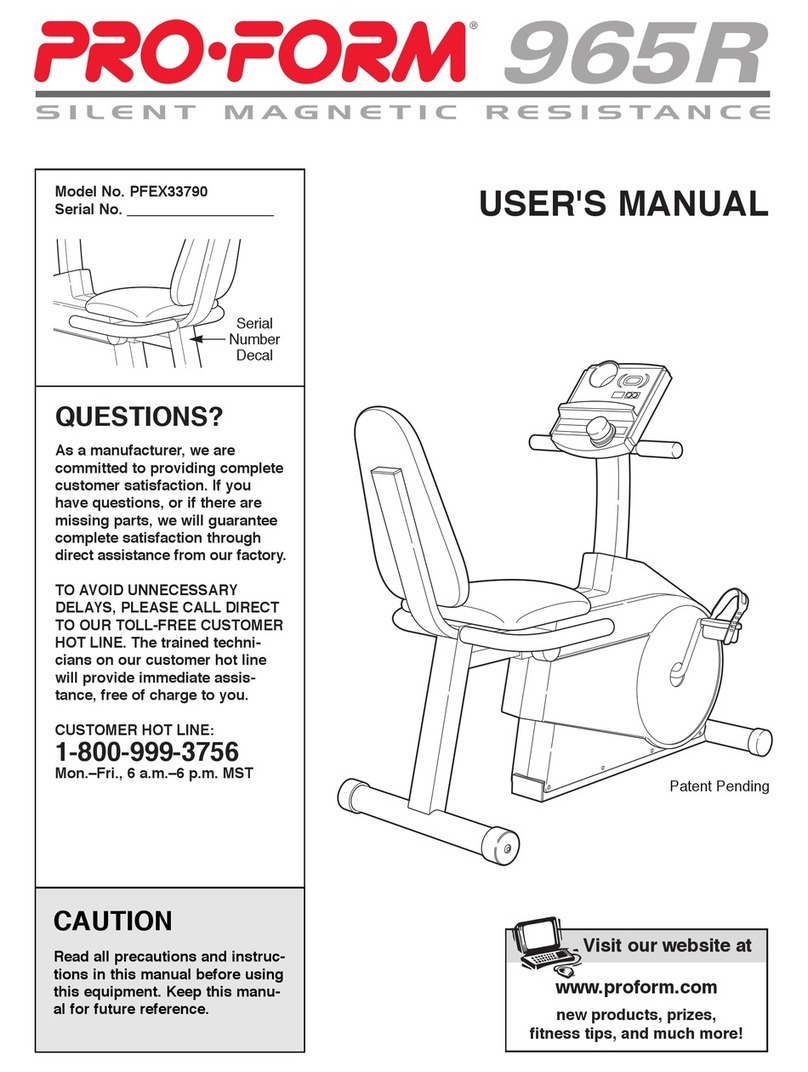

Pro-Form PFEX33790 Manual de usuario
Pro-Form
Pro-Form 385 CSX Manual de usuario
Pro-Form
Pro-Form 280 Zlx Bike Manual de operación y mantenimiento
Pro-Form
Pro-Form WHIRLWIND DUAL ACTION Manual de usuario
Pro-Form
Pro-Form 785 Watts Bike Manual del sistema
Pro-Form
Pro-Form 215 Csx Bike Manual de usuario
Pro-Form
Pro-Form 280 Csx Bike Manual de usuario
Pro-Form
Pro-Form 110 R Manual de usuario
Pro-Form
Pro-Form Smart Power 10.0 Manual de usuario
Pro-Form
Pro-Form 762 Ekg Bike Manual de usuario
Pro-Form
Pro-Form 740 Ekg Bike Manual de usuario
Pro-Form
Pro-Form 740 Ekg Bike Guía de inicio rápido
Pro-Form
Pro-Form 800 Tr Intrac Erg Bike Guía de inicio rápido
Pro-Form
Pro-Form PFEX6976.0 GT 120 Manual de usuario
Pro-Form
Pro-Form XP WhirlWind 280 Manual de usuario
Pro-Form
Pro-Form 780 Ekg Bike Manual de usuario
Pro-Form
Pro-Form 110 R Manual de usuario
