INSTRUCTION MANUAL
Specifications
Wingspan ________________ 1420mm
Fuselage length ___________ 1090mm
Engine 2-cycle ____________ .40 - .46 Cu in
Engine 4-cycle ____________ .48 - .53 Cu in
ecommended C Unit _____ 4 Channel
(Minimum)
Kit Features
• eady made – minimal assembly and
finishing required
• Pre-joined and fibre glassed wing
• eady covered
• All Balsa fuselage construction
• Foam core wing for strength and
accuracy
• Detailed instruction manual
1
Pro Built Easy Fly 40
PLEASE EAD THIS INST UCTION
MANUAL CA EFULLY BEFO E BEGINNING
CONST UCTION
EASY FLY 40
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
INST UCTION MANUAL
EASY FLY 40
ADDITIONAL ITEMS REQUIRED
• RADIO
- adio control unit with 4 or more channels
and 4 servos
• TOOLS REQUIRED
- Large knife
- No. 11 exacto knife
- Electric drill
- Phillips head screwdriver
- 2mm drill bit
- 3.5mm drill bit
- Pointy nose pliers
• ENGINE PROPELLER AND SPINNER
- Engine 40-46 Cu in 2 cycle
48-53 Cu in 4 cycle
- Propeller to suit engine
- Spinner (optional)
• THIN CA GLUE
• ALSO REQUIRED
- 30cm of silicone fuel line
- Piece if foam 30cmx30cm squared x13mm
thick
2
INST UCTION MANUAL
EASY FLY 40
-Using No 11 knife, remove a small
amount of material from around the aileron
torque rods to allow 45 Deg. rearward and
forward movement.
-Detach aileron from the main wing panel.
-Using thin CA glue, fix hinges into aileron
-Fit aileron to main wing panel and using
thin CA glue fix hinges into wing panel.
3
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
Wing Assembly
INST UCTION MANUAL
EASY FLY 40
-Using a large knife, adjust the size of the
aileron hole to fit the aileron servo.
-Clear white foam from inside of the
aileron hole to allow the aileron servo to
fit inside the hole.
-Install the aileron servo into the servo
hole.
4
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
Wing Assembly
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
INST UCTION MANUAL
EASY FLY 40
-Locate aileron pushrods in the kit.
-Measure distance from aileron servo arm
to aileron torque rods.
-Using pointy nose pliers, make a Z bend
in the unthreaded end of each pushrod,
to correspond to the distance measure
ment.
-Install aileron servo pushrods.
5
MEASURE
Wing Assembly
INST UCTION MANUAL
EASY FLY 40
-Locate nose gear components in kit.
-Assemble nose gear as shown
-Bolt nose gear to the firewall using the 4
pre-drilled holes
-Drill a 3.5mm hole in the firewall for nose
wheel steering cable to exit.
-Install steering cable.
6
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
Nose Installation
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
INST UCTION MANUAL
EASY FLY 40
-Locate fuel tank pack and assemble the
stopper assembly as shown.
-Install fuel tank into fuselage.
-Pack 13mm thick foam around the fuel
tank. (Not shown in photo)
7
Fuel Tank Assembly
INST UCTION MANUAL
EASY FLY 40
-Locate main undercarriage components
-Assemble main undercarriage, fixing a
wheel collar each side of the wheel.
8
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
Main Undercarriage Installation
Engine Installation
-Place the engine between hardwood
bearers, and mark the position of the
holes.
-Then drill 4 pilot holes with 2mm-drill bit.
• Note – due to differing engine sizes, it
maybe necessary to adjust the width of
space between the two engine bearers.
INST UCTION MANUAL
EASY FLY 40

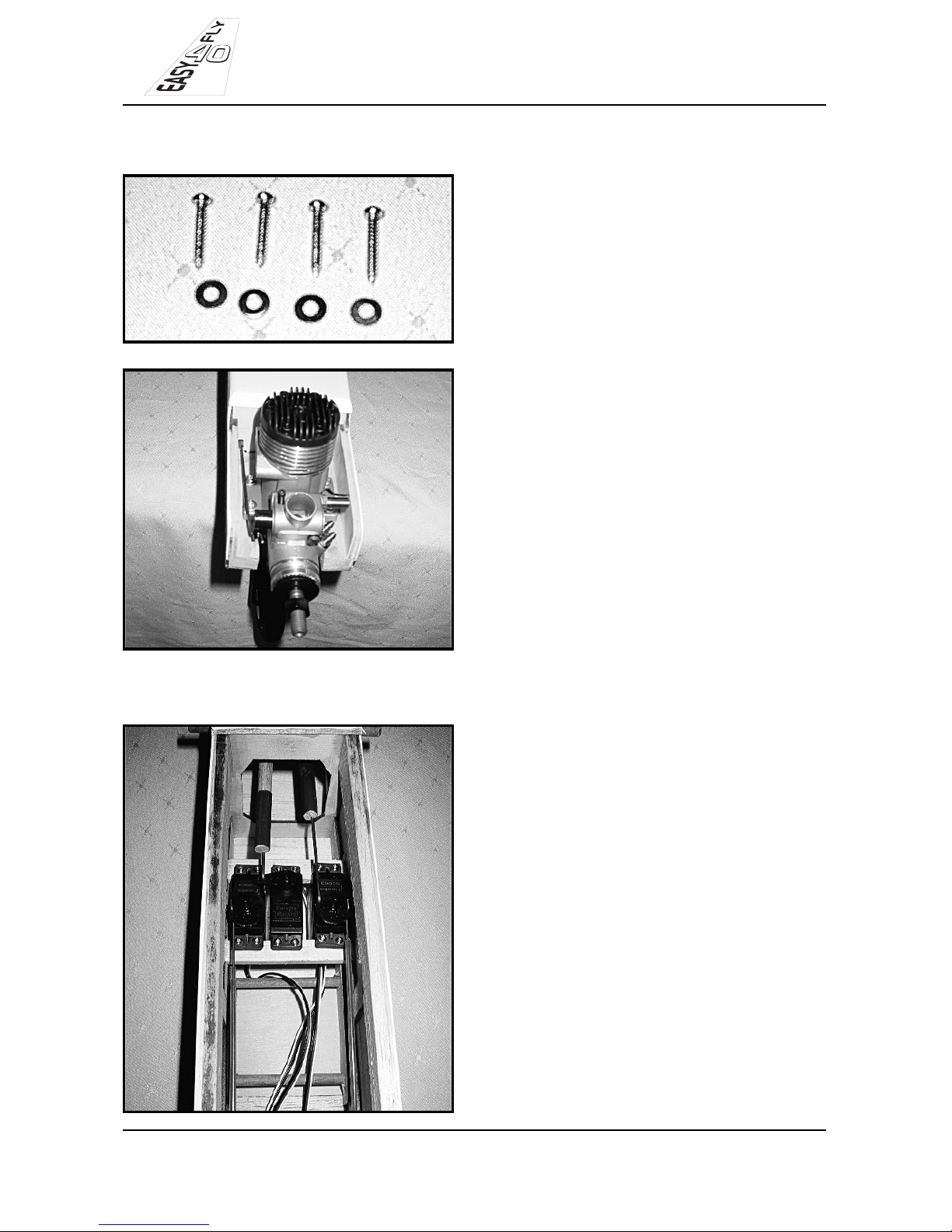

-Locate the 4 self-tapping screws and
washers in kit.
-Fix engine into fuselage using self-tap-
ping screws.
-Install throttle cable.
9
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
-Install the rudder, elevator and throttle
servos into the fuselage.
• Note - because of differing servo sizes
the mounting beams may need to be
trimmed to allow servos to fit.
Servo Installation in Fuselage
INST UCTION MANUAL
EASY FLY 40
-Locate the 4 wing and main under car-
riage dowels in the kit.
-Locate the pre-drilled dowel mounting
holes beneath the film covering.
-Puncture film covering and install wing
and undercarriage dowels using CA glue.
10
DISTRIBUTED BY TATES PERFORMANCE HOBBIES Ph. 03-5222 7958
Wing and Undercarriage Dowels
Horizontal Stabilizer
-Locate horizontal stabilizer and 3mm
steel elevator joining rod in the kit.
-Slide horizontal stabilizer into the slot
in the fuselage.
-Glue in place with CA glue.
** NOTE
-Ensure horizontal stabilizer is pushed
all the way forward in the slot.
-Ensure horizontal stabilizer is square
and centered in the fuselage before
gluing.
