Pride Mobility Jazzy Select Series Manual de usuario

Owner’s Manual

Including Models: Jazzy Select, Jazzy Select 6, and Jazzy Select 6 with Power Seat

SAFETY GUIDELINES

WARNING! An authorized Pride Provider or a qualied technician must perform the initial setup

of this power chair and must perform all of the procedures in this manual.

The symbols below are used throughout this owner’s manual and on the power chair to identify warnings and

important information. It is very important for you to read them and understand them completely.

WARNING! Indicates a potentially hazardous condition/situation. Failure to follow designated

procedures can cause either personal injury, component damage, or malfunction. On the

product, this icon is represented as a black symbol on a yellow triangle with a black border.

MANDATORY! These actions should be performed as specied. Failure to perform mandatory

actions can cause personal injury and/or equipment damage. On the product, this icon is

represented as a white symbol on a blue dot with a white border.

PROHIBITED! These actions are prohibited. These actions should not be performed at any

time or in any circumstances. Performing a prohibited action can cause personal injury and/or

equipment damage. On the product, this icon is represented as a black symbol with a red circle

and red slash.



The intended use of the Pride Mobility Products device is to provide mobility to persons limited to a seated

position that have the capacity of operating a powered wheelchair.



CAUTION! Federal law restricts this device to sale by or on the order of a physician or other

certied personnel licensed by the law of the State (US only) or region in which this personnel

practices to use or order the use of the device.



INFMANU3351/Rev I/October 2018

NOTE: This owner’s manual is compiled from the latest specications and product information available at

the time of publication. We reserve the right to make changes as they become necessary. Any changes to our

products may cause slight variations between the illustrations and explanations in this manual and the product

you have purchased. The latest/current version of this manual is available on our website.

NOTE: This product is compliant with WEEE, RoHS, and REACH directives and requirements.

NOTE: This product meets IPX4 classication (IEC 60529).

NOTE: This product and its components are not made with natural rubber latex. Consult with the manufacturer

regarding any after-market accessories.

Authorized Pride Provider:

Address:

Telephone:

Purchase Date:

Jazzy Select Series www.pridemobility.com 3

USA Variation USA Variation USA Variation

asphalt tarmac backward(s) rearward(s) center centre

color colour cord lead curb kerb

elevator lift meter metre provider dealer; agent

sidewalk pavement tire tyre trunk boot

turn signal turn indicator yard grounds wrench spanner

caster castor pocketbook handbag counterclockwise anticlockwise

authorized authorised path footpath path bridleway

labor labour

CONTENTS

I. INTRODUCTION .................................................................................................................................4

II. SAFETY ...................................................................................................................................................5

III. YOUR POWER CHAIR ......................................................................................................................7

IV. ASSEMBLY...........................................................................................................................................14

V. COMFORT ADJUSTMENTS........................................................................................................17

VI. BATTERIES AND CHARGING....................................................................................................25

VII. CARE AND MAINTENANCE........................................................................................................30

LANGUAGE USAGE

This owner’s manual is intended for distribution in all English-speaking countries where our Power Chairs are

sold. We have chosen to compose this manual using language and spellings common to the USA. Since we

recognize that not all English-speaking countries use the same words or spellings, please refer to the following

chart for some common word variations that may be encountered throughout this manual.

4 www.pridemobility.com Jazzy Select Series

I. INTRODUCTION

SAFETY

WELCOME to Pride Mobility Products (Pride). The power chair you have purchased combines state-of-the-art

components with safety, comfort, and styling in mind. We are condent that these design features will provide

you with the conveniences you expect during your daily activities. Once you understand how to safely operate

and care for your power chair, it should give you years of trouble-free operation and service.

Read and follow all instructions, warnings, and notes in this manual before attempting to operate your power

chair for the rst time. You must also read all instructions, warnings, and notes contained in any supplemental

instructional booklets for the controller, front riggings, and/or seating system that accompanied your power

chair before initial operation. Your safety depends upon you, as well as your provider, caretaker, or healthcare

professional in using good judgement.

If there is any information in this manual which you do not understand, or if you require additional assistance

for setup or operation, please contact your authorized Pride Provider. Failure to follow the instructions in this

manual and those located on your power chair can lead to personal injury and/or damage to the power

chair, and may void the warranty.

PURCHASER’S AGREEMENT

By accepting delivery of this product, you promise that you will not change, alter, or modify this product or remove

or render inoperable or unsafe any guards, shields, or other safety features of this product; fail, refuse, or neglect to

install any retrot kits from time to time provided by Pride to enhance or preserve the safe use of this product.

SHIPPING AND DELIVERY

Before using your power chair, make sure your delivery is complete as some components may be individually packaged.

If you do not receive a complete delivery, please contact your authorized Pride Provider immediately. Where damage

has occurred during transport, either to the packaging or content, please contact the delivery company responsible.

NOTE: If you ever lose or misplace your copy of this manual, contact us and we will be glad to send you a new

one immediately.

Jazzy Select Series www.pridemobility.com 5

Read and follow the information in the owner’s manual.

II. SAFETY

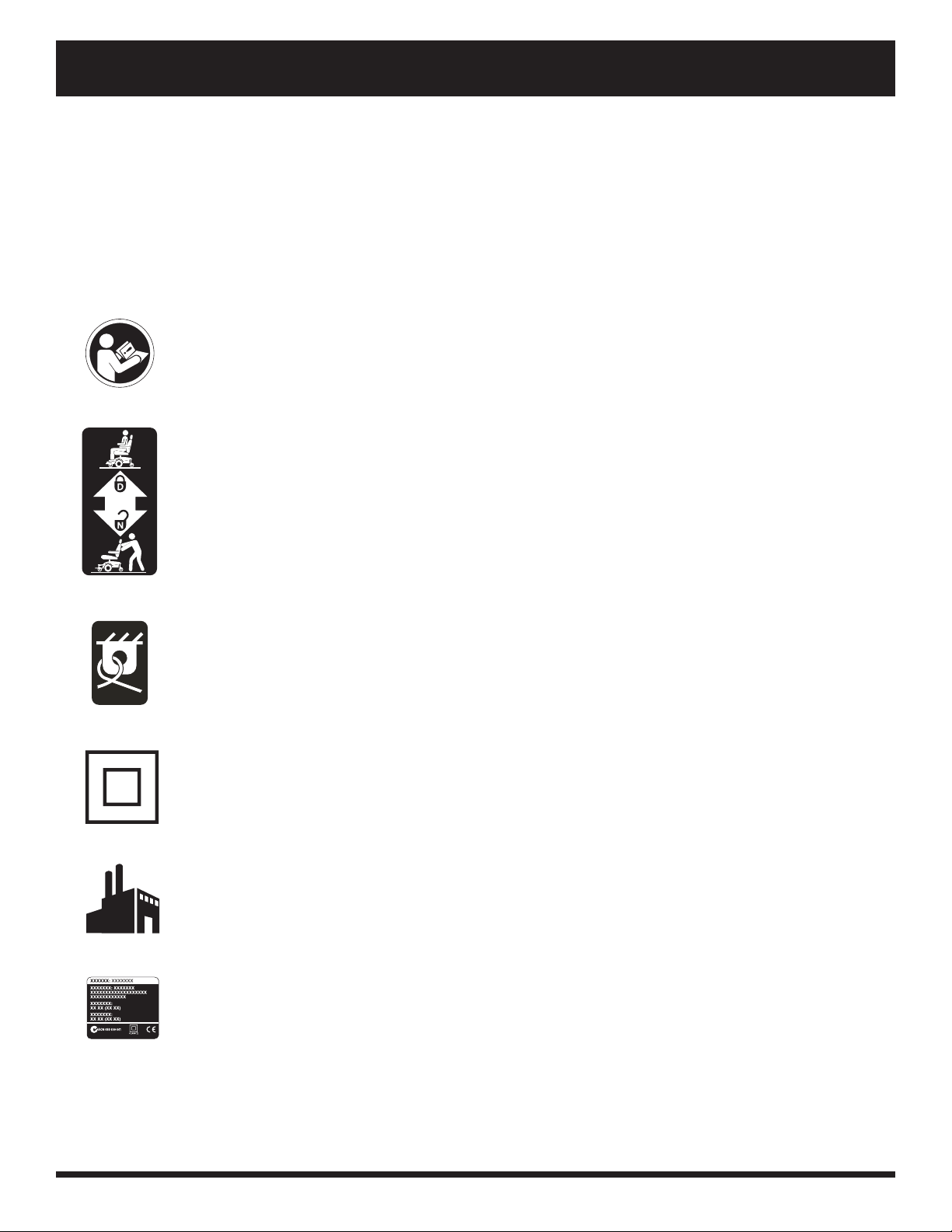

PRODUCT SAFETY SYMBOLS

The symbols below are used on the power chair to identify warnings, mandatory actions, and prohibited actions.

It is very important for you to read and understand them completely.

NOTE: There are more warnings identied and explained in the Consumer Safety Guide that is included with

your power chair. Please become familiar with all the warnings and safety information found in the Consumer

Safety Guide and refer to this resource often.

Locked and in drive mode

Unlocked and in freewheel mode

Place unit on level ground and stand to one side when changing from drive mode to

freewheel mode or freewheel mode to drive mode.

Power Chair information label

Manufactured in

Class II Equipment

Indicates UNOCCUPIED power chair securement points.

6 www.pridemobility.com Jazzy Select Series

II. SAFETY

GENERAL GUIDELINES

MANDATORY! Do not operate your new power chair for the rst time without completely reading

and understanding this owner’s manual.

Your power chair is a state-of-the-art life-enhancement device designed to increase mobility. Pride provides an

extensive variety of products to best t the individual needs of the power chair user. Please be aware that the nal

selection and purchasing decision regarding the type of power chair to be used is the responsibility of the power

chair user, who is capable of making such a decision, and his/her healthcare professional (i.e., medical doctor,

physical therapist, etc.).

The contents of this manual are based on the expectation that a mobility device expert has properly tted the power

chair to the user and has assisted the prescribing healthcare professional and/or the authorized Pride Provider in

the instruction process for the use of the product.

There are certain situations, including some medical conditions, where the power chair user will need to practice

operating the power chair in the presence of a trained attendant. A trained attendant can be dened as a family

member or care professional specially trained in assisting a power chair user in various daily living activities.

As you begin using your power chair during daily activities, you will probably encounter situations in which you

will need some practice. Simply take your time and you will soon be in full and condent control as you maneuver

through doorways, on and o of elevators, up and down ramps, and over moderate terrain.

Below are some precautions, tips, and other safety considerations that will help you become accustomed to

operating your power chair safely.

Pre-Ride Safety Check

Get to know the feel of your power chair and its capabilities. Pride recommends that you perform a safety check

before each use to make sure your power chair operates smoothly and safely.

Perform the following inspections prior to using your power chair:

Check for proper tire ination. Maintain but do not exceed the psi/bar/kPa air pressure rating indicated on

each tire if equipped with pneumatic tires.

Check all electrical connections. Make sure they are tight and not corroded.

Check all controller connections to the power base. Make sure they are secured properly.

Check the brakes. See VII. “Care and Maintenance.”

Check battery charge. See VI. “Batteries and Charging.”

Ensure the manual freewheel levers are in drive mode before sitting on the power chair.

NOTE: If you discover a problem, contact your authorized Pride Provider for assistance.

Jazzy Select Series www.pridemobility.com 7

III. YOUR POWER CHAIR

THE JAZZY SELECT®SERIES POWER CHAIR

The Jazzy Select®Series Power Chair has two main assemblies: the seat assembly (A) and the power base

assembly (B). See gure 1. Typically, the seat assembly includes the armrests, seatback, and seat base. The power

base assembly includes two motor/brake assemblies, two drive wheels, two batteries, and wiring harnesses. The

Select power base is equipped with two rear caster wheels and two front anti-tip wheels, while the Select 6 and

Select 6 with Power Seat is also equipped with four caster wheels. See gures 1, 2, and 3.

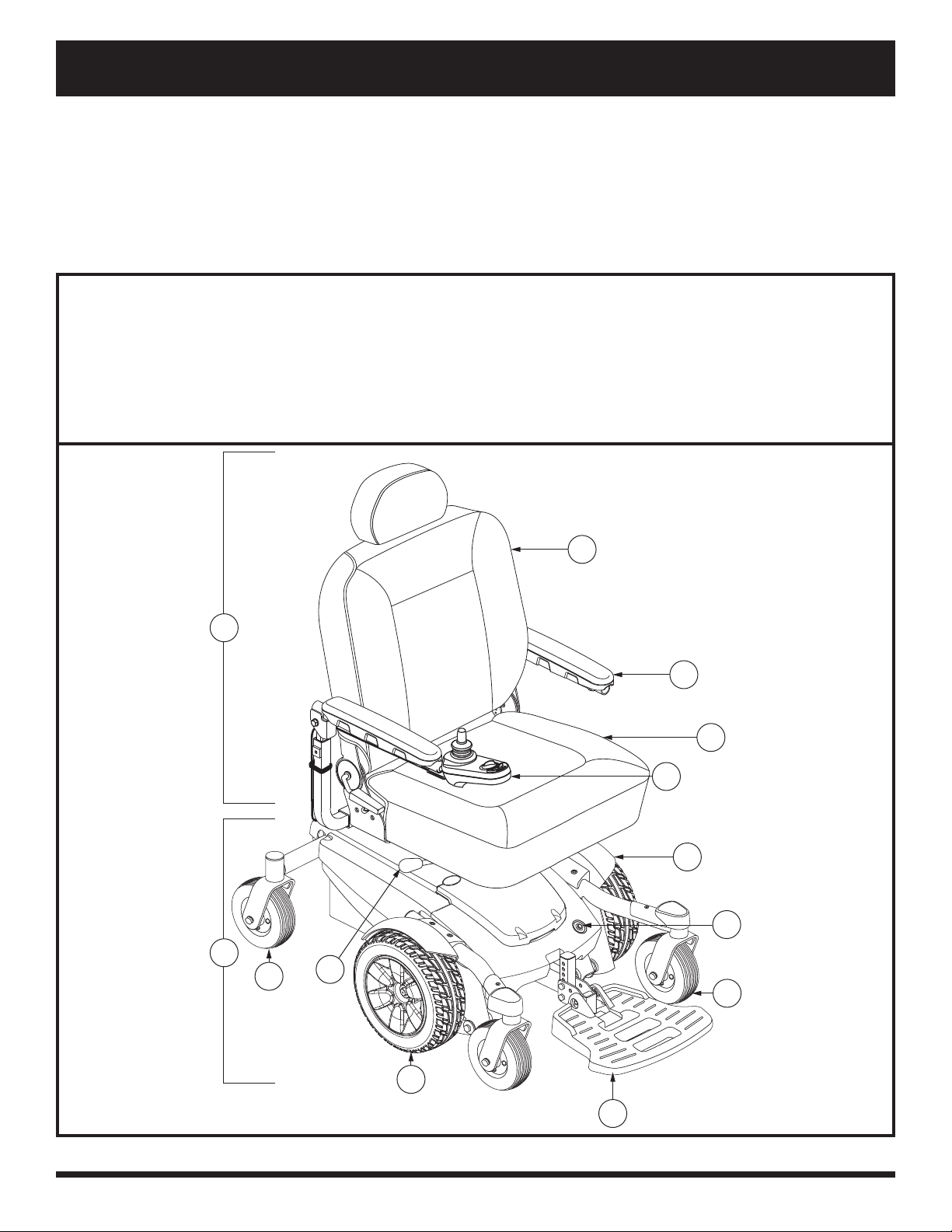

Figure 1. The Jazzy Select Series Power Chair (Jazzy Select 6 Shown)

1. Seatback

2. Armrest

3. Seat Base

4. Controller

5. Top Shroud

6. Main Circuit Breaker

7. Front Caster Wheels

8. Front Riggings (Foot Platform Shown)

9. Drive Wheel

10. Seat Release Lever

11. Rear Caster Wheels

Identiﬁcation Key

8 www.pridemobility.com Jazzy Select Series

III. YOUR POWER CHAIR

Figure 2. The Jazzy Select Power Base

1. Rear Shroud

2. Seat Post

3. Front Cover

4. Main Circuit Breaker

5. Front Anti-Tip Wheels

6. Controller Connector

7. Rear Caster Wheels

Identiﬁcation Key

Jazzy Select Series www.pridemobility.com 9

III. YOUR POWER CHAIR

Figure 3. The Jazzy Select 6 Power Base

1. Rear Shroud

2. Seat Post

3. Front Cover

4. Main Circuit Breaker

5. Front Anti-Tip Wheels

6. Controller Connector

7. Rear Caster Wheels

Identiﬁcation Key

10 www.pridemobility.com Jazzy Select Series

III. YOUR POWER CHAIR

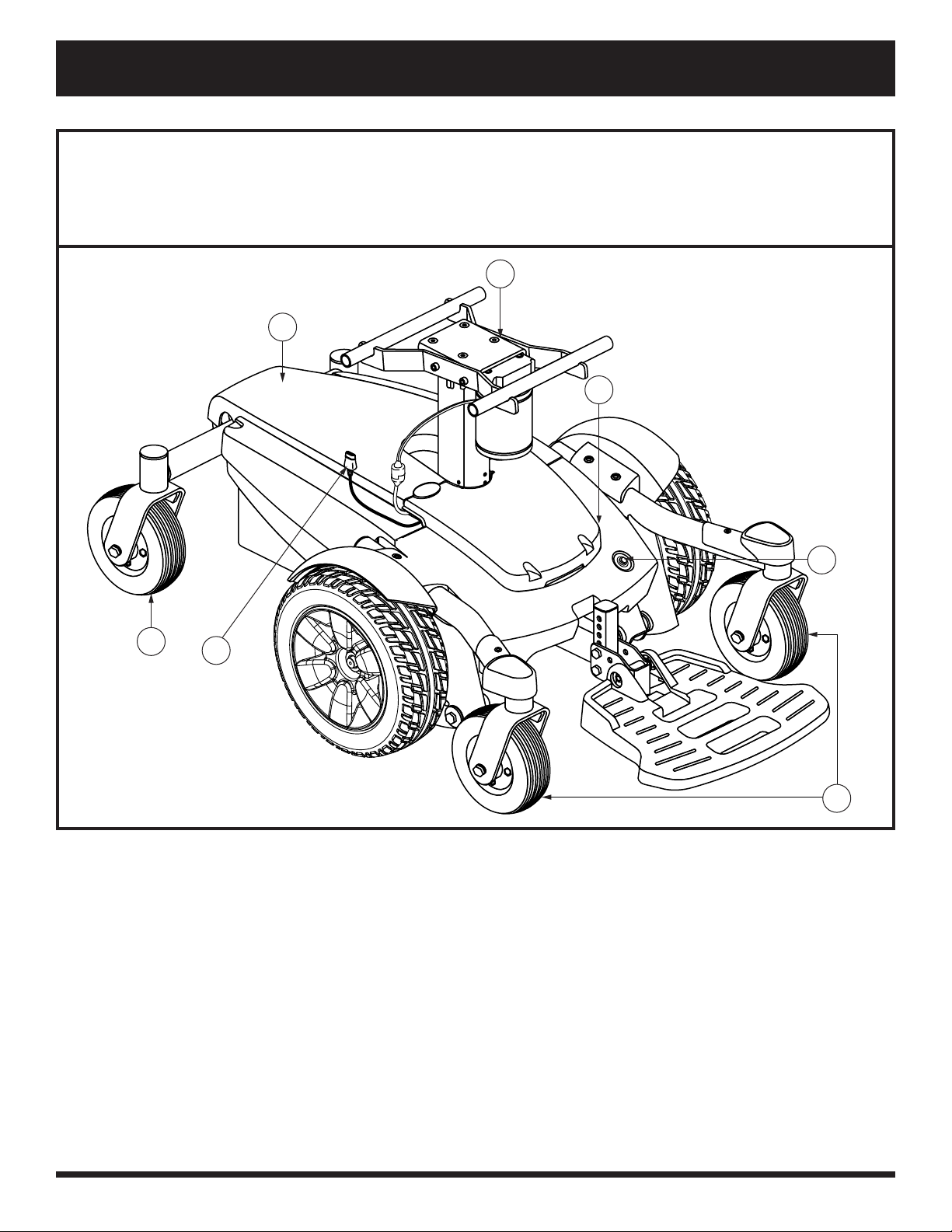

Figure 4. The Jazzy Select 6 with Power Seat Power Base

1. Rear Shroud

2. Power Seat Actuator

3. Front Cover

4. Main Circuit Breaker

5. Front Caster Wheels

6. Controller Connector

7. Rear Caster Wheels

Identiﬁcation Key
