Prestigio P199 Manual de usuario
1PRESTIGIO P199
ENG
All Information in this manual may change from time to time without prior notice.
Safety Instructions
1.Please read these safety instructions carefully.
2.Please keep this User‘s Manual for later reference.
3.Please disconnect this equipment from connecter before cleaning.Don‘t use liquid or sprayed detergent for cleaning.
Use moisture sheet or cloth for cleaning.
4.Make sure the voltage of the power source when you try to connect the equipment to the power outlet.
5.All cautions and warnings on the equipment should be noted.
6.Never pour any liquid into opening,this could cause fire or electrical shock.
7.Never open the equipment.For safety reason,the equipment should only be opened by qualified service personnel.
8.If one of the following situations arises,get the equipment checked by a service personnel :
a.Liquid has penetrated into the equipment.
b.The equipment has been exposed to moisture.
c.The equipment has not work well or you can not get it work according to user‘s manual.
d.The equipment has dropped and damaged.
e.If the equipment has obvious sign of breakage.
9.DO NOT LEAVETHIS EQUIPMENT IN AN ENVIRONMENT UNCONDITIONED,STORAGETEMPERATURE ABOVE 40°C,IT MAY
DAMAGE THE EQUIPMENT.
2PRESTIGIO P199
ENG
View of Monitor
Front View (1)
Back View (2)
3PRESTIGIO P199
ENG
View of Monitor
Side View (3)
Top View (4)
4PRESTIGIO P199
ENG
Unpacking
Thank you for your purchase. Please first check the following package content of the 19” LCD monitor. Contact your
dealer or store where you purchased the LCD monitor if anything is missing.
19”TFT LCD Monitor
External Univ15 pin
D-sub (RGB Analog) Power Cord
input signal cable
*DVI.andVideo are optional*
Audio Cable with CD User’s Manual
Stereo Phone Jack
Quick Start Guide
Warning
1.Make sure that the system power is turned off.
2.Plug the signal cable to the signal connector at the rear of PC.
3.Plug adapter output cable to the jack at the rear of LCD monitor and the power cord to the adapter.
4.Connect the power cord to power source.
5.Turn on the computer and the monitor.
6.For the best display quality,we suggest that you set the resolution as shown on page Display Mode.
5PRESTIGIO P199
ENG
Cleaning Notes
1.Be gentle to clean the screen.
2.Never use any kind of corrosiveness chemical dissolvent to clean the screen,it may hurt your screen surface.
3.We suggest that a camel hair brush or a soft,lint-free cloth be used to clean the screen.
4.Don’t exert any pressure directly to the LCD screen.
Precaution
1.Do not expose the monitor to direct sunlight or heat.
2.Do not spill liquid on the monitor.
3.Do not attempt to open the monitor.You may be hurt by electric shock.For service,call your place of purchase.
4.Do not use your monitor when magnets or electronic products are operating nearby.
5.Do not use harsh chemicals or strong cleaning solvents to clean the monitor screen.Wipe it with clean,soft clothes
applied with mild solution.
6.Do not place anything on your monitor.Bad ventilation may elevate temperature in the monitor.
7.Don’t use your fingers to touch the LCD screen,directly.Fingerprint contains oil and may be difficult to clean.
Features
Power Saving:
The power management complies with VESA DPMS standard. When the system is idle (Off Mode), the monitor
automatically cut its power consumption to a level less than 5w.
Auto Adjustment Key Function:
With“AUTO”key, you can automatically adjust the display for your best view.
Wide Viewing Angle:
The horizontal 160°and vertical 150° offer you great screen view.
Plug and play compatibility:
With DDC1/DDC2B compliance,the monitor is plug and play compatible to Windows 95/98/me/2000/XP.
Space Saving:
The monitor is designed with 280 mm indepth to provide you with more hand room for desk working space.
6PRESTIGIO P199
ENG
Hardware Installation
Be careful to your LCD monitor. It’s very delicate and easy to break.Turn off LCD’s and PC’s power before installation.
Follow the installation step by step described below.

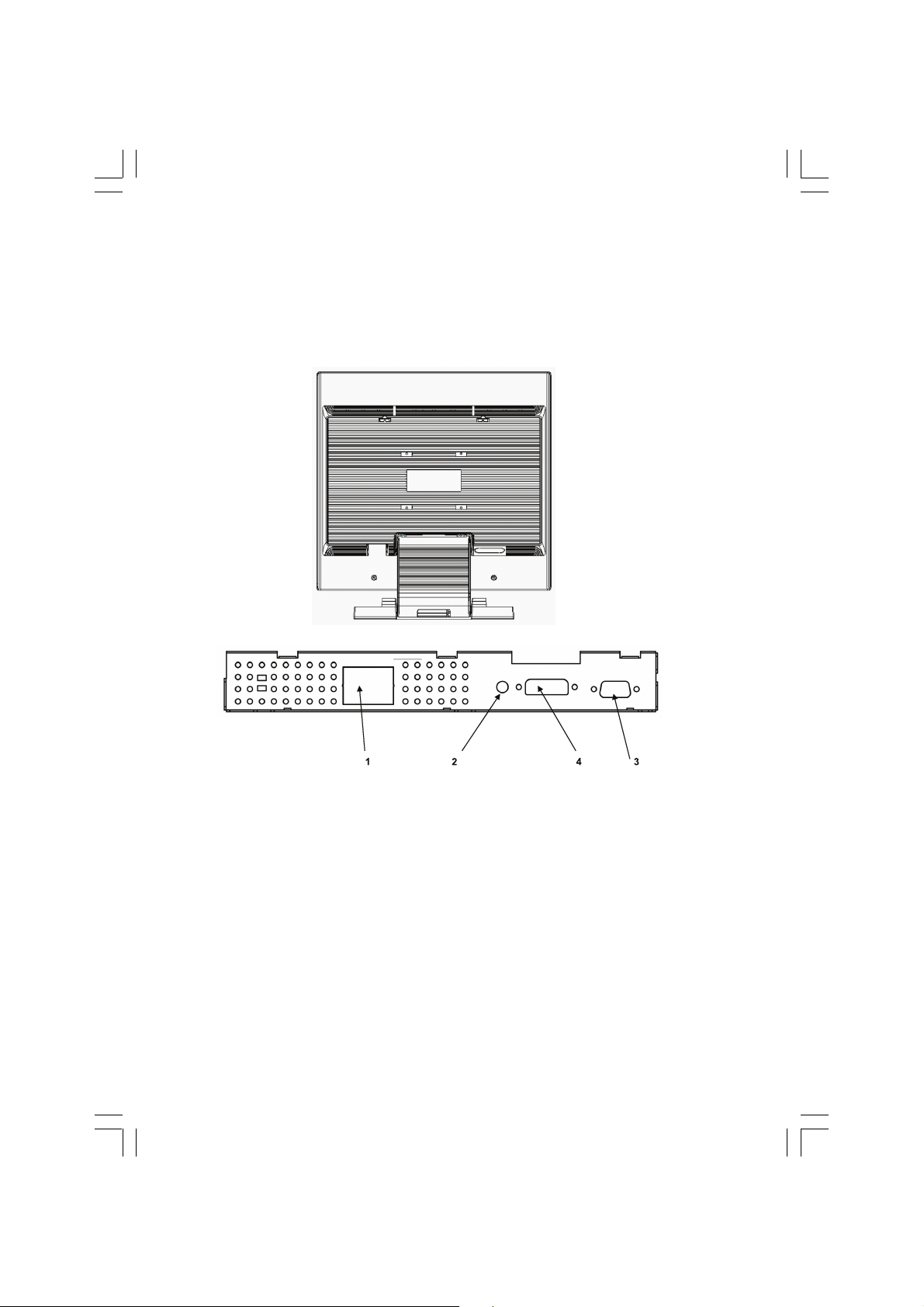

Input
[1] AC-IN :This is for connecting the power cable
[2] AUDIO-IN :This can be connected to the audio-out connector of any sound resource.
[3] VGA-IN :This can be connected with the D-Sub 15 pin signal cable.
[4] DV-IN input :This is the connector for digital video signal inputs (option)
7PRESTIGIO P199
ENG
Hardware Installation Step by Step
1.Turn your monitor upside down carefully with panel facing you to locate all connector port.
2.Plug in signal cable to VGA-IN of the monitor and the other side of the cable to the computer.
3.Connect the audio cable to AUDIO-IN on the monitor,and the other side to computer line out.
8PRESTIGIO P199
ENG
4.Plug in DVI-I signal cable to DVI-I of the monitor and the other side of the cable to the computer. (option)
5 Plug the Power cord onto the connector.
6.Congratulations! You have just completed the hardware installation.
9PRESTIGIO P199
ENG
Monitor Setup Button
Menu control button
There 5 keys for user to set up the monitor, including “Power”,“MENU”,“AUTO”, “\/ Down”,“/\ Up”. Please refer to the
introduction below.
1.“Power”: Turn the LCD power on and off.When the power is on, the light turns green, and standby in the color of
orange.
2.“AUTO”:Exit and save the setting.Hot key for auto adjustment.
3.“MENU”:Press the button to display OSD main menu and select OSD Option.
4.“ Up”: Increase the value in the OSD option. Hot key for PC / Video / S-Video / TV mode.You can use the button to
switch between PC,Video,S-Video, and TV mode screen.
5.“ Down”:Decrease the value in the OSD option .Hot key for volume adjustment.
10 PRESTIGIO P199
ENG
Troubleshooting
If you encounter any trouble in using the monitor,make sure your monitor is properly installed according to the follow-
ing steps before you call for service.
? There is no picture on the screen.
Check:
1.Power saving mode.Press any key and move the mouse to deactivate the mode.
2.Signal Cable Connector Pins.If there are bent or missing pins,consult your dealer or store where you purchased the
monitor.
? Characters look too dark or too bright
Check:
1.Using OSD Menu to adjust the Contrast.
? When shall your monitor be adjusted?
Check:
1.After“ reset”
2.If the resolution of frequency is being changed.
.The text on the screen is unclear.
Check
1. Make sure the resolution matches with the display mode.
OSD (On-Screen Display) Menu Mode (VGA)
Option select
1.Press the MENU button to access menu.
2.Using MENU again for advanced adjustment selection.
3.Press Down and Up for choosing different OSD function.
4.Press MENU as enter to select the function you want.
Contrast:
Adjust the difference between light and
dark area.
