PRESONUS FIRESTUDIO MOBILE - SCHEMA Manual de usuario

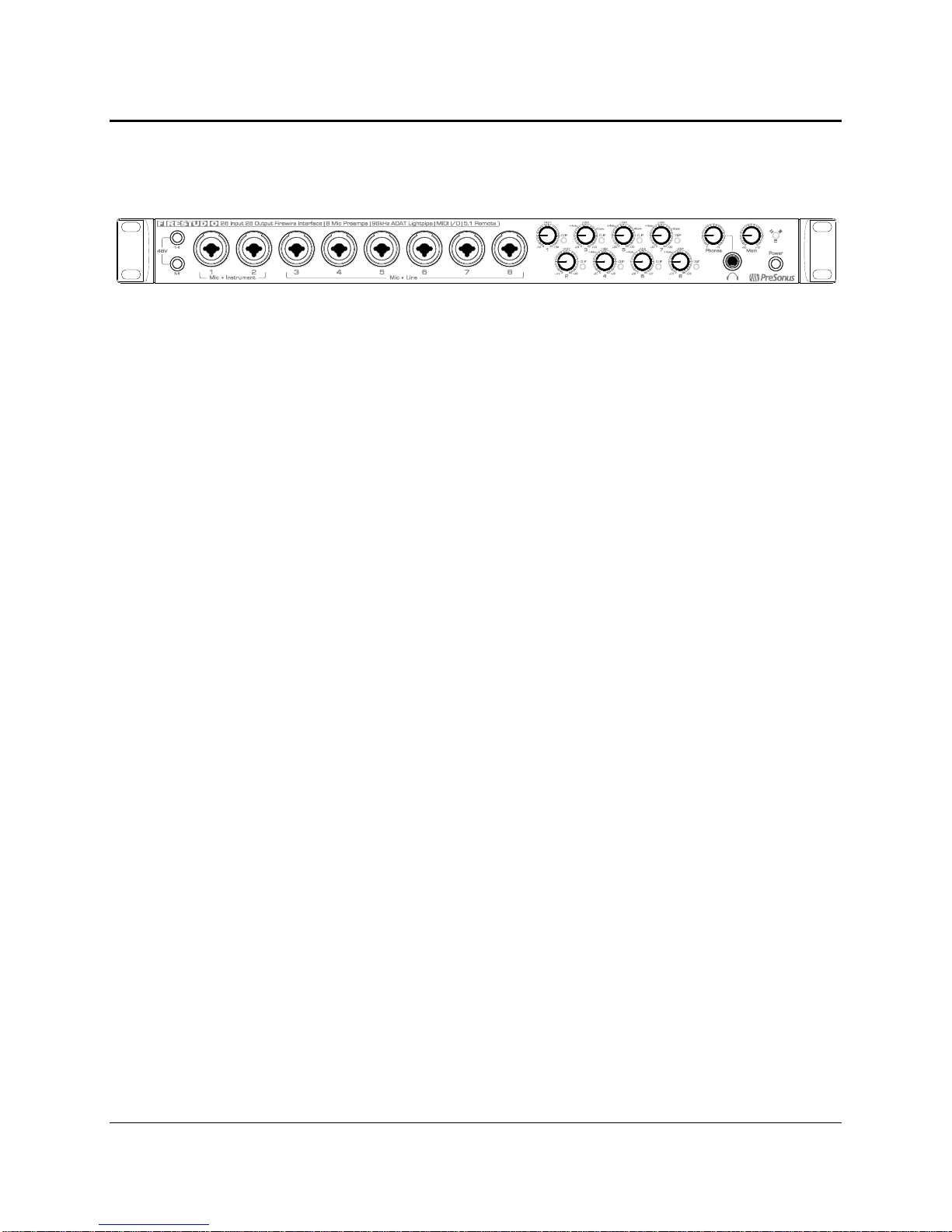

FIRESTUDIO
© 2008, PreSonus Audio Electronics, Inc.
All Rights Reserved.
26 I/O 24-bit/96k Recording Interface with
DSP Mixer/Router Control Console Application
User’s Manual
Version 2.0
PRESONUS LIMITED WARRANTY
© 2008, PreSonus Audio Electronics, Inc.
All Rights Reserved.
PreSonus Audio Electronics Inc. warrants this product to be free of defects in material and workmanship for a
period of one year from the date of original retail purchase. This warranty is enforceable only by the original
retail purchaser. To be protected by this warranty, the purchaser must complete and return the enclosed
warranty card within 14 days of purchase. During the warranty period PreSonus shall, at its sole and absolute
option, repair or replace, free of charge, any product that proves to be defective on inspection by PreSonus or its
authorized service representative. To obtain warranty service, the purchaser must first call or write PreSonus
at the address and telephone number printed below to obtain a Return Authorization Number and instructions of
where to return the unit for service. All inquiries must be accompanied by a description of the problem. All
authorized returns must be sent to the PreSonus repair facility postage prepaid, insured and properly packaged.
PreSonus reserves the right to update any unit returned for repair. PreSonus reserves the right to change or
improve the design of the product at any time without prior notice. This warranty does not cover claims for
damage due to abuse, neglect, alteration or attempted repair by unauthorized personnel, and is limited to
failures arising during normal use that are due to defects in material or workmanship in the product. Any
implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are
limited in duration to the length of this limited warranty. Some states do not allow limitations on how long an
implied warranty lasts, so the above limitation may not apply to you. In no event will PreSonus be liable for
incidental, consequential or other damages resulting from the breach of any express or implied warranty,
including, among other things, damage to property, damage based on inconvenience or on loss of use of the
product, and, to the extent permitted by law, damages for personal injury. Some states do not allow the
exclusion of limitation of incidental or consequential damages, so the above limitation or exclusion may not
apply to you. This warranty gives you specific legal rights, and you may also have other rights, which vary from
state to state. This warranty only applies to products sold and used in the United States of America. For
warranty information in all other countries please refer to your local distributor.
PreSonus Audio Electronics, Inc.
7257 Florida Blvd.
Baton Rouge, LA 70806
www.PreSonus.com
TABLE OF CONTENTS
1 OVERVIEW
1.1 Introduction ............................................................................................................................................................ 3
1.2 Features ................................................................................................................................................................. 4
1.3 What is in the Box .................................................................................................................................................. 5
1.4 System Requirements .............................................................................................................................................. 6
2 OPERATION
2.1 Quick Start Up ........................................................................................................................................................ 7
2.1.1 Installation in Microsoft Windows .................................................................................................................... 7
2.1.2 Installation in Mac OS X .................................................................................................................................. 9
2.1.3 Cubase LE – Device Setup .............................................................................................................................. 12
2.1.4 Cubase LE – Creating a Project ...................................................................................................................... 14
2.2 Sample Hookup Diagrams ..................................................................................................................................... 16
2.2.1 Mobile Recording with the FireStudio and Two DigiMax FS..............................................................................16
2.2.2 Full Band Set-up Using the MSR in Track Mode...............................................................................................17
2.3 Microphones ......................................................................................................................................................... 18
2.3.1 Condenser ..................................................................................................................................................... 18
2.3.2 Dynamic ........................................................................................................................................................ 18
2.3.3 USB and other types ...................................................................................................................................... 18
2.4 A Brief Tutorial on Dynamics Processing ............................................................................................................... 19
2.4.1 Common Questions Regarding Dynamics...........................................................................................................19
2.4.2 Types of Dynamics Processing..........................................................................................................................20
2.4.3 The Vocabulary of Dynamics Processors...........................................................................................................22
2.5 Digital Connections and Synchronization..................................................................................................................24
2.5.1 What is ADAT optical?....................................................................................................................................24
2.5.2 What is S/MUX?.............................................................................................................................................24
2.5.3 BNC Sync and Word Clock ..............................................................................................................................24
2.5.4 Master/Slave and Multiple Digital Devices........................................................................................................25
3 CONTROLS & CONNECTIONS
3.1 PreSonus FireStudio Control Console Application Introduction ............................................................................... 26
3.1.1 FireStudio Control Console Application Icon .................................................................................................. 27
3.2 Hardware Settings Tab Introduction........................................................................................................................28
3.2.1 FireStudio Settings Section..............................................................................................................................28
3.2.2 MSR Settings Section......................................................................................................................................30
3.2.3 Version Information Section ............................................................................................................................30
3.3 Output / Router Matrix Tab Introduction..................................................................................................................31
3.3.1 Inputs and Playback Stream Routing................................................................................................................32
3.3.2 Mix Routing to Outputs....................................................................................................................................34
3.3.3 Output Faders..................................................................................................................................................35
3.4 Mixer Tab Introduction...........................................................................................................................................36
3.4.1 Channel Fader Controls....................................................................................................................................37
3.4.2 Master Fader ..................................................................................................................................................38
3.4.3 Quick Route Section.........................................................................................................................................39
3.4.4 Naming Inputs and Mixes ................................................................................................................................40
3.5 Front Panel Layout ............................................................................................................................................... 41
3.6 Back Panel Layout ................................................................................................................................................ 43
4 TECHNICAL INFORMATION
4.1 Troubleshooting .................................................................................................................................................... 47
4.2 Specifications ....................................................................................................................................................... 49
OVERVIEW
3| PreSonus 2008
1.1 INTRODUCTION
Thank you for purchasing the PreSonus FireStudio. PreSonus Audio Electronics has designed the FireStudio
utilizing high-grade components to ensure optimum performance that will last a lifetime. Loaded with 24-bit
96K converters, eight PreSonus X-MAX microphone preamplifiers, SPDIF, Dual SMUX 96k ADAT, BNC word
clock, and MIDI I/O, as well as Cubase LE 48-track music production software and the optional Monitor Station
Remote, the FireStudio is ready to go out of the box for professional quality computer recording. All you need is
a computer with a firewire connection, a few microphones and cables along with your instruments and you are
ready to record!
We encourage you to contact us at 225-216-7887 with any questions or comments you may have regarding your
PreSonus FireStudio. PreSonus Audio Electronics is committed to constant product improvement, and we value
your suggestions highly. We believe the best way to achieve our goal of constant product improvement is by
listening to the real
experts
, our valued customers. We appreciate the support you have shown us through the
purchase of this product.
We suggest you use this manual to familiarize yourself with the features, applications and correct connection
procedure for your FireStudio before trying to connect it to your computer. This will hopefully alleviate any
unforeseen issues that you may encounter during installation and set up.
Thank you, once again, for buying our product, and we hope you enjoy your FireStudio!
OVERVIEW
4| PreSonus 2008
1.2 FEATURES
The FireStudio is a powerful and affordable computer recording system complete with everything needed for
real-world recording applications. The FireStudio comes equipped with eight high-quality PreSonus X-MAX
microphone preamps, MIDI I/O, SPDIF, Dual SMUX 96k ADAT, BNC word clock and rock solid drivers, as
well as a plethora of music recording and production software.
The FireStudio includes PreSonus ProPak Software Suite with Cubase LE and over 2 GB of plug-ins, drum
loops and samples – giving you everything you need for professional music recording and production.
Summary of features
High-speed FireWire (IEEE 1394)
24-bit / 96 kHz sampling rate
26 simultaneous inputs and outputs
8 Class A XMAX microphone preamplifiers
2 Insert channels
8 Analog line inputs
2 Instrument inputs
16 Channels of ADAT optical I/O (8 channels via 96k dual S/MUX)
10 balanced TRS outputs
S/PDIF I/O
MIDI I/O
36x18 FireStudio Control Console DSP mixer
JetPLL jitter control for improved imaging and clarity
High performance A/D D/A converters
Cubase LE Music Production Software included
PreSonus ProPak Software Suite (over 2 GB of plug-ins, loops and samples)
OS X and Windows compatible
MSR Monitor Station Remote (Optional)
OVERVIEW
5| PreSonus 2008
1.3 WHAT IS IN THE BOX
Your FireStudio package contains the following:
FireStudio Recording Interface
6’ 6-pin to 6-pin FireWire cable
Power Supply
Software installation discs:
oPreSonus FireStudio Installation
Drivers
oCubase LE
oProPak Software
PreSonus Warranty Card
OVERVIEW
6| PreSonus 2008
1.4 SYSTEM REQUIREMENTS
Below are the minimum computer system requirements for your FireStudio.
Macintosh
OS: Mac OS X 10.4.x or later
Computer: Apple Macintosh series with FireWire 400 port
CPU/Clock: PowerPC G4/1 GHz or higher (Intel/Dual 1 GHz recommended)
Memory (RAM): 512 MB (1 GB or more recommended)
Windows
OS: 32-bit Microsoft Windows Vista or XP (with at least SP1)
Computer: Windows compatible computer with FireWire 400 port.
CPU/Clock: Pentium or AMD with 1 GHz or higher (Dual 1 GHz recommended)
Memory (RAM): 512 MB (1 GB or more recommended)
NOTE: The speed of your processor, amount of RAM and size & speed of your hard drives will greatly affect the
overall performance of your recording system. A more powerful system (faster processor with more RAM)
allows for lower latency (signal delay) and better overall performance.
OPERATION
7| PreSonus 2008
2.1 QUICK START UP
2.1.1 Installation in Microsoft Windows
After inserting the Installation CD into your CD-ROM drive, the FireStudio installer will take you through
each step of the installation process. Please read each message carefully – ensuring especially that you do
not connect your FireStudio early.
1) The FireStudio Installer was written to be as
simple and easy-to-follow as possible. Please
read each message carefully to ensure the
FireStudio is properly installed.
Before continuing the FireStudio Installation
Setup, please close all multimedia applications
and disconnect your FireStudio from your
computer.
2) If you see any Windows Security alerts, click
“Install this driver software anyway” (Vista) or
“Continue anyway” (XP).
3) This installer can be used for the entire
FireStudio family of interface products. Select
“FireStudio” from the menu on the left of the
installer window
OPERATION
8| PreSonus 2008
4) The installer will now display the directory path
into which the FireStudio Control Console
application will be installed. Click “Next”
5) The installer is now ready to begin. Click
“Install” to copy the correct components to your
computer.
6) The installer will now prompt you to reboot your
computer to complete the installation. Click
“Finish” to automatically restart your PC. Once
your computer has rebooted, connect the
FireStudio. When the Found New Hardware
wizard launches, follow the recommended steps.
When the sync light remains solid blue, your
FireStudio is synced to your computer and ready
to use!
Please Note: When launching the FireStudio
Control Console, you may be directed to update
your FireStudio’s firmware. Follow the onscreen
instructions. Do not disconnect or power down
your FireStudio during the firmware update.
2.1.2 Installation in Mac OS X
