Installation Instructions

Read and understand the installations carefully for a proper installation of the wall mount.

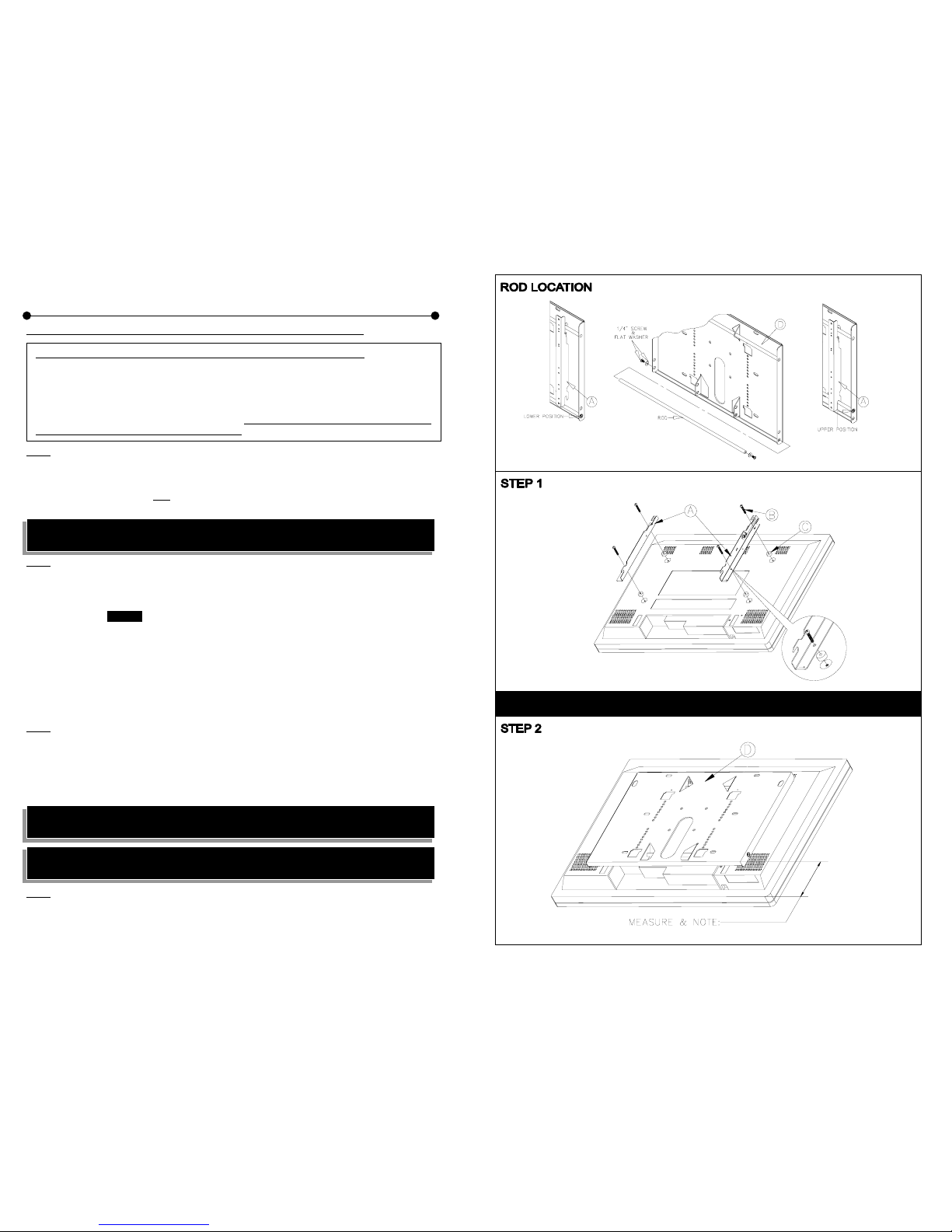

Step 1

Invert the display and place it on a soft and flat surface. Locate the mounting points on the back of the plasma display.

Identify the correct plasma bracket mounting hardware for your plasma display from the chart shown on the back of the

assembly manual and secure the (L) Left and (R) Right hand side mounting brackets to the plasma using the

corresponding hardware (supplied). Note: Make sure the upper “clevis” hook mounting screw, nut and reference arrow

are facing to the left and right outside edges of the display.

Step 2

Temporarily slide the round steel rod portion of one of the CTM plate fully into the bottom receiving slots of the installed

plasma mounting brackets. Measure the distance between the bottom outside edge of the plasma display and the

bottom outside edge of the lower wall mounting plate. Add the desired bottom edge height of the display to the distance

between the bottom edge of the wall plate and the bottom edge of the display to determine the correct mounting height

of the lower wall plate. Example: Overall desired height for the bottom outside of the display is 60". Difference between

the bottom edge of the display and the bottom edge of the lower wall plate fully installed in the lower receiving slots of

the brackets is 4" means the lower wall plate bottom outside edge should be placed at 64" from the floor (60" + 4" =

64"). Determine the desired wall location and its ability to properly support the weight of the display

(See not in front of page). Locate and mark the dual 16" wood stud centers closest to the desired plasma placement

area. Measure up from the floor the proper distance to the bottom edge of the lower wall plate and mark a level

reference line on the wall. Place the lower portion of the wall plate edge on the reference line and mark the best six (6)

each wall plate lag bolt mounting points through the wall plate slots on the wall. Drill 1/4" pilot holes on the six marked

walls before installing the plate. Level the wall plate with the wall plate reference arrow pointing up to the wall using the

six (6) 5/16" Lag bolts and flat washers (supplied).

Step 3

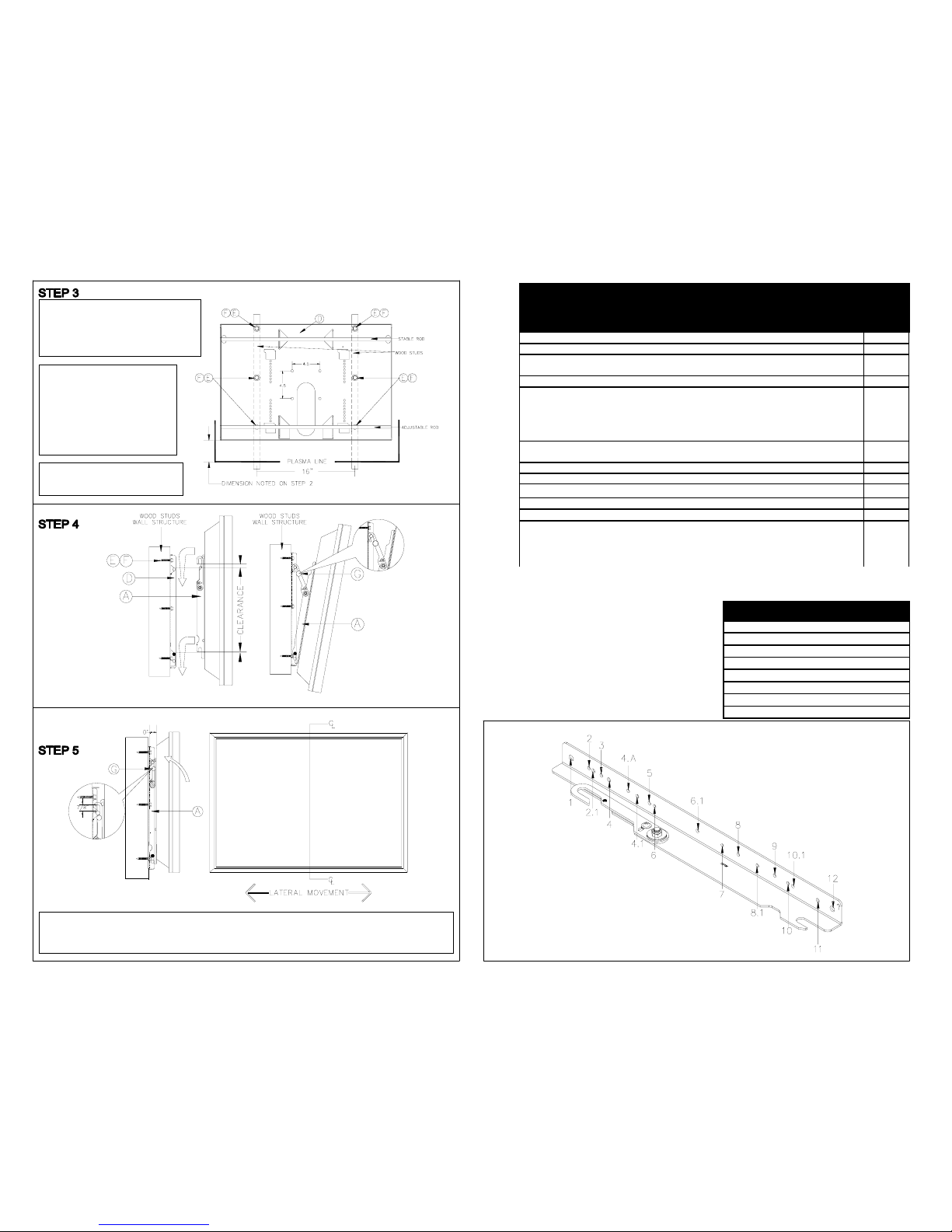

With the upper “clevis” tilt hooks on the plasma brackets in the flat on wall position raise the plasma display with

brackets attached (2 people minimum recommended) and place the plasma display flat against wall with the upper and

lower plasma bracket attaching slots slightly higher than the steel receiving rods of the upper and lower wall plates.

With the plasma reasonably level lower the display until the display brackets receiving slots are fully installed into the

upper and lower wall plate steel rods. Gently pull the left and right upper edges of the display to extend the mount to its

maximum 10° tilt and install finger tight the two upper “clevis” arm 6 (mm) safety knobs one on each mounting bracket.

Step 4

Once the display on wall installation is complete you still can move the display from left to right or right to left to optimize

the final position of the display on the wall by gently sliding the unit on the steel rods of the wall plate. This adjustment

distance will vary depending on the display model being installed.

NOTE: Do not over tighten the bracket mounting screws as damage to the display internal mounting threads

could occur.

Note: To remove the display from the wall simply extend the display to its maximum tilt range, remove the two

6 (mm) safety knobs push the display back to its flat wall position and lift the unit up and out from the wall.

OTE: Some of the hardware may be left out if all the assign mounting points on the bracket are used.

Note: The 8 (mm) nuts for your coarse tension adjustment and the 5 (mm) screws for your fine tension

adjustment.

BEFORE INSTALLING DETERMINE THE PROPER ROD LOCATION OF THE CTM PLATE:

They are two-rod positions on the CTM plate. Lay the CTM plate on the floor with the rod facing up. Slide the top

hook of one (1) PCM bracket and determine the position of the bottom rod by where the receiving bottom slot falls

under. If the bottom-receiving hook of the PCM bracket is not touching the rod (DO NOT INSTALL THE PLATE),

the bottom-receiving slot of the PCM bracket has MUST touch the rod in order to install the CTM plate. Simply

remove the 1/4" screws and flat washer from both sides. Slide the rod out and re position the rod on the second

optional height. Re install the 1/4" screws and flat washers. MAKE SURE THE ROD IS PROPERLY TIGHTENED

BEFORE INSTALLING THE CTM PLATE TO THE WALL.

www.touchboards.com 205 Westwood Ave.Long Branch, NJ 07740 1-866-942-6273 [email protected]

A PCM Mount Brackets L/R

B Hardware See Chart

C Nylon Spacers (SP) See Chart

DCTMWallPlate 1

E 5/16" Lag Bolts 6

F 5/16" Flat Washers 6

G 6 mm x 12 mm Securing Knobs 2

H 6mm x 12mm Security Screws 2 (TFS ONLY)

CTM-Series Mounting Points (MP)

BRAND MODEL # MP HARDWARE PACK

CTM

200

Note: When the display brackets receiving slots are fully installed into the upper and lower wall plate steel rods

and the plasma is on its flat position, there is a 7/8" gap from the top of the rod to the end of the hook. This

feature is to com

ensate for tiltin

Note:

rrows on the wall brackets must

be facing up prior to installation. Secure

the lag bolts into the center of the wood

stud.

Note: If using the CTM with a floor

stand or ceiling mount adapter

use the (4.5") to secure the plate.

Make sure you use the correct

mounting hardware that comes

with the stand or ceiling adapter

unit.

Note: If mounted to the TFS use

the two (2) M6 x 12 Security screws

DreamVision Revolution 5 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Eizo P5070, P5071 (6) 8 (mm) x 30 (mm) PK-7

Marantz PD4280D, PD4282D, PD4290D,

PD4292D 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Marantz PD501OD 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

NEC

4200W, 4210W, M4A, MP2, PX42M3A,

42PD1W, PD2, M5A, M5G, 42MP1,

42PD1, PX42VM1A, PX42VP1A,

PX42VP2A

2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

NEC 5000W, PX50M5A, 50PD1,

PX50VP1A, PX50MX1A, 50 MP1 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

RCA PR42300 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Runco PL42c 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Orion PM4202 4.1,6.1,8.1 (6) 5 (mm) x 12 (mm) PK-9

Planar 42N 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Planar 50N 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Philips 42FD9954 4.A,10.1 (4) 5 (mm) x 25 (mm) (SP) (Flat Washers) PK-18

Toshiba 42HP82 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Toshiba 50HP82 2,6,7,10 (8) 4 (mm) x 16 (mm) PK-5

Luce PDTV 4220-A (NT) 6,8 (4) 5 (mm) x 25 (mm) (SP) (Flat Washers) PK-18

#/LR DESCRIPTION

LISTED

E176225

Rev6

The wall or ceiling should be capable of supporting a weight of 160 Lbs at least four (4) times the weight of the plasma display. More than 160 Lbs, the wall must be reinforced. Proper installation

rocedure b

ualified

ersonnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious

ersonal i
