700/600 Line Treadmill

Assembly Guide

Treadmill Assembly Guide

Follow the steps in the order listed in this assembly guide. For more product

information, visit us at www.precor.com.

WARNING

At least two people are required to assemble the equipment. DO NOT

attempt assembly by yourself.

Assembly requirements

IMPORTANT

Before you fully tighten a fastener, check that its head is ush with the surface of

the equipment. If not, cross-threading may have occurred. DO NOT attempt to

rework the assembly as more damage to the equipment will occur. Instead,

contact Customer Service at www.precor.com.

We recommend you:

• Assemble the equipment close to where you plan to use it.

• Assemble the equipment on a solid, at surface so that it remains level and

stable.

• Locate the equipment a minimum of 19.7 in. (0.5 m) on each side of the treadmill

and 78 in (2 m) behind the treadmill.

• DO NOT move the equipment without assistance.

Torque measurements

Use the following torque measurements to tighten the fasteners. If a torque is not

provided, then fully tighten the fastener with the appropriate tool.

• Socket head cap screw - 25 ft-lb (33.90 Nm)

• Button head screw - 25 ft-lb (33.90 Nm)

Right upright

support

Left upright

support

Base side

cover

Dash assembly

Hood

Arm cover

Bottom arm

cover

Heart rate

bar assembly

Safety key

assembly

Adjustable foot

Front arm

cover

Hardware kit

NOTE

There may be extra hardware included with the tread.

Required tools

• #3 Phillips head screwdriver

• 5/16-inch hex wrench

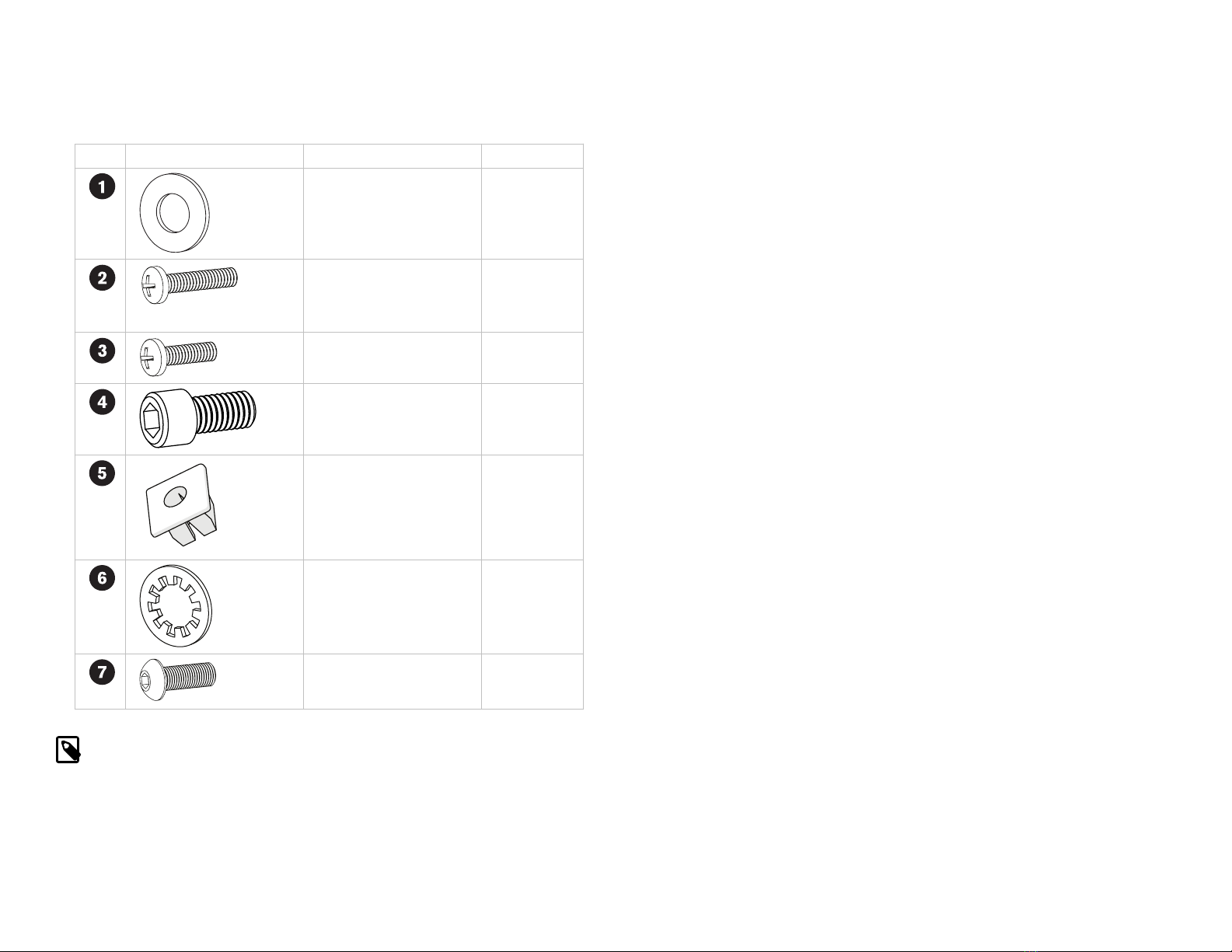

Component Description Quantity

Washer

(3/8-inch)

Self-tapping pan head

screw

(1/4 x 1-inch)

Self-tapping pan head

screw (1/4 x .75-inch)

Socket head cap screw

(3/8 x 5/8-inch)

Plastic grommet

(1/4-inch)

Star tooth washer

(3/8-inch)

Button head screw

(3/8 x 1-inch)

• 7/32-inch hex wrench

• 1/4-inch hex wrench

• Torque wrench with tension to at least 25 ft-lbs (33.90 Nm) with 5/16-inch and

7/32-inch drivers

Begin Assembly

WARNING

DO NOT attempt to connect electrical power until all assembly

procedures are complete and the console is properly installed.

To attach the uprights to the treadmill:

1. Remove the hood from the treadmill base and set it aside.

2. Position a base side cover against the treadmill frame so that the tabs t into

the frame.

Figure 1

3. Attach the base side cover using two screws : one for the side attachment

and one for the front attachment.

Figure 2

4. Position the right side upright support near the base frame and route the data

cable inside of the base side cover and up through the right upright.

IMPORTANT

DO NOT pinch or crush the cable during assembly.

Figure 3

5. Position the right upright support onto the base frame so that the side cover

lip ts inside the upright support and attach it using three screws and

three washers . Partially tighten the fasteners.

Figure 4

6. Repeat Steps 2 through 5 to attach the left upright support.

NOTE

Route PVS and network cables through the inside of the left upright

support. Be careful not to pinch the cables.

Dash attachment

IMPORTANT

Two people are required to assemble the dash.

To attach the dash:

1. With assistance, set the dash assembly on top of the upright supports.

NOTE

The dash slips down into the uprights. Pull it up slightly so that the screw

holes line up correctly.

2. Attach the dash assembly to each upright using three screws and three

washers . Partially tighten the screws.

Figure 5

3. Tighten all 12 screws to 25 ft-lb (33.90 Nm) of torque. Tighten the lower

upright screws in the order shown in Figure 6.

Figure 6

To complete the dash assembly:

1. Remove the two screws from the back of the dash cover. Remove the dash

cover and set it aside with the screws.

2. Route the data cable through the right tube of the dash assembly, up the back

frame, and out through the top hole.

NOTE

If you are attaching a PVS or networked console, route those cables

through the left side of the dash assembly at this time.

Figure 7

To attach the heart rate bar:

1. Position the heart rate bar assembly against the dash frame and attach it

using two screws and two washers . Partially tighten the fasteners.

Figure 8

2. Route the heart rate cable up through the back frame and out through the top

hole (Figure 8).

3. Remove the screw from the bottom of the tread arm.

Figure 9

4. Remove the bottom and front plastic covers from each tread arm.

5. Fit the tread arm into the heart rate bar and against the dash assembly. Attach

it using two screws and two washers . Use a hex key to partially tighten

the screws.

Figure 10

6. Attach the underside of each heart rate arm using one screw . Fully tighten

the fasteners.

Figure 11

7. Repeat Steps 3 through 6 to attach the other arm and then tighten all six

socket head screws to 25 ft-lb (33.90 Nm) of torque.

NOTE

To install a touchscreen console, continue with the next section.

To install a non-touchscreen console, continue with the section Attach the

treadmill.

To attach the ﬁlter to the drive power cable:

1. Disconnect the existing power cable from the drive unit, power lter, and

ground terminal. Then completely remove it from the treadmill.

Figure 12

2. Connect the new power cable according to Figure 13 and Table 1.

Figure 13

Table 1

Position Connector

Drive input connectors

Brown lead with quick-connect terminal

Blue lead with quick-connect terminal

Green and yellow lead with quick-connect terminal

AC input cable to the power cable

3. Use the Velcro fasteners to attach the power supply on the right side of the

treadmill base. Plug the AC input cable into the socket on the power supply.

4. Route the DC output cable through the cable ties behind the power supply,

toward the upright support on your right. Bend the cable ties over the DC

output cable to hold it in place.

NOTE

Bundle the excess cable and secure it under the cable clips.

5. Connect the black AC power cable on the AC wiring harness to the socket on

the power supply.

Install the accessory jack

IMPORTANT

The touchscreen console includes an accessory jack panel that you must install on

the treadmill. The panel connects the TV and Ethernet cables to the facility’s

network.

For touchscreen consoles only:

1. Remove the screws securing the blank plate at the right-front corner of the

treadmill. Discard the blank plate.

Figure 15

2. Thread the cable assembly down through the channel in the upright support

on your right. Drape excess cable over the inside edge of the support and tape

into place, if necessary.

Figure 16

3. Pass the lower end of the TV cable through the right-hand grommet, and

insert it into the connector inside the panel. Use a 7/16-inch torque wrench to

tighten the connectors to 30 in-lb (3.39 Nm) of torque.

4. Pass the lower end of the Ethernet cable through the right-hand grommet and

snap it into the eight-pin coupler in the panel.

5. Fit the lower ends of any optional console cables into the notch in the upper

edge of the panel.

6. Replace the panel and fully tighten the corresponding screws.

WARNING

Before you nish assembling the treadmill base, examine the

electrical bleed line between the belt motor and the frame. Make

sure the bleed line is connected securely to both the motor and the

frame as shown in the following gure, and verify that it is not

damaged.

DO NOT connect the treadmill to electrical power while the hood is

removed.

Figure 17

Attach the treadmill hood

Place the hood onto the treadmill. Using a #3 Phillips head screwdriver, attach it

using four screws . Fully tighten the fasteners.

Figure 18

To attach the safety key assembly:

1. Fit the bottom part of the safety key assembly onto the bottom of the dash

assembly and heart rate arms.

NOTE

Flex the plastic to snap it into place.

2. Position the top piece of the safety key assembly on top of the bottom part.

Figure 19

3. Route the cable under the black bar on the safety key assembly and up

through the dash (Figure 19).

4. Attach the top part of the safety key assembly using two screws .

Figure 20
