Precision Drone Pacesetter 2015 Manual de usuario
User's Manual
Pacesetter Model
2015
Serial Number:
Version 1.12
Table of Contents
(1) Warnings........................................................................................2
(2) What's in the case?.........................................................................4
(3) Detailed Co ponents......................................................................5
(4) Getting Everything Charged...........................................................10
(5) GPS Recalibration..........................................................................11
(6) Setting Up a Route........................................................................14
(7) Pre-Flight......................................................................................17
(8) Flight............................................................................................18
(9) Post-Flight.....................................................................................21
(10) Stitching In Agisoft.........................................................................22
(11) NDVI Creation using Global Mapper.................................................29
(12)Motor Rotation Diagra ..................................................................47
(13)LED Guide......................................................................................48
(14) Technical Specifications..................................................................49
(15)Flight and Service Log.....................................................................50
1 2 Page 1
WARNINGS
Obey all federal, state, and local regulations
Do not fly in rain or other harsh conditions
Do not fly in wind ore than 25 ph
Do not fly faster than 10 /s (22.5 ph)
Operating in te peratures below 50° Fahrenheit (10° Celsius) will result in
decreased flight ti es
Operating in te peratures below 32° Fahrenheit (0° Celsius) and below the
echanical and electrical co ponents run the chance of seizing, resulting in
drone alfunction and ulti ately property da age, injury, and/or death
Always use the provided battery chargers
The drone will return ho e when it reaches less than 14.5v
The drone will land in place when it reaches less than 14.0v
Keep away fro spinning otors at ALL TIMES.
Do not atte pt to odify the drone
Do not atte pt to repair the drone
NEVER allow inors to charge battery packs
NEVER drop power supply or batteries
NEVER atte pt to charge da aged or swollen batteries
NEVER let batteries fully discharge unless you are disposing of the
NEVER atte pt to charge a battery pack containing different types of batteries
NEVER charge a battery if the cable has been pinched or shorted
NEVER allow batteries to co e into contact with oisture at any ti e
NEVER charge batteries in extre ely hot or cold places or in direct sunlight
ALWAYS disconnect the battery after charging
ALWAYS end the charging process if the charger or battery beco es too hot
1 3 Page 2
*Failure to exercise caution while using this product and co ply with the warnings above
could result in product alfunction, electrical issues, excessive heat, fire, and ulti ately
injury, property da age, or death. Never allow use of this product by anyone without
providing the with these instructions. You ust read, understand, and follow all instructions
and warnings for any product(s) to which this product is used in conjunction with or installed.
The operator is choosing to use this product and does so at his or her own risk. Save these
instructions with the product for use as a reference in the future
1 4 Page 3
What's in the case?
List of Case Com onents
1x Precision Drone Pacesetter
6x 7600 Ah 2S LiPo Battery
1x Co and Center Laptop
1x Co and Center Charger
1x Live Feed Monitor
1x Live Feed Monitor Charger
1x Precision Vision Ca era (NIR)
1x Precision Vision Ca era (RGB)
2x Ca era Charger Access Cable
1x DX8 Controller
1x Controller Charger
1x Controller Strap
1x Bind Plug
1x Data Link
1x Data Link Cable
2x Battery Charger
2x Balancing Board
2x Gator Clips
2x Charger Wall Plug
2x Charger Battery Plug
2x 16GB icroSD card (pre-installed in ca eras)
OEM Manuals (Located under first layer of foa )
1 5 Page 4
Com onents

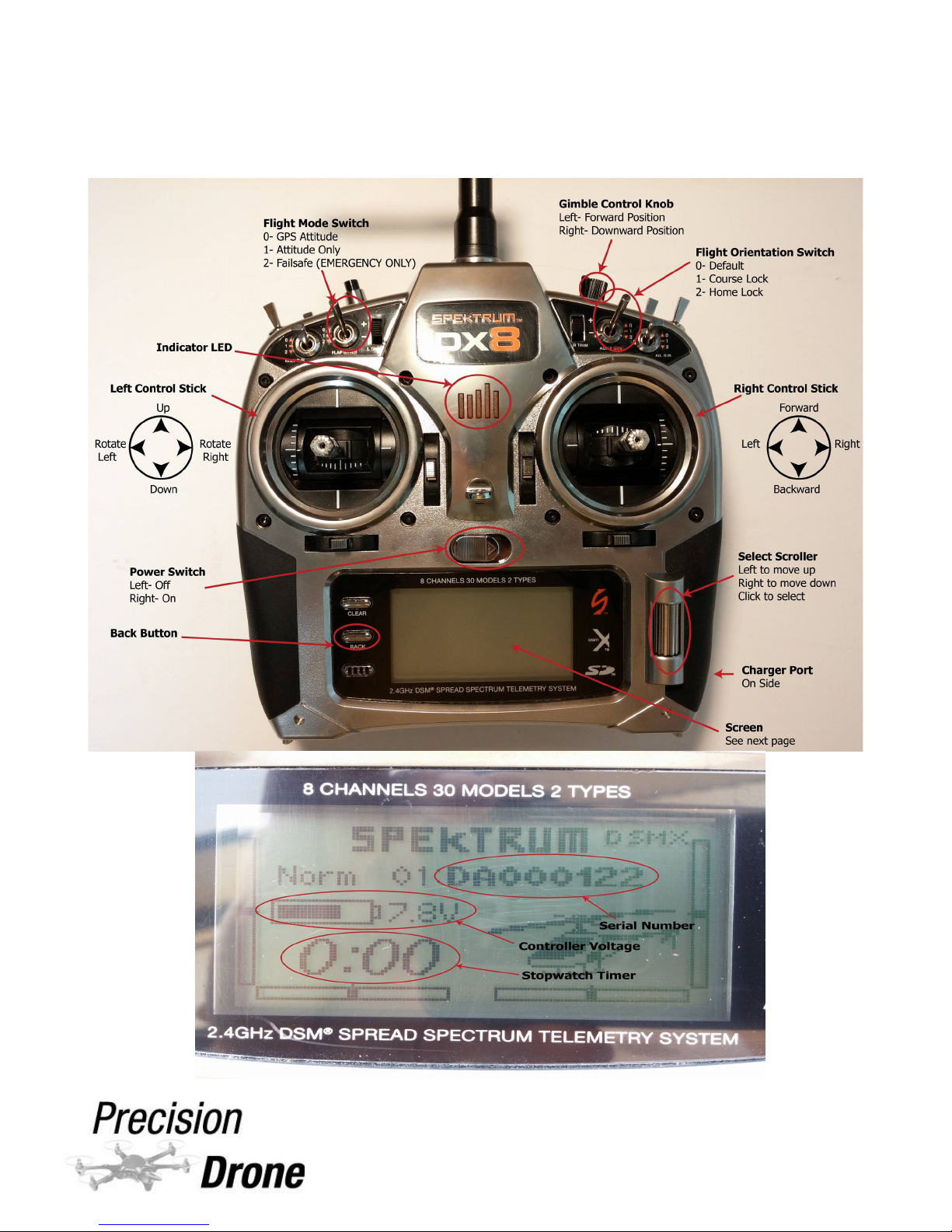

DX8 Controller:
1 6 Page 5
Battery Charger:
1 7 Page 6
Live Feed Monitor:
1 8 Page 7
Notes on Live Feed Monitor :
1. All units are in etric as shown in picture above
2. You do not need to plug the live feed cable on the drone into a ca era in order to see
the tele etry on the live feed screen
3. Flight Modes:
•GPS- GPS and Gyroscope correction
•ATT- Gyroscope correction only
•M- Manual. No GPS or Gyroscope correction. Never fly when the screen says this
•GPS FS- Failsafe ode
•Gho e- Go ho e ode. Drone will be flying in autopilot
•WPT- Waypoint ode. Drone will be flying in autopilot
•Landing- Drone is auto atically landing itself in place
•Pause- Drone is hovering in place after “Pause” button in Ground Station is hit
1 9 Page 8
Precision Vision Ca era:
1 10 Page 9
