Pramac Pmi3000 Manual de usuario

Operator's manual

Portable Generator

Pmi3000

PLEASE READ THIS MANUAL

CAREFULLY BEFORE USING

Product ID(S/N): ___________________

Introduction

Thank you for your purchasing PRAMAC generator.

This instruction includes the operation and maintenance of the Pmi3000 generator.

Contents in this book matches the up-to-date product when the book is printed.

PRAMAC reserves the right to modify the content, without further notice or responsibility.

As part of the generator, this book should be always attached if the product is resold.

Please pay attention to following words:

If the operation is not implemented as this instruction, it could cause severe

damage and personal injury, even casualty accident.

Please read all the labels and user’s guide before use.

Please use this product in well-ventilated area. Because the exclusion contains poisonous

carbon monoxide gas, which may lead to death.

Be sure to turn off the engine when refueling, then restart the engine after 5 minutes.

Check the fuel leaks or spillage, if so, please clean or repair before use.

Keep easy-to-fire materials(other oil and goods) away from the generator.

This label displays if the operation is not followed according to this instruction

book, it could cause personal injury or casualty accident.

This label displays if the operation is not followed according to this instruction

book, it could cause severe damage and personal injury.

Please contact PRAMAC if you have any doubt about the generator.

Just follow the instructions in this book, and PRAMAC generator is safe and

dependable. Be sure to read and understand the instructions before using, erroneous

operation will result in personal injury or damage to the equipment.

Contents

1.Safety Precautions ................................................................................................ 4

2.Parts Identification................................................................................................. 5

3.Pre-operation Checking......................................................................................... 7

4.Start The Engine ................................................................................................. 10

5.Use Of Generator................................................................................................ 10

6.Switch Off The Engine......................................................................................... 16

7.Maintenance........................................................................................................ 16

8.Transportation And Warehousing........................................................................ 20

9.Troubleshooting .................................................................................................. 21

10.Basic Parameters.............................................................................................. 23

11.Electrical Schematics ........................................................................................ 24

12.Wheel kit Installation ......................................................................................... 25

1 Safety Precautions

Be sure to operate carefully, ensure the safety of users and others

Don’t touch the muffler because it is hot when the generator is running or just

stopped. Put the generator indoor after it cools down.

The Exhaust system is hot when the generator is running or just stopped. Please

notice the warning labels to prevent burns.

If users operate the PRAMAC generator as the Operating Manual shows, it would

provide safe and reliable operation according to design requirements. Please read and

understand this book before operating the engine, otherwise it may cause injury to

personnel or damage to equipment.

Under certain conditions, gasoline is flammable. Be sure to refuel in ventilated

places and switch off the engine before refueling.

Do not refuel with engine still hot

Stay away from cigarettes and sparks when it is refueled. Please refuel in ventilated

places.

Wipe spilled gasoline immediately.

Restrict the use in high fire risk locations.

As the backup power of the building, connecting the generator to the power system

should be operated by a qualified electrician. It should follow relevant laws and electrical

codes. Otherwise, the electric current of the generator may feedback to the common

circuit, power company workers or other people may be electrocuted when they touch the

wire; because of the city power shock, the generator may explode, fire or cause fire of

other electrical equipment in the building.

Make pre-operation inspection before starting the engine each time, in order to avoid

accidents or damage to the equipment.

Run the generator at least 1 meter away from the building and other equipment.

Be sure to run the generator in the horizontal plane ON GROUND level, fuel may

spill if the generator is slant.

Be sure to learn how to quickly turn off the generator, and known the operation of

relevant parts. Never allow anyone to operate the engine without proper instruction.

2 Parts Identification

2.1 Overall shape, Figure 1.

Figure 1.

Real appearance can be different than pictures above

List of main parts of appearance:

Nr Part Name QTY Nr Part Name QTY

1 Front shell 1 8 Generator shock pad 2

2 Panel group 1 9 Tank 1

3 Inverter cover 1 10 Generator frame 1

4 Start handshandle 1 11 Muffler cover 1

5 Gasoline switch 1 12 Fuel tank cap 1

6 Oil level gauge 1 13 Air filter 1

7 Rubber handshandle 2 14 Wheel 2

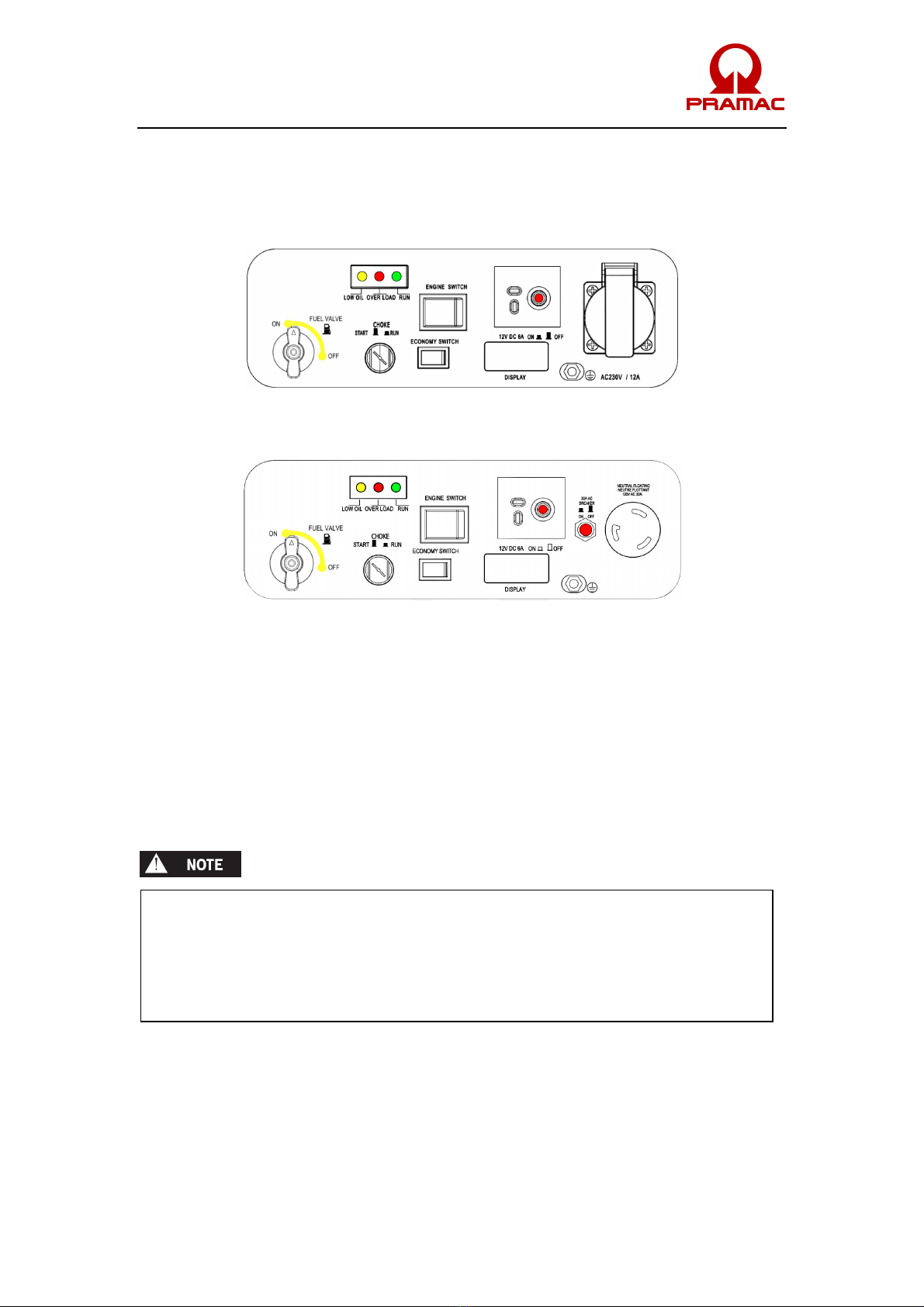

2.2 Control Panel, Figure 2.

European Style Panel(220-240V 50HZ):

American Style Panel(100-120V 60HZ):

Figure 2. Control Panels

SMART Fuel-economy Switch

When the generator is disconnected with the electrical equipment, generator is idling; when it

is connected with the electrical equipment, the engine will restore to the appropriate

speed.The default state of the switch is at ON position, the fuel consumption is automatically

adjusted according to the load size, to serve the purpose of saving fuel.

OFF: Represents that the SMART switch is turn off, and the engine is at its higher speed.

The SMART system can not run effectively when large instantaneous current is

required by the electrical equipment.

Please turn off the SMART switch to reduce the voltage change when the generator

and high electrical load are connected at the same time.

Please turn off the SMART switch when it is operated in DC status.

3.Pre-operation Checking

Be sure that the generator is in the horizontal plane at ground level, and the engine is shut

down.

3.1Check the engine oil level

Please see SAE viscosity level in following picture:

Remove the dipstick on right rear , wipe the dipstick with a clean rag, insert the oil dipstick into

the filler opening, tighten and spin out to check the oil level. If the oil level is lower than the

bottom of the dipstick, fill recommended oil to the filler opening.

Oil capacity：520ml.

See Figure 3.

Conventional filled-up engine oil level (About 520 ml)

Figure 3. Oil Level Diagram

Use engine oil without detergent or 2-stroke engine oil may shorten engine life.

Please use strong-cleaning power, high-quality 4-stroke engine oil.

Choose engine oil with right viscosity, which is suitable for the average temperature

in your region.

3.2 Check the fuel level

Please use motor gasoline type (better use lead-free or low-lead gasoline to reduce fuel

chamber coke). If the fuel level is low, please fill fuel to the shoulder of the fuel strainer. See

figure 4

Do not use mixture of oil and gasoline, or dirty gasoline.

Prevent dirt and water into the tank.

Tighten the fuel filler cap after filling up.

Fuel capacity：10L

Figure 4. Fuel level diagram

Start the engine without enough engine oil may cause serious damage to the

engine.

Engine oil alarm system will shut down the engine before the oil level falls under the

safety margin. We suggest you to check the engine oil level regularly to avoid any

inconvenience caus

ed by unplanned downtime.

Alcoholic petrol

If you decide to use Alcoholic petrol, the Octane value should not be lower than recommended

by PRAMAC. There are two kind of Alcoholic petrol, one contains ethanol and the other

contains methanol. Do not use alcoholic petrol with over 10% ethanol. Do not use methanol

petrol without co-solvents and preservatives in the methanol. If there is co-solvents and

preservatives in the methanol, do not use the petrol with over 5% methanol.

3.3 Check the air filter

Check the air filter to ensure it is clean and in normal performance.

Open the service door on the left side, open the air filter cover and take out the foam filter from

the cover. If necessary, clean or replace the filter. See figure 5.

Under certain conditions, gasoline is flammable.

Please refuel in ventilated places, with the engine off. No smoke and fire in the

fueling region and gasoline storage area.

Fuel shall not overflow out of tank (on fuel on the fill opening). Tighten the fuel

filler cap after filling up.

Do not overflow the fuel because the fuel or mist may catch fire. Once the fuel is

overflowed, ensure the region is dried before running the engine.

Avoid long-time, repeated skin contact or gas inhalation, do not allow children to

contact the fuel.

Avoid in any case to fill the tank with engine still hot.

The fuel system or engine damage caused by using alcoholic petrol will not be

covered under warranty. PRAMAC does not guarantee the use of fuel with methanol

because the applicability has not been confirmed.

Please figure out whether the fuel contains alcohol before buying fuel in unfamiliar

gas station. When you use fuel with alcohol or you think that with alcohol, if the

generator is not running as expected, please change to use fuel without alcohol.
