PR Lighting PR-6000 FRAMING Manual de usuario

PR-6000 FRAMING (1400W)

PR-2927

The user manual contains important information about the safe installation and use of a projector. Please read

and followthese instructions carefullyandkeep themanual inasafe place forfuturereference.

PR LIGHTING LTD.

http://www.pr-lighting.com

INDEX

1. SAFETYANDWARNINGS……………………………………………………………………………………

2. INSTRUCTIONS………………………………………………………………………………………………

●CLEANINGAND MAINTENANCE…………………………………………………………………………

●LUBRICATION………………………………………………………………………………………………

●TROUBLESHOOTING………………………………………………………………………………………

3.APPEARANCE…………………………………………………………………………………………………

4.INSTALLATION…………………………………………………………………………………………………

●RIGGING……………………………………………………………………………………………………

●POWERCONNECTIONS…………………………………………………………………………………

●DMXCONTROLCONNECTIONS…………………………………………………………………………

●DMXTERMINATOR………………………………………………………………………………………

●ALIGNMENT/INSTALLATION/REPLACEMENTOFA LAMP……………………………………………

●GOBO/COLORFILTER REPLACEMENT……………………………………………………………………

5. SETUPANDCONFIGURATION………………………………………………………………………………

●FRONTPANELOPERATION………………………………………………………………………………

●DMXSTARTADDRESS……………………………………………………………………………………

●DMXWIRELESSCONTROL………………………………………………………………………………

●STAND-ALONEMODE……………………………………………………………………………………

●MASTER/SLAVE MODE……………………………………………………………………………………

6.OPERATIONMENU……………………………………………………………………………………………

7. DMXPROTOCOL………………………………………………………………………………………………

8. SIGNSONTHETOUCH SCREEN ……………………………………………………………………………

9.ERRORMESSAGE……………………………………………………………………………………………

10.TECHNICALDATA……………………………………………………………………………………………

11.CIRCUITDIAGRAM…………………………………………………………………………………………

12.COMPONENTORDERCODES………………………………………………………………………………

ACCESSORIES

The followingitems are supplied with the projectorandplease check:

Name

Quantity

Unit

Remark

Gclamps

Pcs

XLR Connectors

Set

Maleand female

Safetycord

Spare Gobos

User manual

Ω clamps

Pcs

Optional

Please note that as part of our ongoing commitment to continuous product development, specifications are

subject to change without notice. Whilst every care is taken in the preparation of the manual we reserve

the right to change specifications in the course of product improvement. The publishers cannot be held

responsible for the accuracy of the information herein, or any consequence arising from them.

Every unit is tested completely and packed properly by the manufacturer. Please make sure the packing

and / or the unit are in good condition before installation and use. Should there be any damage caused by

transportation, consult your dealer and do not use the unit. Any damage caused by improper use will not

be assumed by the manufacturer and / or dealer.

Any future technical change in the user manual won’t be with any notice.

Note: For the products made by Guangzhou PR lighting Ltd, the warranty for the whole product is one

year starting from the delivery date but the light source is not within the warranty

1. SAFETYANDWARNINGS

NOTE

Before a projector’s installation, power-on, operation and maintenance, please carefully read

thesafety informationhereinafter!

Thefollowingsafetysignsareused inthe usermanual.

Warning

User

Manual

Electrical

shock

Goggles

Protective

Gloves

Flames

High

Temperature

● When unpacking , check if there is transportation damage before using the projector. Should there be any

damagecausedbytransportation,consultyourdealeranddonotuse it.

●The manufacture is notresponsible for loss caused by the user not following the manualor changing the projector

ashe/shelikes

●Please be notedthatthedamagecaused by changingthe projectoratwillisnotwarranted.

●Do nothesitate to contact the dealer or the manufacturer if any questionsor advice.

● Theprojectoris forindoor useonly,IP20.

● Use only in dry locations. Keep this unit away from rain and moisture, excessive heat, humidity and dust. Do not

allowcontact withwateror anyother liquids.

●The projector should be kept away from high temperature, fire, electrical surge, vibration and strong light while

being operated

●The projector is only intended for installation, operation and maintenance by qualified personnel. And the

operationmust strictlyfollowtheproceduresinthe manual

●Norepairableparts inthe projectorand do notopencoversformaintenance byyourself.

●Don’t look straightly into the light sources especially for epileptics, otherwise eyes will be burned.

●Do notconnectthisdevice to anytypeofdimmer pack

●lens and otheroptical partsshallbe replaced immediatelyiftheyhavedeformedorbeendamaged,otherwisethe

lightoutput willbecompromised.

●Before operation, please confirm that all covers(housing) are on and screws tightened. It’s forbidden to use a

projectorwhilecovers(housing)areoff

●Keep thelamp cleanand do not touchit withbare hands.

●Whileoperatingit, wear protectiveitems.

●Anyelectricalconnectionmustbecarried outbyaqualifiedperson.

●Before installation,pleaseconfirm the voltagesupplied matcheswhatisrequiredfortheprojector

●Eachprojectormustbeproperlyearthedandinstalled asperrelatedelectrical standards.

●Do notuse powercord withitsinsulatordamaged andconnectthe powercord withothercables.

●If the projector is not used or under cleaning,, please hold the plug and unplug it. Do not unplug it forcefully

or bypullingthe power cable.

●Allpowercordsmustconformtorelated safetyandregulations

●Whilebeingoperated, theprojector shouldnotbeunder rainsorinhumidity.

●Do not switch on and off the projector constantly in very short intervals, otherwise the light source’s and other

electricalparts’ lifewill beshortened .

●There are safety cord holes at the bottom of the base of a projector. In view of safety, please run the safety

cordsuppliedthroughthesafety cordholes forsafety support.

●Before any installation, maintenance and cleaning work, please ensure the projector is disconnected from

power mains.

●While running normally under normal ambient temperature, the temperature of the externalsurface ofthe

metal housingofaprojectorincludingthatofthe heat sinkmayreach170℃atmaximum.

●Whilethelamp isstrickenforthefirsttime,therewillbesmoke andstrangesmell.It’s normal and does not

meantheprojectorhassome defects.

●Do notmount theprojectordirectlyoninflammablesurface.

●Do not project the beam straightly on combustible items and the minimum distance between the projector

and illuminateditems is18m.

●Aprojector should be installed with good ventilation and the minimum distance between the projector and

walls is50cm.Atthesame time,pleaseensurethefansandairinletsandoutletsareworkable.

2. INSTRUCTIONS

●CLEANINGANDMAINTENANCE

If a projector can’t start. Please check if the fuse is blown up. If it does, replace it with a new fuse with same ratings. And the

projector has over-temperature protective device. Ifthe temperature is too high, the protective device will be triggered to shut the

projector off. When it happens, please check if the fans run normally or fan shield is blocked by dust. After the issue is solved,

restarttheprojector.

The accumulationof oil, smoke and dust onthe lens will compromise the light output. Cleaning a projector is very necessary to

ensurea reliable use of it. Cooling fans need to be cleaned every15days.Internallens, reflector and hot mirror need to be cleaned

periodicallyto optimize lightoutput.

Cleaning frequencyisto be decided by operations and itsenvironment. Use soft cloth and normal detergent for glassfor cleaning

work. It’s advised external optical system be cleaned every 20days and internaloptical systems every 30/60days. Keep lens clean

and do not touchopticalparts with bare hands.

●Before anymaintenanceandcleaning,pleaseensuretheprojectisoffthepower

●Onlyqualifiedpersonis allowedtodo maintenance

●Duringmaintenanceandbefore maintenance,theprojector must beoff power.

●To avoid internal damage, sun light or other light mustn’t penetrate into the projector via front lens

whetheritrunsornot

●Do notuse alcoholor otherorganicsolvent toclean thehousing to avoiddamage.

●Donotuseany solventwithchemical elementstoclean color filtersor hot mirror.

●LUBRICATION

To ensure smooth movement of gobos and zoom and focus lens, it’s advised rotators’ bearings and 2 sliding bars for zoom and

focuslensbelubricated every2months. Highqualityandhightemperaturelubricant/greaseisadvised..

●TROUBLESHOOTING

PROBLEM

ACTION

The projector doesn’t switch on

Checkthe fuseonthepowersocket.

Checkthelamp.

Thelampison but the projector doesn’t respond

to the controller

Makesurethatthe fixture’s start address is right

ReplaceorrepairtheXLRsignalcable.

Theprojectorfunctionsintermittently

Makesurethefanisworkingwellorfansandtheirshieldsarenotblocked

Beam appearsdim, Lowinbrightness

Make surethe lamp is withinitslifespan

Removedustor grease fromthelenses.

Theprojectimageappearsto havea halo

Carefullycleanthelamp,opticallensesand othercomponents.

HeavilyDefectiveBeam

Checkif lensareingood condition(notcracked)

Cleandustor greaseonthelens.

3. APPEARANCE

4. INSTALLATION

●RIGGING

Before moving a projector, Please lock Pan and Tilt. Before its operation, please unlock them. It’s forbidden to run a

projectorwithpower while itislocked

Head

Arm

Base

Clamp

Safetycords

WARNING

To pass 2 safety cords

through4 holesforsafety.

Take 2 clampsand the safety cord out fromthe package and mount 2 clampsonthe undersideof fixture with2 retainersattached

to each clamp. Hang the fixture on the structure and fasten the screws attached to each clamp. (See the WARNING on the

underside of the base as shown above) To pass the SAFETY CORD through the HOLES for safety! Always ensure that the

projector is firmlyanchoredto avoid vibrationand slipping whilst functioning. Always ensurethatthe structure thatyouaregoing

to mountthe projector toissecureand strongenoughto supporttheweight oftheunit.

WARNING:

●Theprojector MUSTbeliftedorcarriedbytheHANDLESinstead ofclamps.

●.For safety the safety cord should afford 10 times the Projector’s weight.

●POWERCONNECTION

Connectthe powercordasfollows:

L(live) =brown

E(earth) =yellow/green

N(neutral)=blue

Before power connection, please ensure the power supplied must match what the nameplate says. It is recommended that each

projectorbeconnected withpowerseparatelysothat theymaybeindividuallyswitched onandoff.

●The earth wire(yellow/green) must be connected to the ground. And electrical

connection mustbeinaccordancewiththestandardsconcerned.

●If any questions about the electrical installation, do not continue but consult a

qualified electrician.

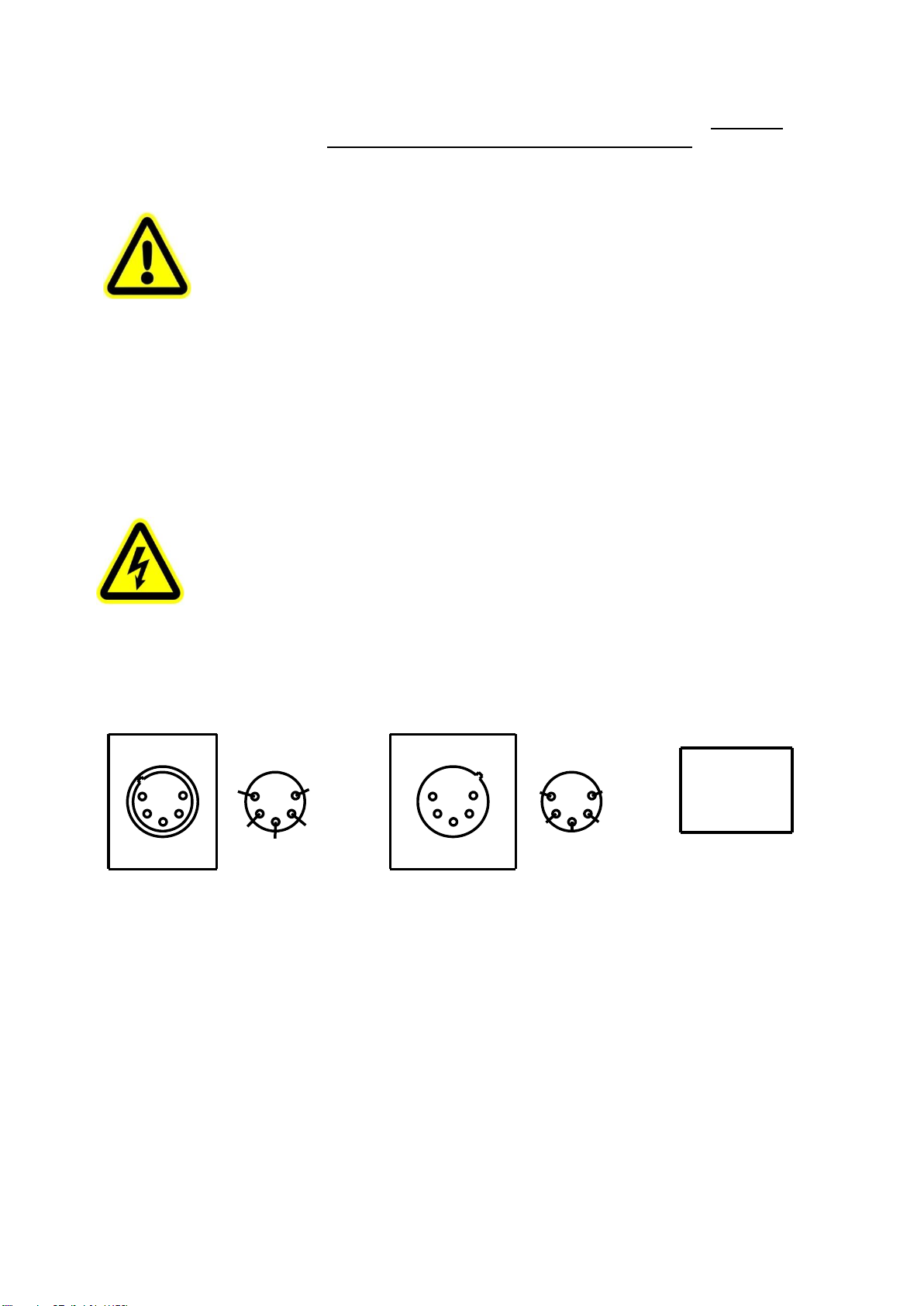

●DMXCONTROLCONNECTION:

Connection between controller and projector and between one projector and another must be made with a twin-screened cable, with

each wire having at least a 0.5mm in diameter. Connection to and from the projector is via cannon5 pin (which are included with the

projector)or5 pinXLRplugsandsockets.The XLR'sareconnectedasshown inthefigureabove.

Note: care should be taken to ensure that none of the pins touch the metallic body of the plug or each other. XLR plugs and sockets

mustn’t be connected inanywayotherthan mentioned intheabove figure.The XR330BWSaccepts digitalcontrolsignalsinprotocol

DMX512(1990).

Connect the controller’s DMX output to the first fixture’s DMX input, and connect the first fixture’s DMX output to the second

fixture’s DMX input and connect the rest fixtures in the same way. Eventually connect the last fixture’s DMX output to a DMX

terminatorasshowninthefigurebelow.

4N/C

N/C

PIN FUNCTION

GND

3 DATA+

DATA-

DMX 512

2DATA-

DATA+3

1GND

FUNCTION

五芯

三芯

DMX OUT DMX IN

DMX IN

DMX OUT

●DMXTERMINATOR

In the Controller mode, at the last fixture in the chain, the DMX output has to be connected with a DMX terminator. This prevents

electricalnoisefromdisturbingandcorruptingthe DMXcontrolsignals.

The DMX terminator is simply an XLR connector with a 120(ohm) resistor connected across pins 2 and 3, which is thenplugged

intotheoutputsocketonthelast projectorinthe chain.The connectionsare illustratedbelow.

● ALIGNMENT/INSTALLATION/REPLACEMENTOFALAMP

Beforeinstallation/replacement/alignmentofa lamp,disconnect theunitfromthe power andletitcool first.

LockTiltinthefigurebelowand openthelampcoverafter its4 screws are loosened.

After removal of the lamp cover,take outthelamp whilethe2screws at bothendsofthe lamp are loosened.

Insert a new lamp. Note: while placing a new lamp, do not touch the burner of the lamp with bare hands, otherwise the light output

willbecompromised.

Fastenthe4 fast-fit screws afterthe lamp cover ison

Important: The unit uses high voltage discharge lamp with external igniter( ). While using the lamp, please carefully read

“INSTRUCTIONS” packed with the lamp.

DMX

Terminator

DMX

Controler

120

DMX TERMINATOR

CONNECTION

Connect a 120 (OHM) resistor

across pins 2 and 3 in an XLR plug

and insert into the DMX out socket

on the last unit in the chain. PIN 3

PIN 2

Lamp

Back cover

Fast-fIt

screws

●Don’t touch the internal surface of the reflector and the burner of the lamp with bare hands so as not to

impairthebeamoutput.While lamp’s installation, do not damage the metalwire around the burner.

●Please read"Instructions"enclosed withthelamp

●Do operate the projector while adjustingthe lamp

●GOBO/COLORFILTERREPLACEMENT

Lock the tilt and loosen the 6 fast-fit screws on the upper cover ,After removing the cover, you will see the structures as the figure

below.

Before replacing a gobo on the fixed gobo wheel, use your fingerto remove the spring tightening it and take the old one out with due

care.Atlastput the newinto the wheel.

To replace a gobo on the rotating gobo wheel: take the rotator from the wheel, take the gobo out from the rotator by removing the

tightening spring. Put the new gobo back to the rotator, then tighten it with the spring. Please ensure the spring is in the narrow

location of the rotator, which is the internal ring of it and flatten it. At last, pull up the springstrip using proper tool and putthe rotator

backtothe wheelwith the assistancebyanother hand.

Note: Donottouchthe glassgobowithbare hand.Placecleanandsoftpaperorclothbetweenhandandglass gobos.

Tighten6 fast-fit screwsafter thecoverison.Unlockthe tilt.

DANGER!

Before replacementofgobos,the projectormust beoffthepower.

5. SETUPANDCONFIGURATION

●FRONTPANELOPERATION

Fixed gobowheel

Rotating gobowheel

Framingmodule

Theprojectorconfigurationcanbesetconvenientlyviapushbuttons andcolortouchscreen.

To browse through or change the projector ’s settings, touch the white area of the touch screen or press OK button for more than

3s(Only powered by the battery, pressing the OK button) to unlock the screen , then press ►key to enter the projector ’s function

menus. Each main menu has its sub-menus. And each menu stands for special function. For the details, please see the following 6th

point ”Operation Menu”.:

1. At the page to set the fixture’s functions, press ◄,►,▲,▼keysortheirrespective icons to select the functions desired.

2. While at 2nd,3rd and 4th level of menus, the◄key is for ESCAPE, but ►key won’t work, and OK key is used for ENTER.

Press OK key to save the changes or enter into the sub menus. Press ▲or ▼keys to change the numbers(minus or plus).

Or touchtheoptionneededforchange.

Shortcut keys: After the Function Menu is entered into, there are all options for the functions on the top of the screen. On the

rightthereare 4 shortcutkeyslike ←,→Lamp ControlandEnglish/Chinese.

●DMXSTARTADDRESS

Each projector mustbegivena DMXstart address so that the correctprojector respondsto the correct control signals. This DMX start

address is the channel number from which the projector starts to “listen” to the digital control information being sent out from the

controller. The projector has 3DMX modes. There are standard mode ,short mode and extended mode. For example standard mode

has36 channels, so set the No. 1 projector’s address 001, No. 2 projector’s address 037, No. 3 projector’s address 073, andsoon.

Switch on the Projector . Press OK key more than 3 seconds to unlock panel, thenpress ►key to enter into the fixture’s operation

menus.

Select DMX Address icon and press OK key or touch the icon directly on the display and select DMX address at the 2nd level menu

fortheaddresssetting.

Press▲or ▼keysortouch<、>displayedfortheDMXaddressdesired.

PressOKkey toconfirm.

Pressthe◄keyto gobackto theupperlevel menu.

●DMXWIRELESSCONTROL(Ifthe projectorhasthefunction)

Theprojectorhas wireless controlfunctionwith wirelessreceivermoduleandantenna forremotecontrol.

Thesetupofitisbelow:

1. Press OK for more than 3s to unlock the control panel, then press ►key to enter into the operation menu and select

“Config Settings”.

2. Select “Wireless First” or “Wireless Only” from the menu of “Signal Select”.

Onlyafter the projector is linked with a transmitter, can it receive wireless signal sent by the transmitter. If unlinking it, Press

“Enter” for the menu of Un-link Wireless under the upper level menu of Config Settigns , then the fixture is unlinked with the

wireless transmitter.

●STAND-ALONE MODE

Operate the projector without connecting with a controller, enable the master mode through the operation panel, the

projector will run in Stand-Alone mode automatically.

DMX address can be set at any number within 512.

●MASTER/SLAVEMODE

Many projectors can run synchronously in the Master/Slave mode by linking them with each other. First,

connect the first fixture’s DMX output to the second fixture’s DMX input using XLR-XLR controlcable and then connect the second

fixture’s DMX output to the third fixture’s DMX input, and so on until all projector are connected in this way. Eventually connect the

lastfixture’s DMX output to a DMX terminator. Set 1st projector as the master and others are Slaves.

Start Addresses of all Slaves are 001; Operation mode of the Master can be set any mode for a Master’ and Slaves’ operation modecan

be setaccordingly.

After Powered on, the group will run inMaster/SlaveMode

6. OPERATION MENU

1st LEVEL

2ndLEVEL

3rd LEVEL

4th LEVEL

5th LEVEL

Address

DMX Address

1-476

IP Address

Default IPAddress

2.X.X.X /10.X.X.X

CustomIPAddress

X.X.X.X

SubNetMask

X.X.X.X

ArtNetUniverse

0-255

Reset

TotalReset

ReallyReset?

Pan&TiltReset

ReallyReset?

ColourSystemReset

ReallyReset?

Gobo Reset

ReallyReset?

Dimmer/Strobereset

ReallyReset?

Zo.Fo.Fr.Pr.Reset

ReallyReset?

OtherReset

ReallyReset?

ConfigSettings

DMXChannel Mode

ShortMode

StandardMode

ExtendedMode

ViewSelected Mode

Lamp Control

OFF/ ON

On ByPower On

OFF/ ON

ControlByDMX

OFF/ ON

Lamp Power

(W)

1200/1400

1200/ 1400

SignalSelect

Master Slave

DMX

Terminator

DMX

Controler

Slave

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Equipo de iluminación de PR Lighting

PR Lighting

PR Lighting TANGO FRAMING Manual de usuario

PR Lighting

PR Lighting AQUA LED 3000-W FRAMING Manual de usuario

PR Lighting

PR Lighting XR130 Beam Manual de usuario

PR Lighting

PR Lighting Mega Colour 2500 Manual de usuario

PR Lighting

PR Lighting AQUA 380 BWS Manual de usuario

PR Lighting

PR Lighting XR250 Manual de usuario

PR Lighting

PR Lighting PR-8170A Manual de usuario

PR Lighting

PR Lighting XL WASH 700 Manual de usuario

PR Lighting

PR Lighting PR-2330 Manual de usuario

PR Lighting

PR Lighting XL 1500 Manual de usuario

PR Lighting

PR Lighting DESIGN 150 Manual de usuario

PR Lighting

PR Lighting XR 230 Beam Manual de usuario

PR Lighting

PR Lighting AQUA 580 BWS Manual de usuario

PR Lighting

PR Lighting PR-8835 Manual de usuario

PR Lighting

PR Lighting XPar 150 Zoom Manual de usuario

PR Lighting

PR Lighting PR-111ER MOON Manual de usuario

PR Lighting

PR Lighting PR-2001L Manual de usuario

PR Lighting

PR Lighting PR-8120 Manual de usuario

PR Lighting

PR Lighting LS150 TREE Manual de usuario

PR Lighting

PR Lighting AQUA 350 BEAM Manual de usuario

PR Lighting

PR Lighting XPar 360 Manual de usuario

PR Lighting

PR Lighting AQUA LED 1500 SPOT Manual de usuario

PR Lighting

PR Lighting XR 380 BWS Manual de usuario

PR Lighting

PR Lighting CENTURY SPOT PR-2002 Manual de usuario

Manuales populares de Equipo de iluminación de otras marcas

Brizo

Brizo 8SP-MU-4 Manual de usuario

LUCE&LIGHT

LUCE&LIGHT BROM 1.0 Manual de usuario

IKEA

IKEA BJÖRKSPIREA Manual de usuario

Laserworld

Laserworld Evolution Series ES-400RGB Manual de usuario

Alien

Alien RG STAR Manual de usuario

EuroLite

EuroLite LED B-40 Manual de usuario

Qazqa

Qazqa Suplux SL 3 Black 103062 Manual de usuario

Commercial Electric

Commercial Electric 54568141 Manual de usuario

CREE LIGHTING

CREE LIGHTING 304 Series Manual de usuario

Goobay

Goobay 49867 Manual de usuario

ECOMAN ITALIA

ECOMAN ITALIA LED T8 Manual de usuario

Alkalite

Alkalite Krypton KT-81 Manual de usuario

Clas Ohlson

Clas Ohlson GU10 Manual de usuario

DTS

DTS DELTA 10 F Manual de usuario

ring

ring Solar Steplight Manual de usuario

One Stop Gardens

One Stop Gardens 57696 Instrucciones de montaje

Chauvet DJ

Chauvet DJ COREpar UV120 ILS Manual de usuario

SIREM

SIREM Swimeo A2 Manual de usuario
