MODEL 31 USER’S MANUAL

POWISPRINTER®

POWISPRINTERÔMODEL 31 USER’S MANUAL

CONTENTS CONTENIDO SOMMAIRE

USING THIS MANUAL

CH I INTRODUCTION. Explains what

the PowisPrinter™ offers.

CH II FIRST TIME SETUP. Illustrates

how to set up the printer.

CH III PRINTING A QUICK TITLE.

Describes how to print a simple

strip.

CH IV KEYBOARD FEATURES. Explains

the many features and options

available on the PowisPrinter™

keyboard. You’ll use these features

to create exciting, more elaborate

Binderstrips™.

CH V PRINTING MORE ELABORATE

TITLES. Walks you step-by-step

through creating and printing

deluxe, multi-zone, multi-

orientation Binderstrips™. Neat!

CH VI THE POWIS PRINTER™ AND

YOUR COMPUTER. Explains

how to set up the PowisPrinter™

to a computer.

CH VII THE POWIS PRINTER™ AND A

FASTBACK® BINDER. Shows

you how to dock the binder to

the printer, and print as a docked

unit to a Fastback® binder for

immediate binding.

CH VIII PROBLEM SOLVING. Describes

what to do if you have problems,

and how to contact technical

support. Also provides a list of

frequently asked questions (and

their answers).

We encourage you to play with your

PowisPrinter™. Press buttons,

experiment with different features,

print wacky strips, try all the

possibilities. It’s a fun machine, so

have a good time!

I INTRODUCTION 2

II FIRST TIME SETUP 5

A. What’s Included 5

B. Unpacking 5

C. Plugging In 5

D. Loading a Foil Cartridge 5

III PRINTING A QUICK TITLE 6

IV KEYBOARD FEATURES 7

A. Orientation and Zone Keys 7

B. The MENU Key 8

1. Select Font 8

2. Font Size 9

3. Font Style 9

4. Default Formats 10

5. Store Title 10

6. Recall Title 11

7. Review Title 11

8. Logo Menu 11

9. Contrast Adjust 12

10. Text Offset 12

11. User Settings 12

C. Other Keys 14

V PRINTING MORE ELABORATE TITLES 15

A. Step-by-step Procedure 15

B. A Few Words About Printing 17

C. Sample Elaborate Titles (and How to Make Them) 19

VI THE POWISPRINTER™ AND YOUR COMPUTER: A GREAT

COMBINATION

A. System Requirements 20

B. Connecting the PowisPrinter™to a Computer 20

C. Installing the PowisPrinter™Software 20

VII THE POWISPRINTER™ AND A FASTBACK® BINDER —

A DYNAMIC DUO 21

A. Fastback® Binder Docking Kit 21

B. Docking the PowisPrinter™to a Fastback® Binder 21

C. Exciting Printing Options 22

VIII PROBLEM SOLVING 24

A. Frequently Asked Questions (and Answers!) 24

B. Symptoms & Solutions 26

C. Keyboard Error Messages 27

D. Replacing Fuses 27

E. Fixing Jams 28

F. Replacing the Foil Cartridge 29

G. Keeping the Printhead Spic ‘n’ Span 30

H. When to Call for Service or Technical Support 30

I. Ordering PowisPrinter™Accessories or Supplies 30

J. PowisPrinter™Model 31 Specifications 31

Addendum: PowisPrint™ Software User’s Manual 32

REV. C

POWISPRINTERÔMODEL 31 USER’S MANUAL

INTRODUCTIONI

Welcome!

Meet the PowisPrinter™, an extraordinary new printer that lets you

print directly onto a Binderstrip™. It prints colored text on up to three

different locations of the strip, in a variety of orientations, and accepts

different lengths of narrow, medium and wide Binderstrips™. So not

only can you print on Binderstrips™, but you have complete flexibility

in how you do it.

Need even more printing options? Windows 95™ compatible software

is available with the PowisPrinter™ to expand your printing capabilities.

Once you set up the PowisPrinter™ to your computer, you can use

any of your computer’s installed fonts, print bitmap images for logos or

styling, store hundreds of document titles for later retrieval, see the

entire Binderstrip™ as you design it, and use your computer’s full size

keyboard.

And there’s more! With a simple service modification to your

Fastback® binding machine, you can dock the PowisPrinter™ to a

Fastback® binder, and the two machines work together. This allows

the printer to print on the book’s spine immediately before binding.

Which allows you to print and bind in one easy step.

So sit back, relax, and get to know your PowisPrinter™.

NOTE: This equipment has been tested and

found to comply with the limits for a Class B

digital device pursuant to Part 15 of the FCC

rules. These limits are designed to provide

reasonable protection against harmful

interference when the equipment is operated

in a commercial environment. This equipment

generates, uses, and can radiate radio

frequency energy and, if not installed and used

in accordance with the instruction manual,

may cause harmful interference to radio

communications. Operation of this equipment

in a residential area is likely to cause harmful

interference in which case the user will be

required to correct the interference at his

own expense. If this equipment does cause

harmful interference to radio or television

reception, which can be determined by turning

the equipment off and on, the user is

encouraged to try to correct the interference

by one or more of the following actions:

• Reorient or relocate the receiving

antenna

• Increase the separation between the

equipment and the receiver

• Connect the equipment into an outlet

on a different circuit from that to which

the receiver is connected.

CAUTION: Changes or modifications to the

PowisPrinter™not expressly approved by

Powis Parker Inc. could void the user’s

authority to operate this machine.

Internal parts can be extremely

hot! Do not attempt to open the

machine unless you have read this

manual. Follow all precautions.

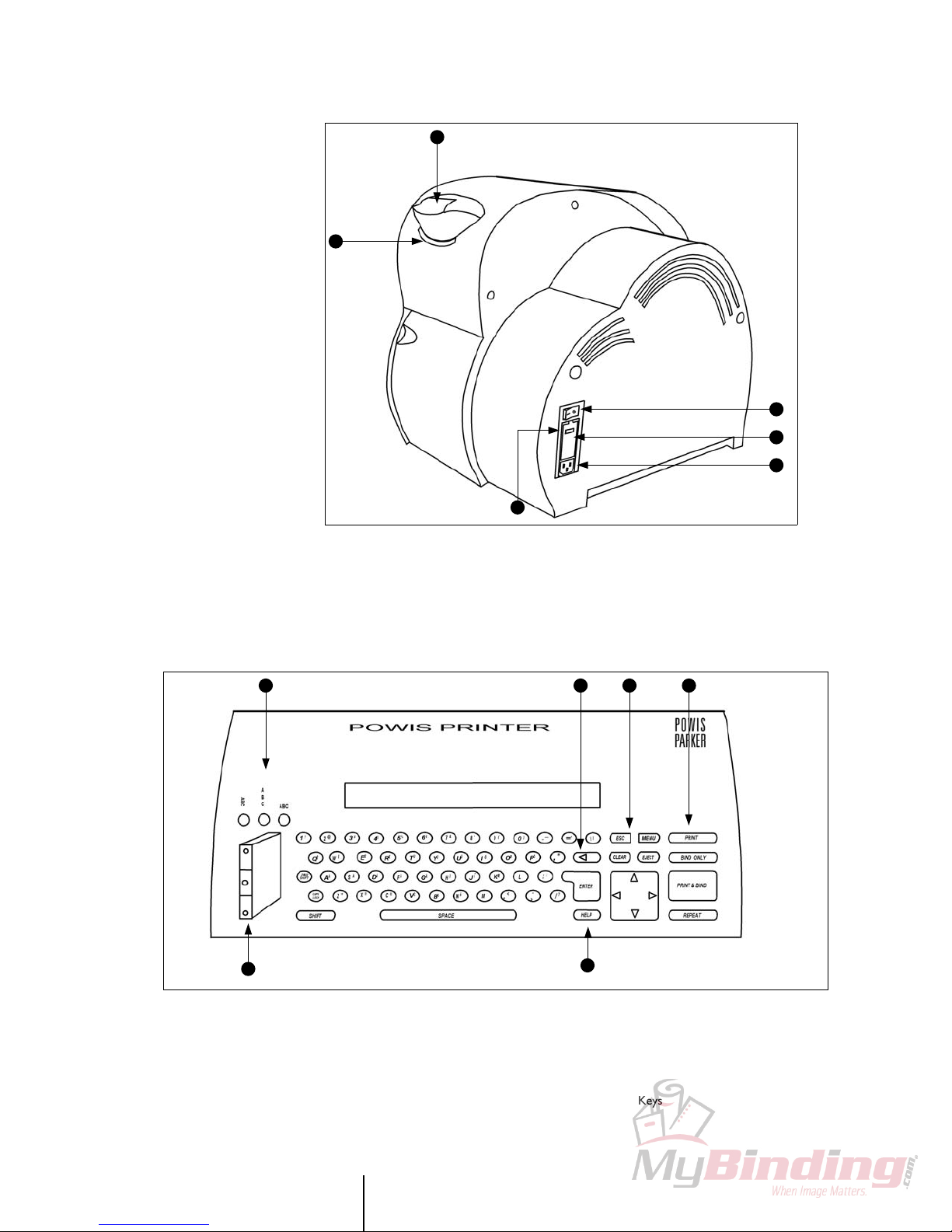

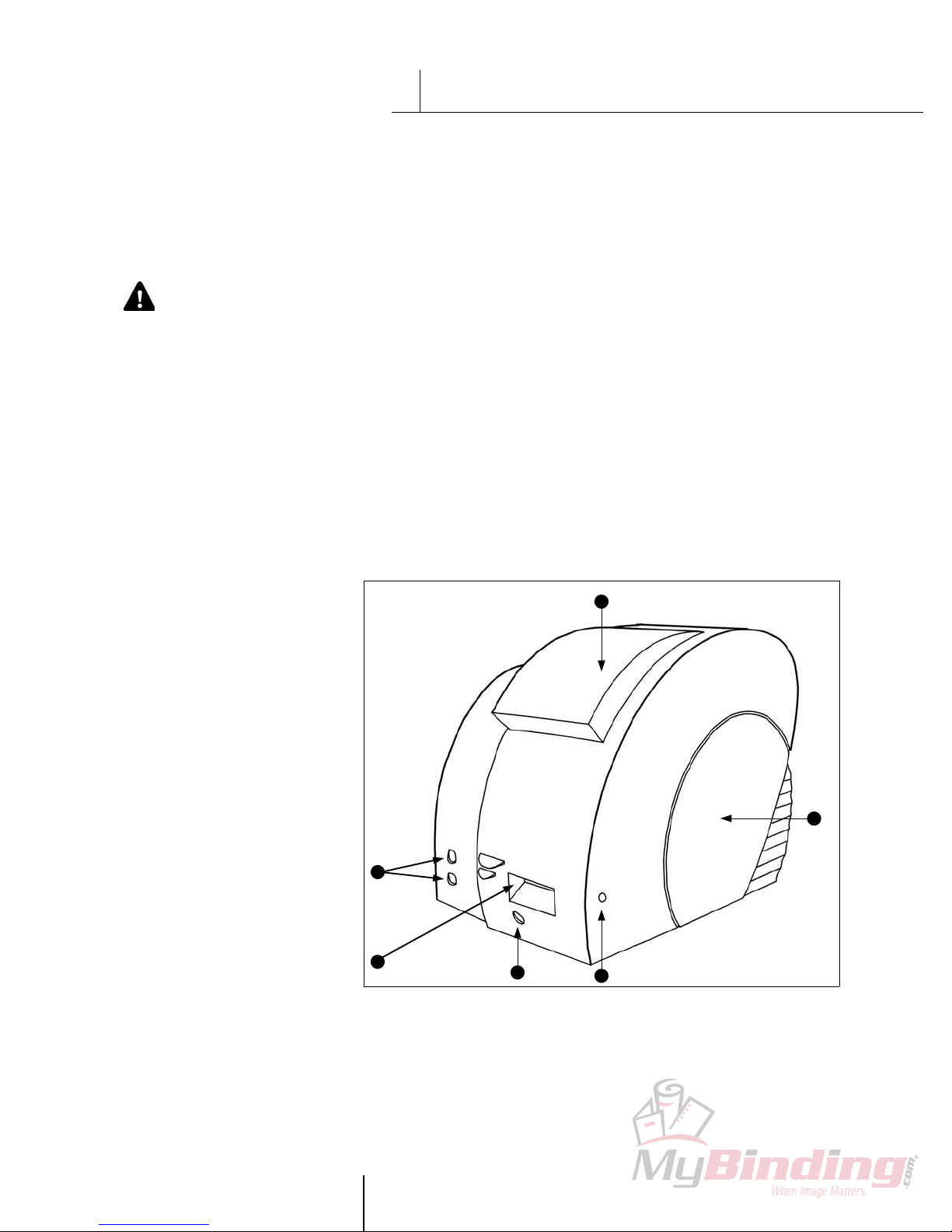

A Front Door

B Power ON Light

C Top Hatch

D Input Ports (2)

E PowisPrinter™Sensor

F Binder Exit

INTRODUCTION

DIAGRAMA/SCHÉMA/FIGURE 1

F E B

POWISPRINTERÔMODEL 31 USER’S MANUAL

INTRODUCTION

I Binderstrip™ Feed Entry

J Binderstrip™ Feed Exit

K Power ON Switch

L Power Cord Receptacle

M Fuse Holder

N Voltage Setting

A Text Orientations: Landscape, Stacked, Portrait

B Text Zones: Top, Middle, Bottom

C Help Key

D Backspace Key

E Escape, Clear, Menu, Eject Keys

F Print, Bind Only, Print & Bind, Repeat Keys

DIAGRAMA/SCHÉMA/FIGURE 2

DIAGRAMA/SCHÉMA/FIGURE 3

FED

POWISPRINTERÔMODEL 31 USER’S MANUAL

INTRODUCTION

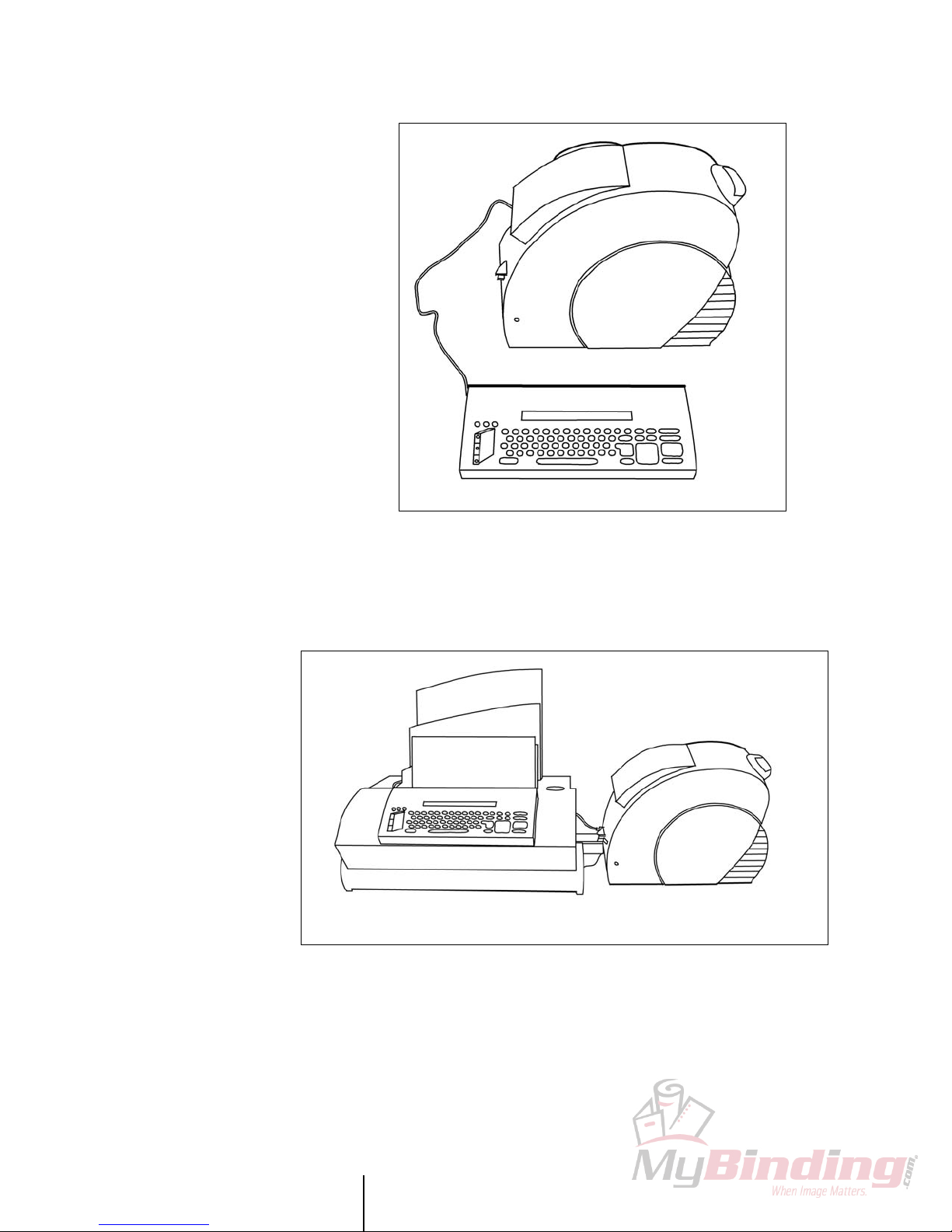

DIAGRAMA/SCHÉMA/FIGURE 4

You can use your PowisPrinter™alone...

Or docked to a Fastback® Model 11 or Model 15.

DIAGRAMA/SCHÉMA/FIGURE 5

POWISPRINTERÔMODEL 31 USER’S MANUAL

DIAGRAMA/SCHÉMA/FIGURE 10

DIAGRAMA/SCHÉMA/FIGURE 9

DIAGRAMA/SCHÉMA/FIGURE 8

DIAGRAMA/SCHÉMA/FIGURE 7

DIAGRAMA/SCHÉMA/FIGURE 6

FIRST TIME SETUPII

FIRST TIME SETUP

A. What’s Included

Your PowisPrinter™ and accessories are shipped in a single box.

This includes:

• The fantastic PowisPrinter™

• Keyboard and Cable

• User’s Manual

• Power Cord

• Two Foil Cartridges — one gold and one silver

• Software Package (compatible with Windows 95™)

• Printer to PC cable

• Keyboard Foot

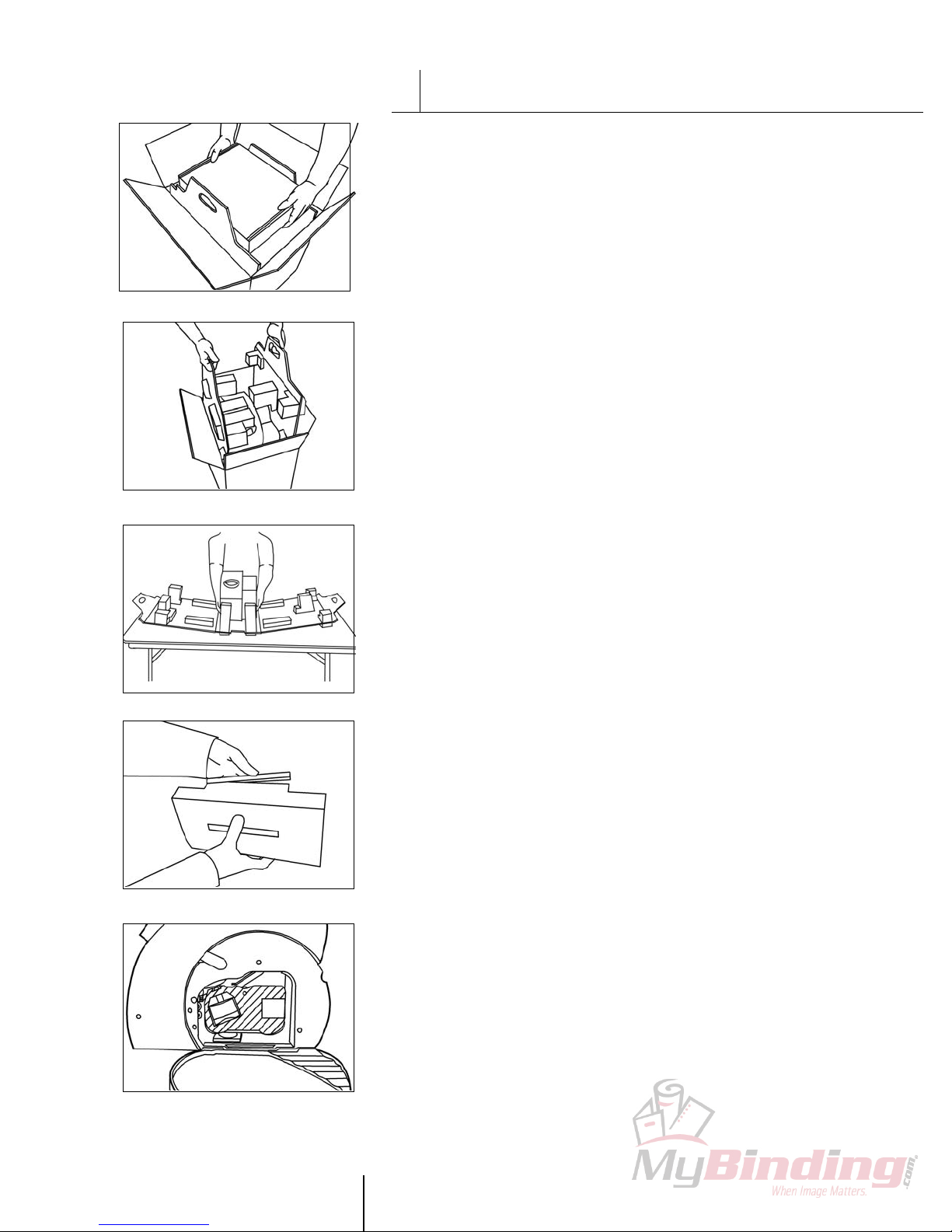

B. Unpacking

1. Remove and unpack the Accessory Pack from the cradle (figure 6).

2. Lift out the printer cradle from its carton (figure 7).

3. On a stable surface, drop the sides of the cradle and take out the

printer (figure 8).

4. Position the machine on the desk, table, or counter where it will

reside. Place the 6" long purple cylinder onto the keyboard’s foot

(Figure 9).

C. Plugging In

1. Plug the keyboard cable into the bottom Input Port (figure 1).

2. The Power Switch is located at the lower left on the back of the

machine (figure 2). Check to see that the Power Switch is “Off” by

depressing the “O” side of the Power Switch.

3. Plug the Power Cord into the outlet on the back of the machine.

Then connect the Power Cord to a standard, grounded electrical

outlet.

D. Loading a Foil Cartridge

1. Open the Front Door. Notice the illustration for loading a foil

cartridge on the inside of the door.

2. Take out one of your foil cartridges. Remove the orange shipping

tab.

3. Look at your foil cartridge. Does the foil balloon out? If it does,

turn the purple wheel on the cartridge clockwise, so the foil

tightens up. The foil should have no slack.

4. Now squat down and look in the machine. Carefully insert the

cartridge over the printhead (figure 10). The foil should slide in the

gap between the drum and the printhead. Listen for a click that

tells you the cartridge is snugly in place.

5. Close the Front Door.

POWISPRINTERÔMODEL 31 USER’S MANUAL

PRINTING A QUICK TITLEIII

PRINTING A QUICK TITLE

1. Turn the Power Switch “ON”. The Power Switch is located at

the lower left on the back of the machine (figure 2). The green

Power ON light on the front of the machine will blink.

The keyboard display will show “Printer self-test.” When the

warm-up cycle is completed, the green Power ON light will

remain on, and the display will show:

This screen is called the Text Screen.

2. Type a few words — for example, “hot dog.”

3. Press PRINT.

4. The screen prompts you for a book width. Type “s.” Then type

“35” (as though you have 35 sheets of paper).

5. Press ENTER.

6. Insert a narrow strip into the Binderstrip™ Feed Entry (figure

1), adhesive side up.

7. The printer will now print the Binderstrip™, and eject it from

the Feed Exit.

And that’s all there is to it — you just printed your first

Superstrip™. Feels good, doesn’t it?

[■]

[ ]

POWISPRINTERÔMODEL 31 USER’S MANUAL

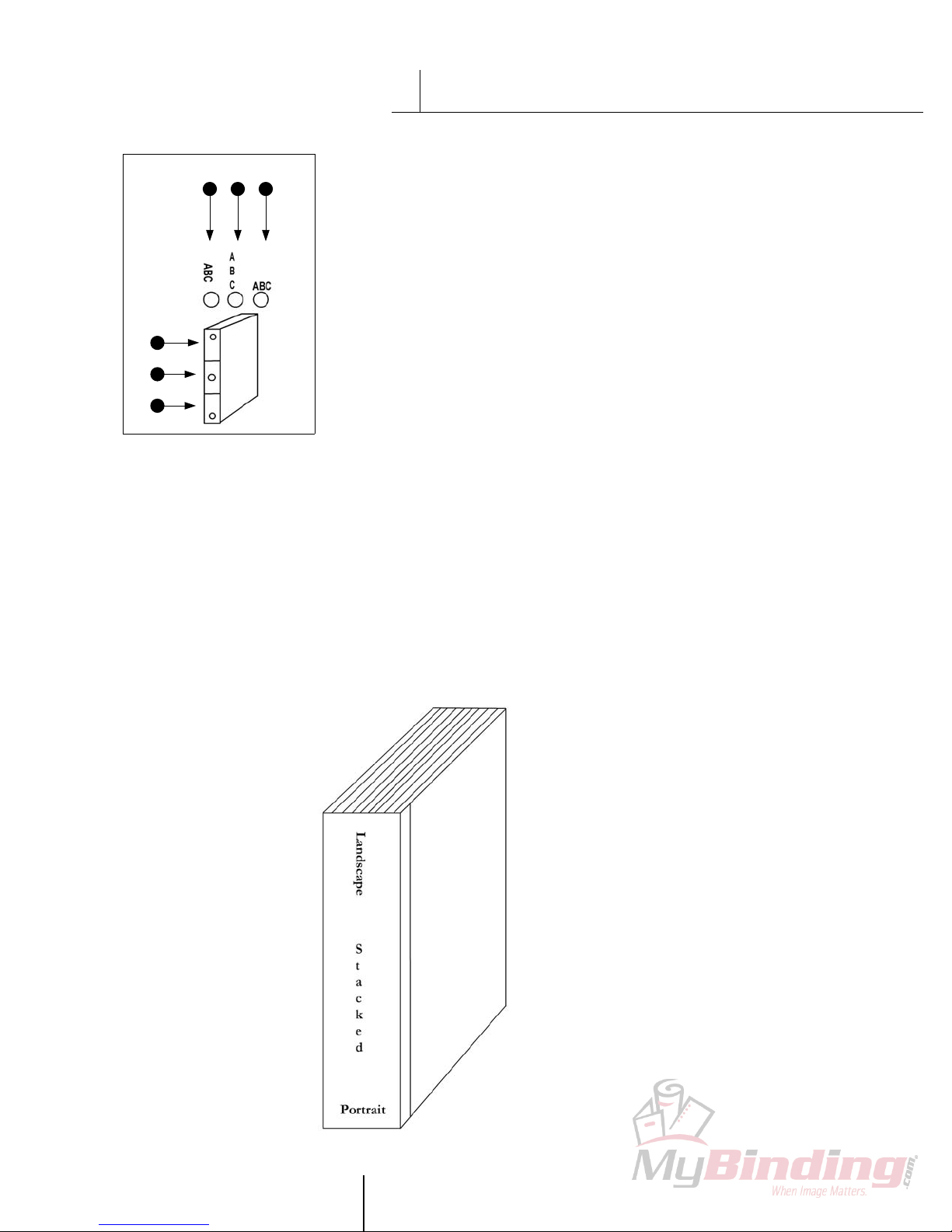

DIAGRAMA/SCHÉMA/FIGURE 11

KEYBOARD FEATURESIV

KEYBOARD FEATURES

CA B

Orientation Keys

ALandscape

BStacked

CPortrait

Zone Keys

DTop

EMiddle

FBottom

A. Orientation and Zone Keys

The orientation and zone keys help you create original and

interesting Binderstrip™ titles. By using these keys, you can print

text across, up and down, sideways, in the middle, at the bottom, at

the top, in all areas of the strip! The orientation and zone keys are

located in the bottom left corner of the keyboard, on and above

the book image (Figure 3).

Zone Keys: Placing Your Text

The zone keys are located on the spine of the book image (Figure

11). They represent the different “zones” of a book’s spine — the

top zone, middle zone, and bottom zone. When you want to put

text in a certain zone, just press the corresponding key. For

example, if you want your text in the middle of the Binderstrip™ ,

press the Middle Zone key. Or if you want text at the top, press the

Top Zone key. It’s that easy. And remember, you can put text in

one zone, two zones, or even all three zones of one Binderstrip™.

Orientation Keys: Setting Up the Direction of Your Text

Within each zone, you have to decide how to orient your text.

That’s where the orientation keys come in. The orientation keys are

the three small round buttons labeled with ABCs, located above the

book image. They orient the text in three different ways: Landscape,

Stacked, or Portrait.

Hints:

• Stacked orientation permits only one line of

text per zone.

• If you have a lot of text to print, try

Landscape.

• Portrait orientation usually has room for

only a few characters.

POWISPRINTERÔMODEL 31 USER’S MANUAL

NOTE: Contains UFST and MicroType from Agfa

Division, Bayer Corporation.

KEYBOARD FEATURES

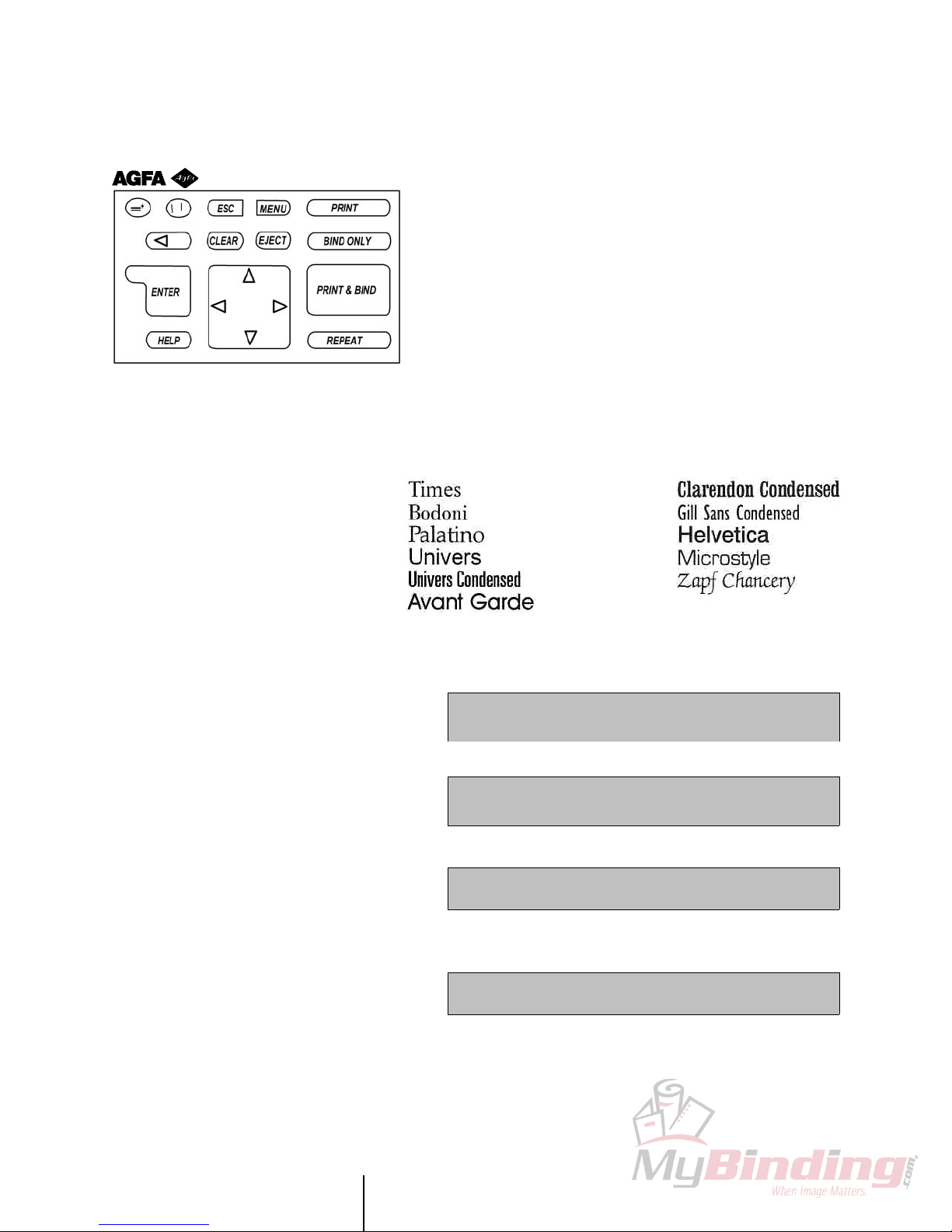

DIAGRAMA/SCHÉMA/FIGURE 12

B. The MENU Key

The MENU key is full of useful features. Within MENU, you can

change the font type, size, and style; save titles; recall previously

saved titles; access logo menus; and adjust the contrast and text

offset. And you can work with any of these features at any point

while designing your strip.

To select a menu item, press the MENU key (figure 12) and use

the arrow keys to scroll through the menu. Press the number of

the option you want. You can press ESC at any time to go back to

the Text Screen.

1. SELECT FONT

Select Font allows you to change the font. You have eleven

wonderful font choices:

1.Times 2.Bodoni 3.Palatino 8

4.Univers 5.Univers Condensed 8

• To view more fonts, press 8:

• Once you have chosen a font, select an option to change all of the

zones or just one of them:

If you just press ENTER, the printer changes the font only in the

zone you are currently in. After making your selection, the printer

confirms your font change in the zone(s) you have selected.

w6. Avant Garde 7.Clarendon Condensed 8

w8.Gill Sans Condensed 9.Helvetica 8

wA.Microstyle B.Zapf Chancery

Select which zone will be affected

1.ALL 2.TOP 3.MIDDLE 4.BOTTOM

• Press the MENU key, and then press the (1) key (SELECT FONT).

• Make a selection from the font options by pressing a number:

Tabla de contenidos

Otros manuales de Impresora de Powis Parker

Powis Parker

Powis Parker Foilfast 21 Manual de usuario

Manuales populares de Impresora de otras marcas

Lexmark

Lexmark 1400 Series Manual

Canon

Canon i70 Series Manual de usuario

Evolis

Evolis Elypso Manual de usuario

Kyocera

Kyocera FS-9530DN Manual de usuario

Canon

Canon LASER SHOT LBP-1210 Manual de usuario

Samsung

Samsung BIXOLON SRP-350plusF Manual de usuario

Canon

Canon PIXMA PRO-1 Series Manual de usuario

Canon

Canon PIXMA G3560 Guía de configuración

Dell

Dell Color Laser Printer 2130cn Manual de usuario

Tektronix

Tektronix Phaser 840 Manual de usuario

Epson

Epson ET-7750 Instrucciones de funcionamiento

Canon

Canon CLBR 460ps Manual de usuario

Eltron

Eltron P210 Guide Manual de usuario

Ricoh

Ricoh MD-P1 Manual de usuario

Epson

Epson SC-F7100 series Manual de usuario

Epson

Epson Stylus C40UX Manual de usuario

Canon

Canon imagePASS-A2 Manual de usuario

Canon

Canon S820D Manual de usuario
