Introduction

Thank you for choosing PowerShield.

PowerShield Centurion UPS series are designed to provide the highest level of protection

against disturbances found on electrical power supply lines. It is suitable for most applications

including IT, security, telephone, broadcasting, medical*1etc.

The Centurion UPS series are designed to provide the most comprehensive protection for your

valuable electronic equipment, hardware, software and data from harmful disturbances found

on AC power lines including blackouts, power sags, power surges, under voltage, over voltage,

line noise, frequency variation, switching transients and harmonic distortions. The Centurions

true online double conversion topology will continuously protect your equipment by internally

isolating your equipment from the utility power ensuring that all your equipment always

receives clean, uninterrupted and stable power.

Very Important !! : WARRANTY REGISTRATION

In order to validate product warranty, it is essential that you register your UPS on line.

Please Visit PowerShield on line product warranty web page

www.powershield.com.au/product-registration.php

This user manual contains instructions relating to safety, installation, operation, maintenance

and warranty of this product.

Please keep this manual in a safe place for future references.

Handling Safety

Do not lift heavy loads without assistance.

This equipment is intended for installation in a controlled temperature indoor area free from

conductive contaminants.

*1: PowerShield does not recommend to use any of its products in life support application and /or in direct patients care.

Table of Contents

1. Important Safety Warning………………………………………………

1-1. Transportation

1-2. Preparation

1-3. Installation

1-4. Operation

1-5. Maintenance, service and faults

2. Installation and setup……………………………………………………

2-1. Rear panel view

2-2. Setup the UPS

3. Operations…………………………………………………………………..

3-1. Button operation

3-2. LCD Panel

3-3. Audible Alarm

3-4. LCD display wordings index

3-5. UPS Setting

3-6. Operating Mode Description

3-7. Faults Reference Code

3-8. Warning indicator

4. Troubleshooting…………………………………………………………...

5. Service……………………………………………………………………….

6. Storage and Maintenance………………………………………………

7. Contact PowerShield……………………………………………………..

8. Product Specification……………………………………………………

www.powershield.com.au 3

1. Important Safety Warning

Please comply with all warnings and operating instructions in this manual. Save this manual

properly and read carefully the following instructions before installing the unit. Do not operate

this unit before reading through all safety information and operating instructions carefully

1-1. Transportation

Please transport the UPS system only in the original package to protect against shock

and impact.

1-2. Preparation

Condensation may occur if the UPS system is moved directly from cold to warm

environment. The UPS system must be absolutely dry before being installed. Please

allow at least two hours for the UPS system to acclimate to the environment.

Do not install the UPS system near water or in moist environments.

Do not install the UPS system where it would be exposed to direct sunlight or near

heater.

Do not block ventilation holes in the UPS housing.

1-3. Installation

Do not connect appliances or devices which would overload the UPS system (e.g.

laser printers) to the UPS output sockets.

Place cables in such a way that no one can step on or trip over them.

Do not connect domestic appliances such as hair dryers to UPS output sockets.

The UPS can be operated by any individuals with no previous experience.

Connect the UPS system only to an earthed shockproof outlet which must be easily

accessible and close to the UPS system.

Please use only VDE-tested, CE-marked mains cable (e.g. the mains cable of your

computer) to connect the UPS system to the building wiring outlet (shockproof

outlet).

Please use only VDE-tested, CE-marked power cables to connect the loads to the UPS

system.

Pluggable equipment includes a protective earth conductor that carries the leakage

current from the load devices ( computer equipment ). Total leakage current must not

exceed 3.5mA.

1-4. Operation

Do not disconnect the mains cable on the UPS system or the building wiring outlet

(shockproof socket outlet) during operations since this would cancel the protective

earthing of the UPS system and of all connected loads.

The UPS system features its own, internal current source (batteries). The UPS output

sockets or output terminals block may be electrically live even if the UPS system is not

connected to the building wiring outlet.

In order to fully disconnect the UPS system, first press the OFF/Enter button to

disconnect the mains.

Prevent no fluids or other foreign objects from inside of the UPS system.

1-5. Maintenance, service and faults

The UPS system operates with hazardous voltages. Repairs may be carried out only

by qualified maintenance personnel.

Caution - risk of electric shock. Even after the unit is disconnected from the mains

(building wiring outlet), components inside the UPS system are still connected to the

battery and electrically live and dangerous.

Before carrying out any kind of service and/or maintenance, disconnect the batteries

and verify that no current is present and no hazardous voltage exists in the terminals

of high capability capacitor such as BUS-capacitors.

Only persons are adequately familiar with batteries and with the required

precautionary measures may replace batteries and supervise operations.

Unauthorized persons must be kept well away from the batteries.

Caution - risk of electric shock. The battery circuit is not isolated from the input

voltage. Hazardous voltages may occur between the battery terminals and the

ground. Before touching, please verify that no voltage is present!

Batteries may cause electric shock and have a high short-circuit current. Please take

the precautionary measures specified below and any other measures necessary when

working with batteries:

－remove wristwatches, rings and other metal objects

－use only tools with insulated grips and handles.

When changing batteries, install the same number and same type of batteries.

Do not attempt to dispose of batteries by burning them. This could cause battery

explosion.

Do not open or destroy batteries. Escaping electrolyte can cause injury to the skin

and eyes. It is toxic.

Please replace the fuse only with the same type and amperage in order to avoid fire

hazards.

Do not dismantle the UPS system.

www.powershield.com.au 5

2. Installation and setup

NOTE: Before installation, please inspect the unit. Be sure that nothing inside the package is

damaged. Please keep the original package in a safe place for future use.

NOTE: There are two different types of online UPS: standard and long-run models. Please

refer to the following model table.

NOTE : Long Runtime UPS systems do not contain batteries in the UPS system. Battery bank

needs to be purchased when Long Runtime model is used.

Model Number

Type

Model Number

Type

PSCE1000/PSCER1000

Standard

Runtime

PSCE1000L/PSCER1000L

Long

Runtime

PSCE1500/PSCER1500

PSCE1500L/PSCER1500L

PSCE2000/PSCER2000

PSCE2000L/PSCER2000L

PSCE3000/PSCER3000

PSCE3000L/PSCER3000L

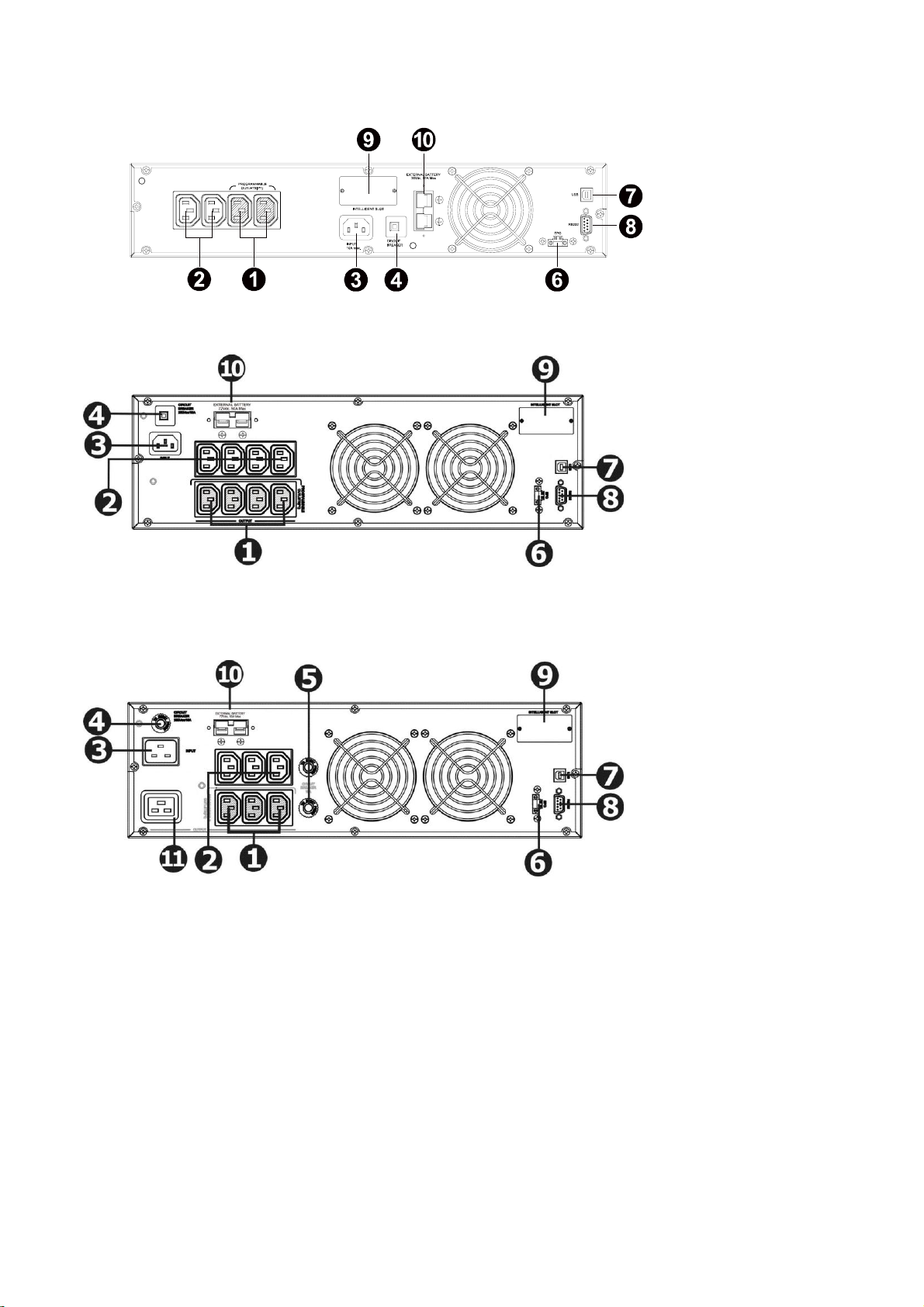

2-1. Rear panel view

PSCE1000(L) / PSCE1500(L) TOWER PSCE2000(L) TOWER

PSCE3000(L) TOWER

PSCER1000(L)/PSCER1500(L) RACK

PSCER2000(L) RACK

PSCER3000(L) RACK

1. Programmable outlets (WHITE COLOUR OUTLETS): connect to non-critical loads.

2. General outlets (BLACK COLOUR OUTLETS): connect to mission-critical loads.

3. AC input inlet

4. Input circuit breaker

5. Output circuit breaker

6. Emergency power off function connector (EPO)

7. USB communication port

8. RS-232 communication port

9. SNMP /AS400 intelligent slot

10. External battery connection

11. 15A outlet

www.powershield.com.au 7

2-2. Setup the UPS

Step 1: UPS input connection

Plug the UPS input cord into a two-pole, three-wire, grounded receptacle only. Avoid using

extension cords.

Centurion series come with Australian power cord in the package.

For 1000/2000VA : 10A Australian input plug to IEC socket

For 3000VA : 15A Australian input plug to IEC socket

Step 2: UPS output connection

There are two kinds of outlets on this model: programmable outlets ( Marked in

White colour ) and general outlets( Marked in black colour ). Please connect

non-critical devices to the programmable outlets and critical devices to the

general outlets. During power failure, you may extend the backup time to critical

devices by setting shorter backup time for non-critical devices.

Step 3: External Battery Bank connection

There are external battery banks available on each models for gaining more battery

backup time. Please check following instruction for connecting external battery bank

to the unit.

Please provide enough space between UPS and external battery bank for ventilation.

Also, do not stack battery banks. Stacking results in a tipping hazard.

1. Remove DC connector cover from the rear panel of the unit and from the battery

bank input connector.

2. Connect DC cable from the DC connector of UPS rear panel to the input DC

connector of Battery bank. Turn on battery circuit breaker of Battery banks.

NB : Battery banks can be used with both types of UPS’s. Although standard battery

banks can be used with Long run UPS’s usually these would have a customised larger

battery bank. Standard battery banks are used more commonly with standard UPS’s

to increase backup times

For installation of PSCEBB18CH. Please refer detail installation manual included in the

package of its product.

Step 4: Communication connection

Communication port:

USB port RS-232 port Intelligent slot

To allow for unattended UPS shutdown/start-up and status monitoring, connect the

communication cable one end to the USB/RS-232 port and the other to the communication

port of your PC. With the monitoring software installed, you can schedule UPS

shutdown/start-up and monitor UPS status through PC.

The UPS is equipped with intelligent slot perfect for SNMP or AS400 card. When installing

SNMP or AS400 card in the UPS, it will provide advanced communication and monitoring

options.

Note : USB port and RS-232 port cannot work at the same time.

Note : AS400 and SMNP card cannot work at the same time.

www.powershield.com.au 9

Step 5: Disable and enable EPO ( Emergency Power Off ) function

Keep the pin 1 and pin 2 closed for UPS normal operation. To activate EPO( Emergency Power

Off ) function, cut the wire between pin 1 and pin 2.

Step 6: Turn on the UPS

Press the ON/Mute button on the front panel for two seconds to power on the UPS.

Note: The battery charges fully during the first five hours of normal operation. Do not

expect full battery run capability during this initial charge period.

Unit will perform “Self test “for 15 seconds and go to On line mode.

Note : Cold Start operation. When the UPS is off and there is no mains power, use cold

start feature to apply power to the connected equipment from the UPS’s battery. Cold

start is not a normal condition.

To cold start the unit, push and hold the ON/mute button until you will hear a long beep.

During the long beep, release the button and the unit will cold start.

Note : Unit is on battery mode therefore, the run time is limited.

Step 7: Install software

For optimal computer system protection, install NetGuard monitoring software to fully

configure UPS shutdown that is included in the package.

In order to install the software, insert provided NetGuard CD into CD-ROM to install the

monitoring software.

Please follow steps below to download and install monitoring software from the internet:

1. Go to the website http://www.powershield.com.au

2. Click PowerShield NetGuard software icon and then choose your required OS to download

the software.

3. Follow the on-screen instructions to install the software.

4. When your computer restarts, the monitoring software will appear as an orange plug icon

located in the system tray, near the clock.

It’s in closed status for UPS

normal operation.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Unión Postal Universal de PowerShield

PowerShield

PowerShield DC Pilot 50 Manual de usuario

PowerShield

PowerShield AS400 Manual de usuario

PowerShield

PowerShield Pilot DC 50 Manual de usuario

PowerShield

PowerShield Ninja Slimline PSLN600 Manual de usuario

PowerShield

PowerShield SAFEGUARD PSG750 Manual de usuario

PowerShield

PowerShield Defender 1200 Manual de usuario

PowerShield

PowerShield Centurion RT Series Manual de usuario

PowerShield

PowerShield defender PSD 650 Manual de usuario

PowerShield

PowerShield GLADIATOR Manual de usuario

PowerShield

PowerShield Centurion PSCER6000 Manual de usuario

PowerShield

PowerShield 1100 VA Manual de usuario

PowerShield

PowerShield Centurion 10000 VA Manual de usuario

PowerShield

PowerShield Defender Series Manual de usuario

PowerShield

PowerShield PSCM1100 Manual de usuario

PowerShield

PowerShield 8 Manual de usuario

PowerShield

PowerShield PSDCMin12 Manual de usuario

PowerShield

PowerShield Centurion PSCE1000 Manual de usuario

PowerShield

PowerShield Centurion RT 6000VA Manual de usuario

PowerShield

PowerShield Centurion Pro Series Manual de usuario

Manuales populares de Unión Postal Universal de otras marcas

Pylontech

Pylontech Victron & Pylontech US5000 Manual de usuario

Tecnoware

Tecnoware EVO DSP PLUS MM 6.8 Manual de usuario

Mecer

Mecer ME-1000-WTU Manual de usuario

Mustek

Mustek PowerMust 530(B) Plus Manual de instalación y operación

Emerson

Emerson Liebert NXL series Manual de usuario

MAKELSAN

MAKELSAN BOXER SERIES Manual de usuario

Block

Block PC-0524-400-0 Manual de usuario

CyberPower

CyberPower CP585LCD Manual de usuario

Eaton

Eaton 3S Instrucciones de montaje

CyberPower

CyberPower Office Tower Series UPS 1000 Manual de usuario

CyberPower

CyberPower BM100 Manual de usuario

Best Power

Best Power 610 Manual de usuario

Best Power

Best Power Unity/I UT3K Manual de usuario

Mustek

Mustek PowerMust 400 Offline Manual de usuario

Xantrex

Xantrex Trace 512 UR-UPS Manual de usuario

Forza

Forza SL-1501UL Manual de usuario

LEGRAND

LEGRAND keor 310081 Manual de usuario

ABB

ABB Conceptpower DPA 500 Manual de usuario
