Power House PH3100RI Manual de usuario

QuickStart Guide

Please review this Quick Start Guide to begin using your generator.

To fully understand and safely operate this product, please review the

warnings and complete detailed instructions in the Owner’s Manual.

Thank you

For joining the

PoWerhoUSe FAMiLY

Please refer to the Owner’s Manual

when you see this icon for important

details and additional information.

www.powerhouse-products.com Rev. 2012-08-01

nverter

enerator

Avoid water

KeeP AWAY FroM rAin, SnoW

AnD other Wet ConDitionS

Use outdoors only

ProDUCeS CArbon MonoxiDe —

CAn CAUSe DeAth or SerioUS injUrY

Flammable

KeeP AWAY FroM SMoKing MAteriALS,

SPArKS, & SoUrCeS oF CoMbUStion When reFUeLing

High altitudes/

Extreme temperatures

reFer to the oWner’S MAnUAL For SPeCiFiC reCoMMenDAtionS

Keep level

ALWAYS oPerAte

on A LeveL SUrFACe

In emergency

PUSh the engine SWitCh to OFF PoSition

to StoP engine – With or WithoUt A LoAD.

Battery safety

reFer to the oWner’S MAnUAL For

MAintenAnCe AnD SAFetY reCoMMenDAtionS

PH 310 0Ri

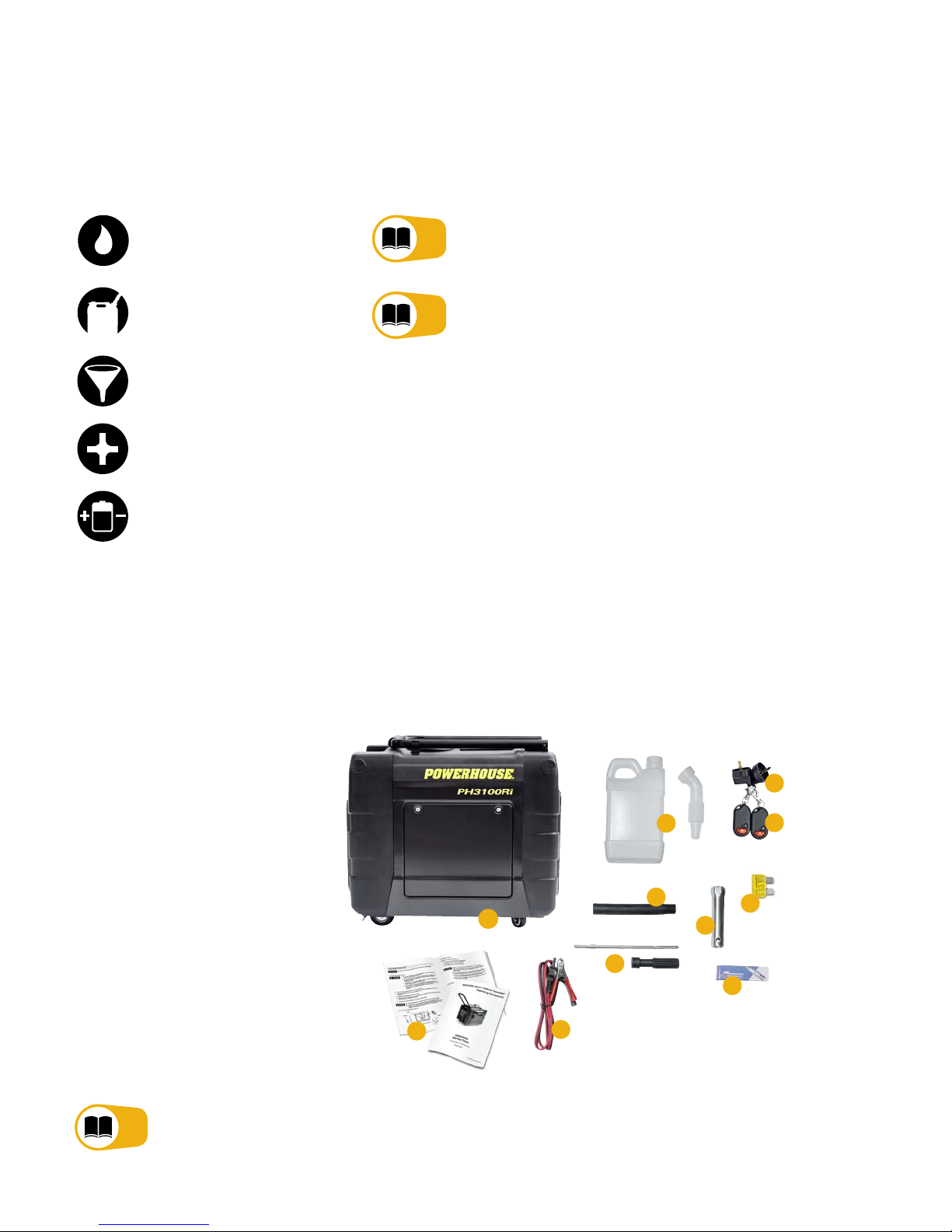

What you need to

Get started

Oil (33.8 oz of 15W-40)

Use 0W-40 in very cold weather

Gasoline (4.4 gal.)

Funnel

Phillips screwdriver

Battery charger

If you do not have a charger we recommend

the Powerhouse TC2-P charger (#19674)

PH3100Ri generator

Oil jug

2 keys

2 remotes

Oil drain pipe

Spare fuse

Spark plug wrench

Screwdriver

Spare spark plug

10.

Battery charge kit

11.

Owner’s manual

Box

Contents

Please take a few moments to register your unit at www.powerhouse-products.com/register.

If you have a problem with this generator,

do not return it to the store where you purchased it. For

warranty support call 877-544-4449, 8am to 6pm ET, or email us at [email protected].

©Copyright DTS Manufacturing / The Coast Distribution System, Inc. 2012

OVERLOAD RUN LOWOIL

OVERLOAD

RESET

STOP

12V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120V AC RECEPTACLES

120V AC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A

Control

panel

Gas cap

Gas gauge

Starter grip

Engine oil

access door

OVERLOAD RUN LOWOIL

OVERLOAD

RESET

STOP

12V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120V AC RECEPTACLES

120V AC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A

Swivel

wheels

Fuel

valve

Maintenance

door

Locking wheels

Fold-over

handle

Overload light (red)

Run light (green)

Low oil alarm light (red)

Ground terminal

120 V duplex receptacle Ignition switch

Remote on indicator

120 V Circuit breakers

Battery charge receptacle

120 V locking receptacle

Hour meter

Remote switch

Battery charge circuit breaker

Stop button (red)

Overload reset button (green)

Economy switch

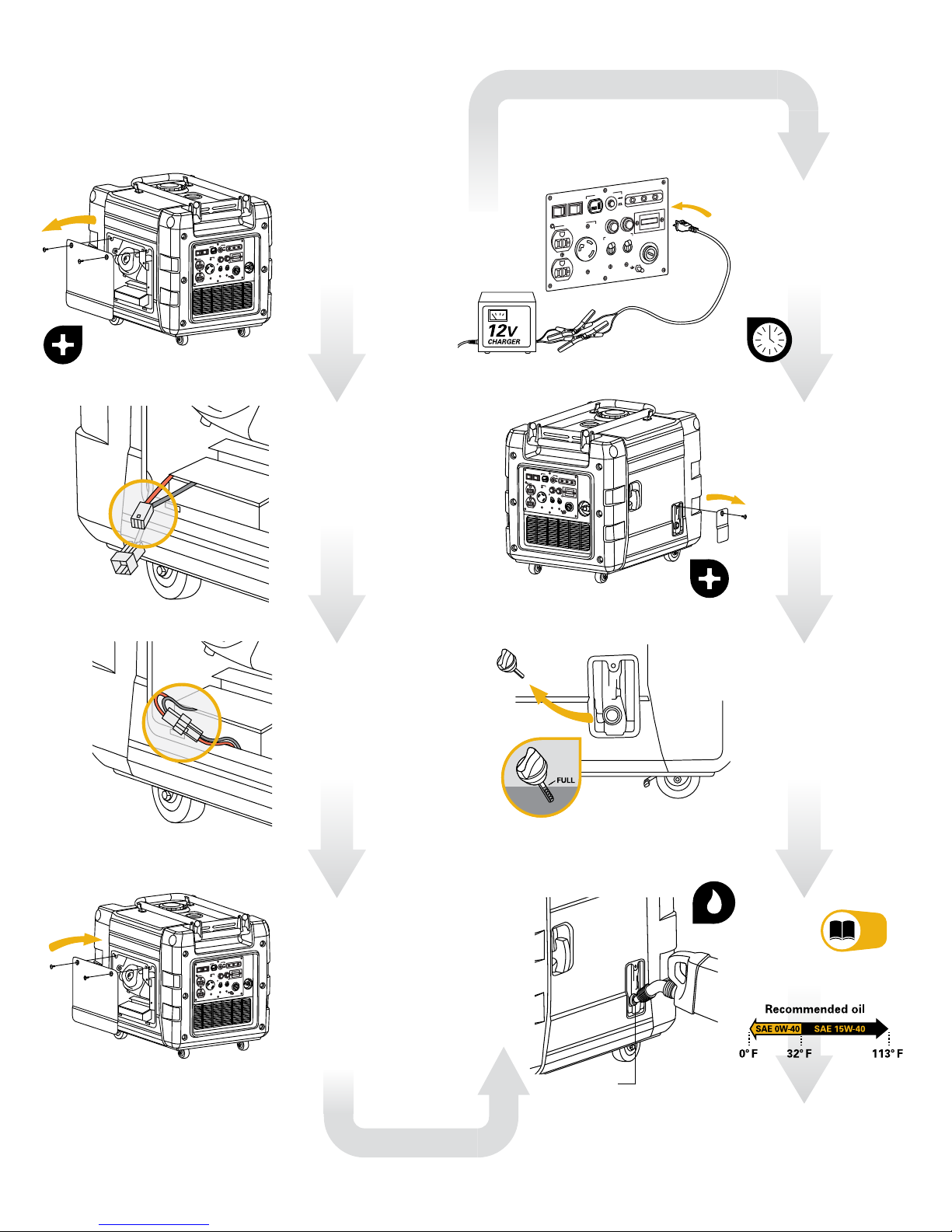

Initial setup

(continued)

Remove

maintenance

door

Locate battery

wiring harness

Connect battery

wiring harness

to main wiring

harness

Remove engine

oil access door

Remove dipstick

OVERLOAD RUN LOWOIL

OVERLOAD

RESET

STOP

12VDC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120VAC RECEPTACLES

120VAC CIRCUITBREAKERS

20A 30A

20A

30A

OVERLOAD RUN LOWOIL

OVERLOAD

RESET

STOP

12V DC 8.3A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120VAC RECEPTACLES

120VAC CIRCUIT BREAKERS

20A 30A

20A

30A

OVERLOAD RUN LOW OIL

OVERLOAD

RESET

STOP

12 V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERY CHARGE

ON OFF ON OFF

120 V AC RECEPTACLES

120 V AC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A

OVERLOAD RUN LOW OIL

OVERLOAD

RESET

STOP

12 V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERY CHARGE

ON OFF ON OFF

120 V AC RECEPTACLES

120 V AC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A

Replace

maintenance door

OVERLOAD RUN LOWOIL

OVERLOAD

RESET

STOP

12VDC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120VAC RECEPTACLES

120VAC CIRCUIT BREAKERS

20A 30A

20A

30A

OVERLOAD RUN LOW OIL

OVERLOAD

RESET

STOP

12V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120V AC RECEPTACLES

120V AC CIRCUIT BREAKERS

20A 30A

20A

30A

Oil

resevoir

Add oil

Add 33.8 oz. (1.0 L) of oil

or ﬁll to full mark on dipstick

3HOURS

Connect battery

charger to

DC receptacle

Charge the battery for 3

hours or until fully charged

OVERLOAD RUN LOW OIL

OVERLOAD

RESET

STOP

12V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120V AC RECEPTACLES

120V AC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A

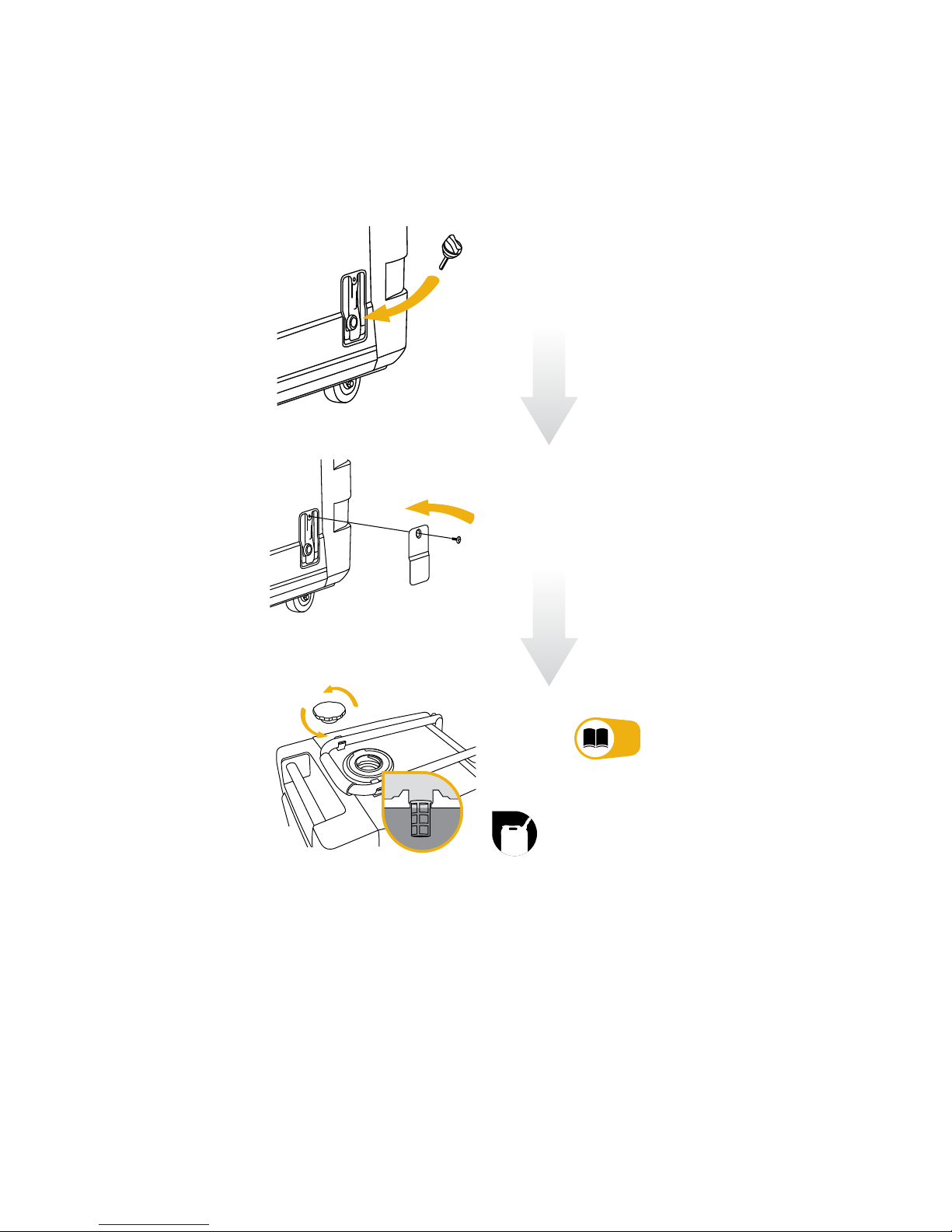

Initial setup (continued)

Replace

engine oil

access door

OVERLOAD RUN LOW OIL

OVERLOAD

RESET

STOP

12V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120V AC RECEPTACLES

120V AC CIRCUIT BREAKERS

20A 30A

20A

30A

Add

gasoline

Use gasoline with an

octane rating of 87 or higher

Replace

dipstick

OVERLOAD RUN LOWOIL

OVERLOAD

RESET

STOP

12V DC 8.3 A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120V AC RECEPTACLES

120V AC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A

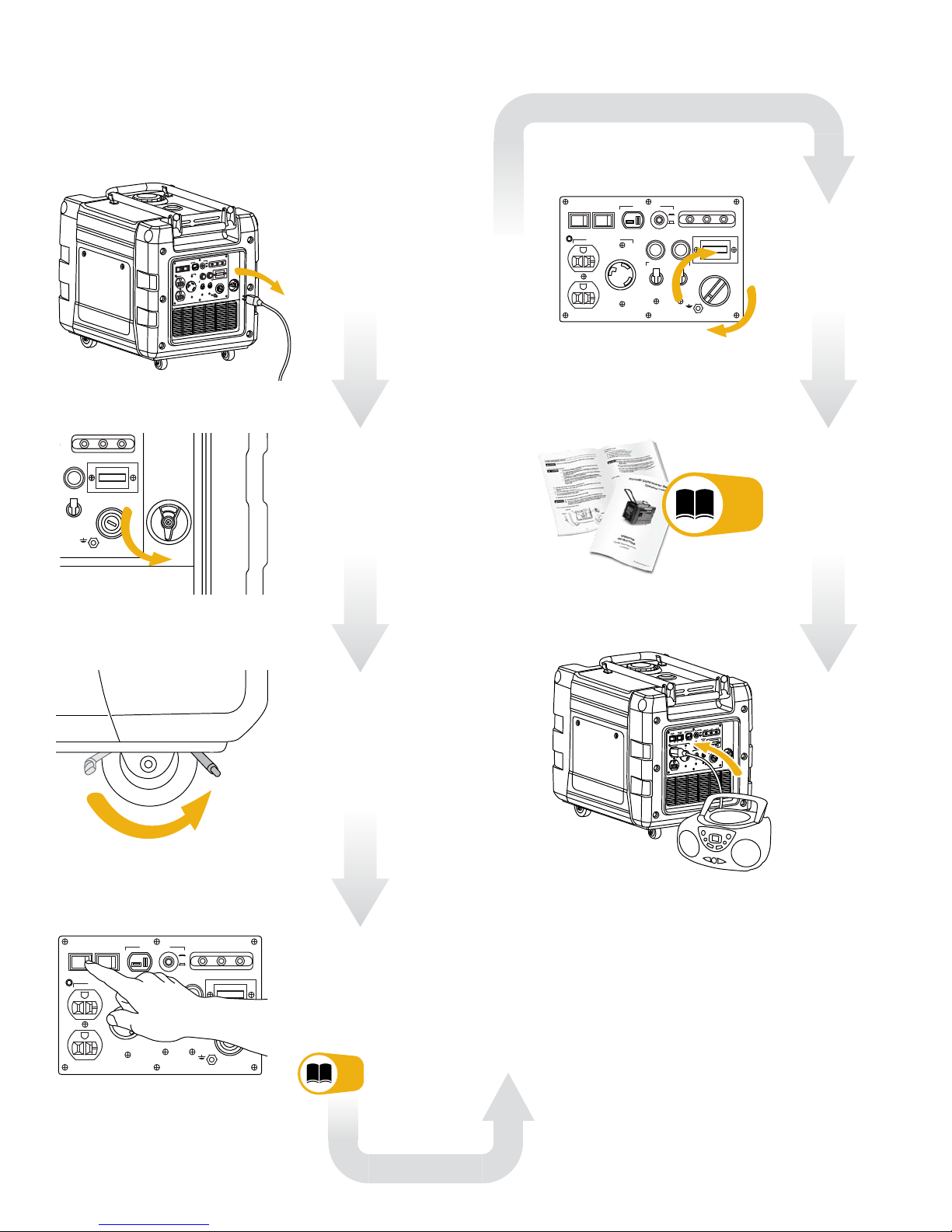

Operation

Turn remote

switch off

OVERLOAD RUN LOWOIL

OVERLOAD

RESET

STOP

12V DC 8.3A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERYCHARGE

ON OFF ON OFF

120VAC RECEPTACLES

120VAC CIRCUIT BREAKERS

20A 30A

20A

30A

Connect

appliances

For remote system in-

structions, refer to page

17 of the owner’s manual

START

OVERLOAD RUN LOW OIL

OVERLOAD

RESET

STOP

12 V DC 8.3A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERY CHARGE

ON OFF ON OFF

120 V AC RECEPTACLES

120 VAC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A Turn

key

to start

For additional

starting options

refer to pages

16-17 of the

owner’s manual

Disconnect

appliances

Open

fuel valve

Lock

wheel locks

OVERLOAD RUN LOW OIL

OVERLOAD

RESET

STOP

12 V DC 8.3A

OFF

REMOTE

CONTROL

ECONOMY

SWITCH

START

OFF

HOURS 1/10

BATTERY CHARGE

ON OFF ON OFF

120 V AC RECEPTACLES

120 VAC CIRCUIT BREAKERS

20 A 30 A

20 A

30 A

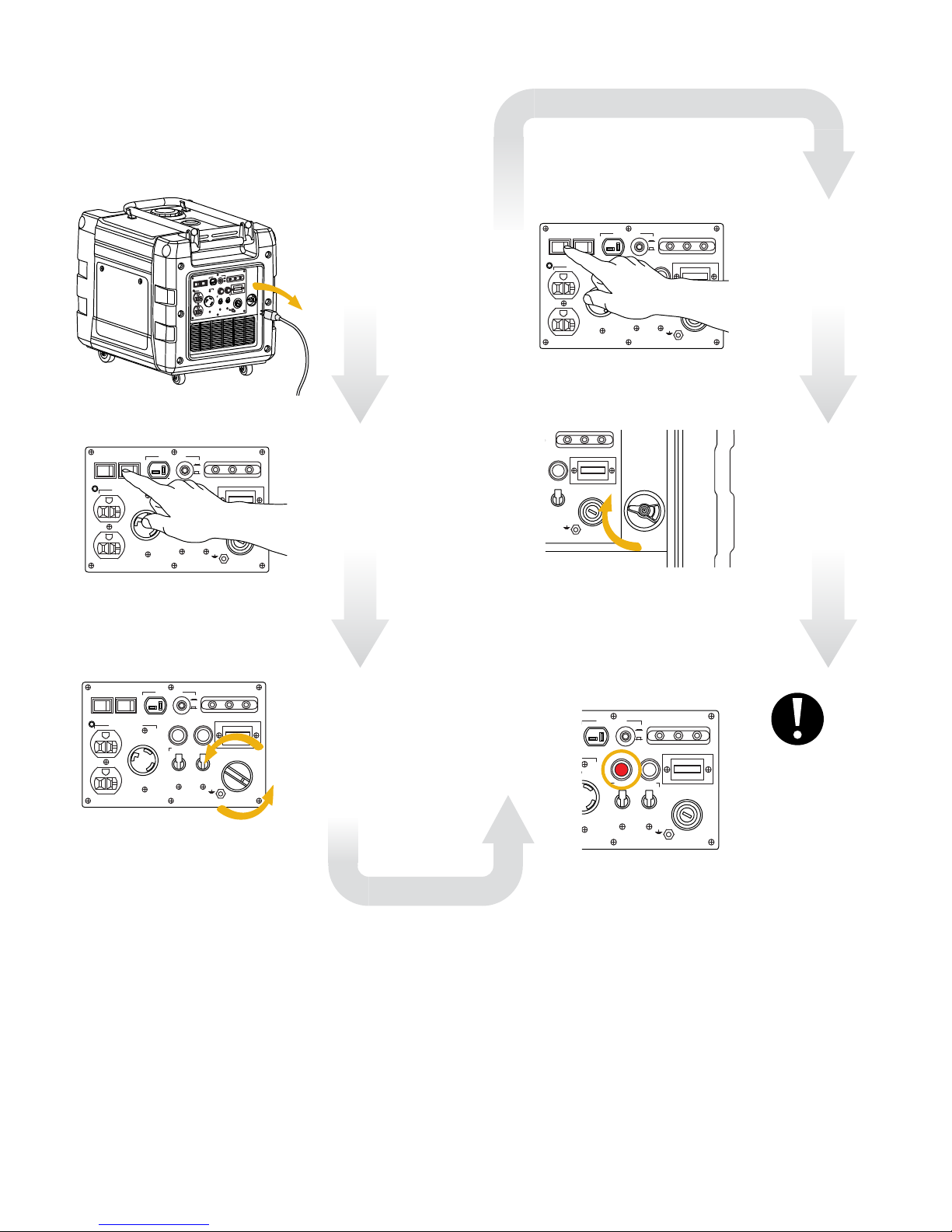

Shutdown
