Powakaddy Twinline 4 Manual de usuario

APvcgrip

B Scorecard holder

C Handle tube

D Upper bag holder bracket

E Adjustable handle mechanism

F Main upper frame tube

G Connecting rods

H Leg bracket

I Slippery connecting rods

J 2 holes leg frame

K 4 holes leg frame

L Right weight stabilizer

L1 Left weight stabilizer

M Right wheel locking mechanism

M1 Left wheel locking mechanism

NAnti-splay wire

P Main wheel

Q Main lower frame tube

R Lower bag holder bracket

S Front wheel assembly

T Umbrella holder base

U Umbrella holder storage rack

V Umbrella holder

PARTS LIST MAINTENANCE

To clean to the cart, wipe with a soft, dry cloth. Car polish may be

used to maintain finish. Lubricate moving parts every 6 months.

Warning:

For your own safety, please read and understand these warnings and keep

this user guide for future reference.

Always make sure the cart is fully extended and locked before use.

Always make sure the cart is folded and locked properly before lifting or

transporting.

Do not run while using this product.

Do not use accessories other than those designed for use with this cart.

Keep all packing materials away from children and recycle where possible

or where required by law.

USE THE BRAKE

Fig.1

To put in use：

Simply attach the umbrella holder onto

the cart as in Fig. 2＆3

To store：

ttach the umbrella holder to the storage rack

on the handle as in Fig. 4＆5

Push on the brake pedal to

stop the rear wheel and pull

off to release as in Fig.1

Fig.2

Fig.3

Fig.4

Fig.5

UMBRELLA HOLDER

Fig.6

GC332503

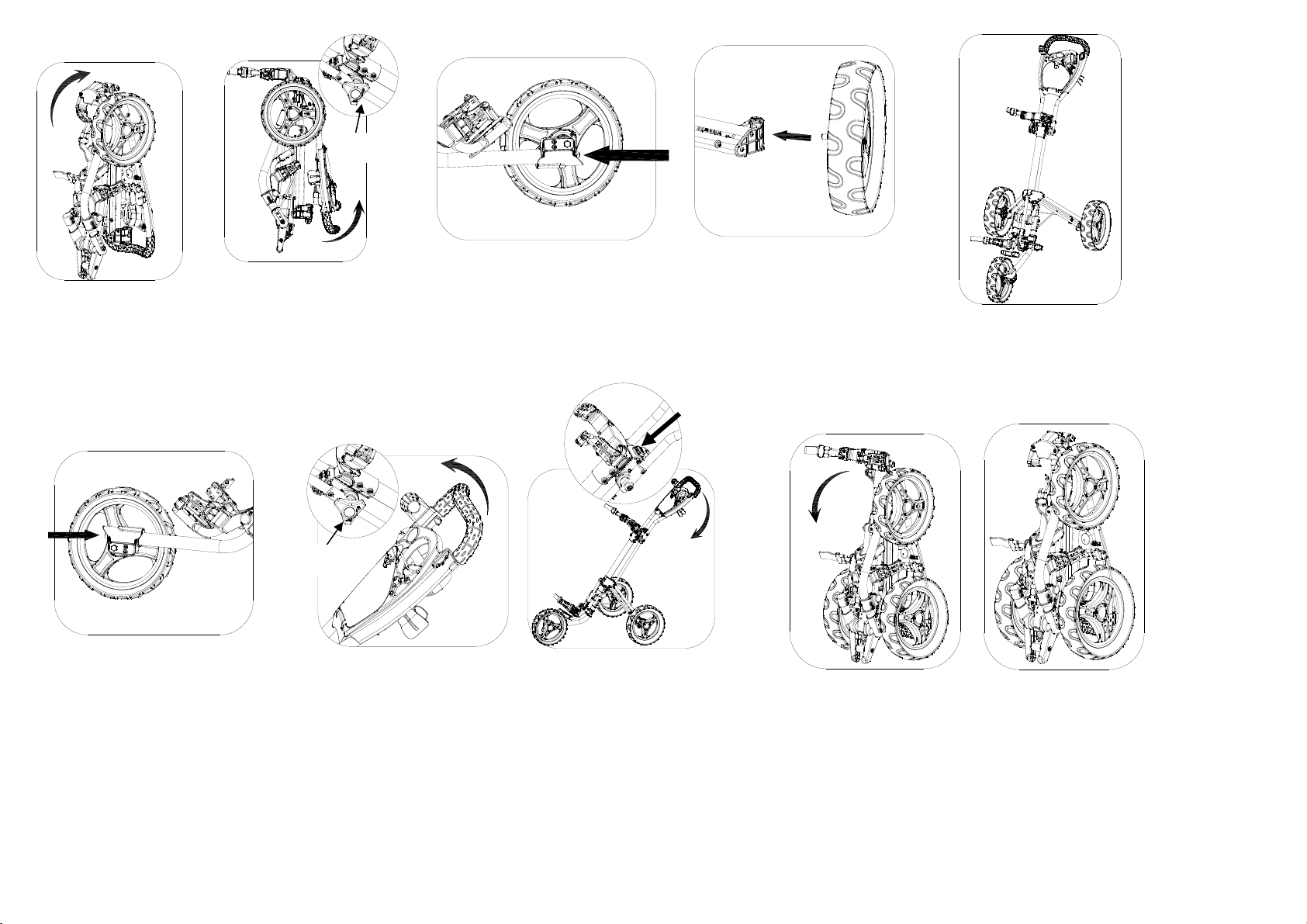

UNFOLDING

FOLDING

Fig.7

Fig.14

Fig.8 Fig.9 Fig.10

Fig.11

Fig.15

Lift the upper bag

holder bracket as

Fig.6

Fig.13

button

Fig.12

Make sure the handle height

adjusting knob is fully tighten ,

then pull the handle and upper

bag bracket as shown in Fig. 7 to

extend the cart.

s shown in Fig 8, press the

button and rotate the front

wheel 180 degree clockwise so

the front wheel is at center of

the cart.

Release the wheel locking

buckle, insert the wheel axel

into the wheel holder

completely and then tighten the

locking buckle as Fig.9 The cart is fully extended as

shown in Fig. 10

Press the button and rotate the

front wheel 180 degree

counterclockwise so the front

wheel is on the left of the front

wheel fork (when you look

behind the cart) as Fig11.

Make sure the handle height adjusting knob is fully tighten ,

slightly lift up the handle as Fig. 12 ,and then press the

folding button and push the handle downward as shown in

Fig. 13 .

Fold down the upper

bag holder bracket as

Fig.14

The cart is fully

folded as Fig.15.

knob

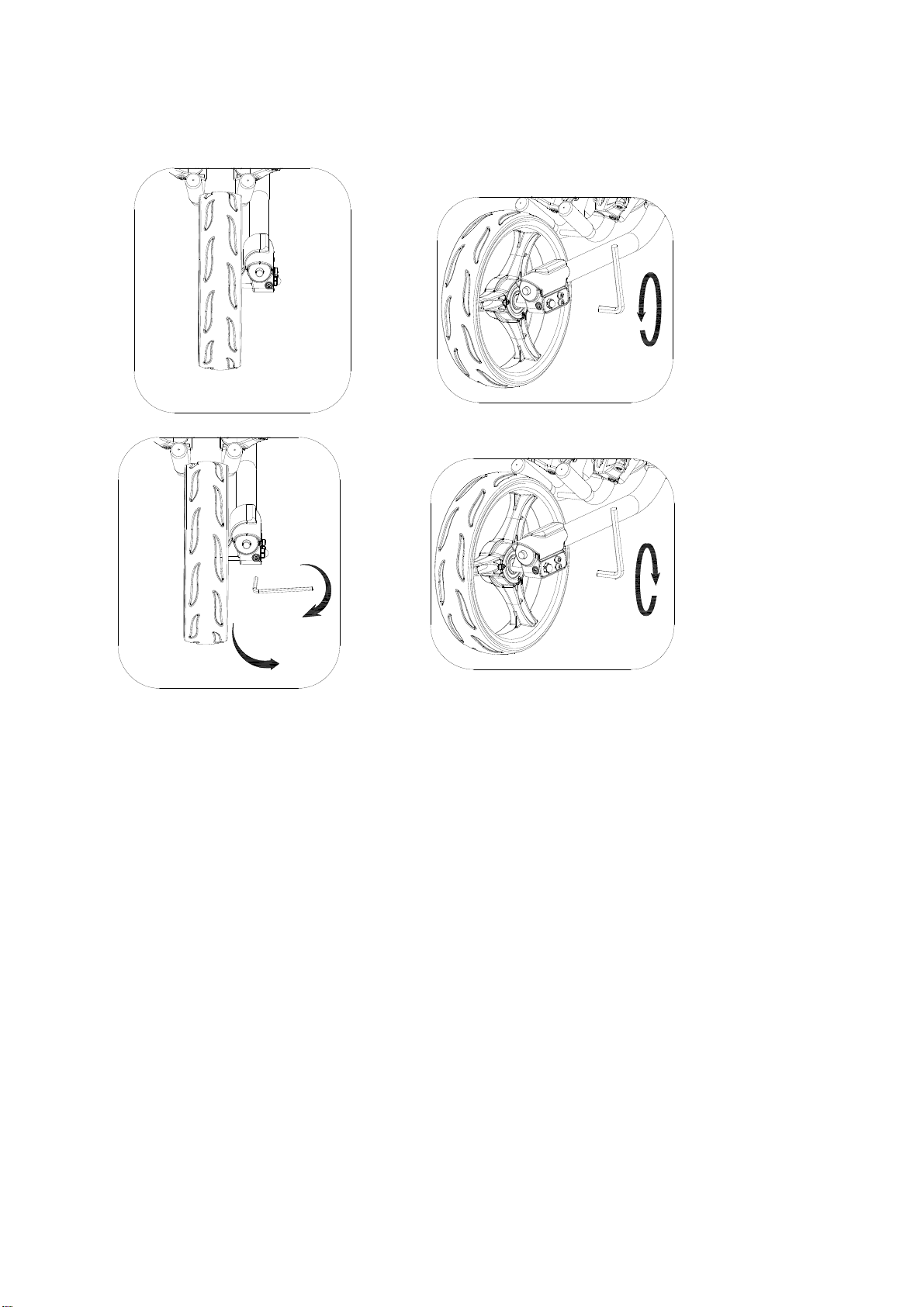

Front Wheel Adjustment

If the cart veers to the right:

Step 1: Face the front wheel of the cart and use the provided

Allen wrench to loose the two side screws as in Fig.B.

Step 2: Then use the Allen wrench to adjust the front bolt

clockwise until the front wheel is centered as in Fig.C. Then

tighten the two side screws as in Fig.D.

If the cart veers to the left:

Step1: The same as above.

Step 2: Adjust the front bolt counterclockwise until the front

wheel is centered as in Fig.C. Then tighten the two side screws

as in Fig.D.

Fig.C

Fig.D

Fig.A Fig.B

Left Right
