Poulan Pro FT825 Manual del propietario

REPAIR PARTS MANUAL

MODEL:

FT825

FRONT TINE TILLER

ALWAYS WEAR EYE PROTECTION DURING OPERATION

Visit our website: www.poulan.com

IMPORTANT MANUAL Do Not Throw Away

413157 02.26.07 CL

Printed in U.S.A.

1 187820X428 Bracket, Handle

2 72140512 Bolt, Carriage 5/16-18 x 1-1/2

3 9266R Grip, Handle

4 166376 Handle, L.H.

5 73680500 Nut, Hex, Crownlock 5/16-18

6 19111116 Washer 11/32 x 11/16 x 16 Gauge

7 19121414 Washer 3/8 x 7/8 x 14 Gauge

8 74760520 Bolt, Hex Head 5/16-18 x 1-1/4

9 74760516 Bolt, Hex Head 5/16-18 x 1

10 10040500 Washer, Lock 5/16

11 73220500 Nut, Hex 5/16-18

12 98000129 Nut, Hex, Flanged 5/16-18

KEY PART

NO. NO. DESCRIPTION

KEY PART

NO. NO. DESCRIPTION

13 180847 Bolt, Carriage, Gr. 5 5/16-18 x 3/4

14 181452X428 Panel, Handle

16 166377 Handle, R.H.

19 188562 Tine Control Lever Assembly

(Includes Cable)

20 188555 Pin, Pivot

29 12000059 Retaining Ring

43 188177 Cable Assembly, Reverse

44 181580 Clip

NOTE: All component dimensions are given in U.S.

inches. 1 inch = 25.4 mm

FRONT TINE TILLER – MODEL NUMBER FT825 (MFG. ID. NO. 96082000700)

HANDLE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

19 188502 Bolt, Belt Guard

20 12000036 Ring, Klip

21 73350600 Nut, Hex, Jam 3/8-16

22 161806 Pulley, Idler

23 175377 Arm, Idler

24 74760620 Bolt, Hex Head 3/8-16 x 1-1/4

25 106968X Shaft, Idler Arm

26 73350500 Nut, Hex, Jam 5/16-18

27 73220400 Nut, Hex 1/4-20

28 10040400 Washer, Lock, HH Spring 1/4

29 109227X Pad, Idler

30 23200404 Set Screw, Headless, C.P.

1/4-20 x 1/4

31 101189L Sheave, Engine

32 151223 Pulley, V-Groove, Transmission

41 180307 Spring

42 138909 Spacer

NOTE: All component dimensions are given in U.S.

inches. 1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

1 180377 Bracket Assembly, Belt Guard

2 9484R Clip, Cable

3 86777 Screw, Hex Washer Head, Slotted,

Thread Cutting #10-24 x 1/2

4 74610812 Bolt, Hex Head 1/2-20 x 3/4

5 73680600 Locknut, Hex 3/8-16

6 19131316 Washer 13/32 x 13/16 x 16 Gauge

7 2009J Pulley, Idler, Reverse

8 180323 Reverse Idler Arm Assembly

9 74760628 Bolt, Hex Head 3/8-16 x 1-3/4

10 194630X428 Guard, Belt

11 19091016 Washer 9/32 x 5/8 x 16 Gauge

12 104213X Nut, Hex, Cap 1/4-20

13 72140406 Bolt, Carriage 1/4-20 x 3/4

14 133035 V-Belt (Forward Motion)

15 2614J V-Belt (Reverse)

16 12000028 Ring, Retainer

17 2649M Key, Square

18 151236 Pulley, Flat, Transmission

41 1

542

678

30 29

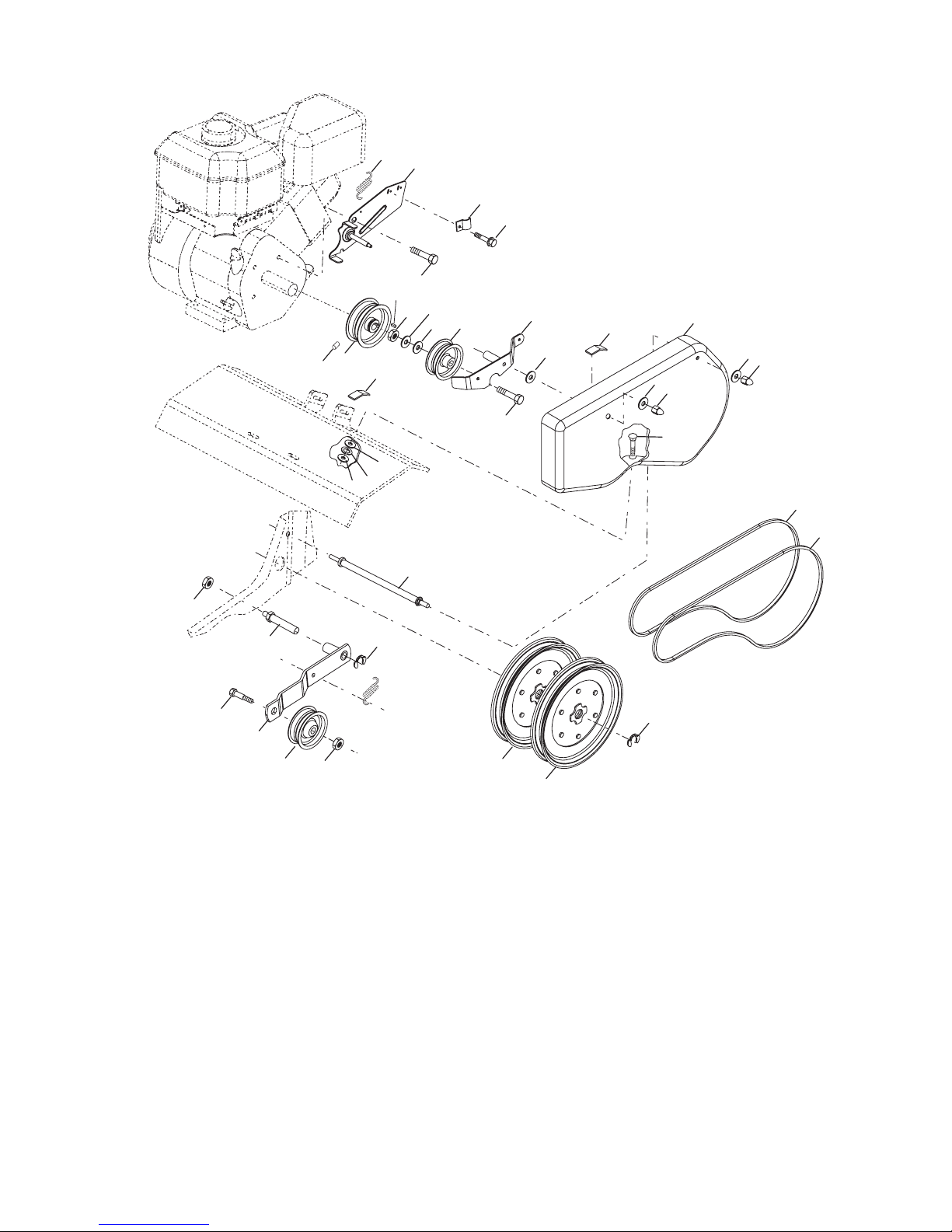

FRONT TINE TILLER – MODEL NUMBER FT825 (MFG. ID. NO. 96082000700)

BELT GUARD AND PULLEY ASSEMBLY

1 9194R Pin, Clevis

2 74760520 Bolt, Hex Head 5/16-18 x 1-1/4

3 74760512 Bolt, Hex Head 5/16-18 x 3/4

4 73220500 Nut, Hex 5/16-18

5 10040500 Washer, Lock 5/16

6 73800600 Locknut, Washer Insert 3/8-16

7 4921H Clip, Hairpin

8 1952J Support, Depth Stake, R.H.

9 122233X Stake, Depth

10 326J Pin, Clevis

11 74780628 Bolt, Hex Head 3/8-16 x 1-3/4

13 1951J Support, Depth Stake, L.H.

KEY PART

NO. NO. DESCRIPTION

15 5388J Spring, Stake

16 121117X Bolt, Shoulder

17 9188R Wheel

18 19131311 Washer 13/32 x 13/16 x 11 Gauge

19 9190R Bracket, Wheel

20 73680600 Nut, Hex, Crownlock 3/8-16

21 74760516 Bolt, Hex Head 5/16-18 x 1

22 73800500 Locknut, Washer Insert 5/16-18

24 73970500 Nut, Hex, Flangelock

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

FRONT TINE TILLER – MODEL NUMBER FT825 (MFG. ID. NO. 96082000700)

WHEEL AND DEPTH STAKE ASSEMBLY

FRONT TINE TILLER – MODEL NUMBER FT825 (MFG. ID. NO. 96082000700)

TINE ASSEMBLY

KEY PART

NO. NO. DESCRIPTION

1 156934 Tine, Outer, R.H.

2 3146R Retainer, Spring

3 156932 Tine, Inner, R.H.

4 156931 Tine, Inner, L.H.

5 156933 Tine, Outer, L.H.

6 4929H Pin, Clevis

FRONT TINE TILLER – MODEL NUMBER FT825 (MFG. ID. NO. 96082000700)

TRANSMISSION

KEY PART

NO. NO. DESCRIPTION

14 9173R Spacer, Split

16 19091412 Washer 9/32 x 7/8 x 12 Gauge

17 19092016 Washer 9/32 x 1-1/4 x 16 Gauge

18 10040400 Washer, Lock 1/4

19 74610412 Bolt, Hex Head, Grade 5

1/4-28 x 3/4

20 - - - Engine, Briggs & Stratton, Model

Number 126302 (Order parts from

engine manufacturer)

NOTE: All component dimensions given in U.S. inches.

1 inch = 25.4 mm

KEY PART

NO. NO. DESCRIPTION

1 74760524 Bolt, Hex Head, Grade 2

5/16-18 x 1-1/2

2 74780652 Bolt, Hex Head 3/8-16 x 3-1/4

3 19131311 Washer 13/32 x 13/16 x 11

5 73900600 Nut, Hex, Flangelock 3/8-16

6 9057R428 Shield, Tine

7 188195 Bracket, Engine, R.H.

8 165834 Bracket, Engine, L.H.

10 73970500 Nut, Hex, Flangelock

11 187912 Bolt, Shoulder

12 151222 Transmission

FRONT TINE TILLER – MODEL NUMBER FT825 (MFG. ID. NO. 96082000700)

DECALS

KEY PART

NO. NO. DESCRIPTION

1 157377 Decal, Poulan

2 413218 Decal, Poulan, 825 Series / 26"

3 157378 Decal, Forward and Reverse

4 121753X Decal, Reverse, Tine Control

5 110614 Decal, Hand Placement

6 409138 Decal, Engine

7 409137 Decal, OHV, I/C

8 162384 Decal, Warning

9 157381 Decal, Heavy Duty

10 411816 Decal, Rewind Starter

11 120076X Decal, Warning, Rotating Tines

- - 413288 Manual, Operator’s, English / French

- - 413157 Manual, Repair Parts

This product has been expertly engineered and carefully manufactured to rigid quality standards. As with all

mechanical products, some adjustments or part replacement may be necessary during the life of your unit.

For Parts and service, contact our authorized distributor: call 1-800-849-1297

• For replacement parts, have available the following information:

a. Model Number/Manufacturer's I.D. Number

b. Description of part.

For Technical Assistance: call 1-800-829-5886

For a Parts Manual, go to our website: www.poulan.com/support.asp

NOTE: HOP provides parts and service through its authorized distributors and dealers; therefore,

all requests for parts and service should be directed to your local dealer(s). The philosophy

of HOP is to continually improve all of its products. If the operating characteristics or the

appearance of your product differs from those described in this Manual, please contact your

local dealer for updated information and assistance.

PARTS AND SERVICE
